Step Elevator AS380 Integrated Drive 4T0011 4T007P5 With Main Board

Details for Step Elevator AS380 Intergrated Drive 4T0011 4T007P5 With Main Board

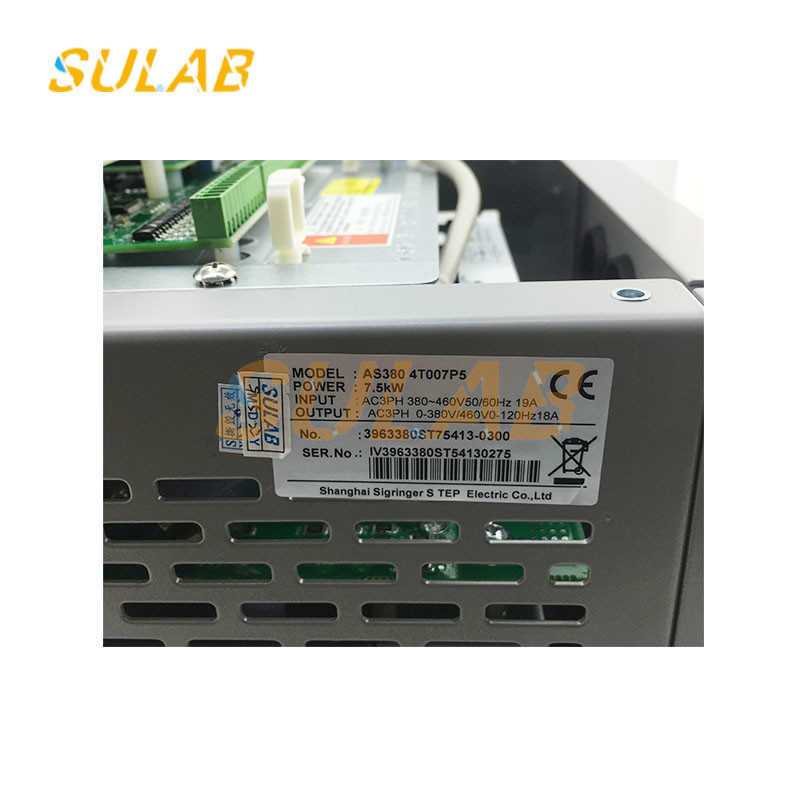

Pictures for Step Elevator AS380 Intergrated Drive 4T0011 4T007P5 With Main Board

The latest Error code for Step AS380 integrated drive,

08 CANBUS communication failure Communication is disturbed Terminal resistance is not short-circuited Communication is interrupted Cannot communicate with car board SM-02 for 4 consecutive seconds, and a fault is reported


10 Dislocation of the upper deceleration switch 1 Check after self-learning or power-on: the action position of the single-story up-deceleration switch is higher than 3/5 of the height position of the top floor The shortest deceleration distance Check during operation: the action position of the single-layer up-deceleration switch is 100mm lower than the position of the single-layer up-deceleration switch in the well learning process. 150mm Check when stopping: The action position of the single-layer up-deceleration switch is 100mm lower than the position of the single-layer up-deceleration switch for hoistway learning. Inspection when stopping: The position is 150mm higher than the position of the single-layer up-deceleration switch for the well-learning, and the single-layer up deceleration switch does not operate Automatic In this state, the up-deceleration switch and the down-deceleration switch act at the same time, and the elevator is not on the top floor
