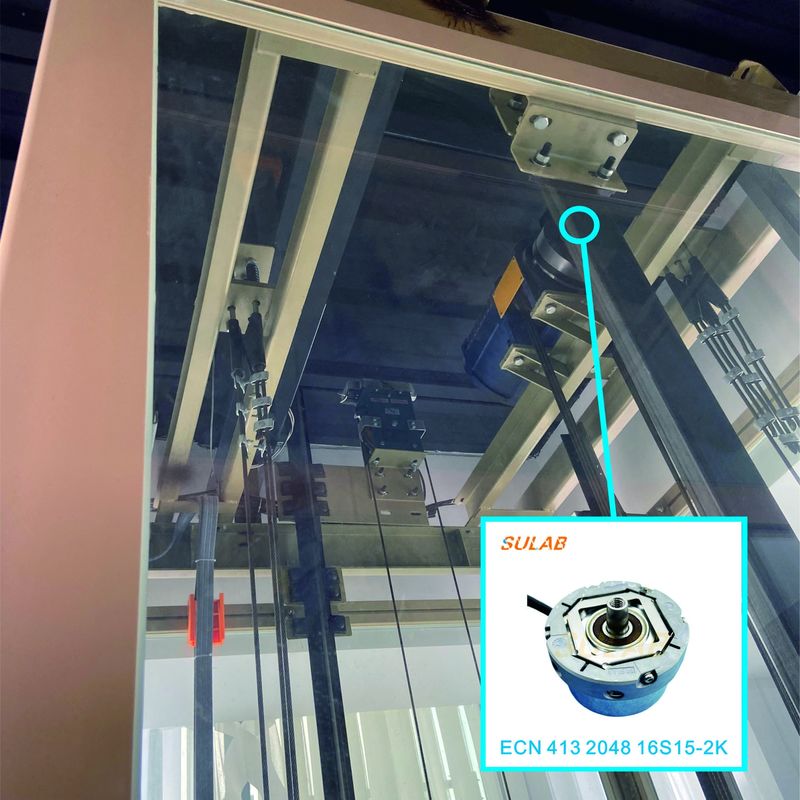

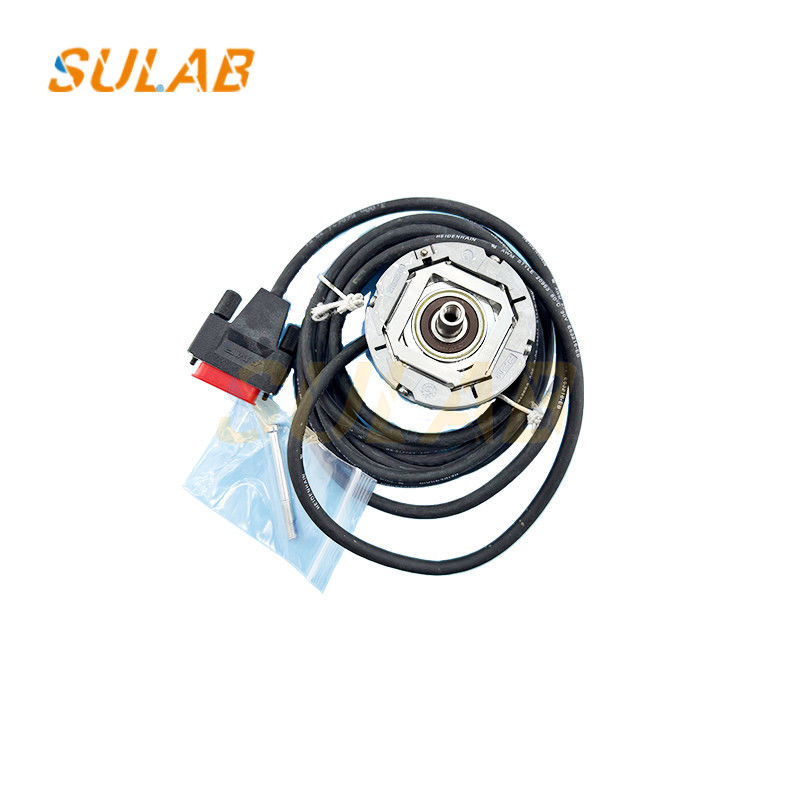

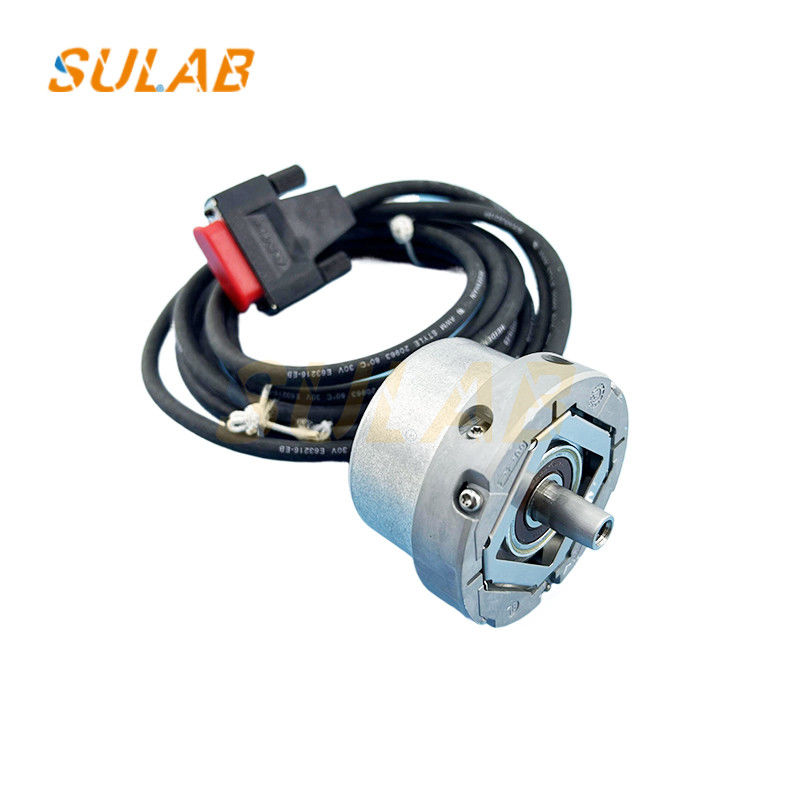

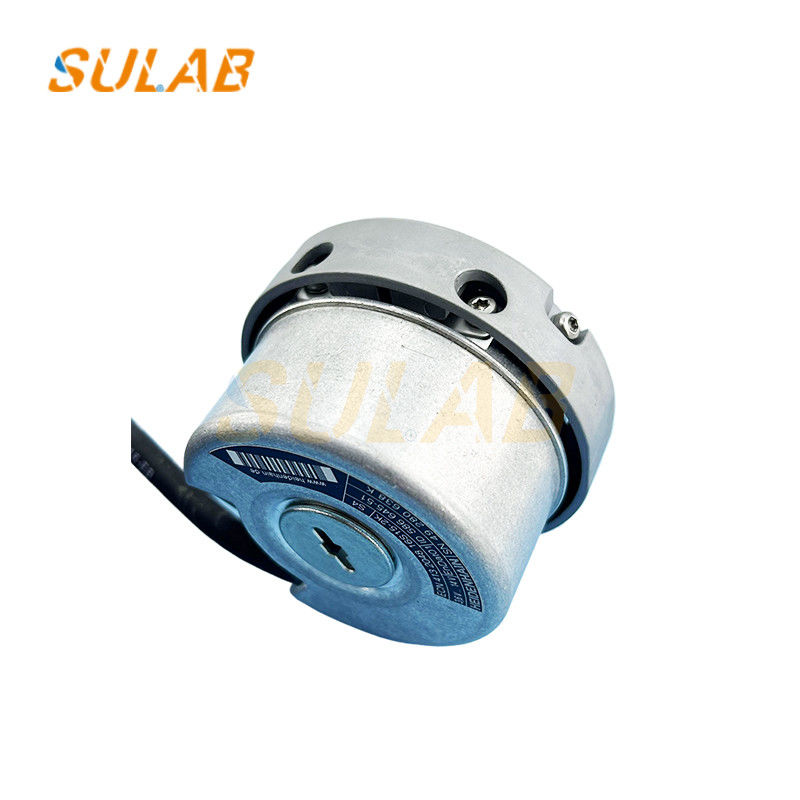

Heidenhain Elevator Encoder ECN 413 with 2048 PPR Resolution IP65 Protection and Hollow Shaft 16S15
Brand Name:
Heidenhain
Model Number:
ECN 413 2048 16S15-2K
Minimum Order Quantity:
1
Delivery Time:
5-8working days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,
Inquiry Now
Get A Quote
Specifications
Highlight Features
Heidenhain Elevator Encoder
,16S15-2K Elevator Encoder
,2048 Elevator Encoder
Package:
Carton/Wooden Case
Delivrey:
10-18Working Days
Stock:
1000 Pcs Available
Product Type:
Elevator Parts
Payment Way:
Western Union, Bank, Paypal,
Shipping:
Clients' Requestment
Brand:
Sulab
Description:
Elevator Parts
Model:
FB-9B
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Applicable:
Elevator
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description
Elevator Encoder ECN 413 2048 16S15-2K Heidenhain
Key Features & Specifications
Core Functions
- Position & Speed Feedback - Tracks elevator car movement for precise floor leveling
- Incremental Encoder - Delivers 2048 pulses per revolution (PPR) for high resolution
- Elevator-Specific Design - Built to withstand vibrations, temperature changes, and electromagnetic interference (EMI)
Technical Specifications
| Model | ECN 413 (Heidenhain series) |
| Resolution | 2048 PPR (high accuracy for smooth stops) |
| Output Signals | A, B, R (differential signals: HTL or RS-422) |
| Supply Voltage | 5V DC or 10-30V DC (varies by model) |
| Housing Protection | IP65 (dustproof & water-resistant) |
| Shaft Type | Hollow shaft (16mm diameter, 15mm length - 16S15) |
| Max Speed | 12,000 RPM (far exceeding elevator motor speeds) |
| Operating Temperature | -20°C to +85°C |
Safety & Compliance
Meets EN 81-20/50 elevator safety standards. Compatible with Otis, KONE, , ThyssenKrupp, and other major elevator brands.
Common Applications
- Traction elevator motor feedback (for AC/DC motors)
- Machine-room-less (MRL) elevators
- Hydraulic elevator position sensing
- Elevator door control synchronization
Troubleshooting & Replacement
Common Issues
Elevator jerks or stops inaccurately
Encoder signal loss or misalignment
Encoder signal loss or misalignment
Error codes (e.g., "Encoder Fault")
Check wiring or replace encoder
Check wiring or replace encoder
No signal output
Verify power supply & connections
Verify power supply & connections
