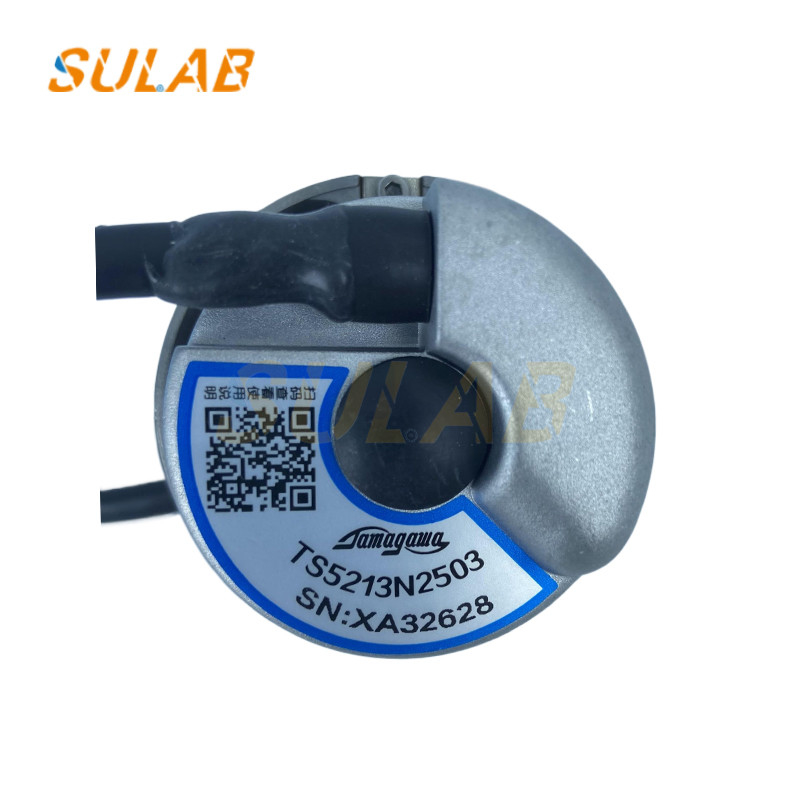

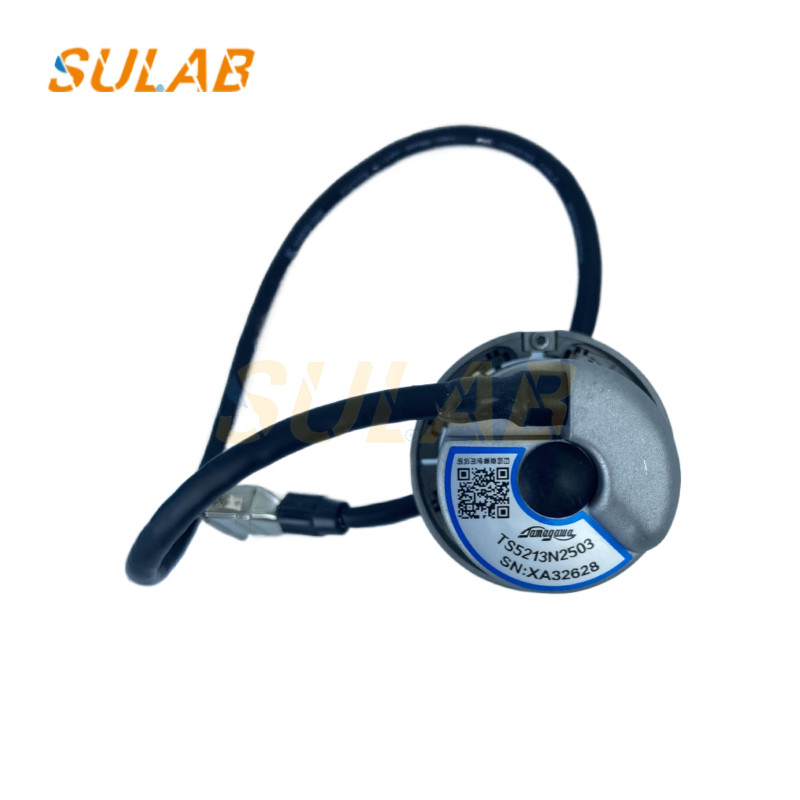

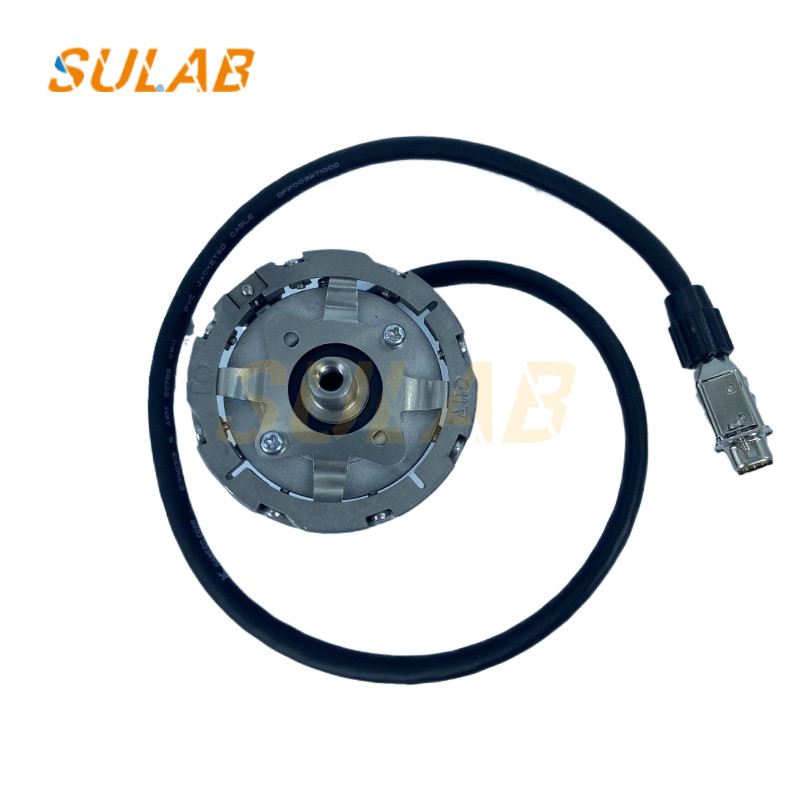

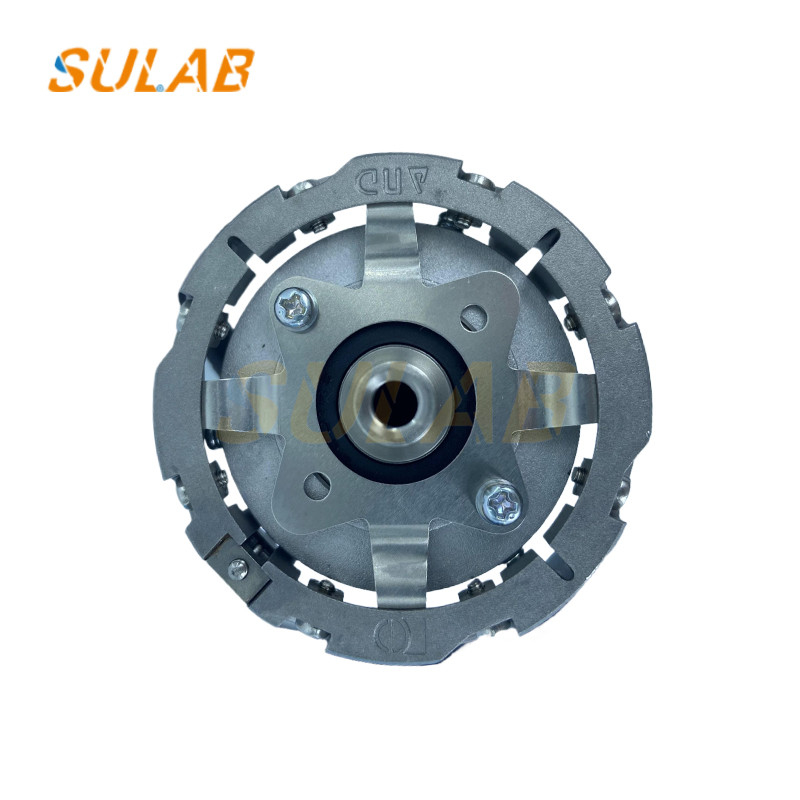

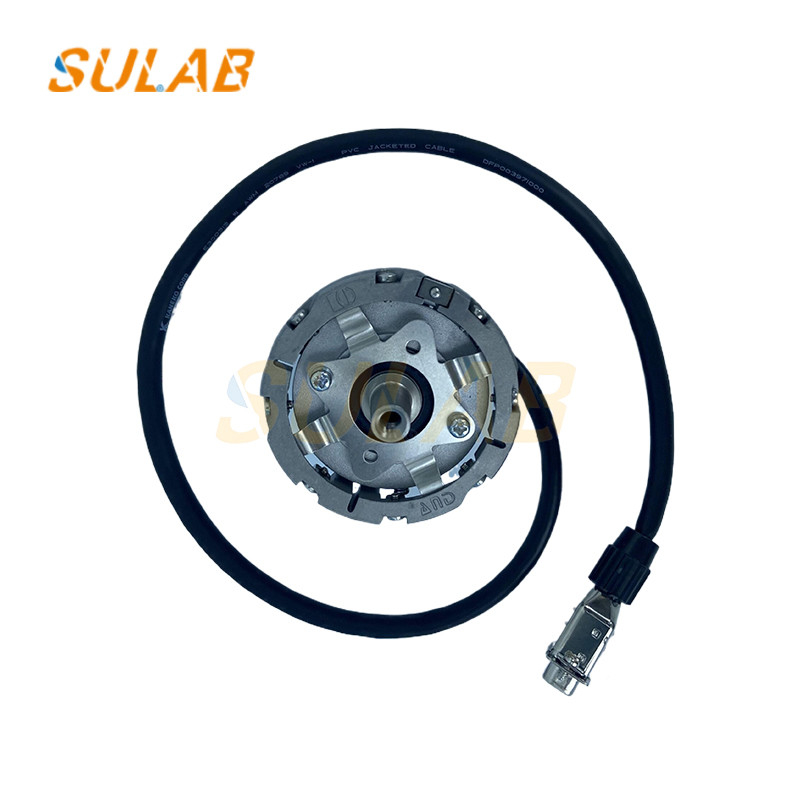

Express Transportation Encoder For Elevators TS5213N2503 Lift Parts And Packages Pallet

Key Specifications & Features

1. Basic Parameters

• Model: TS5213N2503

• Type: Incremental Optical Encoder (Quadrature output)

• Resolution: 2500 PPR (Pulses Per Revolution)

• Output Signals: A, /A, B, /B, Z, /Z (Differential line driver, RS422 compatible)

• Supply Voltage: 5V DC ±5%

• Max. Current Consumption: 120mA

• Max. Speed: 6000 RPM

2. Mechanical Specifications

• Shaft Type: Solid shaft (Standard)

• Shaft Diameter: 6mm (or custom per request)

• Housing Material: Aluminum alloy (lightweight & durable)

• Mounting: Flange-mounted (servo flange type)

• Protection Class: IP65 (Dustproof & water-resistant)

• Operating Temperature: -10°C to +70°C

• Vibration Resistance: 50 m/s² (10-2000 Hz)

• Shock Resistance: 500 m/s² (11ms duration)

3. Electrical Interface

• Output Circuit: Differential line driver (RS422)

• Cable Length: Standard 2m (shielded cable)

• Connector Options: Direct cable or aviation plug (optional)

Applications in Elevator Systems

✔ Traction motor feedback (for precise speed control)
✔ Gearless permanent magnet motor (PMSM) encoders
✔ Elevator door positioning & synchronization
✔ Hoisting mechanism & counterweight monitoring
✔ Machine Room-Less (MRL) elevator systems

Why Choose Tamagawa TS5213N2503?

✅ High Reliability – Tamagawa’s optical sensing technology ensures long-term stability.
✅ Low Maintenance – Sealed design (IP65) resists dust & moisture.
✅ Smooth Elevator Operation – High resolution (2500 PPR) enables precise floor alignment.
✅ Compatibility – Works with OTIS, KONE, Mitsubishi, Schindler, ThyssenKrupp elevator drives.
✅ Safety Compliance – Meets EN 81-20/50 elevator safety standards.

Certifications & Standards

• CE, RoHS compliant

• ISO 9001 (Quality Management System)

• Compatible with major elevator drive systems (Sinamics, Yaskawa, etc.)

Ordering & Packaging

• Standard packaging: Anti-static sealed bag + protective box

• MOQ: 1 piece (sample available)

• Lead Time: Typically 2-4 weeks (depending on stock)

Support & Warranty

• 1-year warranty (manufacturer defect coverage)

• Technical support for installation & troubleshooting
