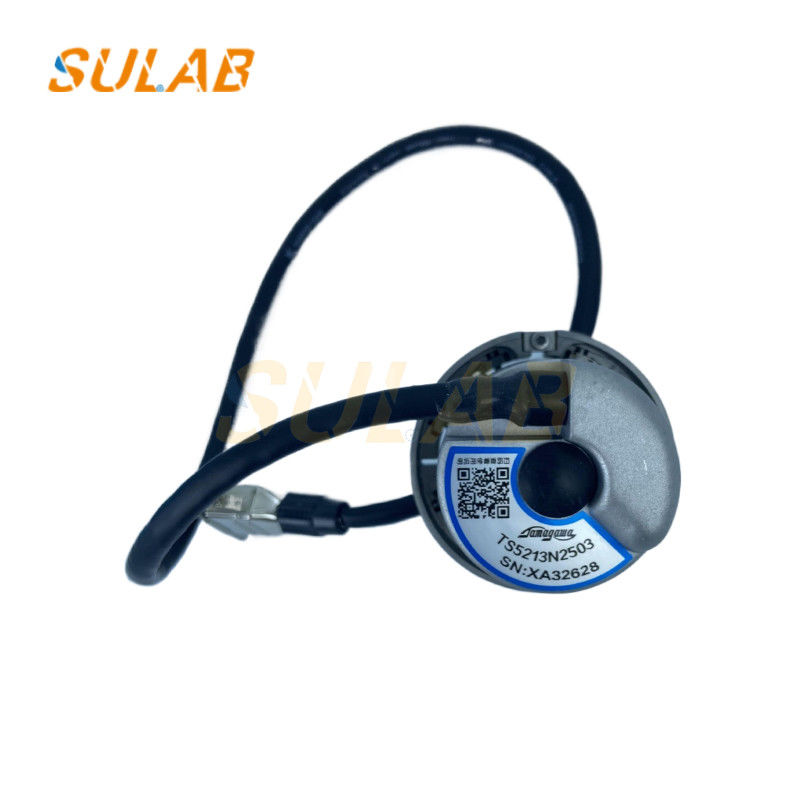

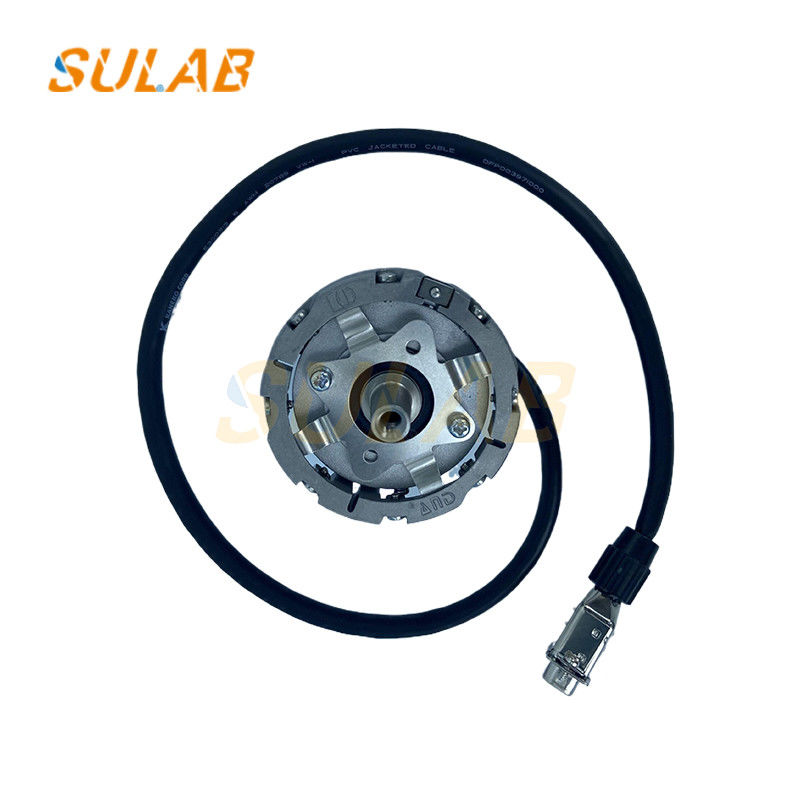

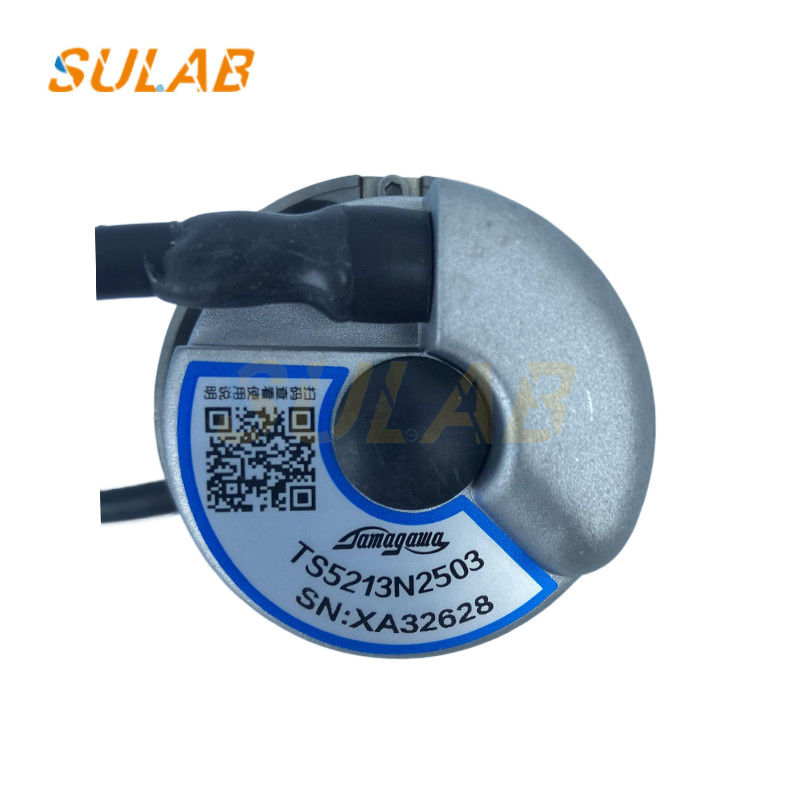

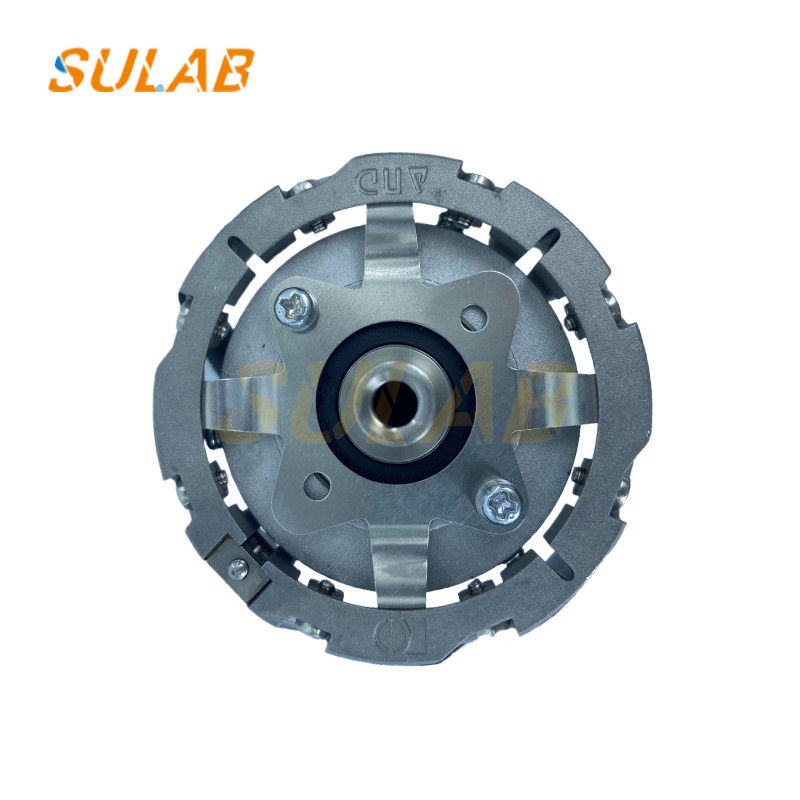

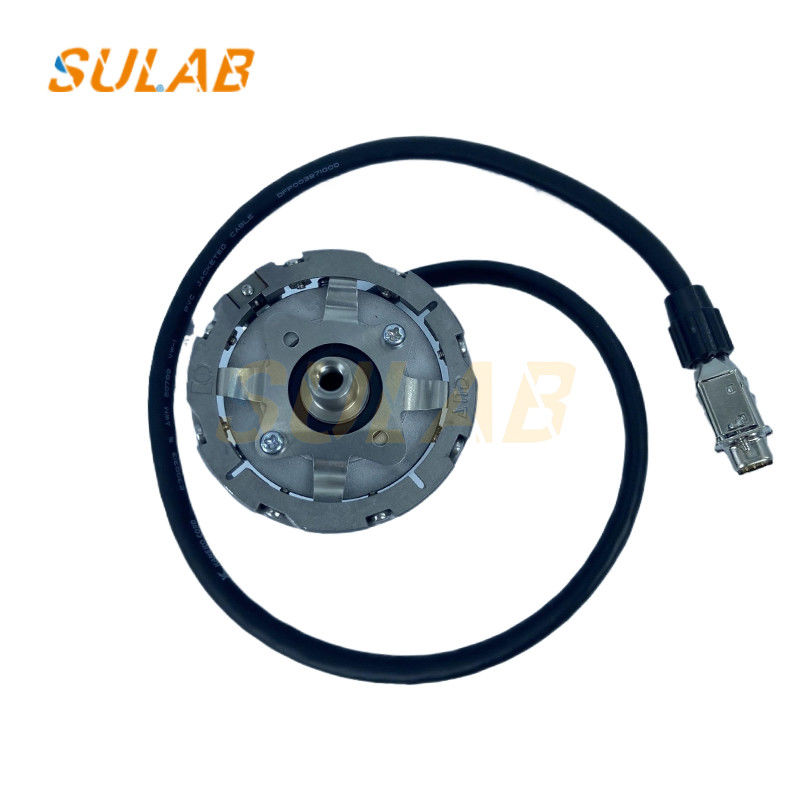

High Resolution 2500 PPR IP65 RS422 Optical Encoder for Elevators TS5213N2503
-
Highlight
Lift Parts Express Transportation Encoder
,Pallet Express Transportation Encoder
,TS5213N2503 Express Transportation Encoder
-
UsedElevator Parts
-
PaymentT/T, Western Union, MoneyGram,paypal
-
PackagesCarton, Wooden Case, Pallet Etc
-
WarrantyOne Year
-
TransportationSea Express Air Etc Transportation
-
BrandSulab
-
DescriptionElevator Parts
-
ModelFB-9B
-
MOQ1PC
-
TransportionTNT, UPS, DHL, Fedex, Air, Sea
-
ApplicableElevator
-
Delivery TimeNormally 2-3 Working Days After Payment
-
Payment MethodCompany Bank, Western Union, Alibaba, Paypal Etc
-
Brand NameTAMAGAWA
-
Model NumberTS5213N2503
-
Minimum Order Quantity1
-
Delivery Time5-8working days
-
Payment TermsL/C,D/A,D/P,T/T,Western Union,MoneyGram
High Resolution 2500 PPR IP65 RS422 Optical Encoder for Elevators TS5213N2503
Express Transportation Encoder For Elevators TS5213N2503
High-performance incremental optical encoder designed specifically for elevator systems and lift applications.
Key Specifications & Features
Basic Parameters
Model:
TS5213N2503
Type:
Incremental Optical Encoder (Quadrature output)
Resolution:
2500 PPR (Pulses Per Revolution)
Output Signals:
A, /A, B, /B, Z, /Z (Differential line driver, RS422 compatible)
Supply Voltage:
5V DC ±5%
Max. Current Consumption:
120mA
Max. Speed:
6000 RPM
Mechanical Specifications
Shaft Type:
Solid shaft (Standard)
Shaft Diameter:
6mm (or custom per request)
Housing Material:
Aluminum alloy (lightweight & durable)
Mounting:
Flange-mounted (servo flange type)
Protection Class:
IP65 (Dustproof & water-resistant)
Operating Temperature:
-10 °C to +70°C
Vibration Resistance:
50 m/s² (10-2000 Hz)
Shock Resistance:
500 m/s² (11ms duration)
Electrical Interface
Output Circuit:
Differential line driver (RS422)
Cable Length:
Standard 2m (shielded cable)
Connector Options:
Direct cable or aviation plug (optional)
Applications in Elevator Systems
- Traction motor feedback for precise speed control
- Gearless permanent magnet motor (PMSM) encoders
- Elevator door positioning and synchronization
- Hoisting mechanism and counterweight monitoring
- Machine Room-Less (MRL) elevator systems
Why Choose Tamagawa TS5213N2503?
High Reliability - Tamagawa's optical sensing technology ensures long-term stability.
Low Maintenance - Sealed design (IP65) resists dust and moisture.
Smooth Elevator Operation - High resolution (2500 PPR) enables precise floor alignment.
Compatibility - Works with OTIS, KONE, Mitsubishi, Sc, ThyssenKrupp elevator drives.
Safety Compliance - Meets EN 81-20/50 elevator safety standards.
Certifications & Standards
CE, RoHS compliant
ISO 9001 (Quality Management System)
Compatible with major elevator drive systems (Sinamics, Yaskawa, etc.)
Ordering & Packaging
Standard packaging:
Anti-static sealed bag + protective box
MOQ:
1 piece (sample available)
Lead Time:
Typically 2-4 weeks (depending on stock)
Support & Warranty
1-year warranty - Manufacturer defect coverage
Technical support - Installation and troubleshooting assistance
