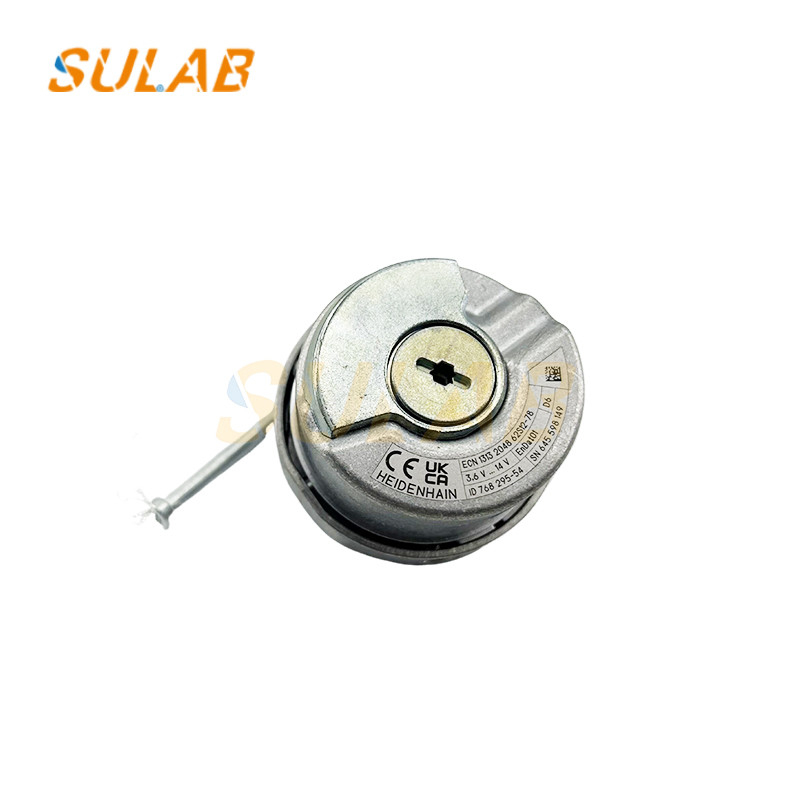

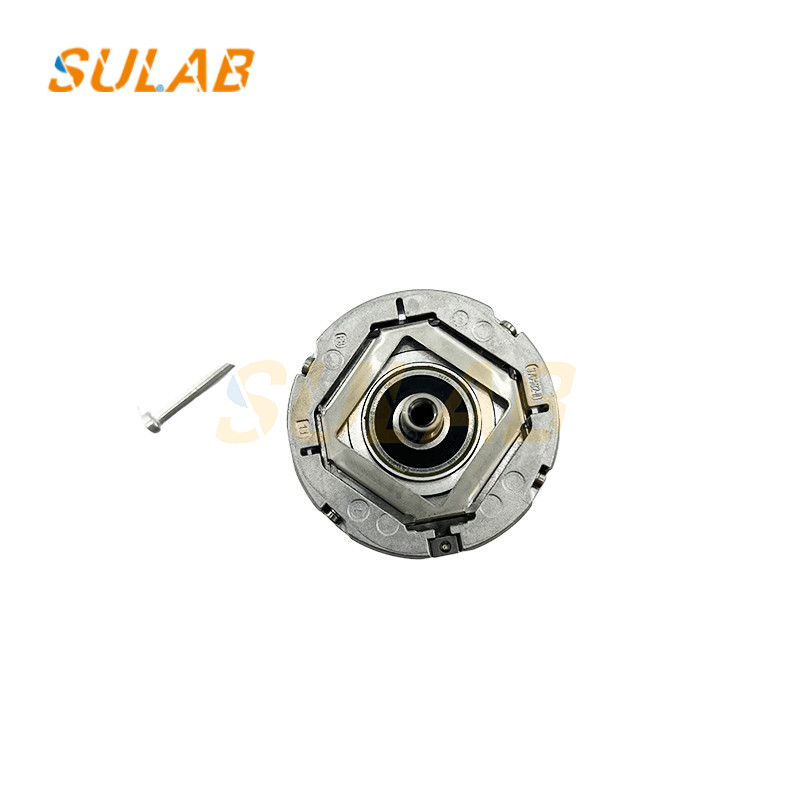

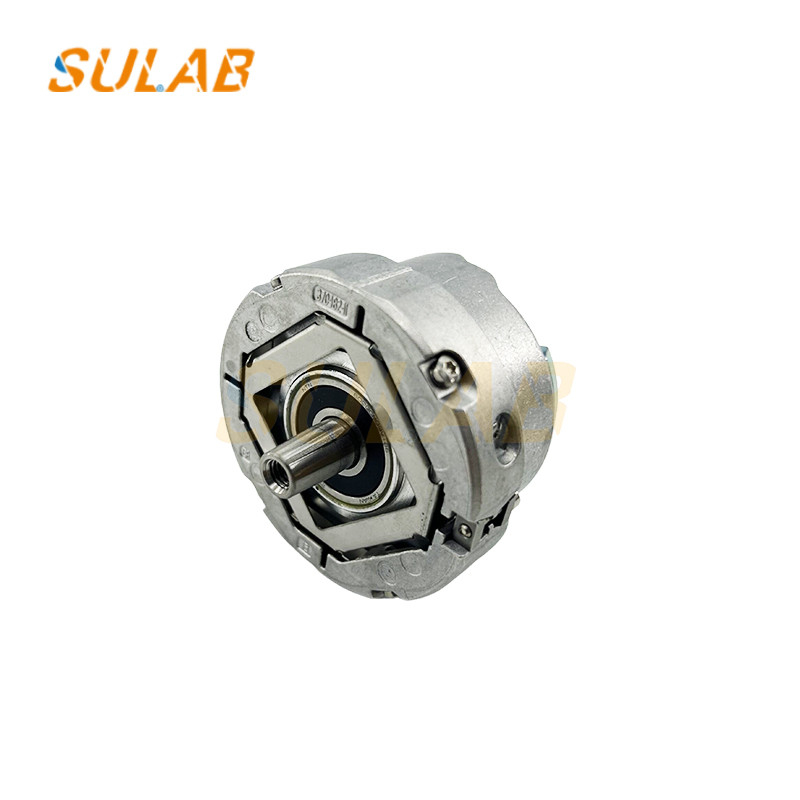

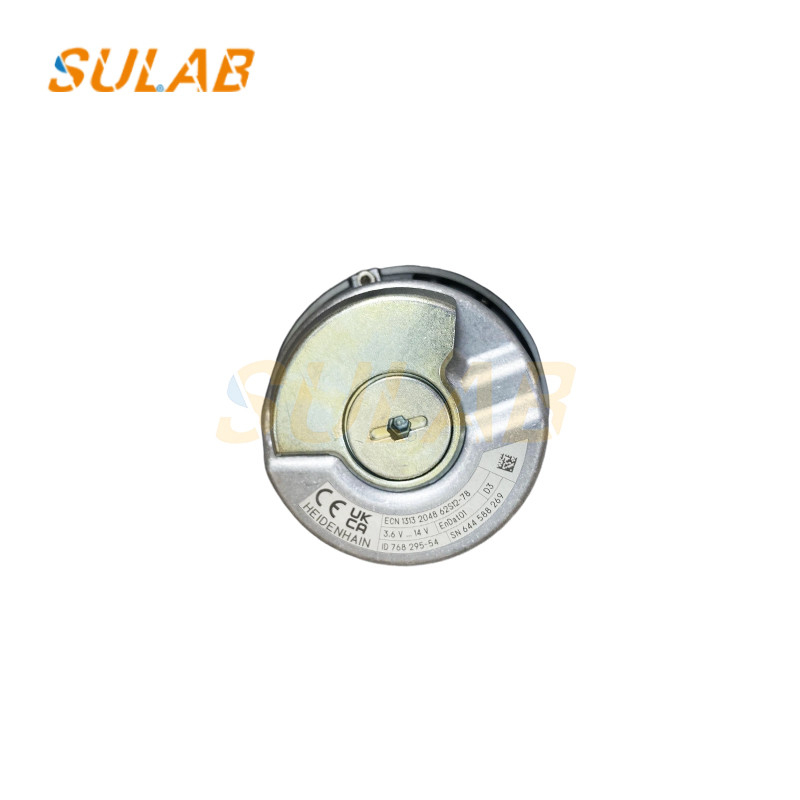

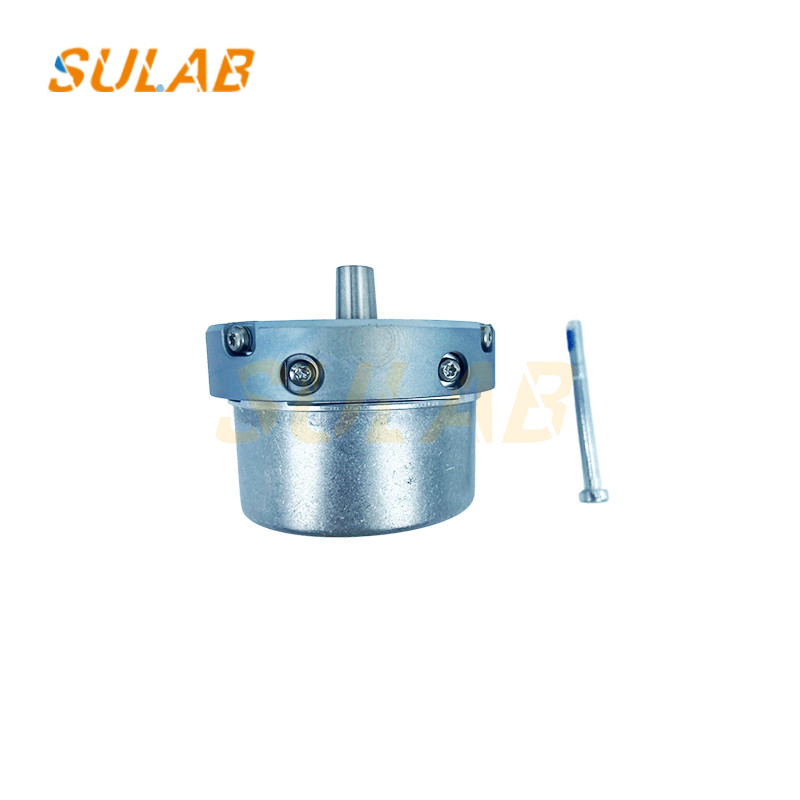

Elevator Rotary Synchronous Host Brand New Genuine Host Encoder ECN 1313 2048 62S12-78

Elevator Rotary Synchronous Host Brand New Genuine Host Encoder ECN 1313 2048 62S12-78

Function:
Position detection: Accurately measure the rotation angle and position of the elevator host, and then obtain the specific position information of the elevator car in the shaft in real time. For example, by counting and processing the encoder pulses, the system can accurately know which floor the elevator car is on and how far it is from the target floor, providing basic data for the elevator's level parking and floor display.
Speed ​​feedback: Convert the speed information of the elevator host into an electrical signal and feed it back to the control system. The control system monitors the running speed of the elevator in real time based on this feedback signal to ensure that the elevator runs according to the set speed curve. When the actual speed deviates from the set speed, the control system can make timely adjustments to ensure the smoothness and safety of the elevator operation. For example, during the acceleration or deceleration of the elevator, the encoder can feedback the speed change in real time, allowing the system to accurately control the motor output and achieve a smooth speed transition.
Running direction judgment: It can identify the rotation direction of the elevator host, so as to determine whether the elevator is running up or down. This information is crucial for the elevator control system to make correct logical judgments and operations. For example, in terms of floor door control and call signal processing, the system needs to respond accordingly according to the running direction of the elevator.

Installation steps
Cleaning the installation part: Use a clean fine cloth to wipe the tapered shaft of the encoder and the tapered hole of the installation spindle to remove oil, dust and impurities, etc., to ensure the cleanliness of the taper mating surface.
Installing the encoder body: Insert the tapered shaft of the encoder into the tapered hole of the shaft so that the two are tightly combined, and then use bolts of corresponding specifications (such as M5×50) to connect the encoder to the shaft. The tightening torque is generally 5Nm.
Adjustment and fixing: Gently turn the encoder to check whether it rotates flexibly. If it does not rotate flexibly, check whether the bolts are installed skewed. After confirmation, tighten the tension bolts of the encoder. The tightening torque is generally 0.65Nm.
Installing the encoder short line: Install the encoder short line according to the method shown in the figure. When inserting, be sure to align the pins and insert them step by step. Do not use excessive force to deform the pins, and then install the encoder back cover.
Connecting the encoder long line: Connect the DB15 male head of the encoder long line to the DB15 female head of the short line, and tighten the screws on the DB15 male head of the long line.
