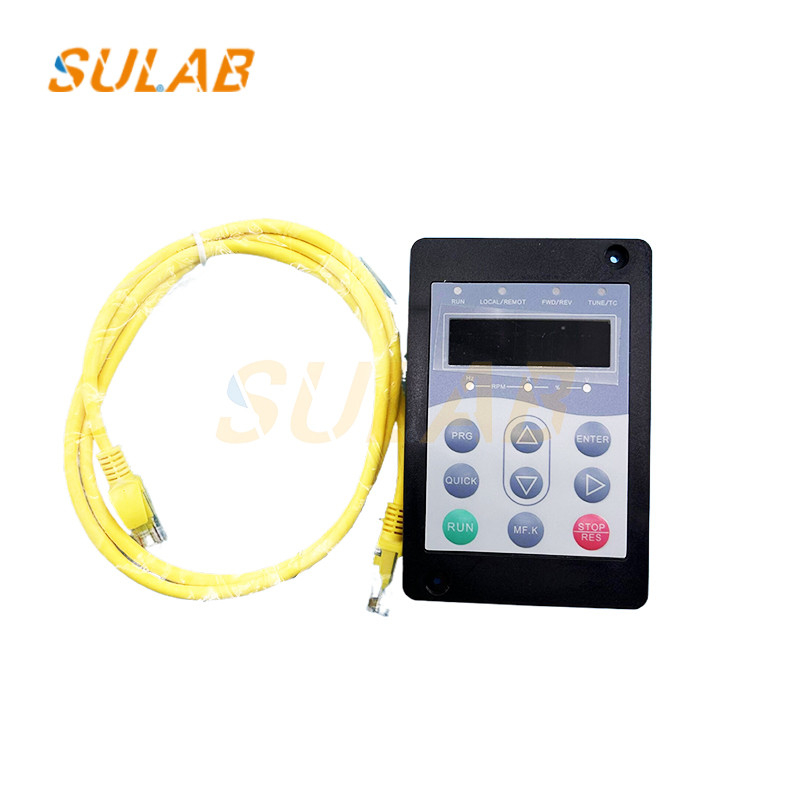

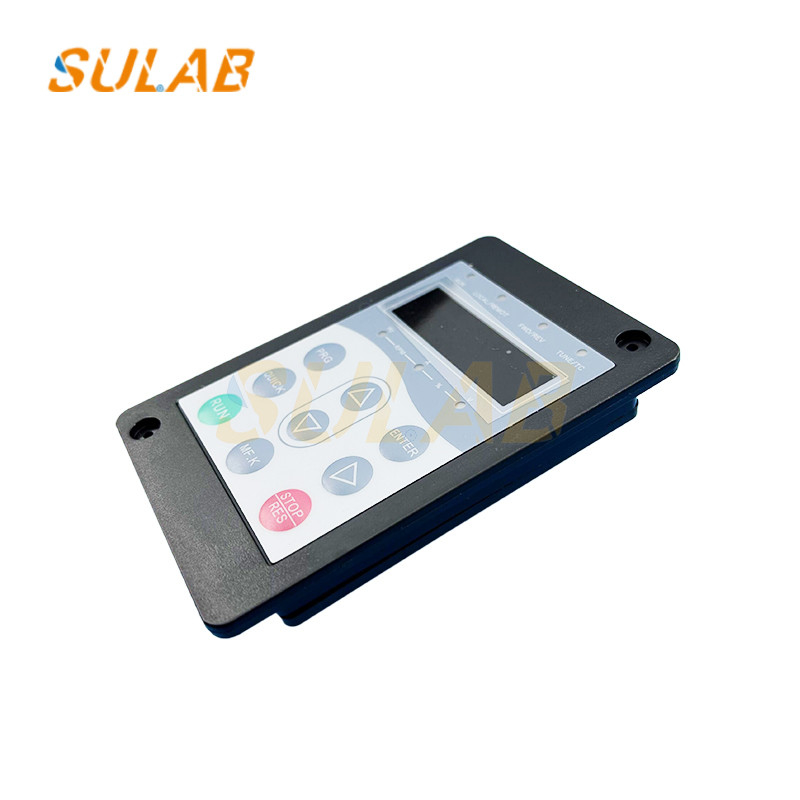

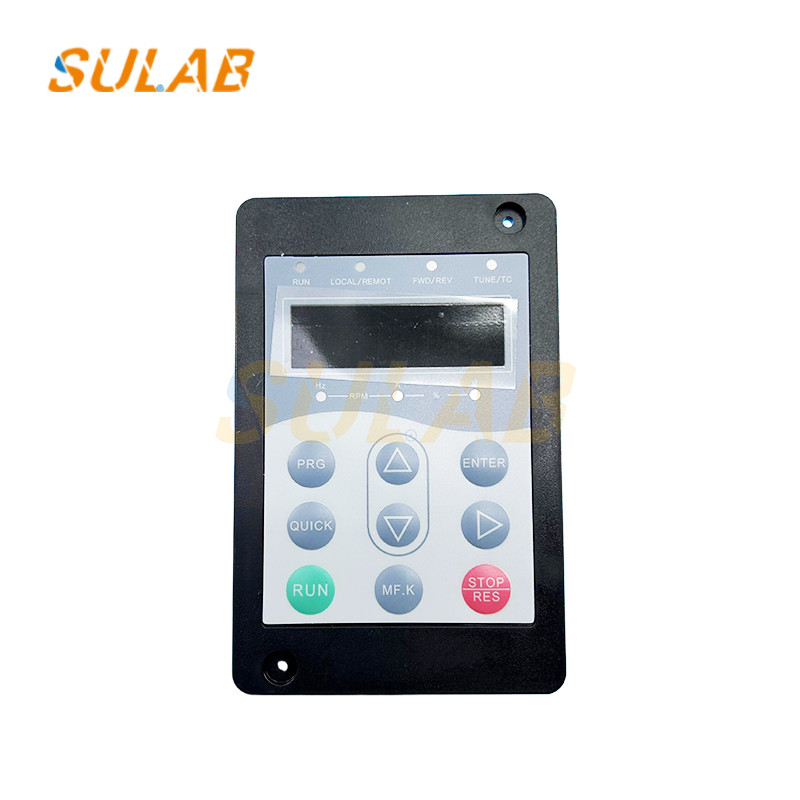

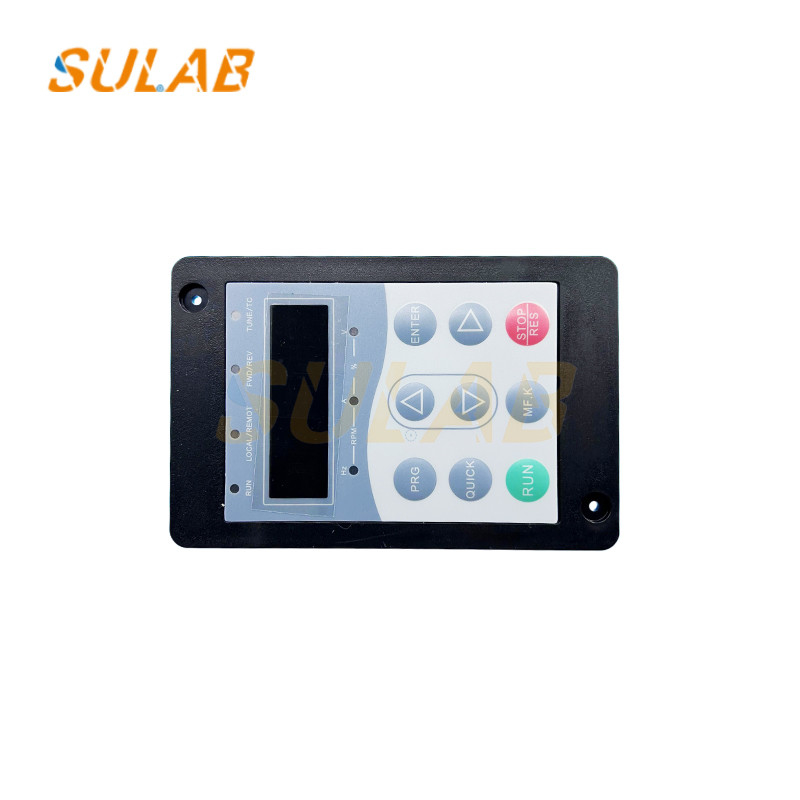

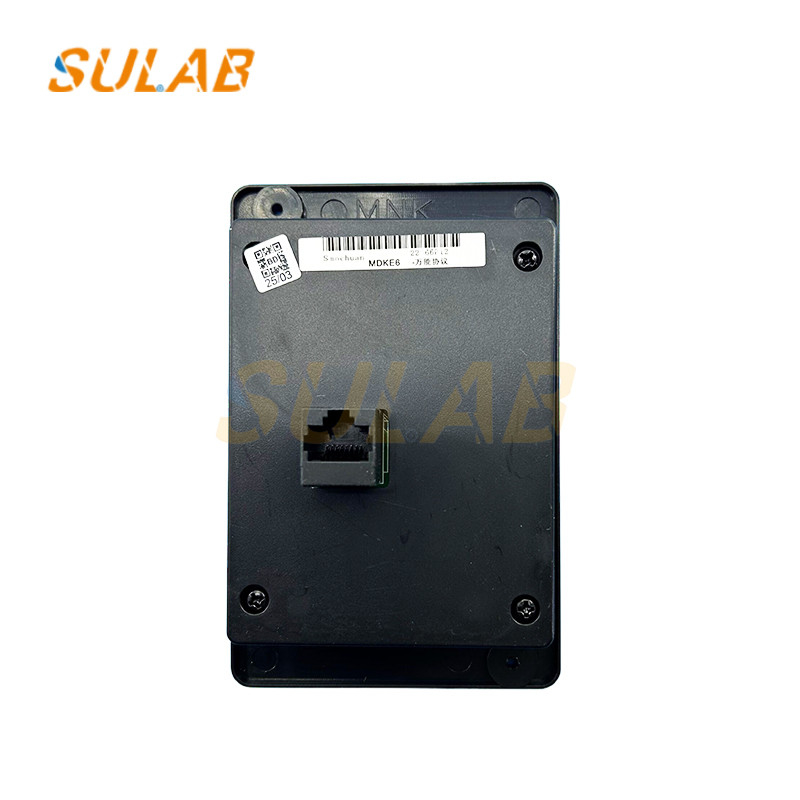

MDKE6 is a universal protocol debugger for elevators, mainly used for the debugging and parameter setting of elevator systems with the Mennake system. Here is an introduction to it:

• Functional Features:
  • Universal Debugging: It is applicable to various elevator control systems of Mennake 3000 standard and Mennake 3000 + models. It can debug the mainboards of Mennake from different manufacturers and different versions, without being restricted by the version and manufacturer. This saves the trouble of carrying multiple servers during maintenance.
  • Parameter Modification: It can view and modify various parameters of the elevator. By entering the menu mode of the operator itself, function code parameters can be changed. For example, the customer number can be set to match the protocols of different manufacturers. For the Giant KONE 33E elevator, after changing the parameter in the F9 menu of the mainboard's small keypad to 1, the displayed protocol code can be set to the U0 - 01 of the server, thus enabling the debugging.
  • Parameter Copying: It supports the functions of uploading and downloading parameters. When the operator can operate the function codes of the integrated machine normally and the integrated machine is not running, the operations of downloading, uploading, or erasing the parameters saved in the operator can be triggered by setting U0 - 05. This is convenient for copying parameters between different mainboards and improves the debugging efficiency.
• Precautions for Use:
  • Risk of Flashing: If it is necessary to flash the MDKE6 to improve its performance or functions, note that there are certain risks during the flashing process. It is necessary to determine the flashing tool to be used and the latest firmware version suitable for this server model. Back up important data and settings in advance, and follow the correct steps to enter the flashing mode and perform the flashing operation. The power supply should not be disconnected or the operation should not be stopped during the flashing process to avoid damaging the device.
  • Operation Specification: When using the MDKE6 for elevator debugging, it is essential to follow the relevant safety specifications and operation procedures to ensure the safety of the elevator and personnel during the debugging process.
