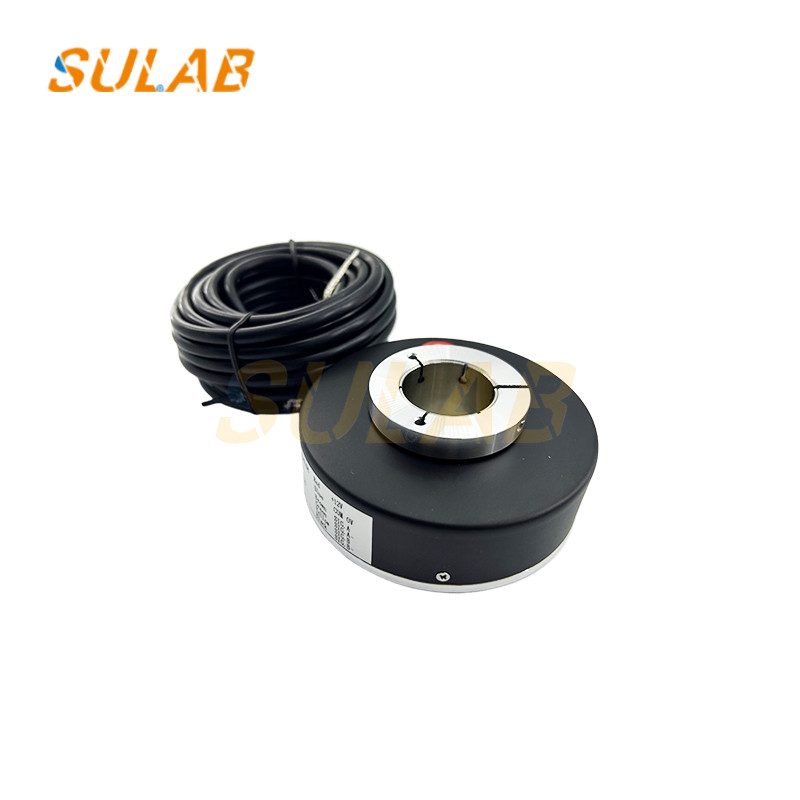

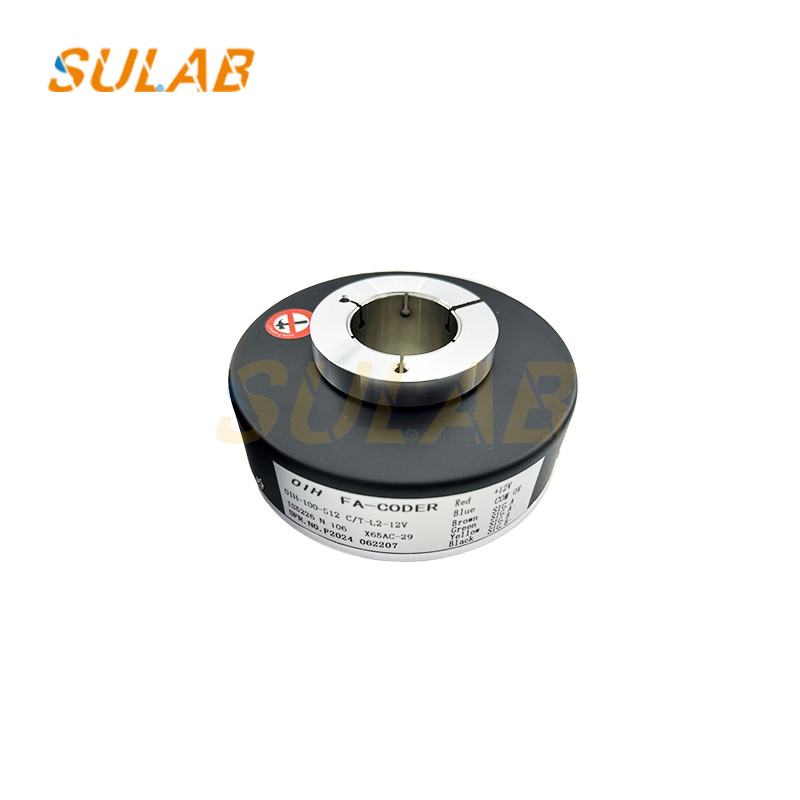

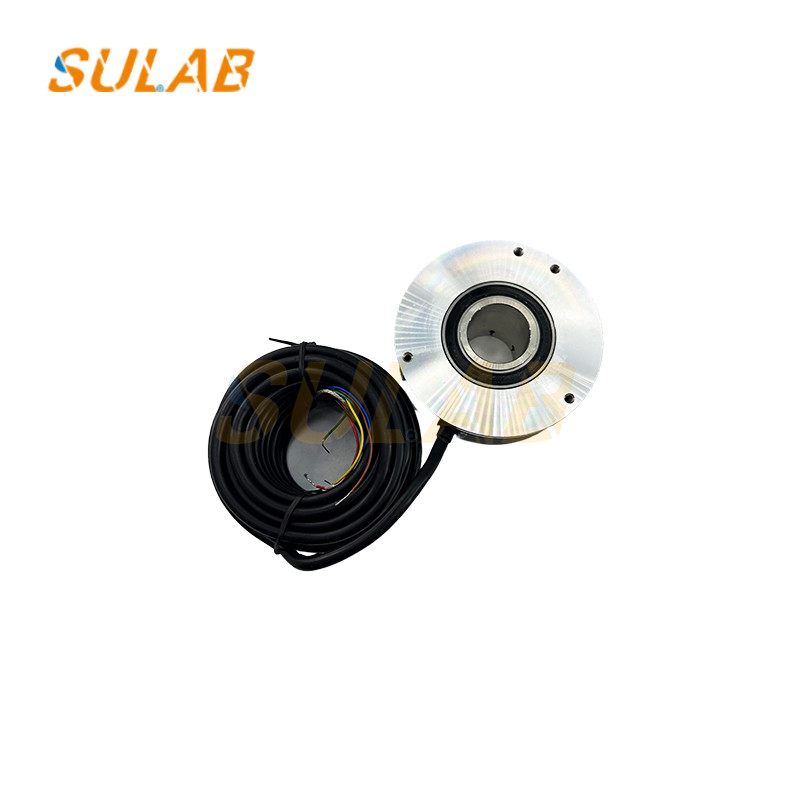

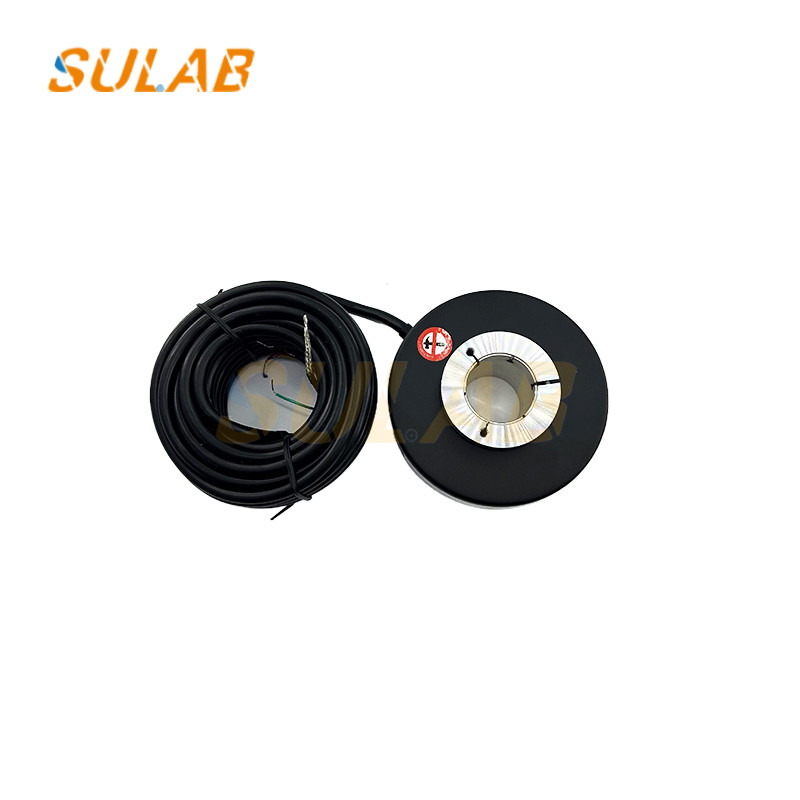

Elevator Encoder OIH-100-512 Elevator Spare Parts
Brand Name:
Sulab
Model Number:
OIH-100-512
Minimum Order Quantity:
1
Delivery Time:
5-8WORKING DAYS
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,
Inquiry Now
Get A Quote
Specifications
Highlight Features
OIH-100-512 Elevator Encoder
,Elevator Spare Parts
,Elevator Spare Parts Encoder
Used:
Elevator Parts
Delivery:
DHL,TNT,FedEx,Air,Sea
Packages:
Carton, Wooden Case, Pallet Etc
Warranty:
One Year
Brand:
Sulab
Description:
Elevator Parts
Model:
FB-9B
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Applicable:
Elevator
Delivery Time:
Normally 2-3 Working Days After Payment
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description
Key Features:
-
Model: OIH-100-512
-
Type: Incremental Rotary Encoder
-
Resolution: 512 pulses per revolution (PPR)
-
Output Signal: Square wave (A, B, and Z phase signals for direction detection and reference position)
-
Supply Voltage: Typically 5V DC or 10-30V DC (depending on variant)
-
Output Type:
-
Open collector
-
Push-pull (HTL)
-
Line driver (RS422/TTL)
-
-
Max. Rotation Speed: 5000 RPM (may vary based on model)
-
Protection Class: IP65 (dustproof and water-resistant)
-
Shaft Type: Solid or hollow shaft (depending on mounting requirements)
-
Housing Material: Robust metal or high-grade plastic for durability
-
Operating Temperature Range: -20°C to +70°C
-
Vibration & Shock Resistance: Designed to withstand harsh elevator environments
Applications:
-
Elevator car position detection
-
Speed feedback for elevator motor control
-
Door control synchronization
-
Safety system monitoring
Compliance & Certifications:
-
CE, RoHS compliant
-
Meets elevator safety standards (EN 81-20/50)
Mounting & Installation:
-
Flange or servo-mounting options
-
Compatible with elevator traction machines or gearbox systems
