The Elevator Emergency Stop Switch is a critical component of elevator safety systems, designed to forcefully halt elevator operation in emergency situations, prevent the escalation of accidents, and ensure personnel safety. Below is a detailed introduction

I. Functions and Significance

1. Core Functions
   • Emergency Braking: When pressed, the switch immediately cuts off the elevator's power supply, stopping the car (whether in motion, opening, or closing).
   • Safety Locking: After activation, the switch remains locked and requires manual reset by professionals to prevent unauthorized restart.
   • Fault Response: It can link with the elevator control system to automatically trigger an emergency stop when anomalies (e.g., overspeed, mechanical failures) are detected.
2. Significance
   • Coping with Sudden Dangers: Used in scenarios like car 失控 (car out of control), personnel entrapment, or electrical faults to avoid severe accidents such as falls or shearing.
   • Compliance with Safety Standards: Mandatory in elevator regulations worldwide (e.g., China’s GB 7588, EU’s EN 81 series).

II. Installation Locations and Appearance

1. Common Installation Locations

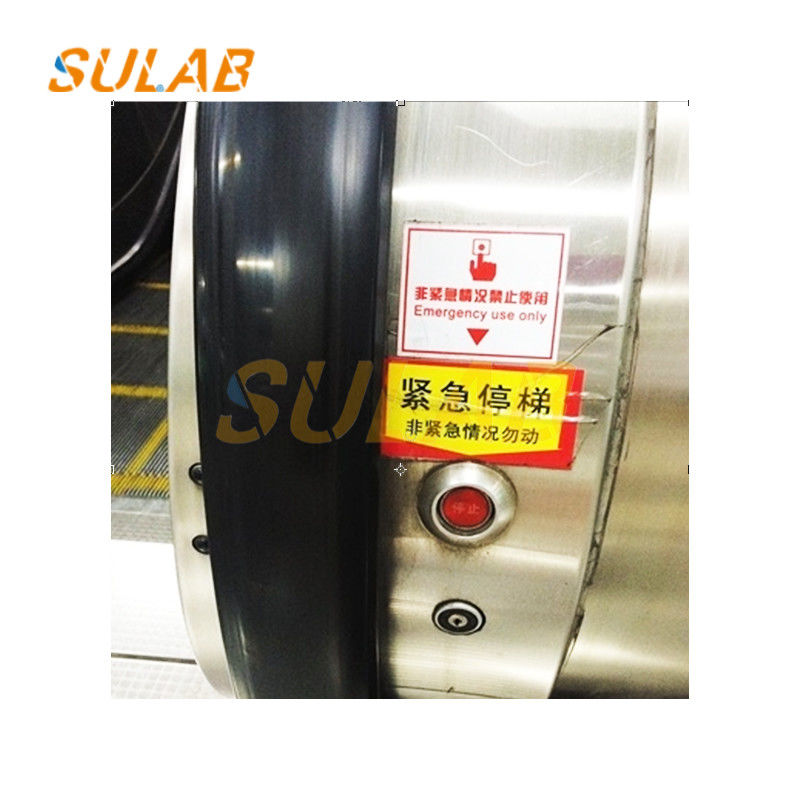

   • Inside the Car:
     • On the operation panel (often alongside "Alarm" and "Intercom" buttons).
     • On the top of the car (for maintenance personnel, e.g., "inspection emergency stop switch").
   • Machine Room: Near the control cabinet or motor for easy access by maintenance staff.
   • Landing Doors/ Hoistway:
     • Near the floor 门槛 (sill) of each landing (e.g., the main landing emergency stop switch).
     • On the hoistway wall (e.g., the pit emergency stop switch for locking the elevator during maintenance).
2. Appearance and Operation
   • Design:

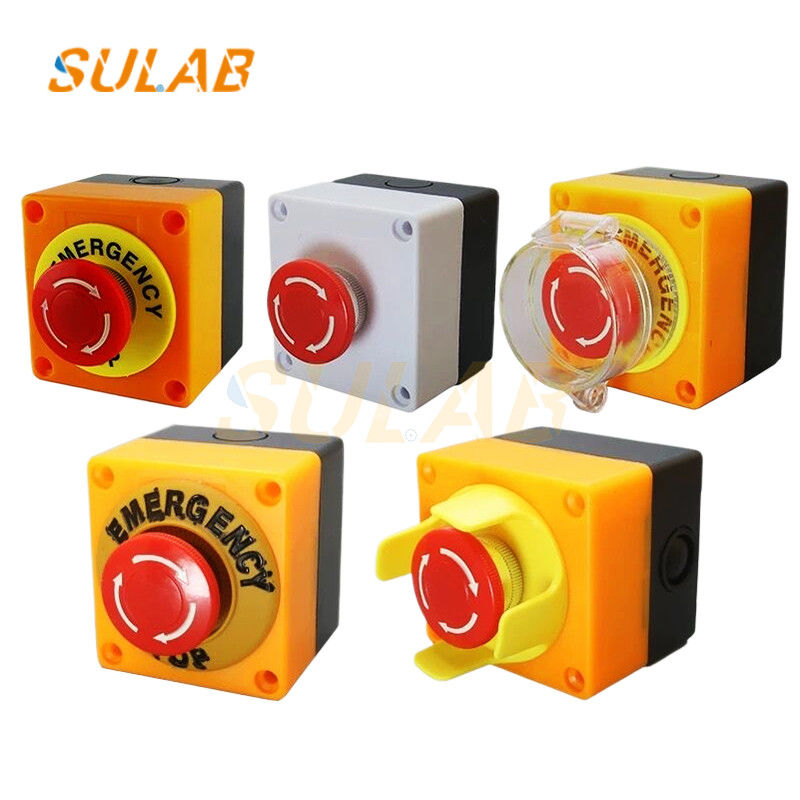

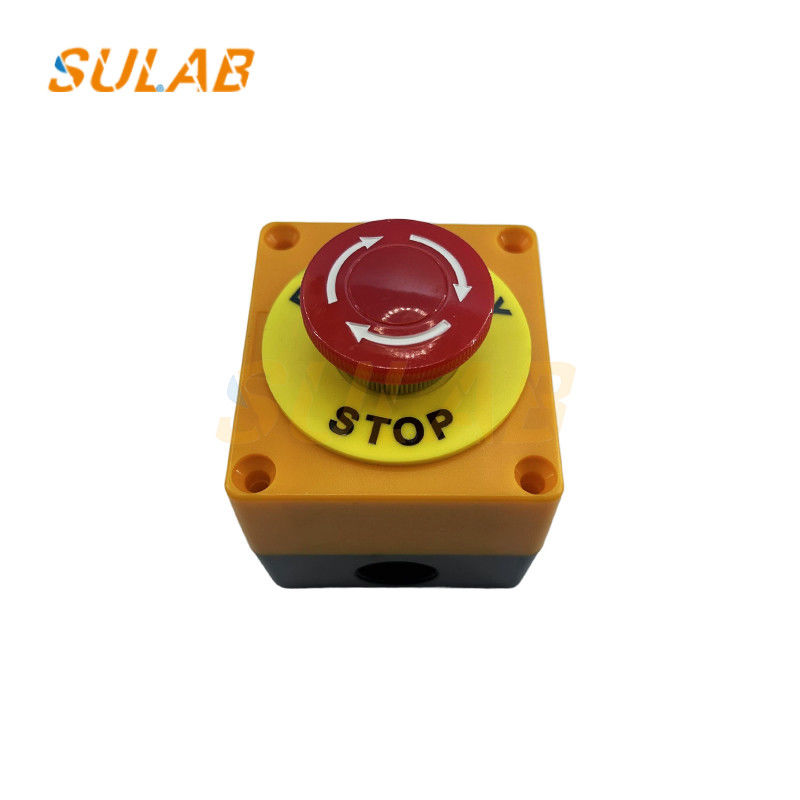

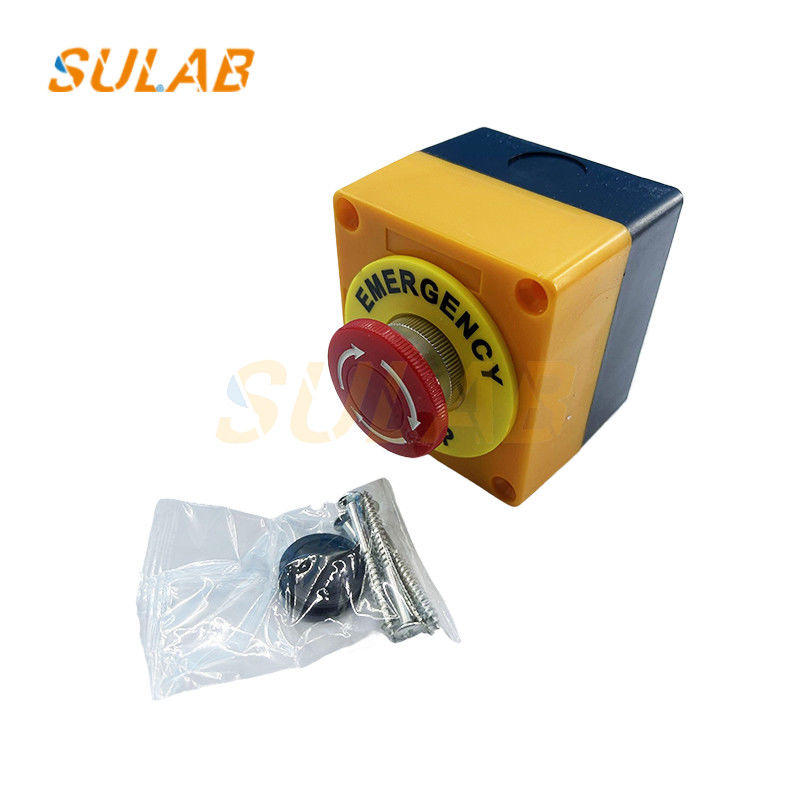

     • Most commonly a red mushroom-head button, highly visible and easy to identify, activated by manual pressing.
     • Some elevators use twist-lock switches (rotary locking) or pull-cord switches (for hard-to-reach areas like the pit).
   • Labeling: Marked with "Emergency Stop" or a red warning symbol (e.g., ■) next to the button.
