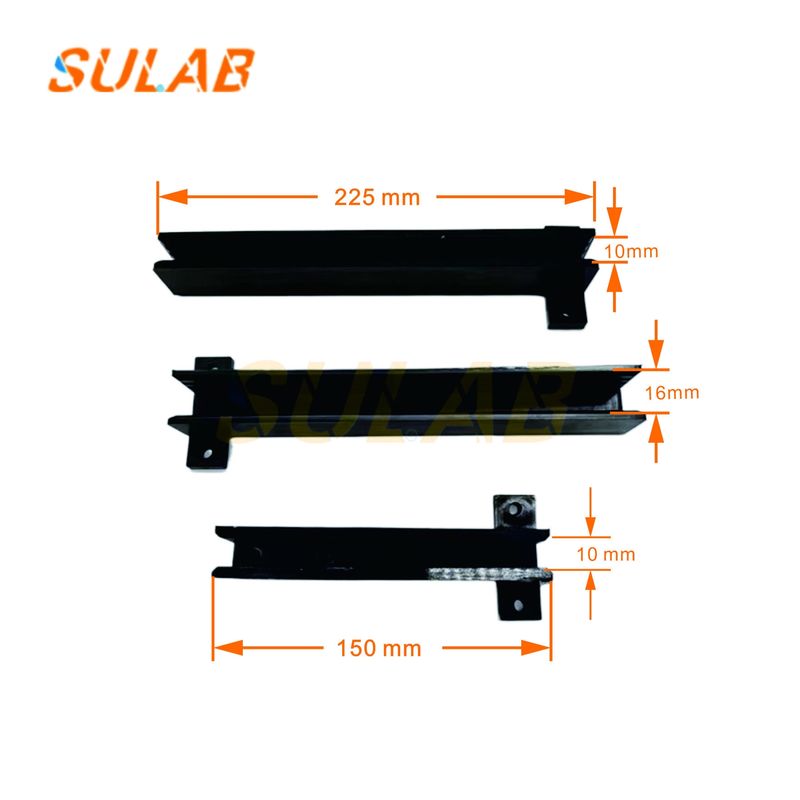

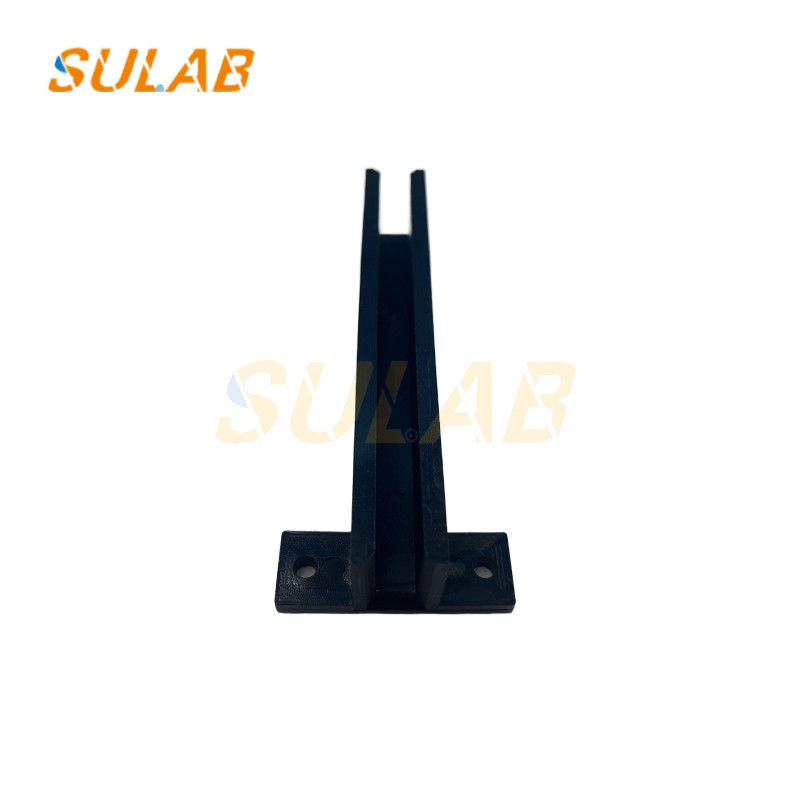

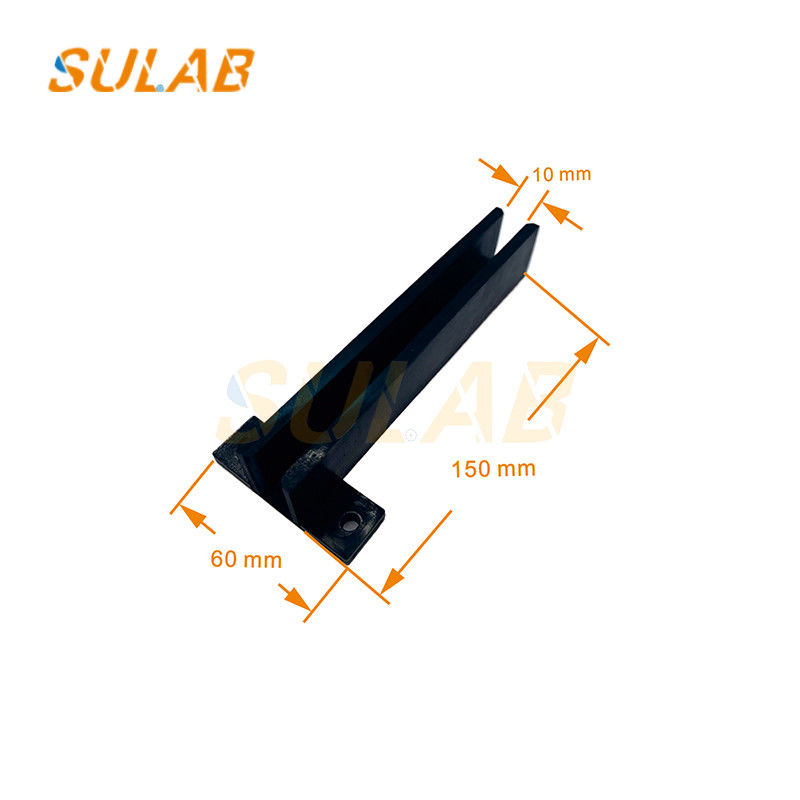

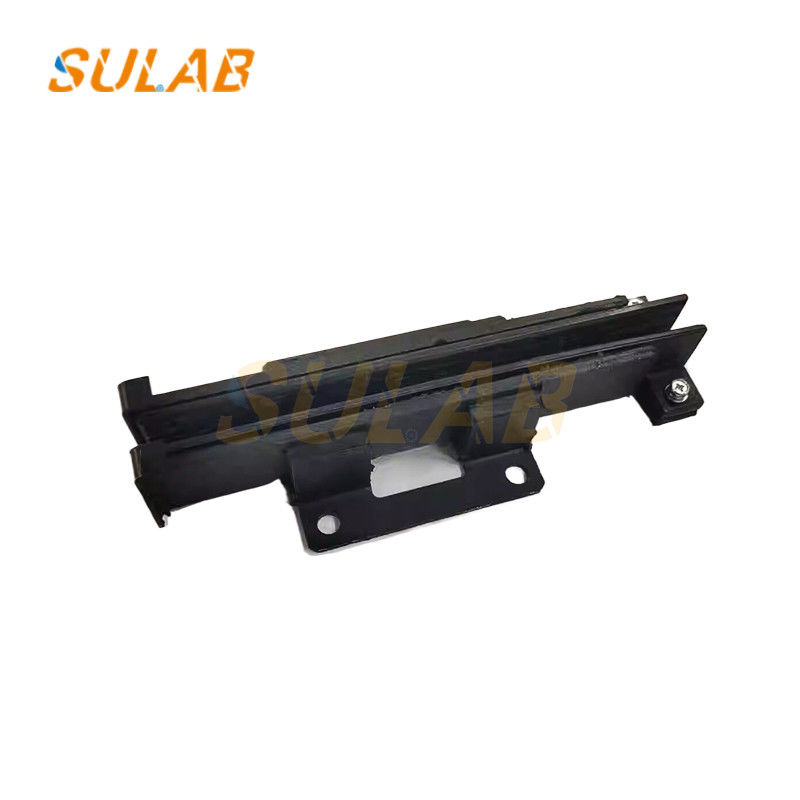

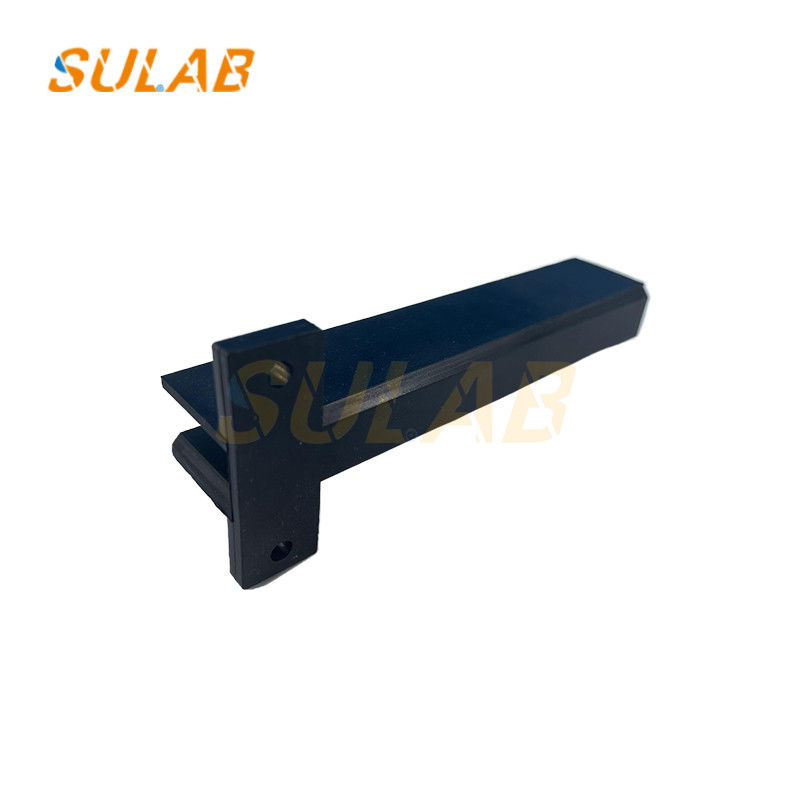

Universal Type Suitable For Passenger Residential Elevator AC Drive Lifting Equipment Parts Apartment T-type Elevator Guide Boot

Universal Type Suitable For Passenger Residential Elevator AC Drive Lifting Equipment Parts Apartment T-type Elevator Guide Boot

Maintenance points of elevator boot lining
Regular inspection:
Observe the wear degree of the boot lining (such as thickness reduction, surface groove depth exceeding the standard), and replace it in time if it exceeds the limit.
Check whether the installation screws are loose to prevent the boot lining from falling off and causing abnormal elevator operation.
Applicable models:
Elevator guide rails of different brands and models have different sizes (such as the width and height of T-type guide rails), and boot linings of corresponding specifications must be matched, otherwise it may cause running jams or abnormal noise.
Material selection:
High-speed elevators usually use self-lubricating composite boot linings, while low-speed elevators can use ordinary plastic materials. The selection needs to be based on the elevator design parameters.

Core role
Guidance and stability: guide the elevator car/counterweight to run vertically along the guide rail to reduce shaking and deviation during operation.
Buffering and shock absorption: absorb vibration and impact force during elevator operation, reduce noise, and improve riding comfort.
Wear protection: as a vulnerable part, it protects expensive guide rails and guide shoe metal parts through self-wear, extending the life of the equipment.
2. Working principle of elevator shoe lining
When the elevator is running, the guide shoe contacts the side of the guide rail through the shoe lining. The elastic material of the shoe lining will fill the tiny gap between the guide shoe and the guide rail, and consume vibration energy through friction. For example:

Traditional sliding guide shoes rely on the sliding friction between the shoe lining and the guide rail for guidance, and the shoe lining needs to be checked regularly for wear;
Although the rolling guide shoe uses rollers instead of sliding, some structures may still be equipped with auxiliary shoe linings to enhance stability.
