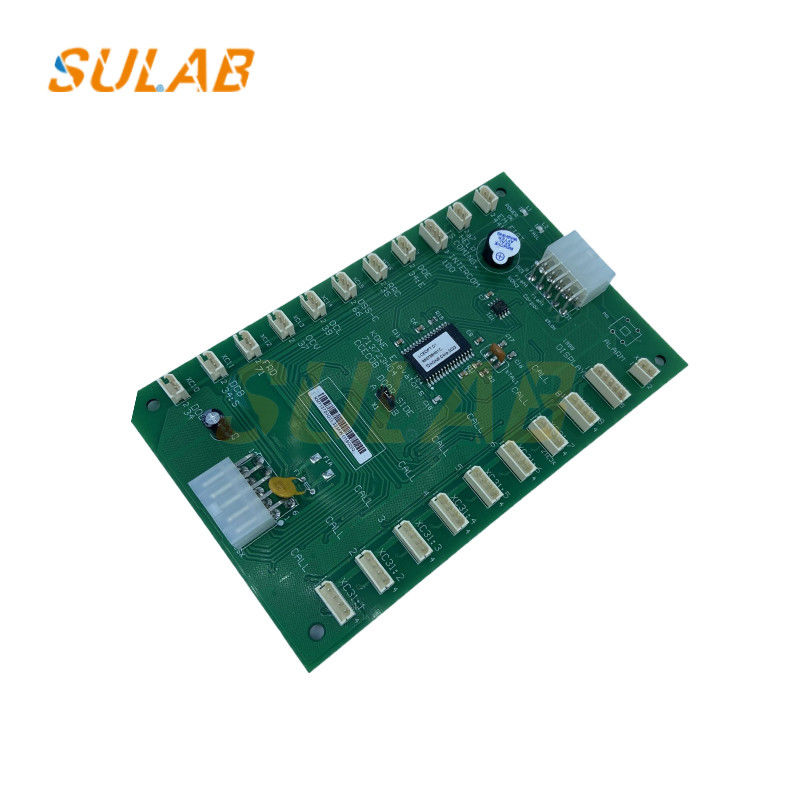

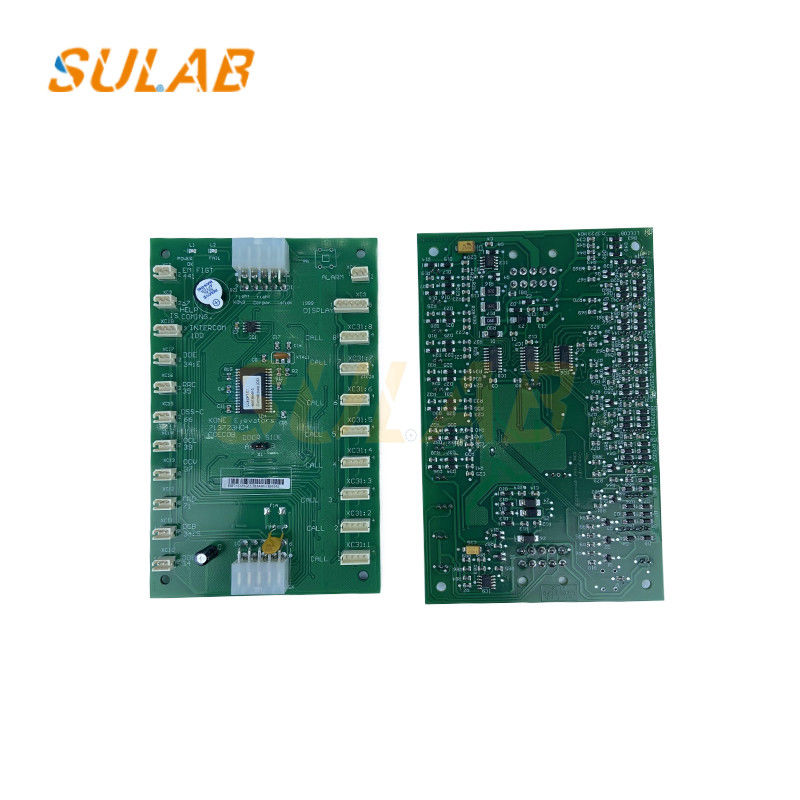

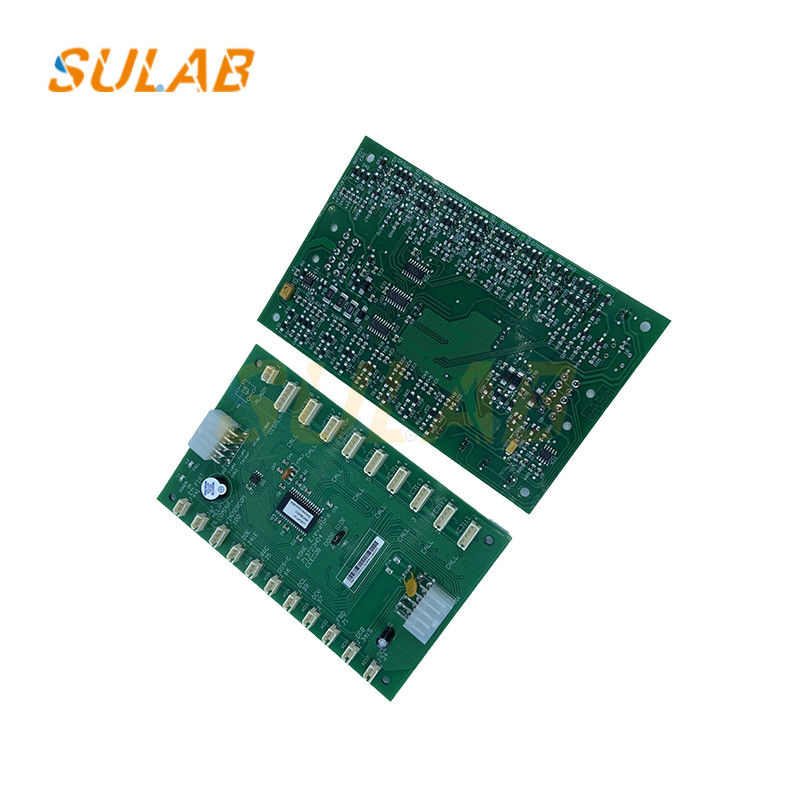

Factory Price KN Elevator Spare Parts Lift COP LOP PCB Elevator Board KM713720G11

Factory Price KN Elevator Spare Parts Lift COP LOP PCB Elevator Board KM713720G11 KM713720G71 KM713720G01

         Processor/Controller:

• • Likely uses a microcontroller (ARM, PIC, or proprietary chip) or FPGA for logic control.

  • May include a PLC interface for modular elevator systems.

    Input/Output (I/O) Interfaces:

    • Digital inputs for button presses, door sensors, and safety switches.

    • Relay or solid-state outputs for motor control, door operation, and indicator lights.

    • Analog inputs for load sensors or speed feedback (if applicable).

      Communication Protocols:

      • CAN bus, RS-485, or proprietary serial communication for interfacing with other elevator modules (e.g., car operating panel, drive system).

      • Optional Ethernet or wireless modules for remote monitoring (if supported).







• • Power Supply:

    • Typically 24V DC or 110/220V AC input, with voltage regulation for board components.

    • Surge and noise protection for reliability.

  • Safety & Compliance:

    • Complies with elevator safety standards (EN 81-20/50, ASME A17.1, etc.).

    • Includes fail-safe circuits for emergency stops, overspeed detection, and door interlocks.

  • Firmware/Software:

    • Pre-programmed with elevator control logic (floor positioning, dispatching algorithms).

    • May support field updates via USB or serial port.

  • Physical Construction:

    • FR4 PCB with industrial-grade components.

    • Conformal coating for moisture/dust resistance.

    • DIN rail or screw-mounting options.
