Schmersal Z3K 236-02zr-M16-2406-6 Safety Limit Switch with 2 Normally-Closed Contacts and 20,000,000 Operations
-
Highlight
Z3K 236-02zr-M16-2406-6 Safety Limit Switch
,2 Normally-Closed Contacts Safety Limit Switch
,20
-
BrandSchmersal
-
DescriptionElevator Switch
-
ModelZ3K 236-02zr-M16-2406-6
-
MOQ1PC
-
TransportionTNT, UPS, DHL, Fedex, Air, Sea
-
PackagesCarton, Wooden Case, Pallet Etc
-
Delivery TimeNormally 2-3 Working Days After Payment
-
WarrantyWarranty
-
Payment MethodCompany Bank, Western Union, Alibaba, Paypal Etc
-
Brand NameSchmersal
-
Model NumberZ3K 236-02zr-M16-2406-6
-
Minimum Order Quantity1
-
Delivery Time2-3 working days
-
Payment TermsT/T,Western Union,MoneyGram
Schmersal Z3K 236-02zr-M16-2406-6 Safety Limit Switch with 2 Normally-Closed Contacts and 20,000,000 Operations
Schmersal Travel Switch Z3K236-02ZR-M16-2406-6 Z3K236-11ZR-M16-2406-6

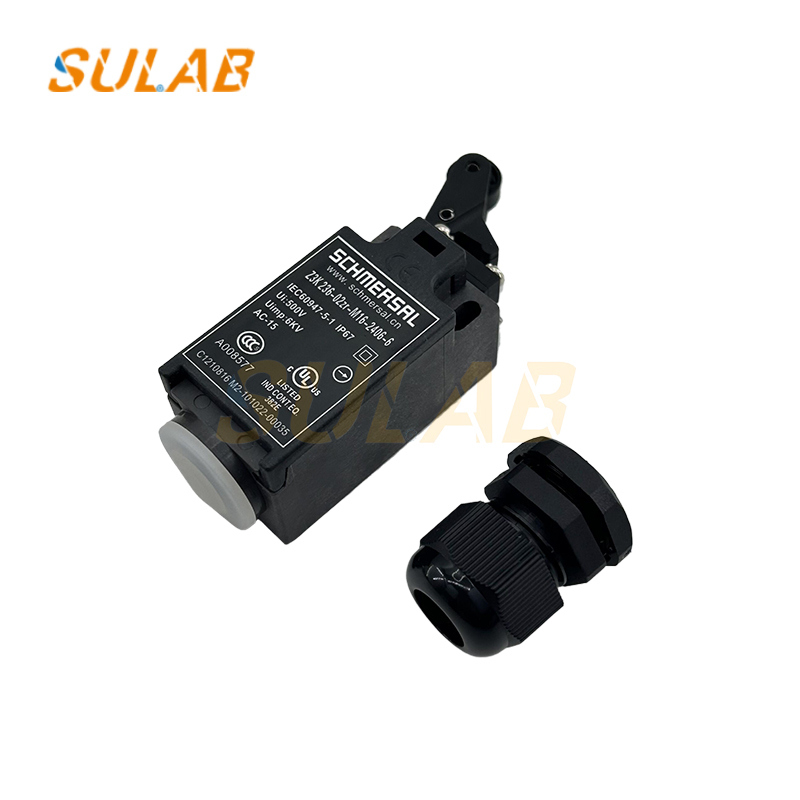

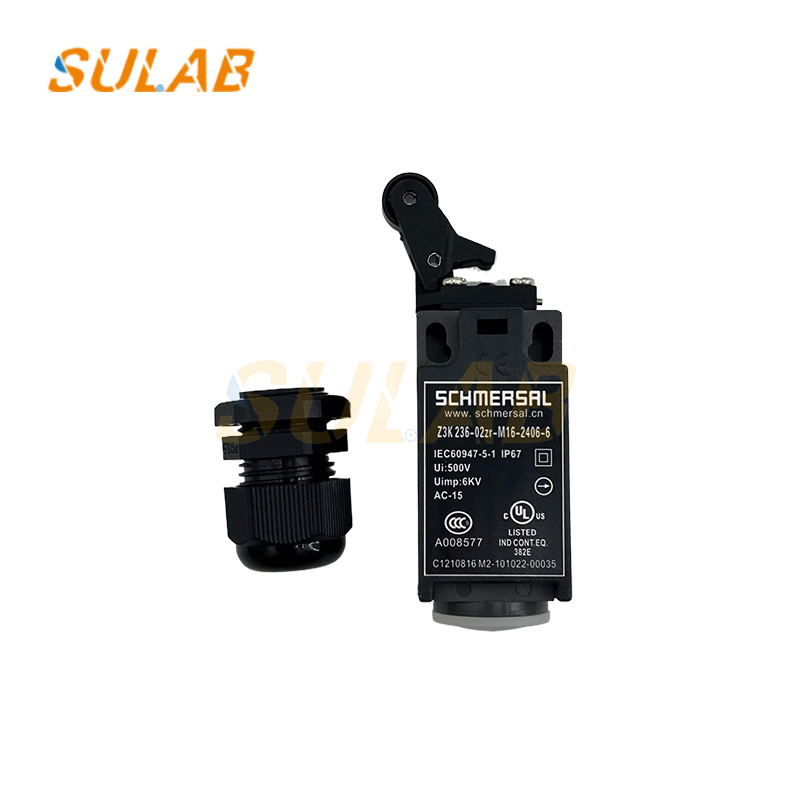

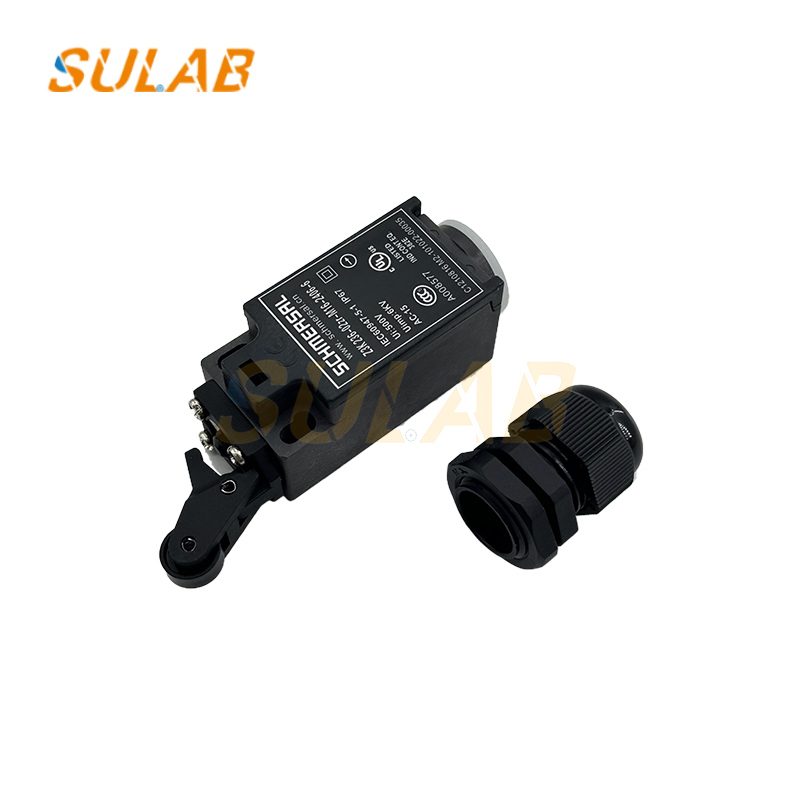

The Z3K 236-02zr-M16-2406-6 is a Safety Limit Switch manufactured by Schmersal. It is widely utilized in elevators, escalators, and industrial machinery for safety position monitoring and limit position protection. The Z3K 236-02Z portion of the code denotes its base model.
| Brand | Schmersal |
|---|---|
| Description | Elevator switch |
| Model | Z3K 236-02zr-M16-2406-6 |
| MOQ | 1PC |
| Transportion | TNT, UPS, DHL, Fedex, Air, Sea |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, alibaba, Paypal etc |
Core Technical Parameters
- Manufacturer: Schmersal.
- Product Type: Safety Limit Switch.
- Application: Commonly used as a Tensioner Switch in elevator systems or for limit switching on other moving components.
- Housing Construction: Standard design form with a housing made of Plastic, Glass-Fibre-Reinforced, featuring Double-Insulation.
- Actuating Element: Angle Roller Lever, providing precise mechanical triggering.
- Contact Configuration (02Z): 2 Normally-Closed (NC) contacts, typically used within the safety circuit.
- Switching Principle: Snap Action, which maintains constant contact pressure up to the switching point.
- Mechanical Lifetime: Minimum mechanical lifetime is 20,000,000 Operations.
- Degree of Protection: IP65 / IP67. This signifies excellent protection against dust and resistance to water jets and temporary immersion, making it suitable for harsh industrial environments.
- Cable Termination (M16): Equipped with an M16*1.5 screw terminal cable entry for wiring connection.
- Rated Insulation Voltage (Ui): 500 V.
- Thermal Test Current (Ith): 10 A.
- Safety Standards: Complies with safety standards such as EN ISO 13849-1 and EN IEC 60947-5-1.
