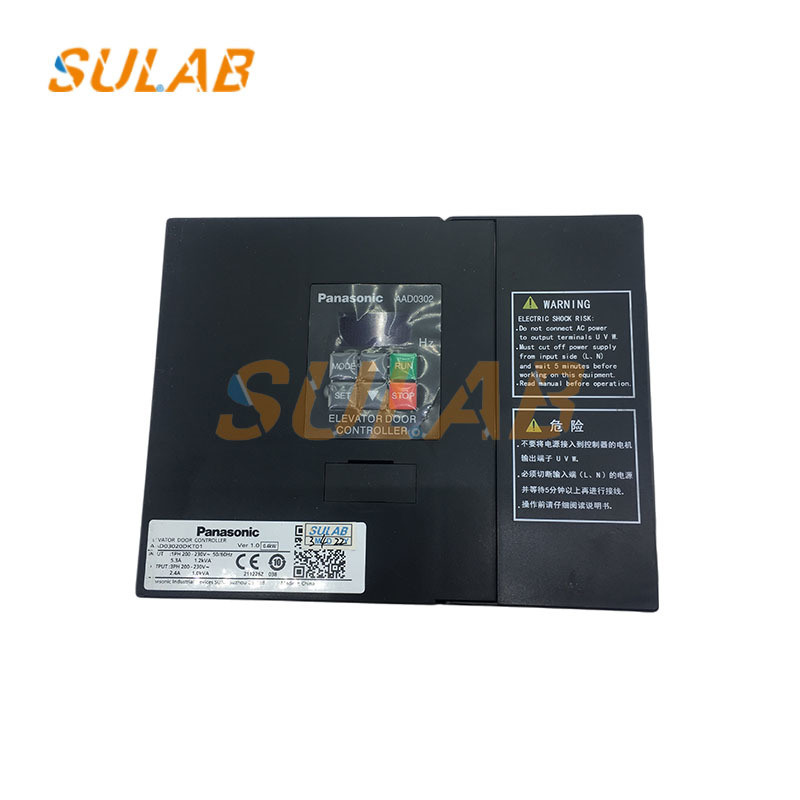

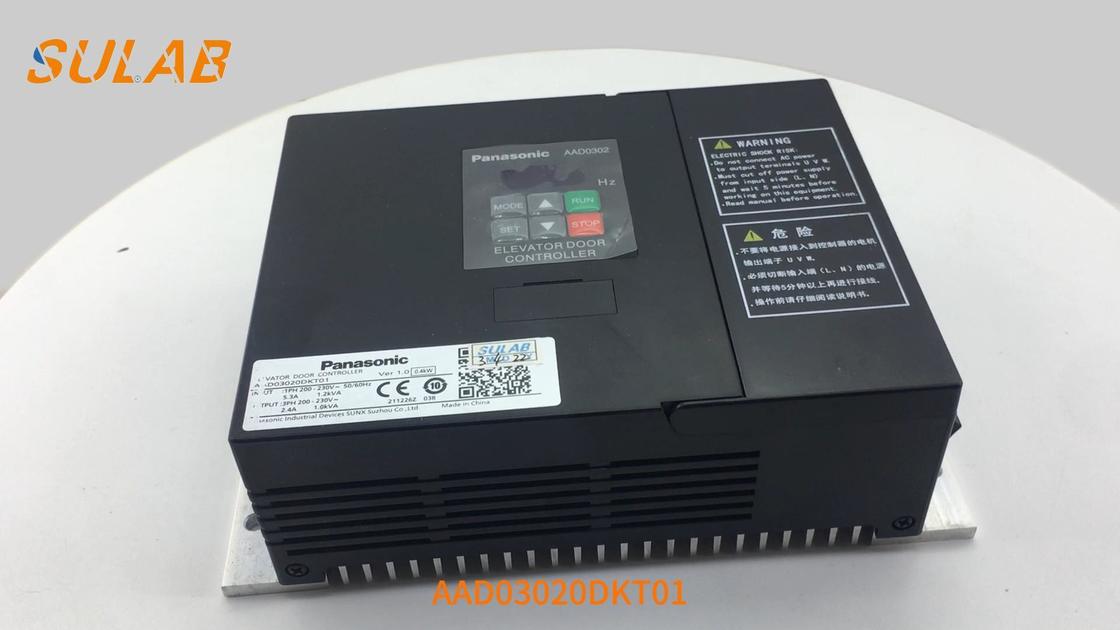

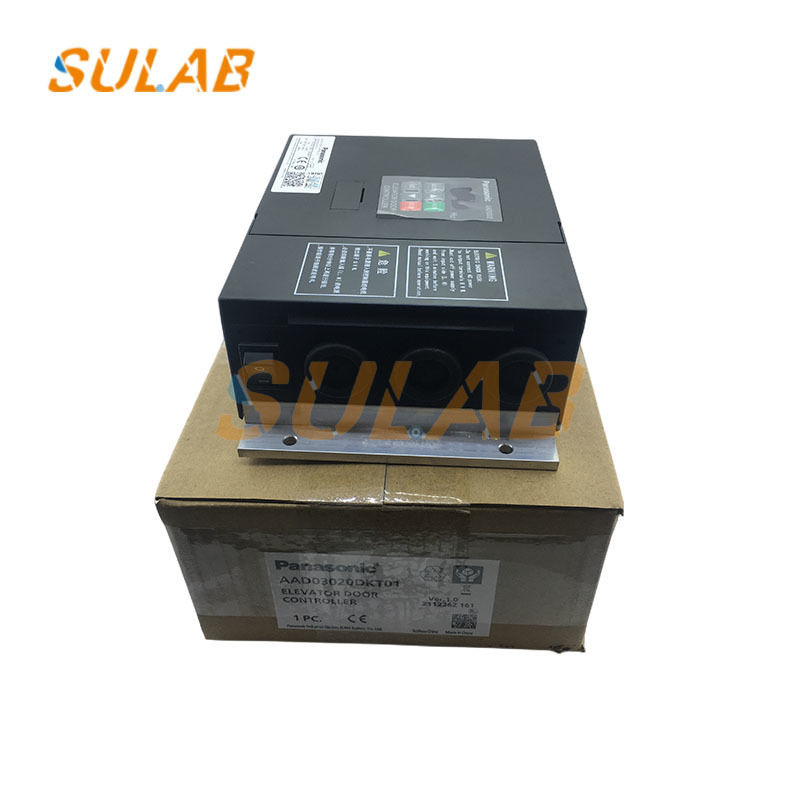

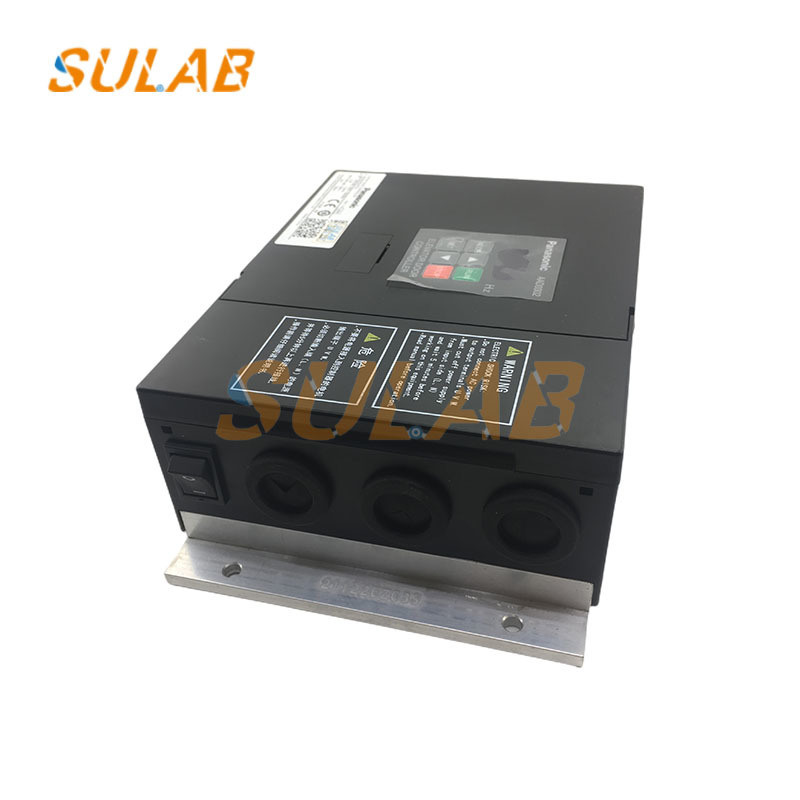

Panasonic Shenling Elevator Door Operator Controller AAD03020DKT01 NSFC01-01 with 3-phase 200-230V AC Input
-
Highlight
AAD03020DKT01 Elevator Door Operator Controller
,NSFC01-01 Door Operator Frequency Converter
,3-phase 200-230V AC Elevator Door Controller
-
Input Frequency50/60Hz±5%
-
Diameter12mm
-
ColorSilver
-
DurabilityLong-lasting
-
ModelD4N-2A20
-
SensorDirect Connection:type ECW-GA
-
Output MethodNPN/PNP
-
VoltageDC12--24V Polariky Protected
-
InstallationEasy To Install
-
Elevator PartsElevator COP LOP
-
Allowable Gross Mass≤2700kg
-
PackageCarton Box Or Wooden Case
-
Traction Ratio2:1
-
Id NoTUK
-
Brand NamePanasonic
-
Model NumberAAD03020DKT01
-
Minimum Order Quantity1
-
Delivery Time3-5 days
-
Payment TermsD/A,D/P,T/T,Western Union,MoneyGram
Panasonic Shenling Elevator Door Operator Controller AAD03020DKT01 NSFC01-01 with 3-phase 200-230V AC Input
Panasonic/Shenling Elevator Door Operator Frequency Converter AAD03020DKT01 / NSFC01-01
Original Panasonic Elevator Door Controller AAD03020DKT01, also branded as NSFC01-01 for Shenling and GiantKONE systems. This intelligent door operator frequency converter utilizes advanced vector control technology to precisely manage elevator door motor speed, torque, and positioning. Engineered for seamless integration with Panasonic and Shenling door machines, it ensures smooth, quiet, and reliable door operation across all major elevator brands.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Panasonic (Compatible with Shenling NSFC01-01) |
| Model | AAD03020DKT01 / NSFC01-01 (Interchangeable) |
| Input Voltage | 3-phase 200-230V AC ±10% |
| Rated Current | 2.4A |
| Output Capacity | 1.0 KVA |
| Control Method | Vector control with Auto-tuning |
| Protection Functions | Over-current, over-voltage, under-voltage, module failure, overheat, short circuit |
| Operating Temperature | -10°C to +50°C |
| Dimensions | 180mm × 130mm × 85mm (Standard DIN rail mounting) |
| Weight | 3.0 kg |
| Certification | CE, ISO9001, Panasonic original standards |
Key Features
- Dual-Model Compatibility - Functions as both AAD03020DKT01 (Panasonic) and NSFC01-01 (Shenling/GiantKONE), eliminating need for multiple spare parts inventory
- Vector Control Precision - Provides smooth door startup at low speeds, eliminating jerky movements and "door bumping" issues that cause passenger discomfort
- Superior Anti-Interference Design - Maintains stable performance in complex electromagnetic environments typical of elevator shafts and machine rooms
- Intelligent Parameter Management - Supports one-touch parameter copying from existing units, reducing commissioning time to under 15 minutes
- Multi-Door Type Support - Compatible with center-opening doors, side-opening doors, and various door widths without hardware modifications
- Comprehensive Protection System - Built-in safeguards against power fluctuations, motor overload, and thermal events ensure 10+ year service life
- Low Noise & Low EMI - Advanced PWM control and component selection minimize acoustic noise and electromagnetic interference for quiet operation
