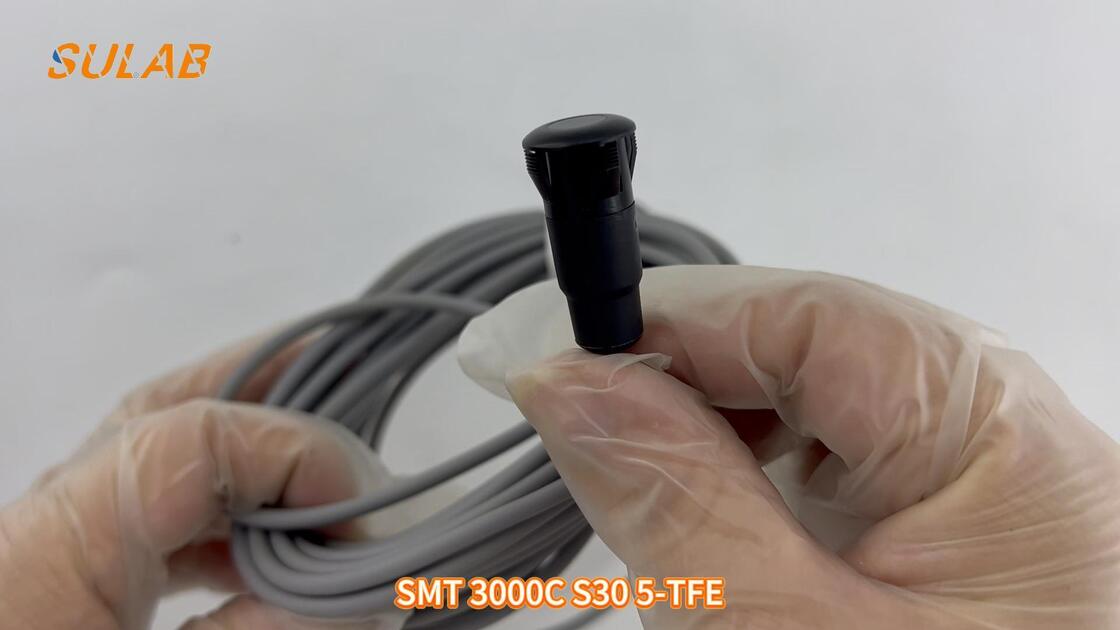

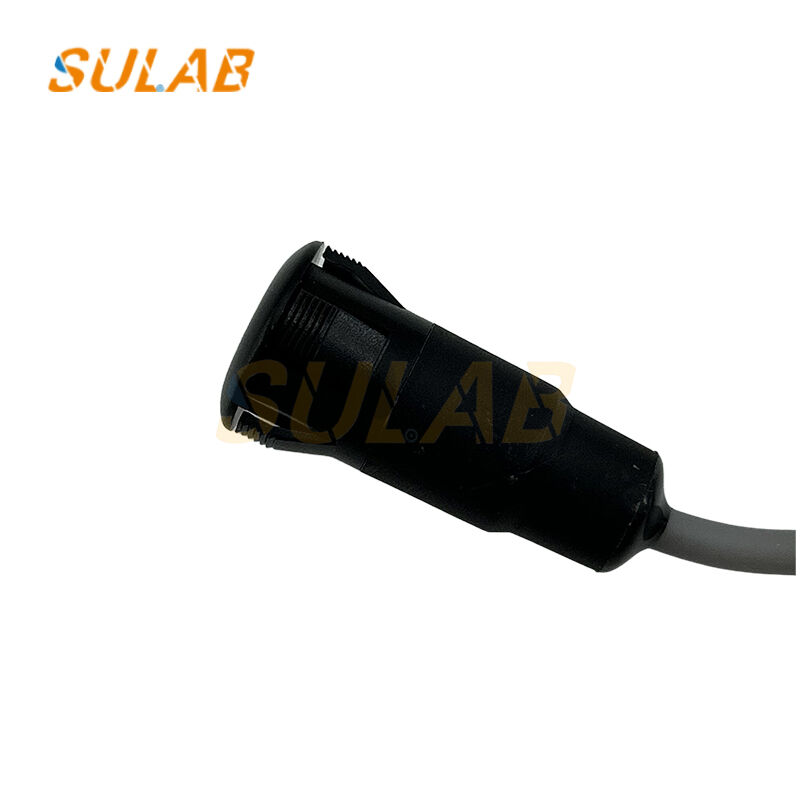

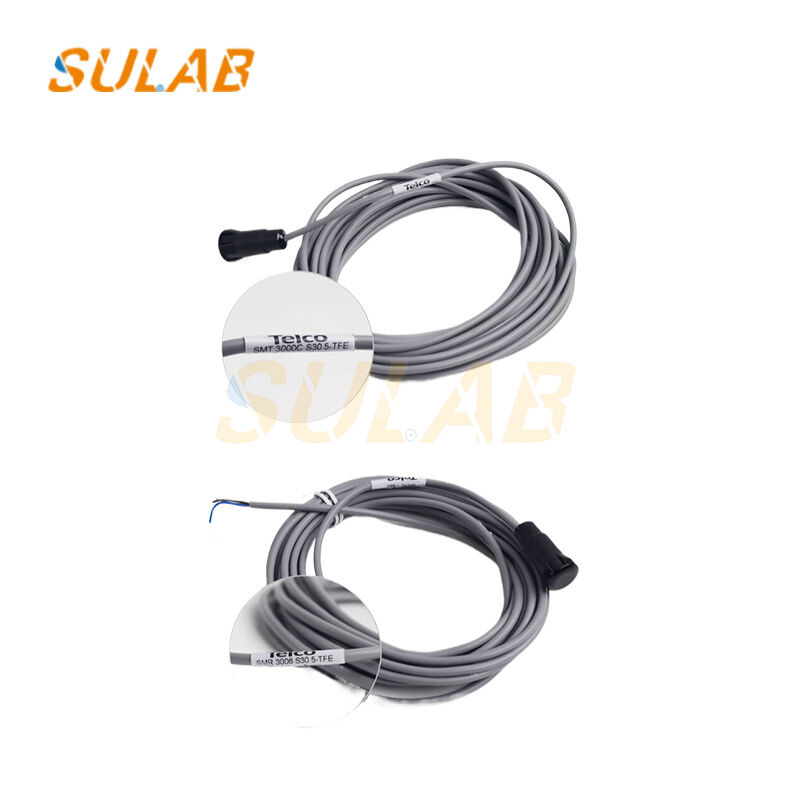

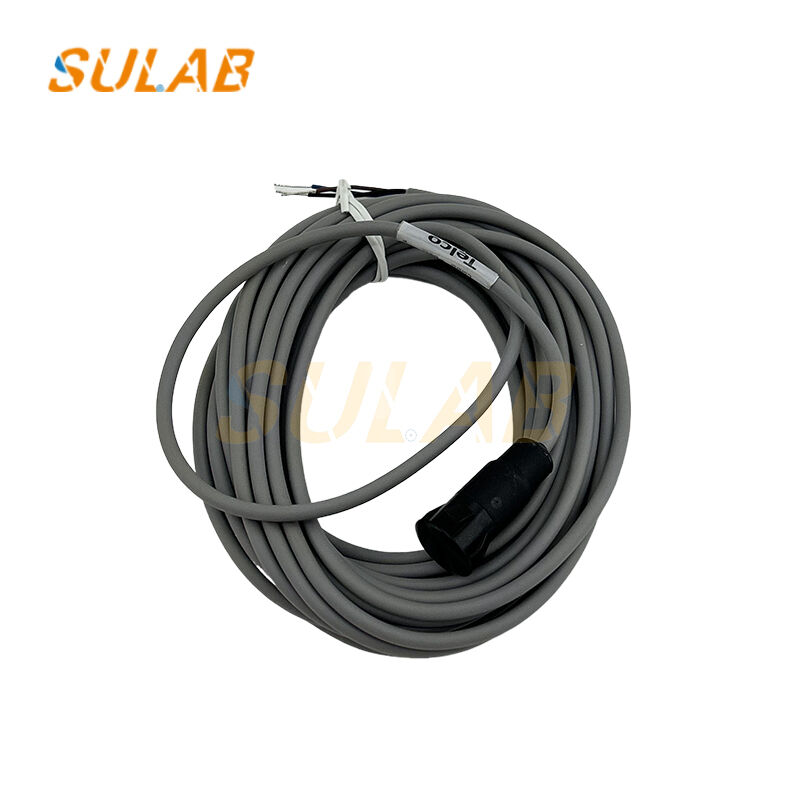

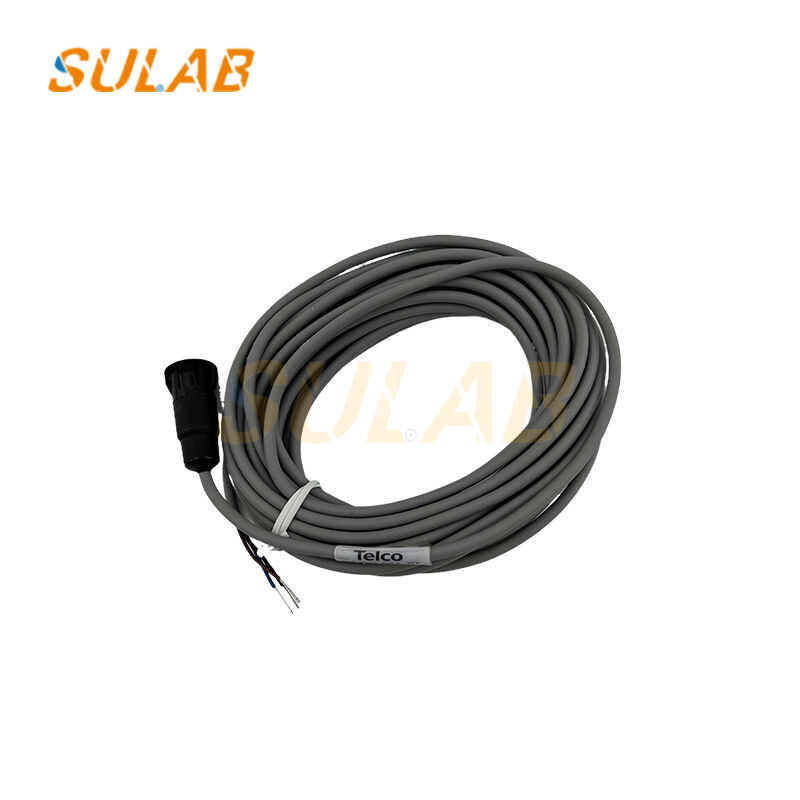

High-precision Escalator Safety Sensor with IP67 Protection and EN 115-1 Compliance for Step Missing Detection
-
Highlight
IP67 Protection Escalator Safety Sensor
,EN 115-1 Compliant Step Missing Detection Sensor
,High-precision Infrared Photoelectric Switch
-
Brand NameThyssenkrause
-
Model NumberSMT 3000C S30 5-TFE
-
Minimum Order Quantity1
-
Delivery Time3-5 working days
-
Payment TermsD/A,D/P,T/T,Western Union,MoneyGram
High-precision Escalator Safety Sensor with IP67 Protection and EN 115-1 Compliance for Step Missing Detection
Escalator Safety Sensor SMT 3000C S30 5-TFE | Step Missing Detection Sensor | Infrared Photoelectric Switch | OEM Compatible Spare Part
High-precision escalator step missing sensor SMT 3000C S30 5-TFE ensures passenger safety through reliable infrared detection. This OEM-grade photoelectric switch monitors step integrity in real-time, instantly triggering emergency stop when missing steps or foreign objects are detected. Compatible with Thyssenkrause models and major escalator brands. Essential safety component for public transit systems, shopping malls, and commercial buildings.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | SMT 3000C S30 5-TFE |
| Sensor Type | Infrared Photoelectric Reflection Sensor |
| Detection Range | 0-30mm (Adjustable) |
| Operating Voltage | DC 24V ±10% |
| Output Signal | PNP/NPN (Selectable), NO/NC Contact |
| Response Time | < 10ms |
| Protection Rating | IP67 (Dust & Waterproof) |
| Housing Material | Reinforced PBT (Flame Retardant V0) |
| Connection Type | 5-Pin M12 Connector (TFE Series) |
| Cable Length | 2m (Standard) / 5m (Optional) |
| Operating Temperature | -25°C to +70°C |
| LED Indicators | Power ON, Output Status, Stability |
| Compliance | EN 115-1, GB 16899, CE Certified |
