SIGMA BG202-XM-II Elevator Door Drive Controller VVVF Inverter for Permanent-magnet / Asynchronous Motors with Plug-and-play Replacement and RS485 Modbus-RTU Communication
-
Highlight
Permanent-magnet Elevator Door Drive Controller
,Plug-and-play VVVF Inverter
,RS485 SIGMA BG202-XM-II
-
TypeBG202-XM-II
-
Product NameSIGMA Elevator Door Drive Controller BG202-XM-II
-
TransportationClients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
-
ApplicationElevator Parts
-
Business TypeManufacturer
-
KeywordsElevator Parts ,Elevator Safety ,SIGMA Elevator Door Drive Controller BG202-XM-II
-
PackingPacked In Carton
-
Brand NameSIGMA
-
Model NumberBG202-XM-II
-
Minimum Order Quantity1
-
Delivery Time3-5 Working Days
-
Payment TermsMoneyGram,Western Union,T/T,D/P,D/A
SIGMA BG202-XM-II Elevator Door Drive Controller VVVF Inverter for Permanent-magnet / Asynchronous Motors with Plug-and-play Replacement and RS485 Modbus-RTU Communication

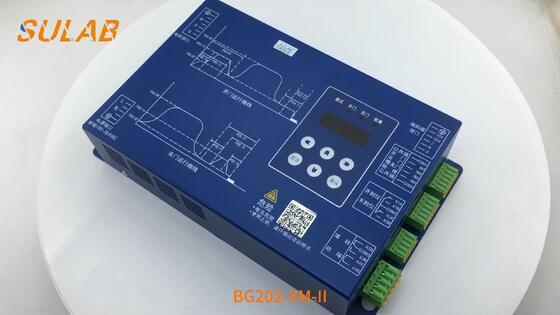

SIGMA Elevator Door Drive Controller BG202-XM-II
Original SIGMA BG202-XM-II door drive controller, a compact VVVF inverter designed for elevator car and landing doors. Supports permanent-magnet and asynchronous motors, offering plug-and-play replacement for LG-Sigma lifts worldwide.
Technical Specifications
| Model | BG202-XM-II |
| Brand / OEM | SIGMA (LG-Sigma) |
| Function | Door-motor VVVF drive & position control |
| Suitable motors | PMSM or 3-phase asynchronous (≤ 0.75 kW) |
| Power supply | 1-phase 220 VAC ±10 %, 50/60 Hz |
| Output | 3-phase 0-220 V, 0-400 Hz |
| Rated current | 2.5 A |
| Control mode | SVC (sensor-less vector), encoder optional |
| Door speed | 0.1 - 1.0 m/s (field-programmable) |
| Opening width | 700 - 2400 mm |
| Protection | IP 20, over-current, over-voltage, under-voltage, short-circuit, thermal |
| Built-in features | Self-learning, auto-reopen, obstruction re-open, fire-emergency input |
| Display / keypad | 3-digit LED + 5 tactile keys |
| Communication | RS485 (Modbus-RTU) |
| Operating temperature | -10 °C ~ +50 °C |
| Humidity | ≤ 90 % RH (non-condensing) |
| Dimensions | 260 × 154 × 55 mm |
| Mounting | Back-plate, 4 × M4 screws |
| Weight | 1.1 kg |
Packing & Shipping
- Individual brown box + anti-static bag
- 20 pcs / export carton (46 × 32 × 28 cm, 23 kg)
- Ships via DHL, FedEx, sea or rail upon request
Compatibility
Directly replaces BG202-XM, BG202-XM-I, BG202-OT31C on LG-Sigma, Besta, ThyssenKrupp S200, S300 elevators without parameter re-load.
