Elevator Photoelectric Switch with Millimeter-Level Precise Leveling Multi-Functional Signal Linkage and IP66 Enclosure Protection

Brand Name: SULAB
Model Number: LRS-150-24
Minimum Order Quantity: 1PC
Delivery Time: Normally 2-3 working days after payment
Payment Terms: L/C,D/A,D/P,T/T,Western Union,
Inquiry Now
Get A Quote
Specifications
Highlight Features

Millimeter-Level Precise Leveling Elevator Photoelectric Switch

,

Multi-Functional Signal Linkage Elevator Leveling Sensor

,

IP66 Enclosure Protection Elevator Floor Sensor

Brand:
SULAB
Description:
Elevator Parts
Model:
LRS-150-24
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Applicable:
Elevator
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description

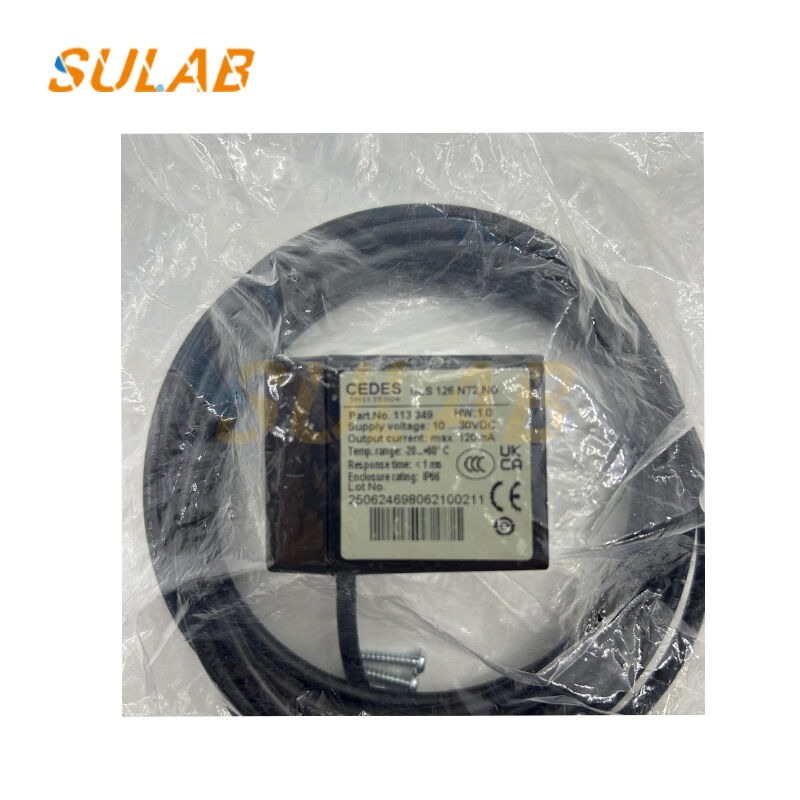

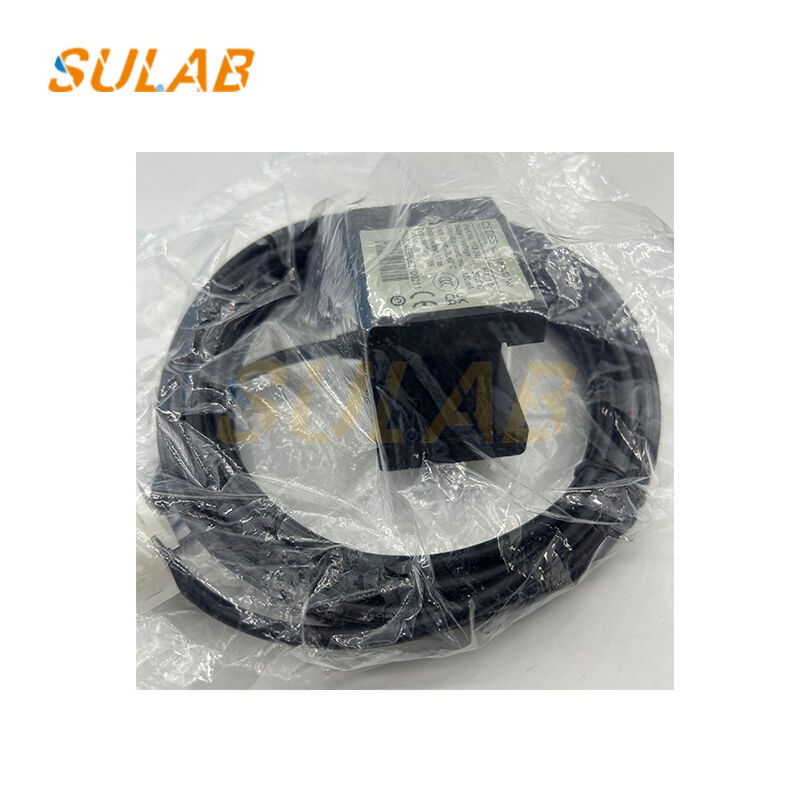

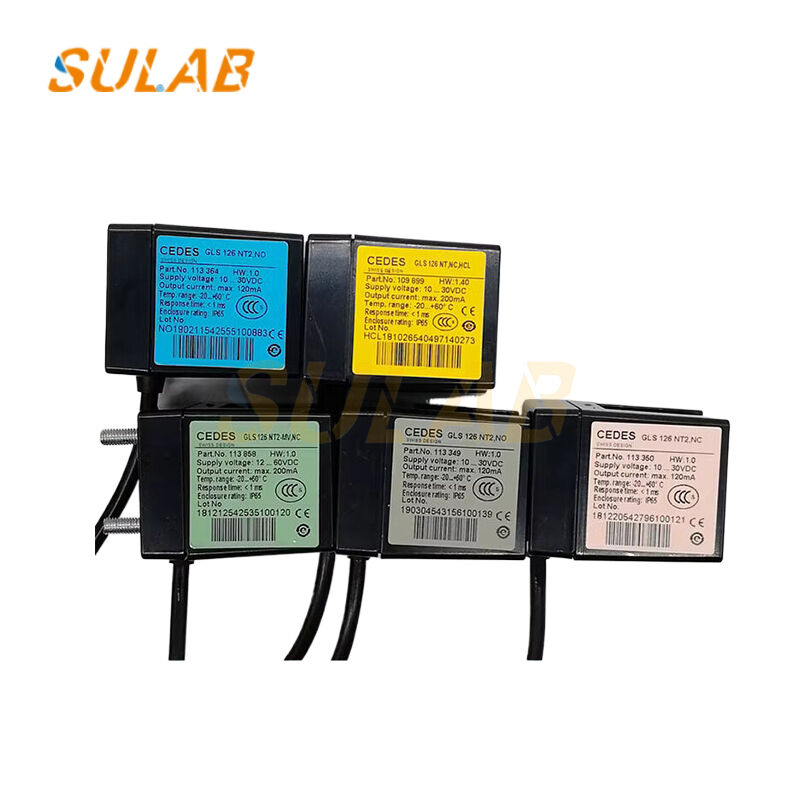

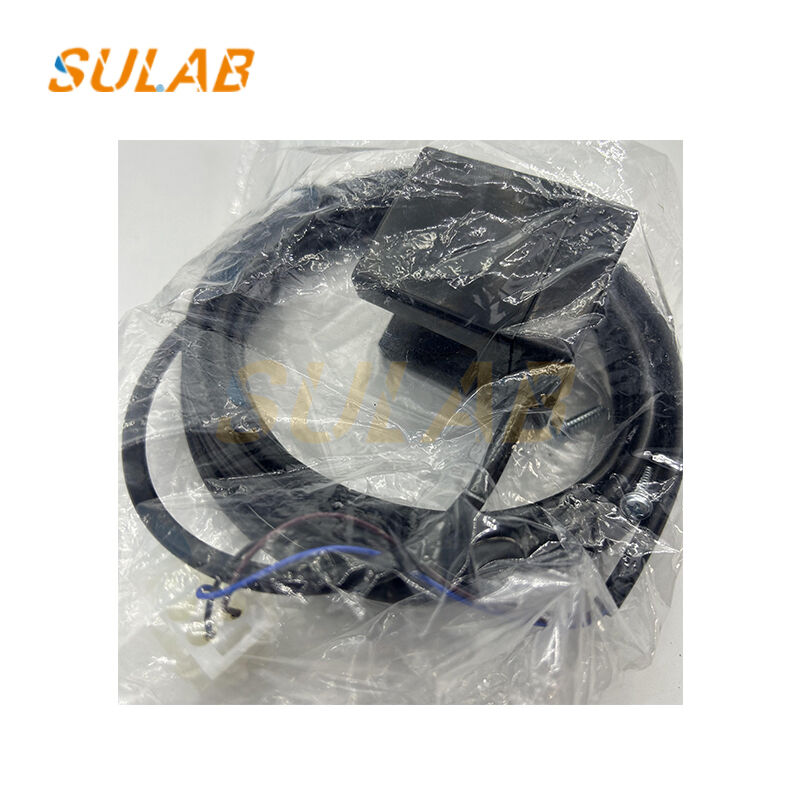

CEDES GLS126NT2.NO Elevator Photoelectric Switch Floor Sensor Elevator Accessories Elevator Overload Sensor Photoelectric Switch Elevator Leveling Sensor


Achieving millimeter-level precise leveling and positioning: This is its core function. The sensor is essentially a slotted grating that senses the relative position of the elevator car and the floor using light signals, achieving a repeatability of 0.5 millimeters. When the elevator car approaches the target floor, it accurately captures the position signal and transmits it to the elevator's main control system. The system then controls the car to decelerate smoothly, ensuring precise alignment between the car sill and the floor sill, preventing inconvenience for passengers due to height discrepancies.

Supporting multi-functional elevator signal linkage: In addition to core leveling and positioning, it also transmits linkage signals for several other key elevator functions. For example, when the car reaches the leveling position, the arrival signal triggers the elevator door to open, ensuring the door operates at the appropriate time. Simultaneously, it continuously feeds back the car's real-time position to the elevator dispatching system, helping the system accurately determine the car's status, thereby rationally planning the elevator's operating path, optimizing the elevator's start and stop logic, and improving overall elevator operating efficiency.


Brand SULAB
Description Elevator  parts
Model LRS-150-24
MOQ 1PC
Transportion TNT, UPS, DHL, Fedex, Air, Sea
Applicable Elevator
Packages Carton, Wooden case, Pallet etc
Delivery Time Normally 2-3 working days after payment
Warranty One year
Payment Method Company Bank, Western union, alibaba, Paypal etc


Ensuring operational stability in complex environments: It features high light reserve and an IP66 enclosure protection rating. The high light reserve effectively resists interference from dust, smoke, and other impurities within the elevator shaft. The fully sealed IP66 design isolates it from the effects of harsh environments such as moisture and dust. This prevents sensors from malfunctioning or triggering falsely due to environmental factors, ensuring the elevator can stably receive position signals under various operating conditions. It reduces elevator shutdowns and operational delays caused by sensor failures, guaranteeing reliable elevator operation.

Elevator Sensor – FAQs

Q1: What types of sensors are commonly used in elevator systems?
Elevators use sensors for position detection, leveling, door monitoring, and other control functions. Common sensing technologies include magnetic, inductive, and photoelectric types, depending on the application.

Q2: Can elevator sensors with the same appearance be interchangeable?
Not necessarily. Similar-looking sensors may differ in sensing principles, supply voltages, output logic, detection distances, or connector arrangements.

Q3: What is the difference between NPN and PNP sensor outputs?
NPN and PNP sensors use different transistor output configurations. The correct type depends on the input circuit and wiring requirements of the elevator controller.

Q4: What can cause an elevator sensor to provide an incorrect signal?
Possible causes include incorrect alignment, damaged wiring, unstable power supply, contamination, electrical interference, or sensor failure. The connected controller and sensing target should also be checked.

Q5: What information is required to identify a replacement elevator sensor?
Please provide the original part number, sensing type, supply voltage, output signal, sensing distance, mounting dimensions, and connector details.
