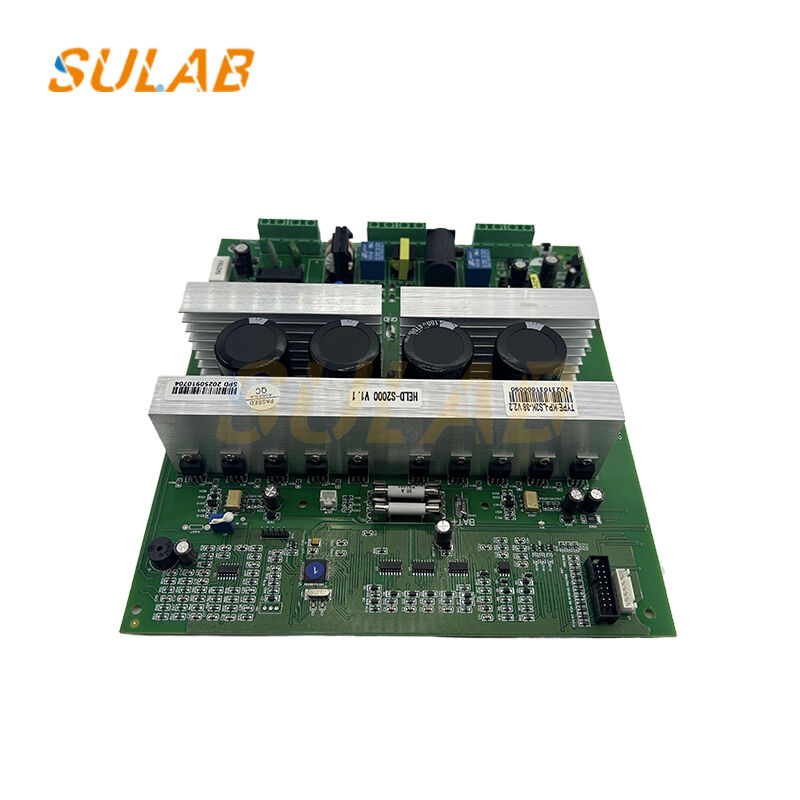

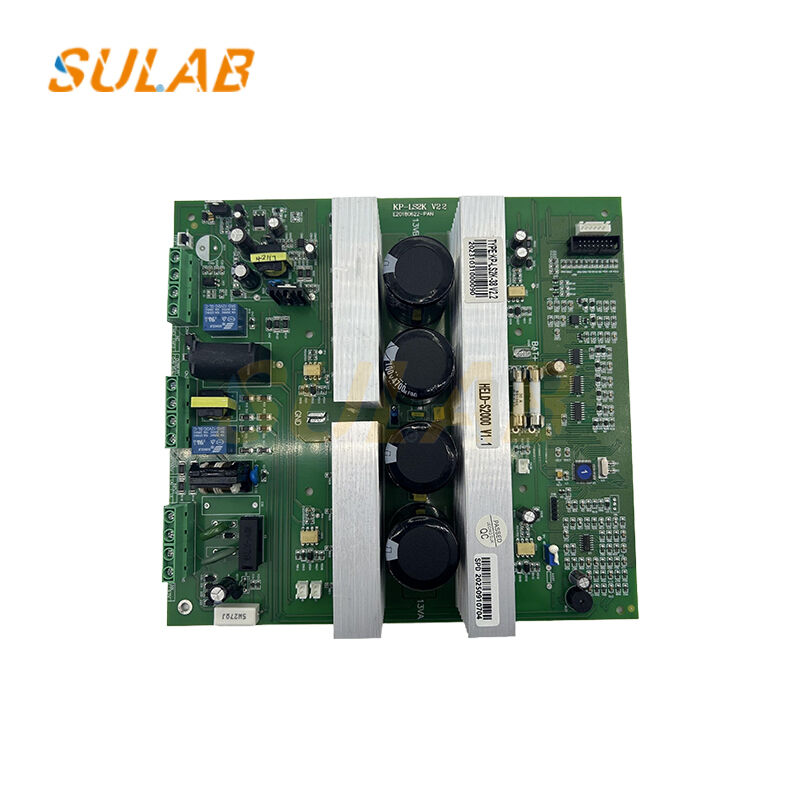

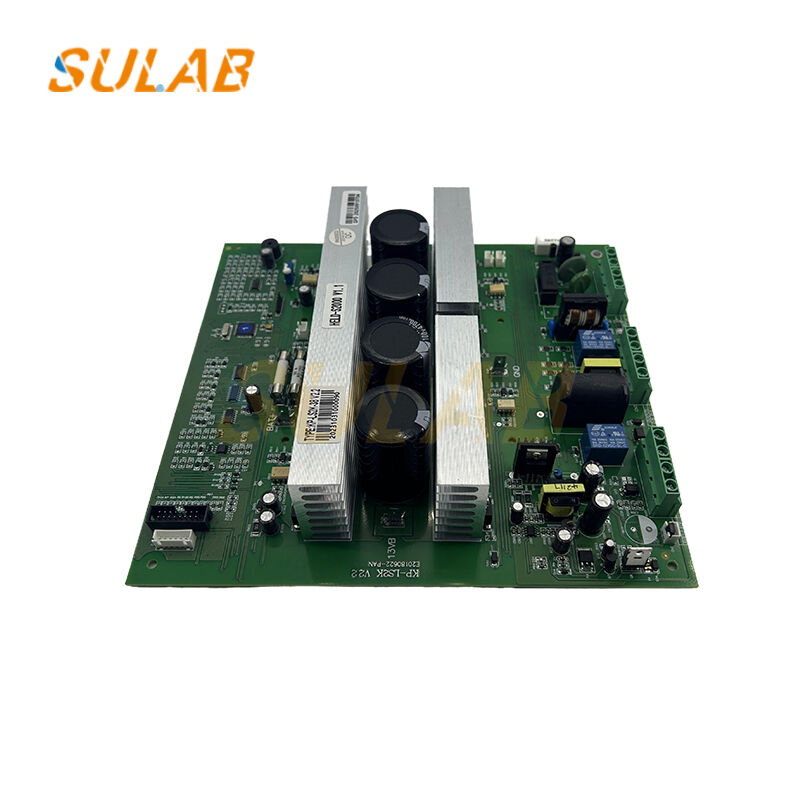

KP-LS2K V2.2 Elevator Control Inverter Board with Modern Design for Operation Logic Control and Safety System Linkage

KP-LS2K V2.2 Modern Elevator Accessories, Elevator Control Inverter Board, Elevator Accessories With Modern Design, Suitable For Elevators.

Speculated Core Functions

**Elevator Operation Logic Control:** As a core function of the mainboard, it will likely be responsible for receiving and processing various elevator signals, such as floor call signals and floor selection signals within the car. Based on this, it will output commands to control the start, stop, and speed adjustment of the traction machine, ensuring the elevator runs along a reasonable path. It will also coordinate the smooth transitions between acceleration, constant speed, and deceleration states, improving passenger comfort.

**Door Operator and Safety System Linkage:** It will link with the elevator door operator controller. After the car reaches the landing position, it will send precise commands to control the opening and closing rhythm of the elevator doors. It can also work with the door operator's safety light curtain or safety touch panel signals to trigger the door to open in reverse if an obstruction is detected. Additionally, it may connect to signals from safety brakes, speed governors, buffers, and other safety components. If abnormal conditions such as elevator overspeed or overload are detected, it will quickly trigger emergency braking and other protective measures.

**Door Operation Logic Control:** As a core function of the mainboard, it will likely be responsible for receiving and processing various elevator signals, such as floor call signals and floor selection signals within the car. It will then output commands to control the start, stop, and speed adjustment of the traction machine, ensuring the elevator runs along a reasonable path.

**Door Operation Logic Control:** It will coordinate with the elevator door operator controller. After the car reaches the landing position, it will send precise commands to control the opening and closing rhythm of the elevator doors. It will also work with the safety light curtain or safety touch panel signals to trigger the door to open in reverse if an obstruction is detected. Feedback on equipment operating status: It may have status monitoring and feedback functions, collecting data such as voltage, current, car position, and load weight during elevator operation in real time. On the one hand, it transmits the data to the elevator's display panel through an interface to display information such as floor and direction of travel; on the other hand, if a component failure is detected, it can trigger an alarm mechanism and record the fault code to facilitate maintenance personnel in troubleshooting the problem.
