D2VW-5-1M IP67 Snap-Action Brake Switch 5A 250VAC with Wire Leads for Elevator Safety Limit Switch

D2VW-5-1M IP67 Snap-Action Brake Switch 5A 250VAC with Wire Leads for Elevator Safety Limit Switch

Products - Elevator Spare Parts
  • Highlight

    IP67 Brake Switch

    ,

    Snap-Action Limit Switch

    ,

    5A 250VAC Safety Switch

  • Type
    D2VW-5-1M
  • Product Name
    D2VW-5-1M Brake Switch IP67
  • Transportation
    Clients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
  • Application
    Elevator Parts
  • Business Type
    Manufacturer
  • Keywords
    Elevator Parts,Elevator Safety ， D2VW-5-1M Brake Switch IP67
  • Packing
    Packed In Carton
  • Model Number
    D2VW-5-1M Brake Switch
  • Minimum Order Quantity
    1
  • Delivery Time
    3-5 Working Days
  • Payment Terms
    D/A,D/P,T/T,Western Union,MoneyGram

D2VW-5-1M IP67 Snap-Action Brake Switch 5A 250VAC with Wire Leads for Elevator Safety Limit Switch

Get Price Contact Now
D2VW-5-1M Brake Switch IP67 Snap-Action SPDT 5A 250VAC with Wire Leads
Elevator & Lift Safety Limit Switch

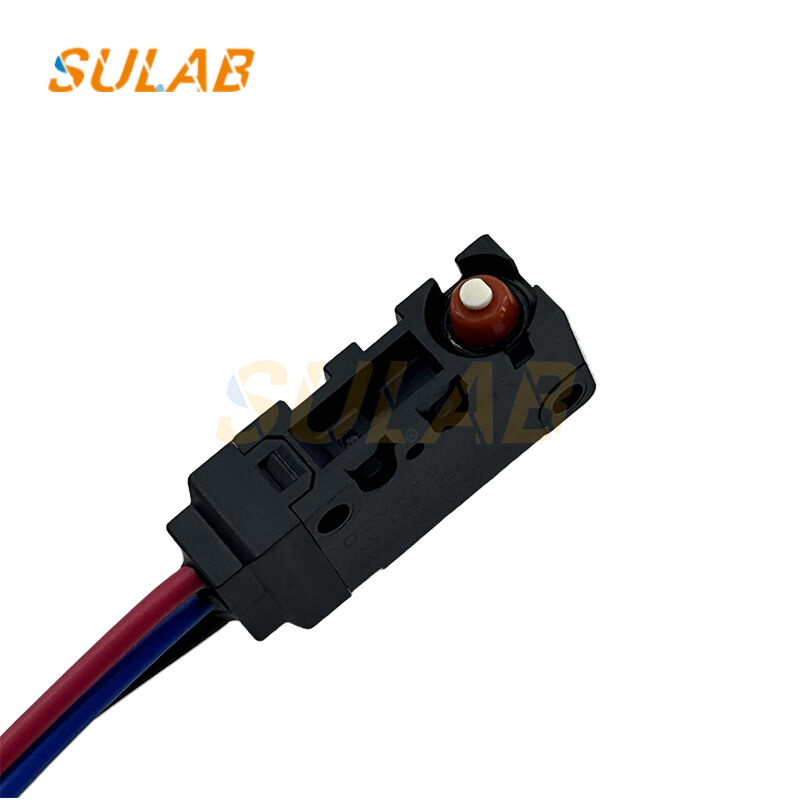

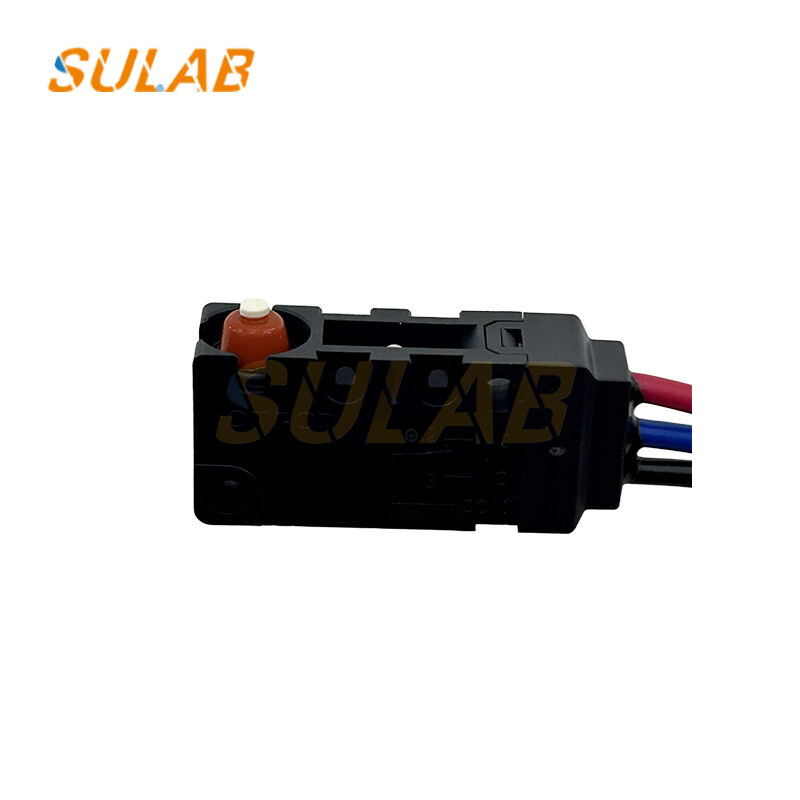

The OMRON D2VW-5-1M is a sealed miniature snap-action switch engineered for brake-position monitoring in elevators, hoists, and lifting platforms. Its IP67 epoxy-sealed body survives dust, oil, and temporary immersion, while the V-series precision mechanism delivers 10 million mechanical operations for maintenance-free service life. Pre-wired 300mm leads allow fast chassis mounting inside tight brake housings or limit-switch cams.
Technical Specifications
Parameter Value
Circuit SPDT (Form C)
Rated load 5A 250VAC / 5A 30VDC
Contact resistance ≤50mΩ (initial)
Insulation resistance ≥100MΩ (500VDC)
Dielectric strength 1500VAC 1min
Operating force 1.96N
Release force 0.30N
Pre-travel 1.2mm
Over-travel ≥1.0mm
Differential travel 0.4mm
Mechanical life 10,000,000 ops
Electrical life 100,000 ops (5A 250VAC)
Ambient temperature -40°C to +85°C
Protection IP67 (IEC 60529)
Termination 300mm AWG20 leads (UL1015)
Mounting 2×M3 screws, 0.39-0.59Nm
Approvals UL/cUL, EN61058-1, RoHS3
Applications
  • Elevator brake arms
  • Hoist over-speed limiters
  • Lift door-lock position
  • AGV & conveyor safety interlocks
  • Agricultural machinery control boxes
Order Information
Model: D2VW-5-1M
Brand: OMRON
HS Code: 853650
MOQ: 1 pc
Lead time: 3-5 business days
