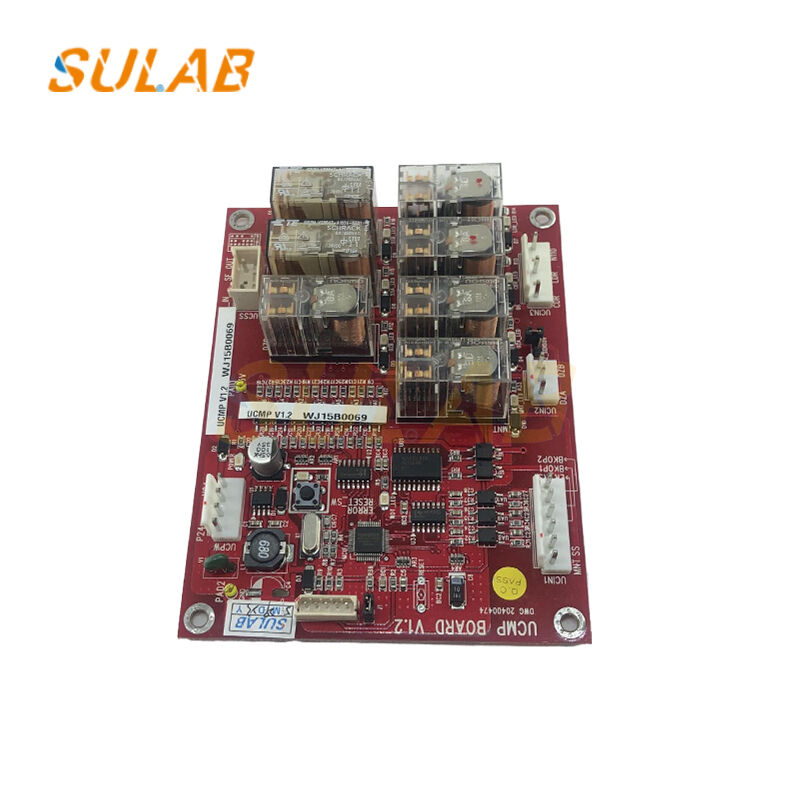

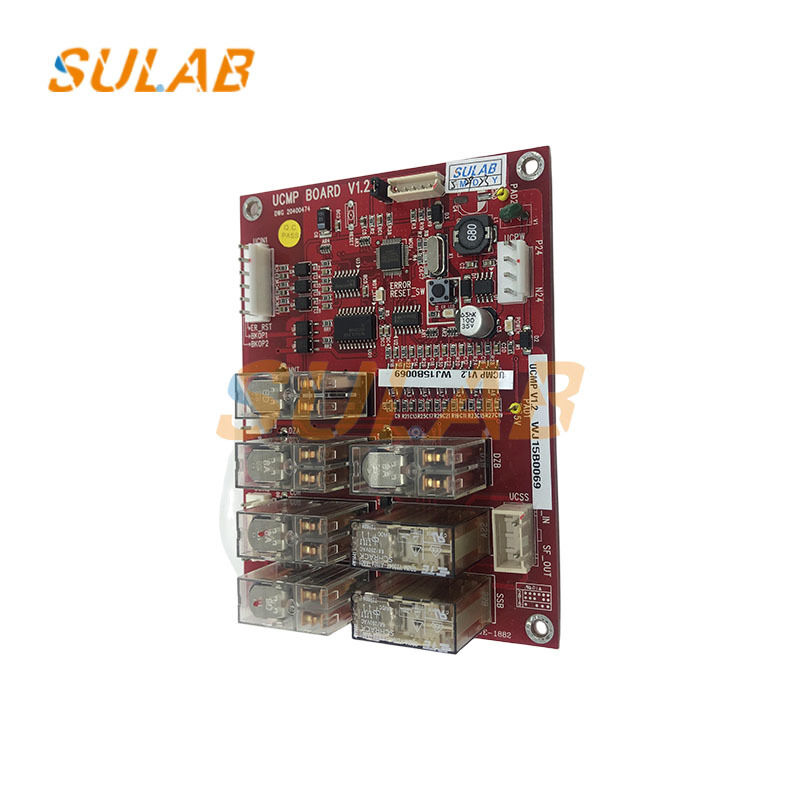

Elevator PCB Board with Real-time Status Monitoring Safety Judgment and Rapid Response Redundant Safety Design UCMP Board V1.2

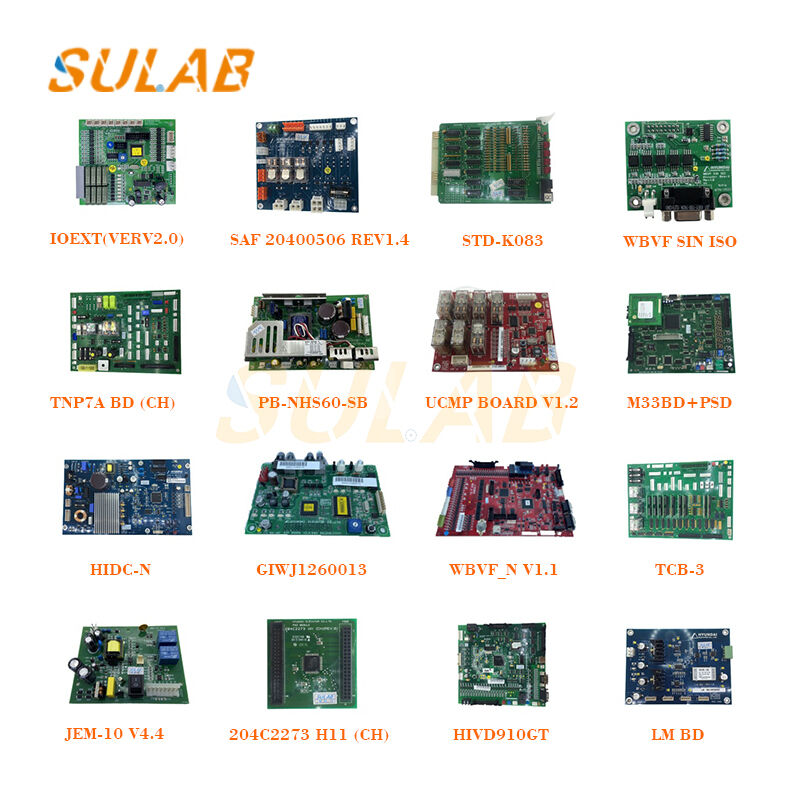

Elevator Parts, Elevator PCB Board, Relay Board, Elevator PCB Mainboard, Driver Board, Elevator Control Board Components UCMP Board V1.2

Core Function Breakdown:

Real-time Status Monitoring: Synchronously collects door zone signals (leveling sensor), door lock status (car door/landing door contacts), and car position and speed (encoder) to construct safety judgment logic.

Continuously diagnoses brake status and drive system output to identify abnormal torque or displacement risks.

Safety Judgment and Rapid Response: When the door opens and the car exceeds the allowable displacement (typically ±100mm) or speed threshold, immediately triggers protection: cuts off drive power, activates the main brake/auxiliary brake, achieving millisecond-level stopping.

Outputs fault codes and locks the system; professional reset is required to prevent accidental resumption of operation.

Redundant Safety Design: Dual-channel signal comparison and dual power supply, independent of the main control board, reduce the risk of failure due to a single fault.

Compatible with functions such as early door opening and re-leveling, improving efficiency while ensuring door zone safety.

Regulatory Compliance and System Adaptation: As a mandatory configuration for newly installed/renovated elevators, it is compatible with mainstream control systems (such as Monarch and Siasun).

Supports self-test and testing modes, facilitating maintenance personnel to verify functional effectiveness.
