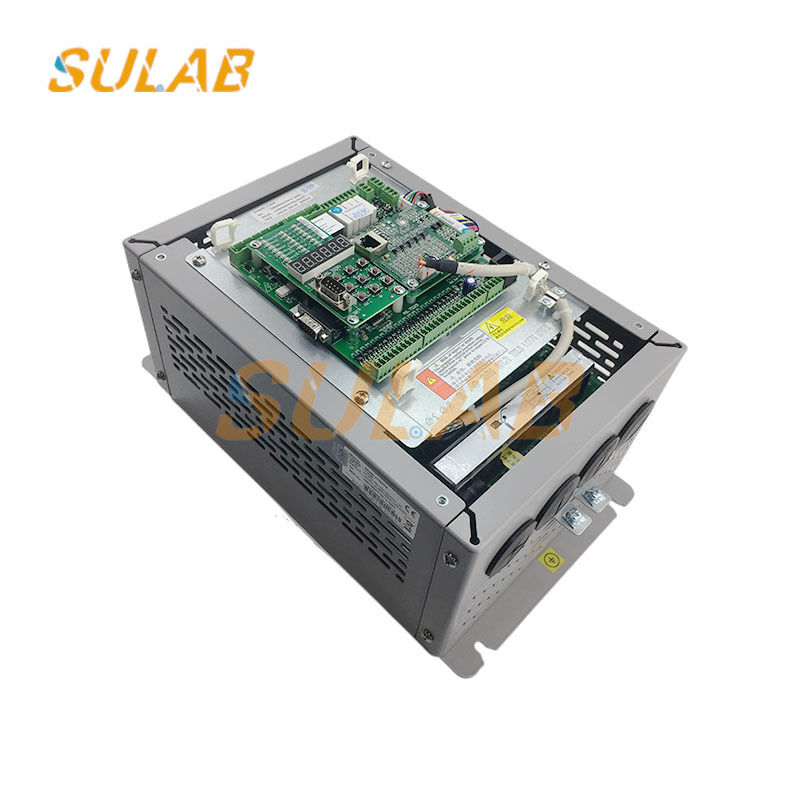

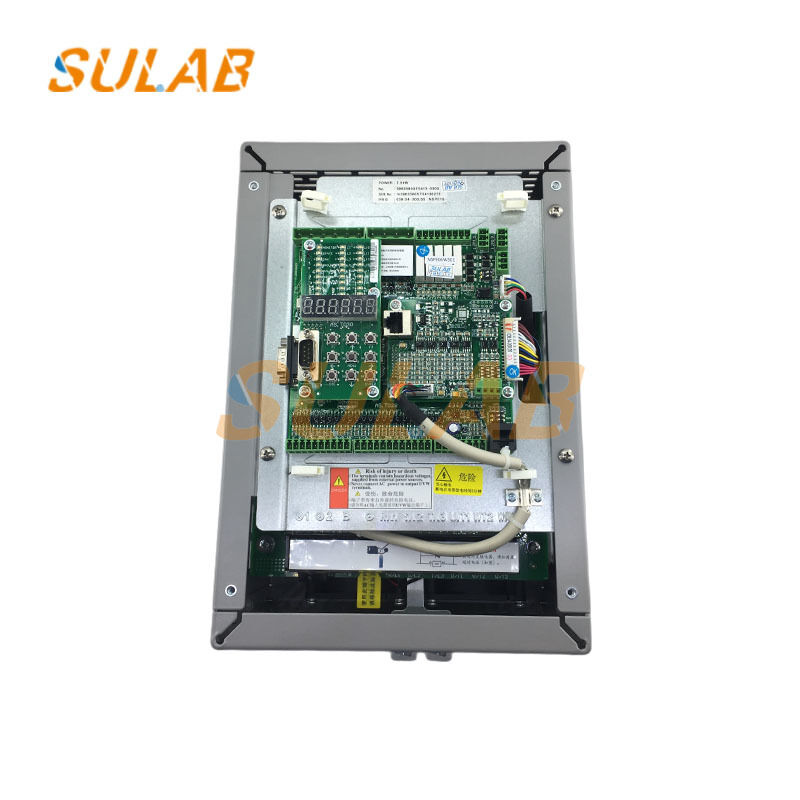

STEP AS380 Frequency Inverter Elevator Drive Controller 7.5KW to 22KW for Permanent Magnet Synchronous Motors
-
Highlight
7.5KW Frequency Inverter
,22KW Elevator Inverter
,Permanent Magnet Synchronous Drive Controller
-
BrandSTEP
-
DescriptionElevator Inverter
-
ModelAS380
-
MOQ1PC
-
TransportionTNT, UPS, DHL, Fedex, Air, Sea
-
PackagesCarton, Wooden Case, Pallet Etc
-
Delivery TimeNormally 2-3 Working Days After Payment
-
WarrantyOne Year
-
Payment MethodCompany Bank, Western Union, Alibaba, Paypal Etc
-
Brand NameSTEP
-
Model NumberAS380
-
Minimum Order Quantity1
-
Delivery Time2-3 working days
-
Payment TermsD/P,T/T,Western Union
STEP AS380 Frequency Inverter Elevator Drive Controller 7.5KW to 22KW for Permanent Magnet Synchronous Motors
The AS380 is an advanced integrated drive controller for elevators developed by STEP, combining drive, control, and safety protection functions in a single unit. This versatile controller is compatible with both asynchronous and permanent magnet synchronous motors, making it suitable for elevators with 2-64 floors and speeds up to 4.00m/s, with support for group control of up to 8 units.
| Brand | STEP |
| Description | Elevator Inverter |
| Model | AS380 |
| MOQ | 1PC |
| Transportation | TNT, UPS, DHL, Fedex, Air, Sea |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, Alibaba, Paypal etc |
- 6th-generation hardware module with junction temperature resistance up to 175℃
- Dual 32-bit embedded microprocessors for enhanced processing power
- Three-way CAN bus communication system
- Compatible with ABZ incremental PG cards (such as AS.T025)
- Compact design for easy installation in elevator control cabinets
- Simplified wiring and handheld operator debugging support
- CE certified for elevator safety circuits with electronic components
The AS380 offers multiple control modes including PG-based vector, voltage vector V/F, open-loop vector, and torque control. It delivers exceptional performance with starting torque of 150% at 0Hz, speed control range of 1:1000, and accuracy of ±0.02%. Full CAN bus implementation enables comprehensive car, hoistway, and group control communication.
Advanced features include PWM dead-time compensation to reduce motor noise and loss, motor parameter self-learning, start-up compensation without load sensors, and no need for encoder phase angle self-tuning with synchronous motors. The system includes comprehensive fault self-diagnosis and multiple protection functions including overcurrent, overvoltage, undervoltage, and overheating protection.
Additional features include integrated real-time clock, parallel and group control functions, ensuring efficient operation and maximum safety for elevator applications.
