Schindler 5400 Elevator D-Type Round Button with 3-Pin / 4-Pin Version and LED Backlight in Stainless Steel Bezel
-
Highlight
3-Pin / 4-Pin Version Elevator Button
,Stainless Steel Bezel D-Type Round Button
,LED Backlight Schindler 5400 Button
-
TypeD-Type Round Button
-
Product NameSchindler 5400 Elevator D-Type Round Button – 3-Pin / 4-Pin Version
-
ApplicableElevator Parts,Elevator Equipment,General For Escalator Parts,Passenger Lift,Passenger Elevator
-
TransportationClients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
-
PackingPacked In Carton
-
Brand NameSchindler
-
Model NumberD-Type Round Button
-
Minimum Order Quantity1
-
Delivery Time3-5 Working Days
-
Payment TermsD/A,D/P,T/T,Western Union
Schindler 5400 Elevator D-Type Round Button with 3-Pin / 4-Pin Version and LED Backlight in Stainless Steel Bezel
Schindler 5400 Elevator D-Type Round Button – 3-Pin / 4-Pin Version

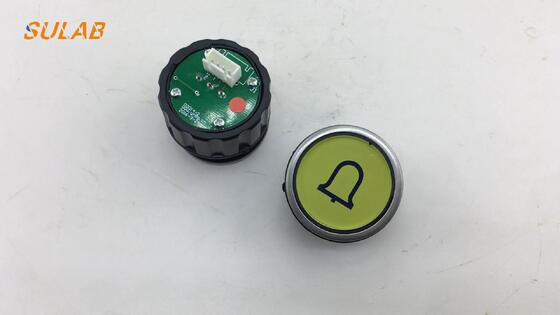

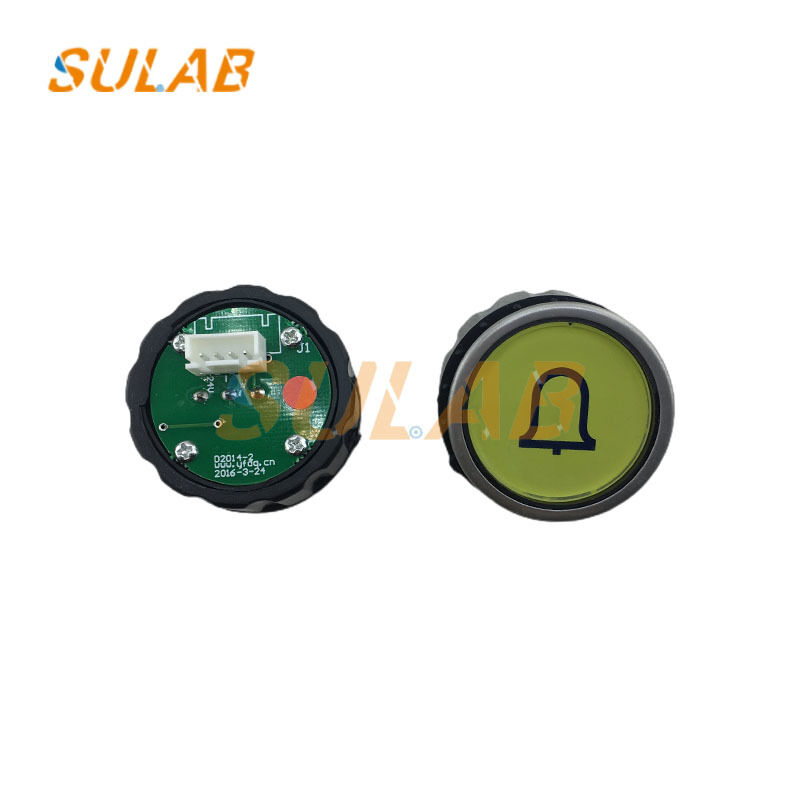

Original Schindler 5400/7000 series landing and car operating panel button featuring D-shape round face design. Available in 3-pin or 4-pin PCB plug configurations with Ø28 mm stainless-steel bezel and acrylic glass legend window. Features red, green, or blue LED backlight options with momentary action switching.
Technical Specifications
| Model | Schindler D-Type Round Button |
| Series | 5400 / 7000 / 5500 |
| Pin-out Configuration | 3-pin (1NO+1NC) or 4-pin (2NO) |
| LED Color Options | Red, Green, Blue (optional) |
| Face-plate | Ø28 mm, brushed stainless steel |
| Legend Options | Switch-door, direction arrow, number (customizable) |
| Voltage Rating | DC 24 V (LED) / 250 V 3 A (switch) |
| Mounting | Snap-in 30 mm hole, PCB plug-in |
| OEM References | D2-CL, D4-CL, 807GD042, D2DSQG |
| Weight | 18 g (single unit) |
| Packing | 100 pcs / export carton |
Key Features
- Direct replacement for multiple OEM part numbers
- Momentary action micro-switch arrangement
- Customizable legend window for various applications
- LED backlight with multiple color options
- Professional brushed stainless steel finish
Applications

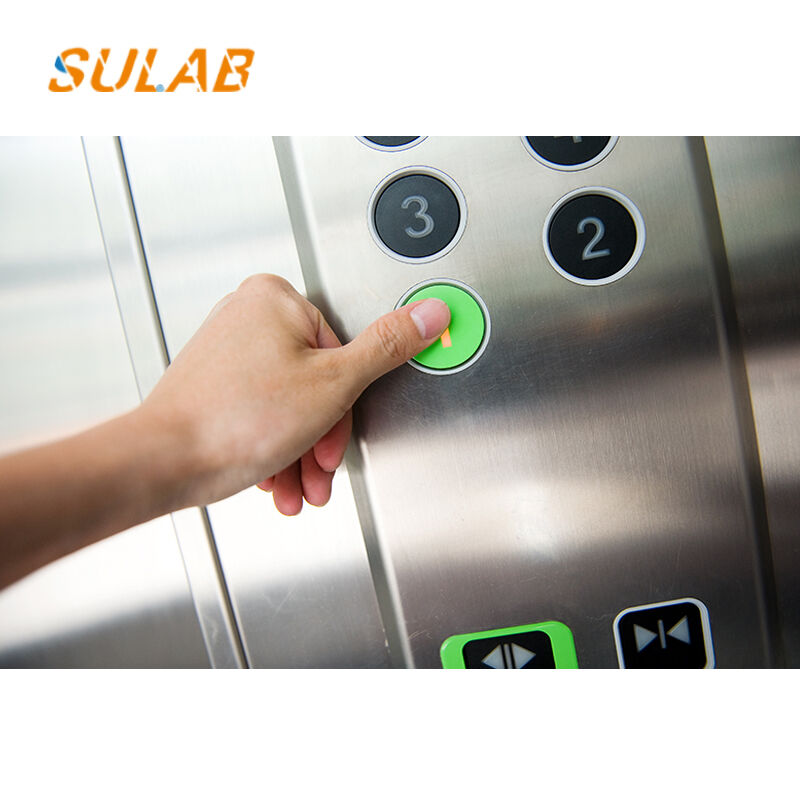

Landing call stations and car operating panel (COP) assemblies for Schindler 5400, 7000, 5500, and 3300 elevator systems.
