Brand New Schindler D2SW-01MS Elevator Switch with IP67 Protection DC30V/0.1A and SPDT Contact Switching

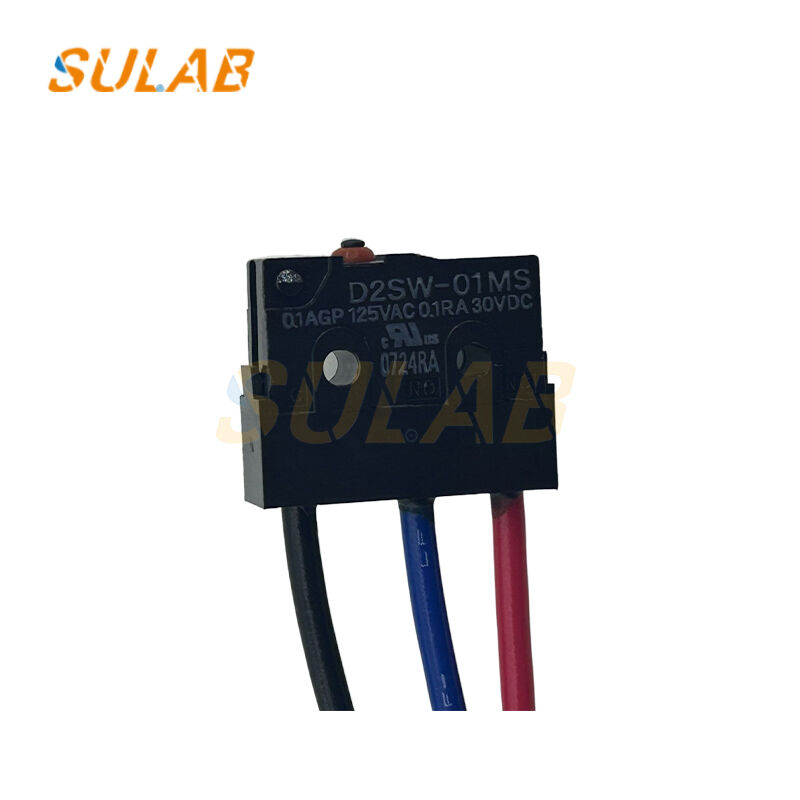

The D2SW-01MS is a sealed subminiature micro switch custom-designed by OMRON for Schindler elevators. This specialized component is engineered for position detection and safety circuits in Schindler 300P, 5400, and other series elevators, primarily serving signal state switching and safety interlock control functions.

• SPDT Contact Switching: NO/NC double contacts for signal switching in elevator safety circuits and position feedback circuits
• Sealed Protection: IP67 rating provides excellent protection against dust and water splashing
• Low-Load Adaptation: Rated for DC30V/0.1A, ideal for weak signal transmission in control circuits
• Stable Performance: Operating force of 8.4±0.3mm, return force ≥30g, vibration resistance 10-55Hz/1.5mm
• Durability: Mechanical life ≥5 million operations, electrical life ≥100,000 operations
• Environmental Compatibility: Operating temperature range from -40°C to 85°C
• Safety Certified: UL, CSA, VDE certified and RoHS compliant

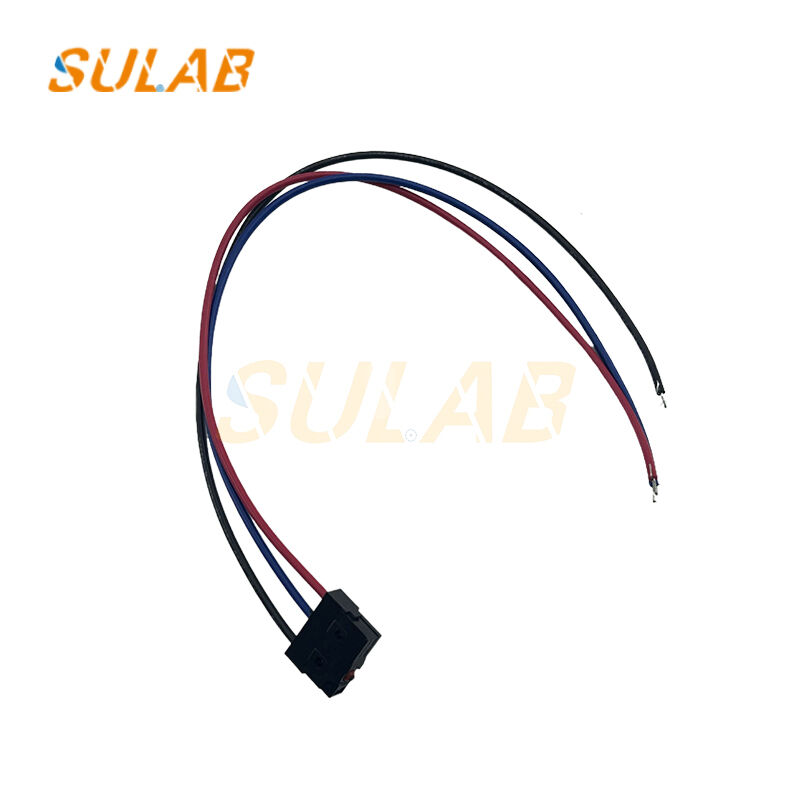

Essential for brake state monitoring, door lock contact feedback, and safety interlock requirements in Schindler elevator systems. The pin plunger actuator with 300mm wires (MS wire-type identifier) and metal shell design supports M2.3 screw mounting for secure installation in elevator shafts and machine rooms.
