BZ-110C Elevator Brake Power Box with 110 VAC Input 110 VDC 3 A Output and Over-Excitation Holding Circuit
-
Highlight
110 VAC Input Elevator Brake Power Box
,110 VDC 3 A Output Brake Power Supply
,Over-Excitation Holding Circuit Elevator Brake Controller
-
TypeBZ-110C
-
Product NameBZ-110C Elevator Brake Power Box
-
ApplicableElevator Parts,Elevator Equipment,General For Escalator Parts,Passenger Lift,Passenger Elevator
-
TransportationClients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
-
Business TypeManufacturer
-
PackingPacked In Carton
-
Model NumberBZ-110C
-
Minimum Order Quantity1
-
Delivery Time3-5 Working Days
-
Payment TermsD/A,D/P,T/T,Western Union
BZ-110C Elevator Brake Power Box with 110 VAC Input 110 VDC 3 A Output and Over-Excitation Holding Circuit

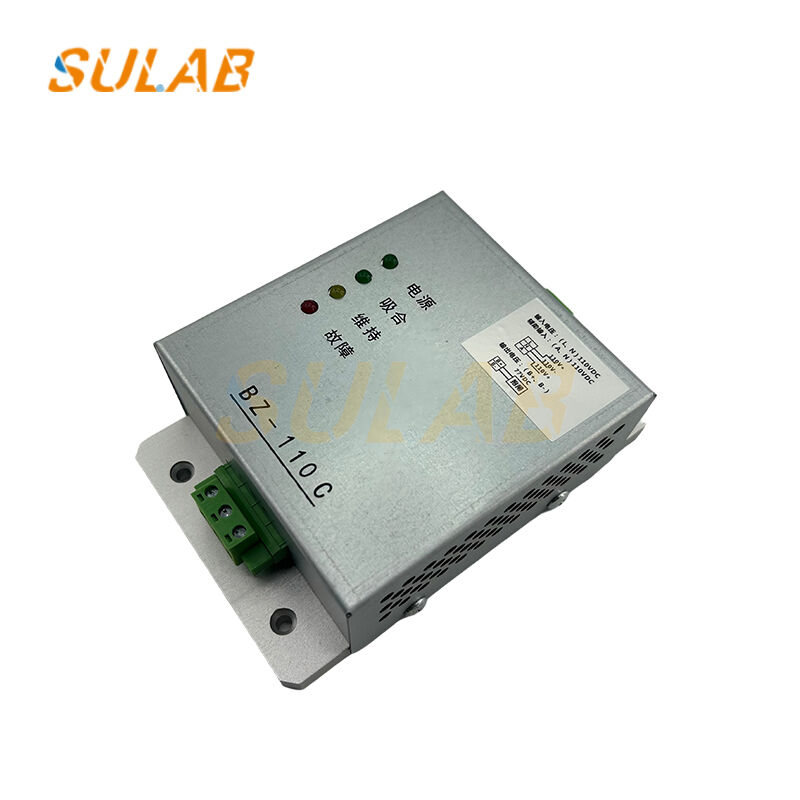

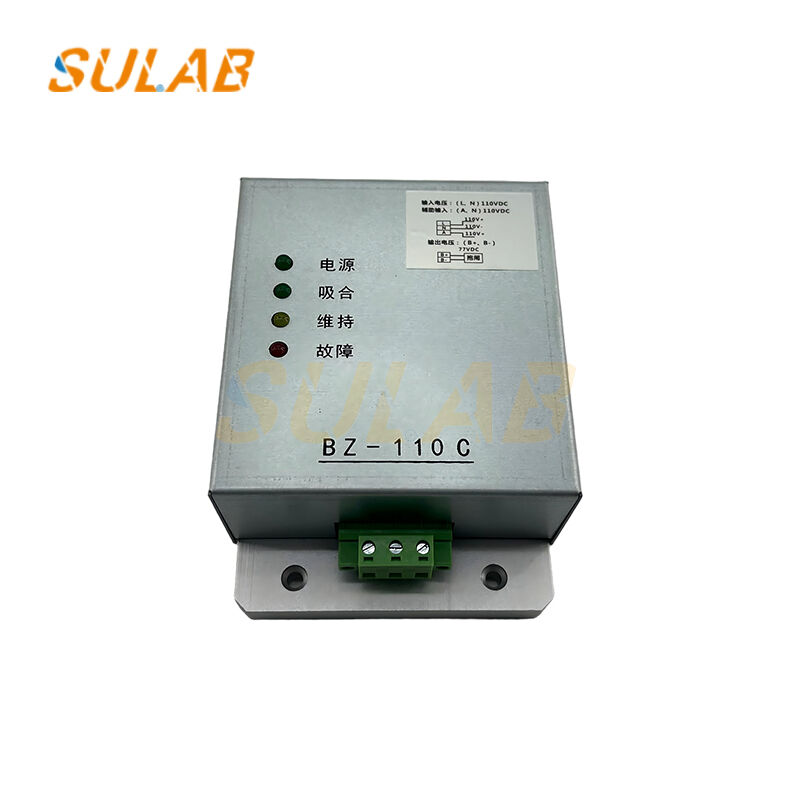

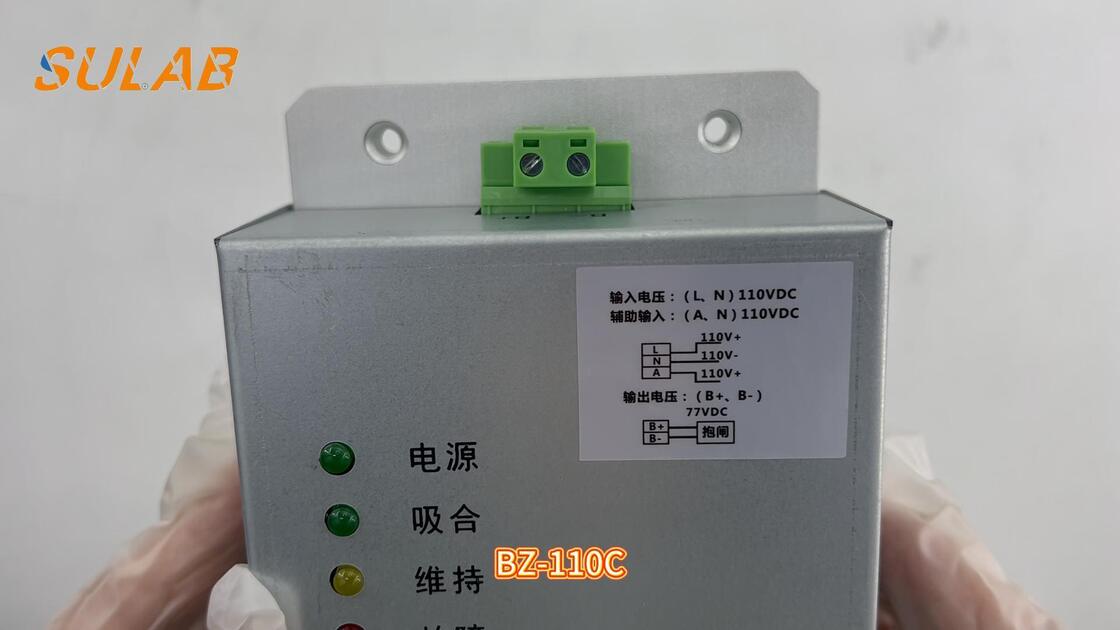

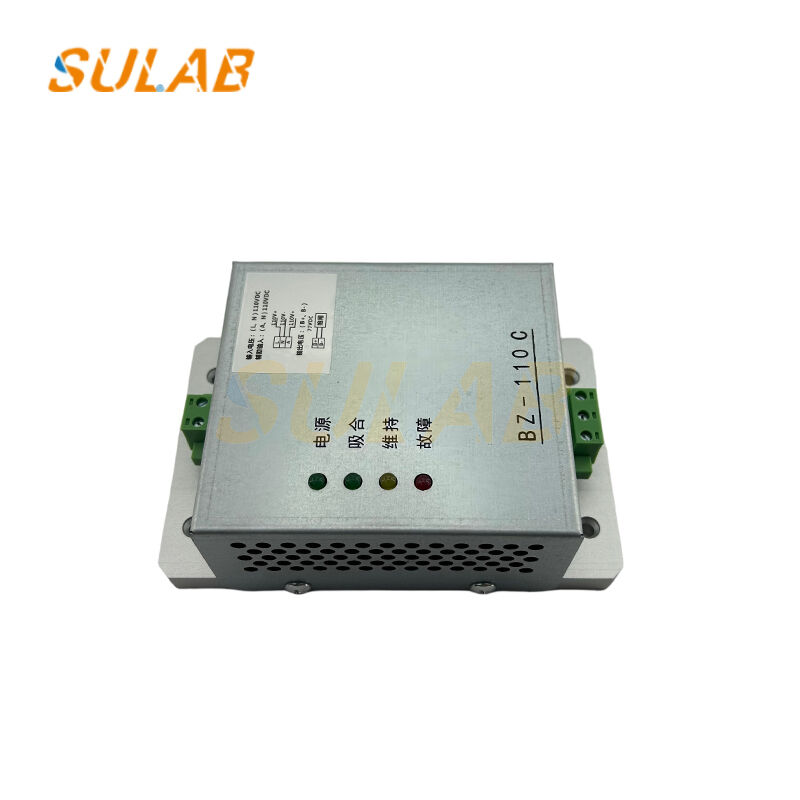

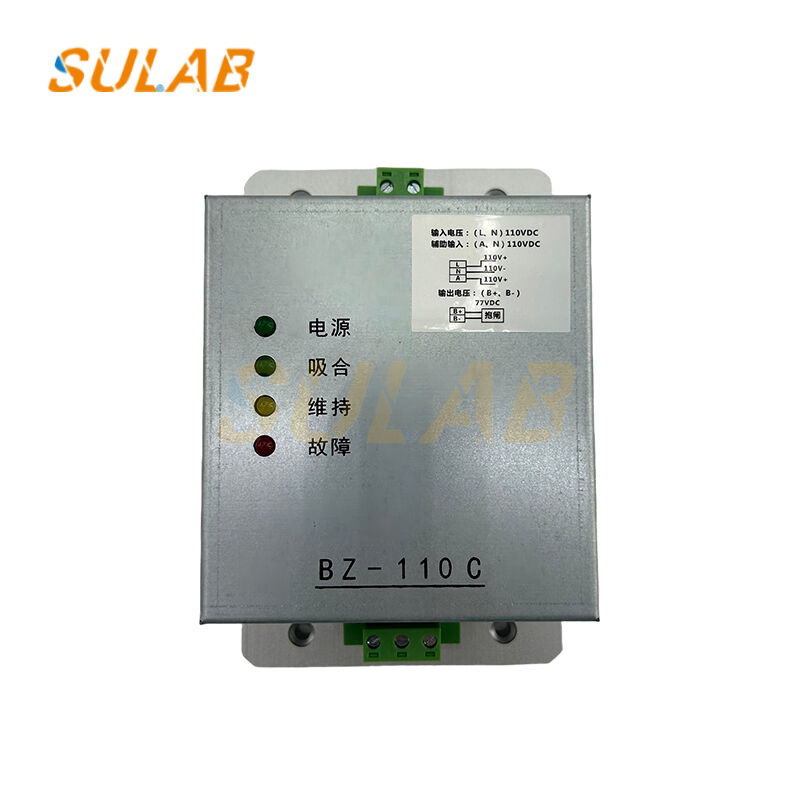

BZ-110C Elevator Brake Power Box
110 VAC Input, 110 VDC 3 A Output with Over-Excitation & Holding Circuit
Plug-and-play power box supplies dual-level DC voltage to lift brake coils. Built-in rectifier bridge with over-excitation timer delivers 110 VDC @ 3 A for 0.5 seconds, then drops to 70 VDC holding voltage to reduce heat and hum.
Key Features
- IP 54 rated steel enclosure for industrial environments
- DIN-rail mounting for easy installation
- 6.3 mm push-in terminals for secure connections
- LED status bar for operational monitoring
- Compatible with OTIS, Mitsubishi, KONE machines using 110 VDC spring-applied brakes ≤ 300 W
- UL & CE listed certifications
- Operating temperature range: -10 °C to +55 °C
Technical Specifications
| Model | BZ-110C |
|---|---|
| Input Voltage | 1 × 110 VAC ±10% 50/60 Hz |
| Output Voltage | 110 VDC over-excitation / 70 VDC holding |
| Output Current | 3 A max continuous |
| Over-Excitation Time | 0.5 s (fixed) |
| Rectifier Type | Full-wave, SCR-regulated |
| Efficiency | 85% @ full load |
| Protection | IP 54, over-temperature, short-circuit |
| Terminals | L/N/PE 6.3 mm, brake ± screw |
| Cooling | Natural convection |
| Operating Temperature | -10 °C ~ +55 °C |
| Mounting | DIN 35 mm rail or wall plate |
| Dimensions | 150 × 90 × 65 mm |
| Weight | 0.9 kg |
| Approvals | CE, UL 508 (E135710) |
