Original KONE PCB Board Elevator Control Card with 32-bit ARM Cortex-M3 MCU Gold-plated Edge Connectors and Conformal Coating for MX10 System
Brand Name:
Kone
Model Number:
KM713120G01
Minimum Order Quantity:
1
Delivery Time:
3-5 Working Days
Payment Terms:
D/A,D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
32-bit ARM Cortex-M3 MCU KONE PCB Board
,Gold-plated edge connectors Elevator Control Card
,Conformal coating MX10 System
Type:
KM713120G01
Product Name:
KM713120G01 KONE PCB Board
Transportation:
Clients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
Application:
Lift Parts,hoist,elevator
Business Type:
Manufacturer
Packing:
Packed In Carton
Product Description

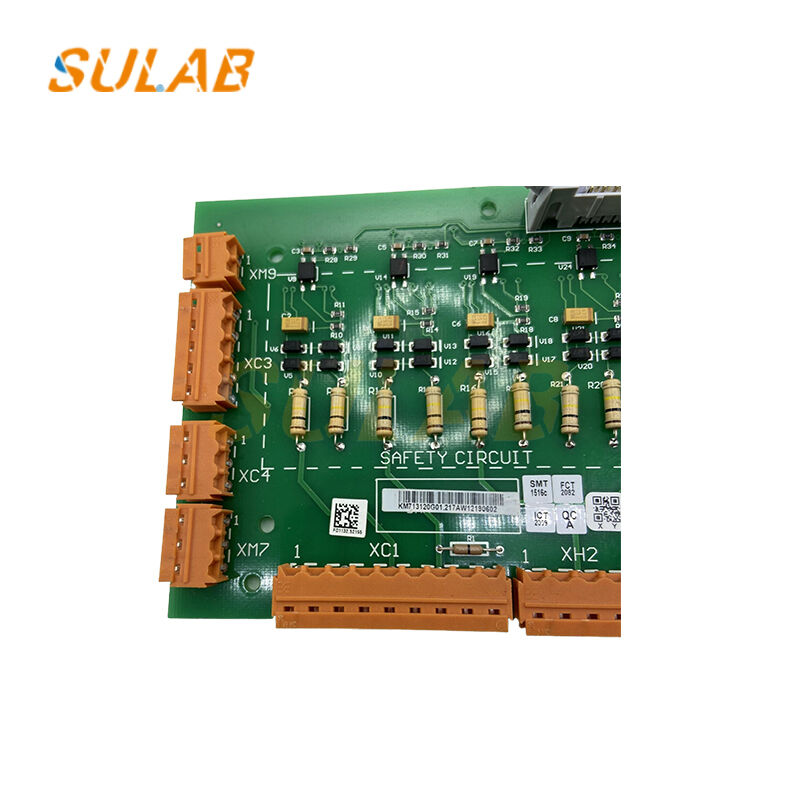

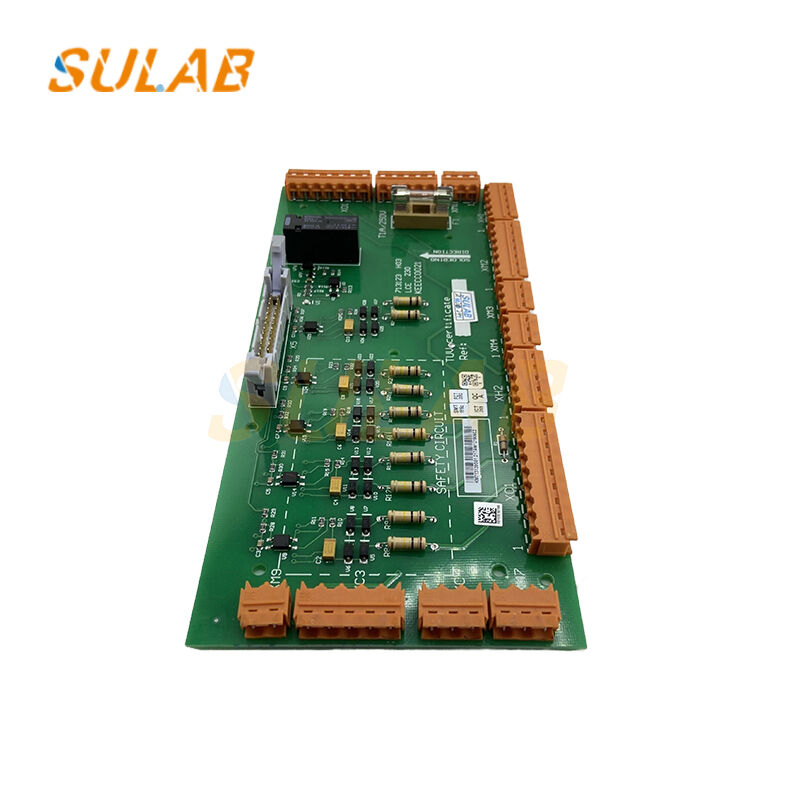

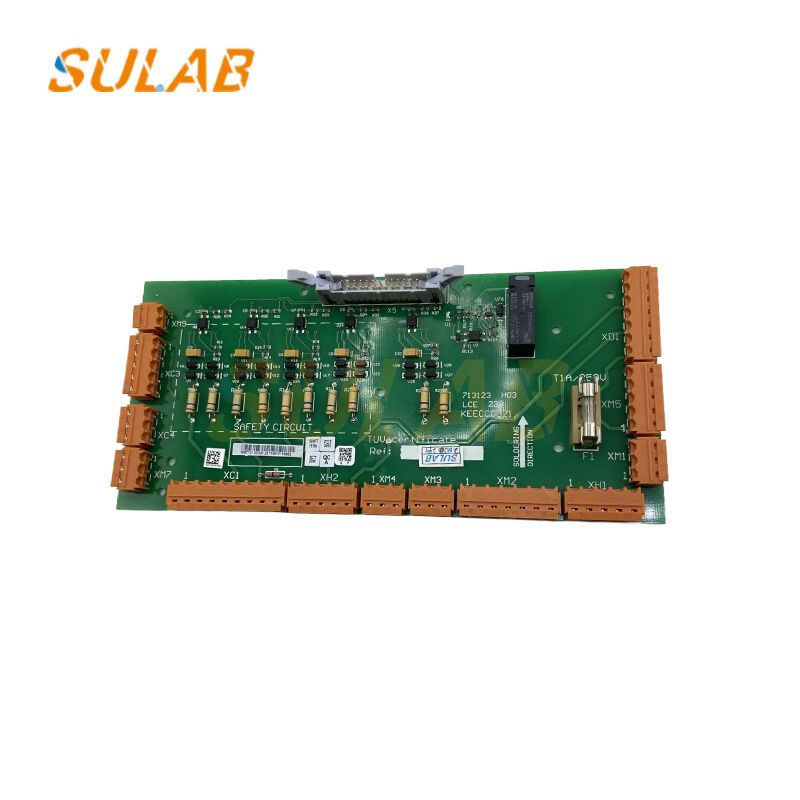

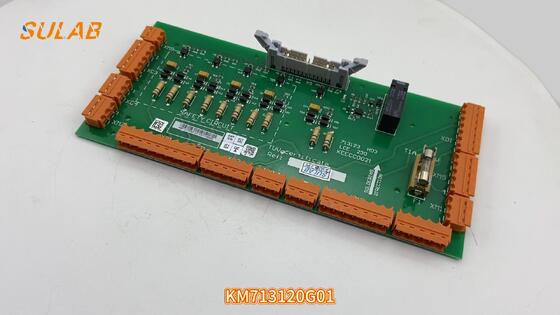

KM713120G01 KONE PCB Board | Elevator Control Card MX10 System, Original
KM713120G01 is the original KONE elevator control PCB designed for MX10 and MiniSpace™ systems. This 6-layer FR-4 board features a 32-bit ARM Cortex-M3 MCU, CAN-bus transceivers, and 24 V digital I/O, managing car calls, door commands, and safety-chain logic in a compact slot design. Gold-plated edge connectors support over 1,000 hot-swap cycles without wear, while conformal coating provides protection against dust and humidity in machine-room-less installations. The integrated LED diagnostics strip enables rapid on-site troubleshooting by matching blink codes with KONE's service tools. Factory-tested with firmware 3.8.x pre-loaded, this board serves as a direct replacement for obsolete KM713120G00 and KM713120G02 models.
Technical Specifications
| Part Number | KM713120G01 |
| Brand | KONE Original |
| Description | Elevator control PCB / main board |
| System | MX10, MiniSpace™ |
| Processor | ARM Cortex-M3, 72 MHz |
| Layers | 6-layer FR-4, 1.6 mm |
| Coating | Acrylic conformal, UL-94 V-0 |
| Connectors | 3 × 48-pin gold edge, 2 × RJ45 |
| I/O | 24 VDC 32 in / 24 out |
| Communication | CAN 2.0B, KONE Bus |
| Firmware | 3.8.x (flash-upgradeable) |
| LED Diagnostics | 8-status strip |
| Temperature Range | -5 °C ~ +60 °C |
| Standards | CE, RoHS, EN 12015/16 |
Key Features
- Original KONE elevator control board for MX10 and MiniSpace™ systems
- 32-bit ARM Cortex-M3 processor with 72 MHz clock speed
- 6-layer FR-4 construction with 1.6 mm thickness
- Acrylic conformal coating with UL-94 V-0 rating
- Gold-plated edge connectors for durability and reliability
- 24 VDC digital I/O with 32 inputs and 24 outputs
- CAN 2.0B and KONE Bus communication protocols
- 8-status LED diagnostics strip for easy troubleshooting
- Wide operating temperature range: -5°C to +60°C
- Compliant with CE, RoHS, and EN 12015/16 standards
Warranty: 1 year manufacturer warranty included
