NEMICON HES-06-2MHT-800-050-00E Rotary Encoder with 800P/R Resolution Line Driver Output and Ultra-Thin Flange Design for Elevators
HES-06-2MHT-800-050-00E Codificador Rotatorio De Control Interno NEMICON Original Nuevo

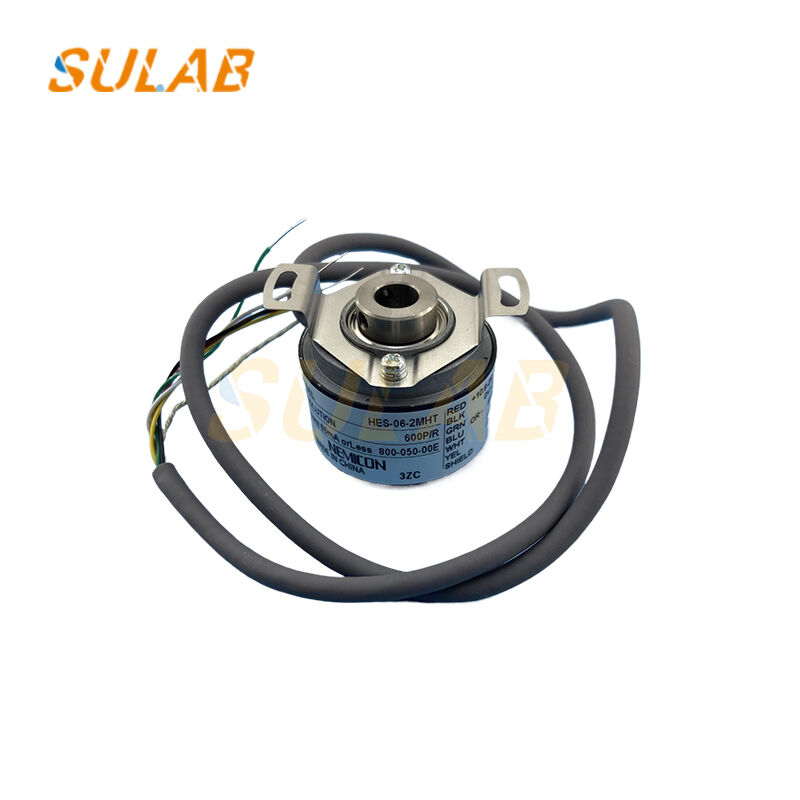

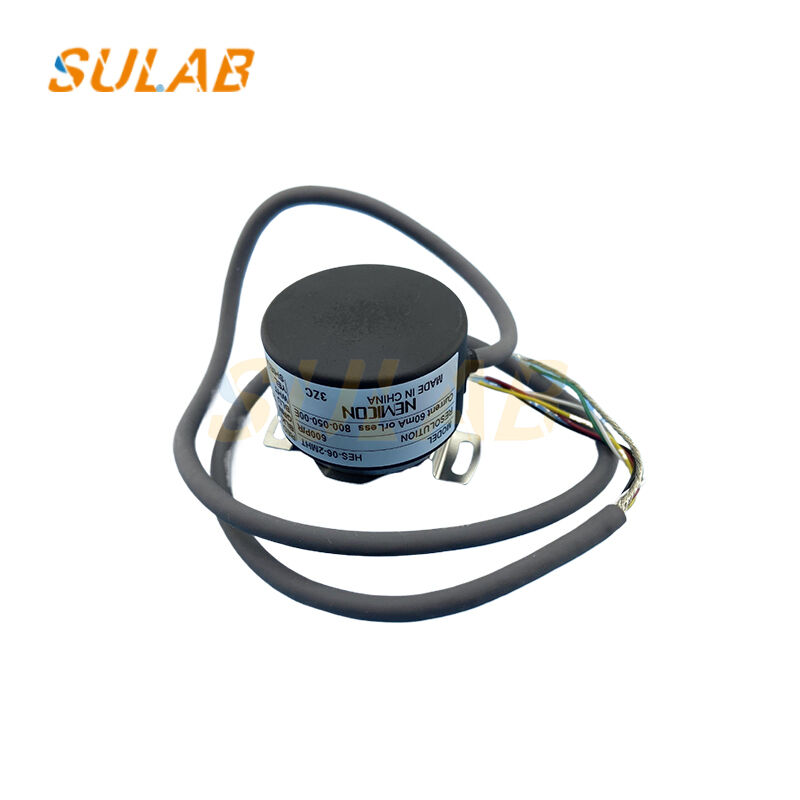

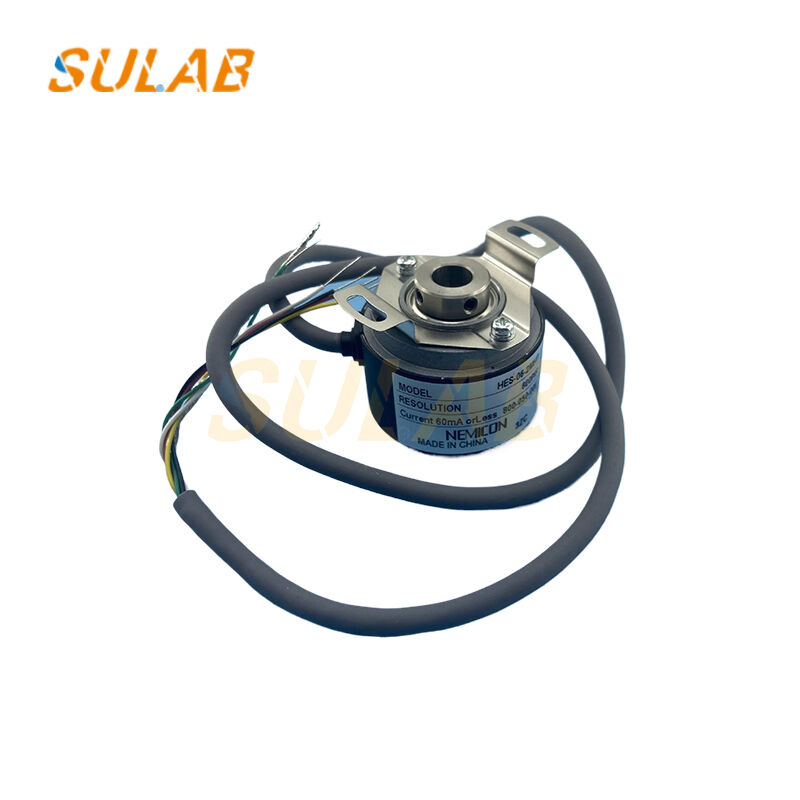

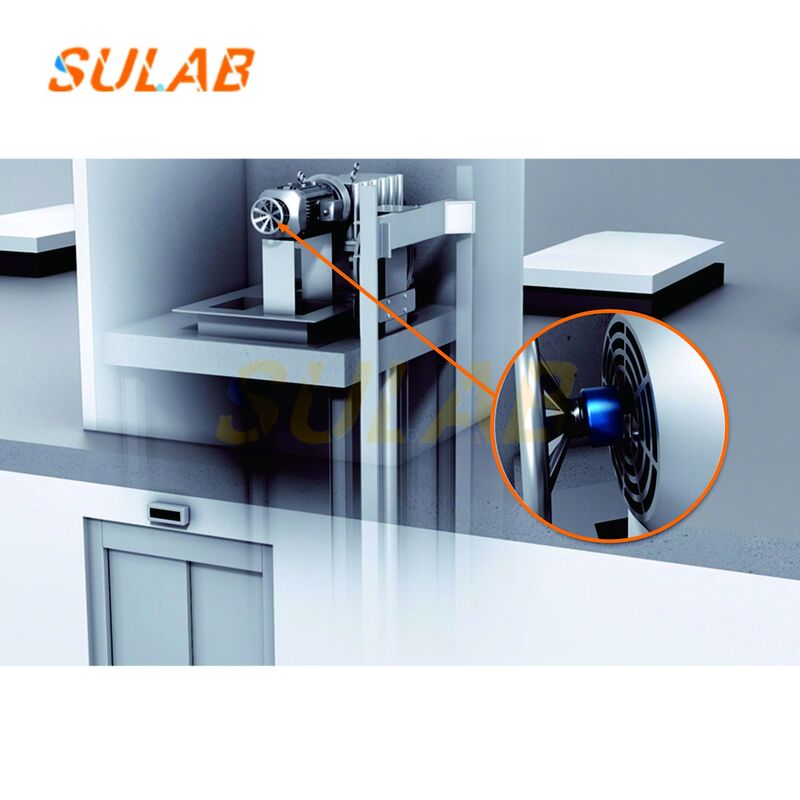

HES-06-2MHT-800-050-00E is an ultra-thin incremental rotary encoder launched by NEMICON, specifically designed for elevator door machines and traction machines. This encoder is compatible with speed and position detection for mainstream elevator brands including Mitsubishi, Hitachi, and KONE, primarily used for closed-loop control and leveling accuracy assurance.
Featuring a φ38mm ultra-thin flange design with a semi-hollow shaft aperture of 6mm, it outputs 800P/R incremental quadrature pulses. Powered by DC5V±5% with current consumption ≤100mA, the output form is Line Driver, making it suitable for long-line transmission. Operating temperature range is -10°C to +70°C, storage temperature is -25°C to +85°C, with IP50 protection class. Vibration resistance is 10~55Hz 1.5mm double amplitude, and shock resistance is 50G, making it ideal for the harsh working conditions of high-frequency start-stop and heavy vibration in elevator applications.
Product Specifications
| Brand | NEMICON |
| Description | Elevator encoder |
| Model | HES-06-2MHT-800-050-00E |
| MOQ | 1PC |
| Transportion | TNT, UPS, DHL, Fedex, Air, Sea |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, alibaba, Paypal etc |
Core Features
- Line Driver output with RS422 standard signal provides excellent electromagnetic interference resistance, supporting cable transmission distances up to 100m for elevator shafts and machine rooms
- 800P/R medium-high resolution balances detection accuracy with response speed for elevator door opening/closing and traction machine low-speed leveling
- φ38mm ultra-thin design weighing only 50g, ideal for narrow installation spaces in elevator door machines
- Built-in reverse connection and short-circuit protection circuits prevent damage to internal optical components from wiring errors
- Metal flange with engineering plastic shell provides wear resistance and vibration protection
- Pulse jitter ≤±0.5° ensures stable signal output without missing pulses
