Tamagawa Encoder TS5246N473 with 8192P/R High Resolution Line Driver Output and φ60mm Flange Design for Elevators
Brand Name:
Tamagawa
Model Number:
TS5246N473
Minimum Order Quantity:
1
Delivery Time:
2-3 working days
Payment Terms:
D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
8192P/R High Resolution Tamagawa Encoder
,Line Driver Output Elevator Encoder
,φ60mm Flange Design Encoder
Brand:
Tamagawa
Description:
Elevator Encoder
Model:
TS5246N473
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description

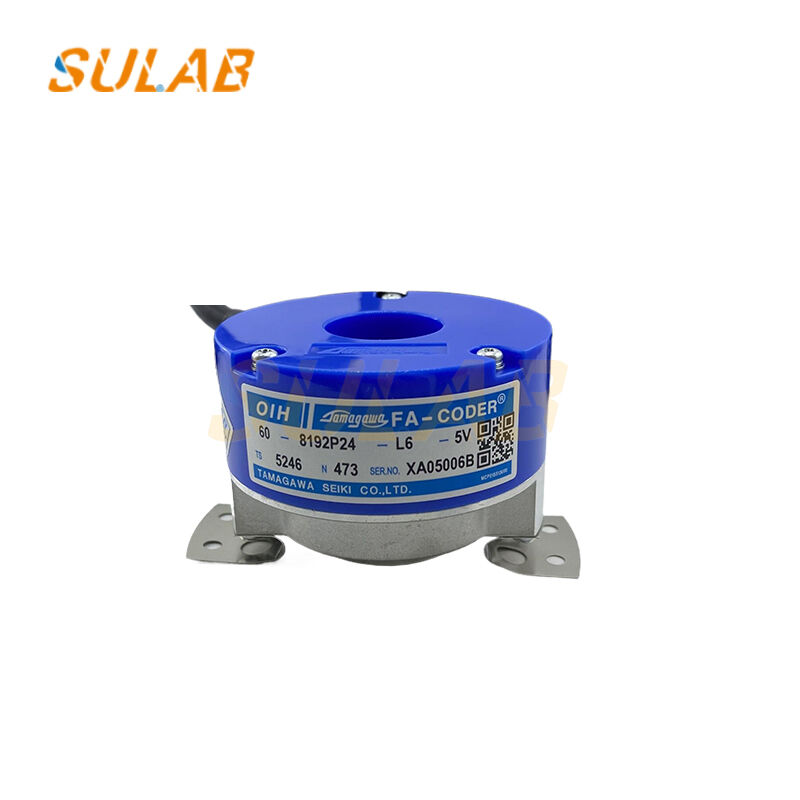

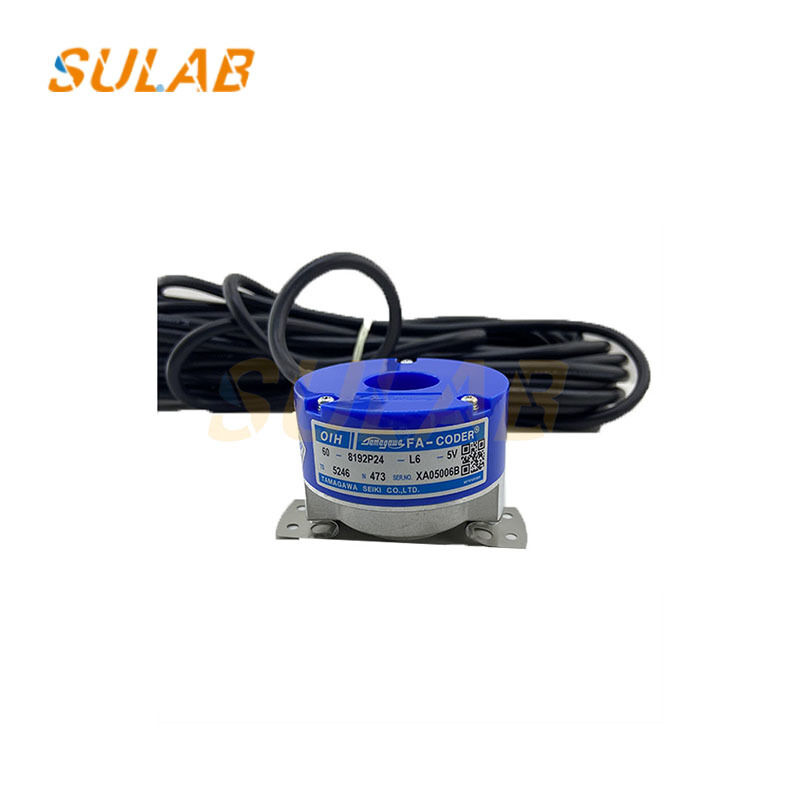

Brand New Original In Stock Tamagawa Encoder TS5246N473 (OIH60-8192P24-L6-5V)

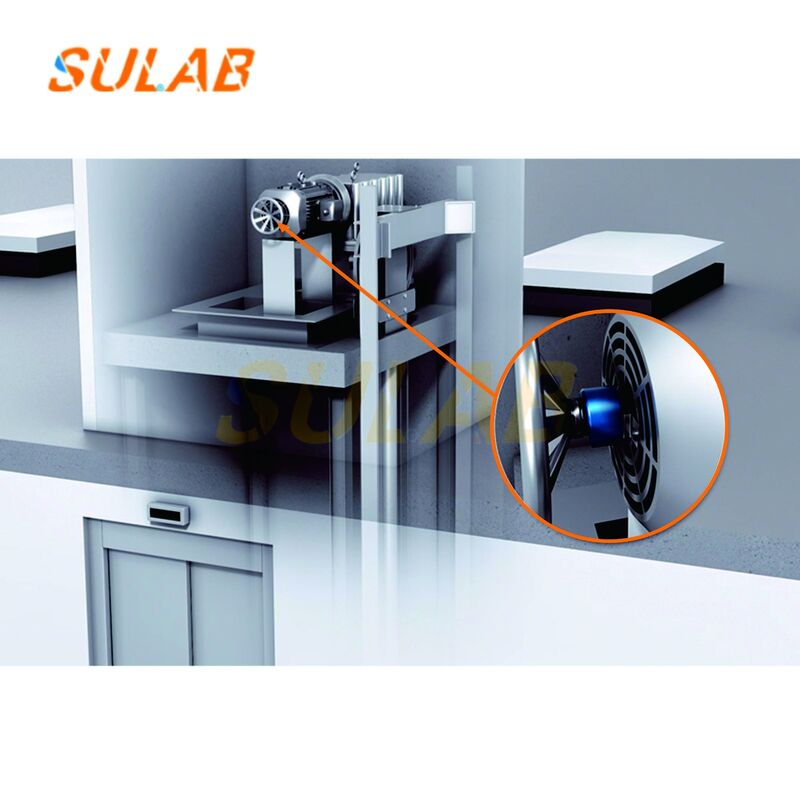

The TS5246N473 is an incremental optical encoder from Tamagawa's OIH60 series, specifically designed for elevator traction machines. This model (OIH60-8192P24-L6-5V) is compatible with speed and position detection systems for elevators from leading brands including Hitachi, Mitsubishi, and KONE. It provides essential closed-loop control and ensures precise leveling accuracy in elevator operations.
Technical Specifications
| Brand | Tamagawa |
| Description | Elevator Encoder |
| Model | TS5246N473 |
| Flange Size | φ60mm |
| Shaft Aperture | 6mm semi-hollow |
| Resolution | 8192 P/R incremental quadrature pulses |
| Power Supply | DC 5V ±5% |
| Current Consumption | ≤200mA |
| Output Type | Line Driver (RS422 standard) |
| Operating Temperature | -20°C to +85°C |
| Storage Temperature | -30°C to +90°C |
| Protection Class | IP40 |
| Vibration Resistance | 10-55Hz, 1.5mm double amplitude |
| Shock Resistance | 50G |
Ordering & Support
| Minimum Order Quantity | 1 PC |
| Shipping Methods | TNT, UPS, DHL, FedEx, Air, Sea |
| Packaging Options | Carton, Wooden Case, Pallet |
| Delivery Time | 2-3 working days after payment |
| Warranty | One Year |
| Payment Methods | Company Bank, Western Union, Alibaba, PayPal |
Key Features & Benefits
Line Driver output with RS422 standard signal provides strong anti-interference capability
Transmission distance up to 100m, ideal for elevator shaft and machine room environments
8192 P/R high resolution ensures precise detection for both low-speed leveling and high-speed operation

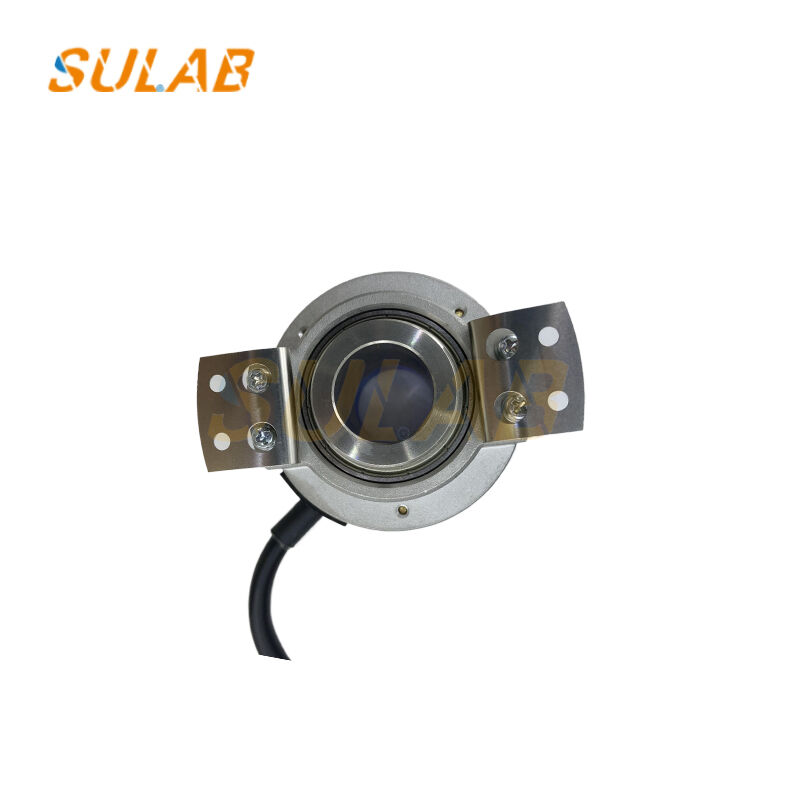

φ60mm flange design compatible with most elevator traction machine installation spaces
Built-in reverse connection and short-circuit protection circuits prevent damage from wiring errors
Metal shell construction for enhanced durability, wear resistance, and vibration protection
Minimal pulse jitter (≤±0.5°) ensures stable signal output without missing pulses
This encoder is specifically engineered to withstand the demanding conditions of elevator applications, including high-frequency start-stop cycles and strong electromagnetic interference environments.
