Fujitec DR13F Door Operator Board with Dedicated Simplified Door Machine Control Industrial-Grade 8-Bit Microcontroller and MILLNET Communication Interface
-
Highlight
Dedicated Simplified Door Machine Control Door Operator Board
,Industrial-Grade 8-Bit Microcontroller Elevator Control Board
,MILLNET Communication Interface Fujitec DR13F Board
-
BrandFujitec
-
DescriptionElevator Board
-
ModelDR13F
-
MOQ1PC
-
TransportionTNT, UPS, DHL, Fedex, Air, Sea
-
PackagesCarton, Wooden Case, Pallet Etc
-
Delivery TimeNormally 2-3 Working Days After Payment
-
WarrantyOne Year
-
Payment MethodCompany Bank, Western Union, Alibaba, Paypal Etc
-
Brand NameFujitec
-
Model NumberDR13F
-
Minimum Order Quantity1
-
Delivery Time2-3 working days
-
Payment TermsD/P,T/T,Western Union
Fujitec DR13F Door Operator Board with Dedicated Simplified Door Machine Control Industrial-Grade 8-Bit Microcontroller and MILLNET Communication Interface
Fujitec DR12 Door Operator Board

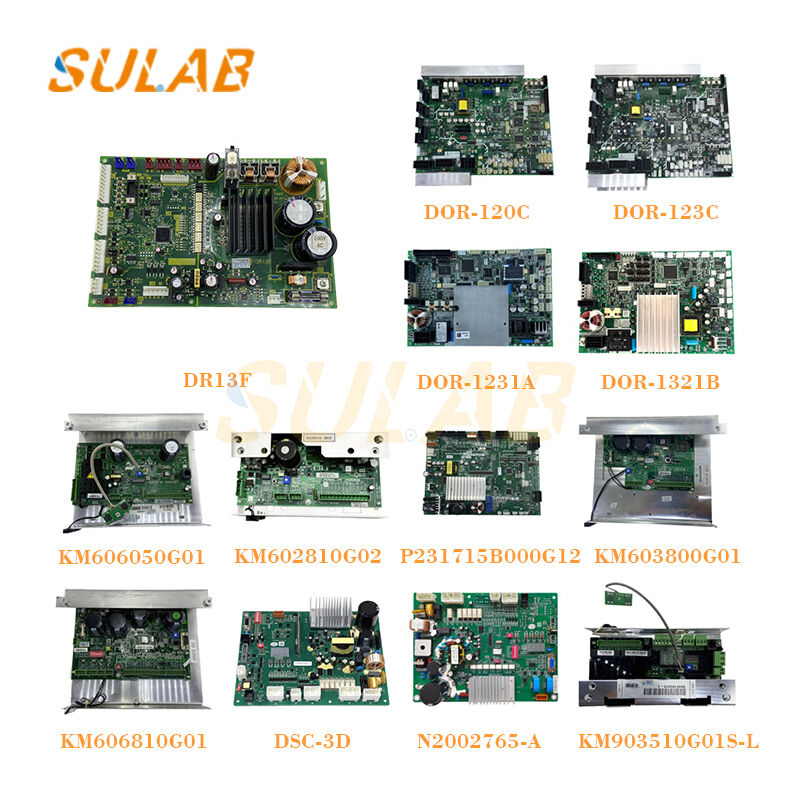

Fujitec Elevator DR13G DR13E Fujitec DR13F 13H Door Operator Board

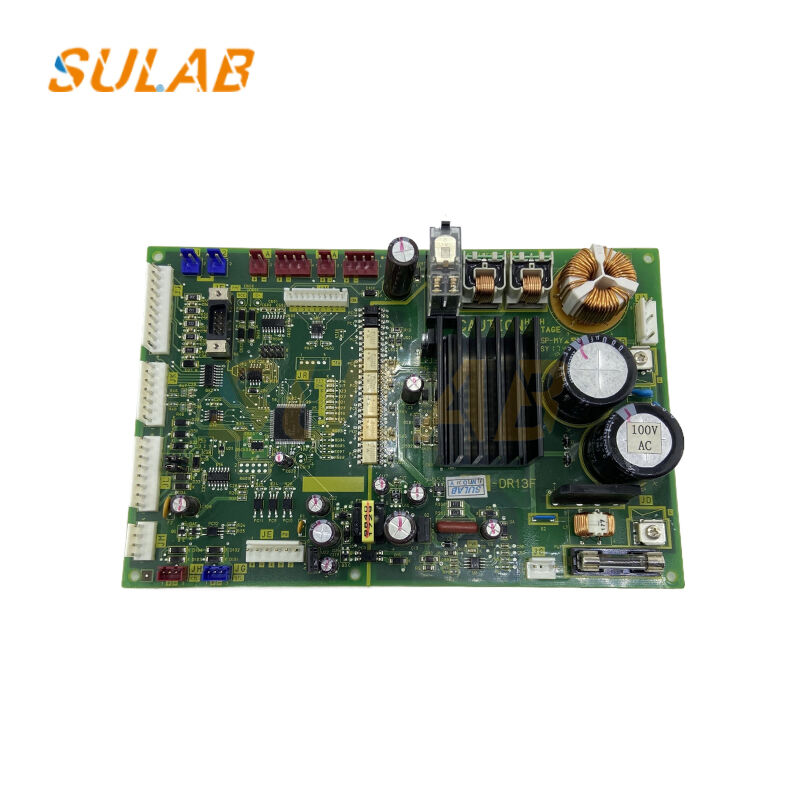

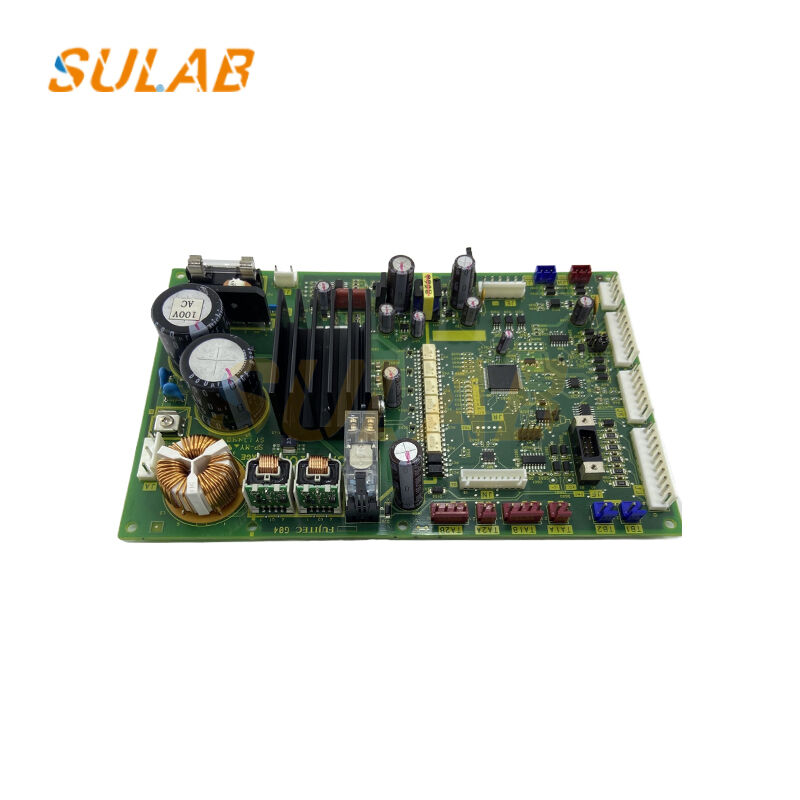

The DR13F is a dedicated simplified door machine control board for HUASHENG FUJITEC Elevator systems. With material number C1F-DR13, this board serves as a core component of Fujitec elevator door systems, responsible for precise speed and position control of the door machine motor to ensure smooth opening and closing of elevator car doors and hall doors.
Technical Specifications
| Brand | Fujitec |
| Description | Elevator board |
| Model | DR13F |
| MOQ | 1PC |
| Transportion | TNT, UPS, DHL, Fedex, Air, Sea |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, alibaba, Paypal etc |
Technical Features
- Industrial-grade 8-bit microcontroller for reliable performance
- Dual power input: AC200V(±10%)/DC24V with 200W driving power
- Compatible with 24V DC permanent magnet synchronous door machine motors
- MILLNET communication interface (9600bps) for system integration
- Compact dimensions: 150×100×25mm with guide rail mounting (35mm standard guide rail)
- IP20 protection class for industrial environments
- Complies with EN 81-20/50 and GB 7588 safety standards
- CE/ISO9001 certified with 12-month warranty
Drive System & Performance
Utilizes an isolated H-bridge drive architecture with dual H-bridge structure through two groups of IR2104 half-bridge drive chips and N-channel MOSFETs. This enables forward/reverse rotation and speed regulation of the door machine motor with adjustable door opening/closing speed (0.1-0.6m/s) and acceleration/deceleration (0.5-1.5m/s²).
Features PWM pulse width modulation at 20kHz frequency, ensuring smooth operation with low noise and improved passenger comfort.
Safety & Control Features
Built-in comprehensive door opening/closing logic control supports multiple door types including single door, double door, center-opening door, and side-opening door. The system includes door position detection, door lock status monitoring, and light curtain/safety edge signal processing for enhanced safety.
Advanced anti-pinch protection automatically reverses door machine direction (during opening) or stops door closing (during closing) when obstacles are detected, preventing passenger injury and complying with elevator safety standards.
Multiple protection circuits including overcurrent, overvoltage, undervoltage, overheating, and stall protection automatically cut off power and trigger alarms when faults occur.
