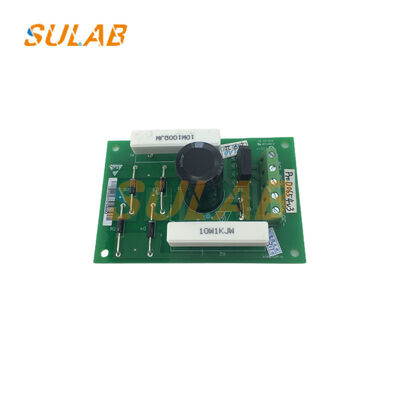

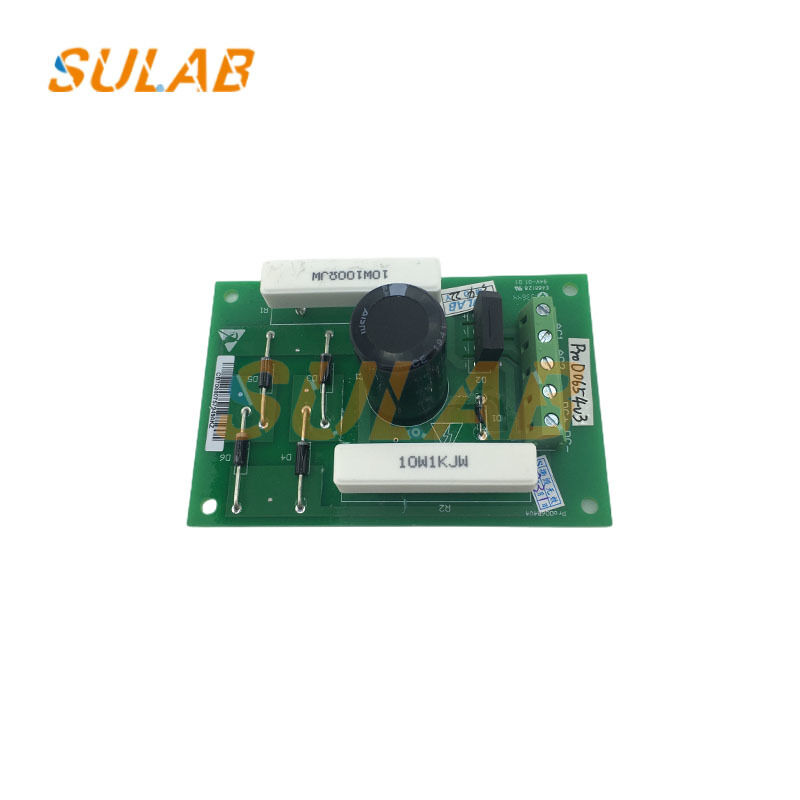

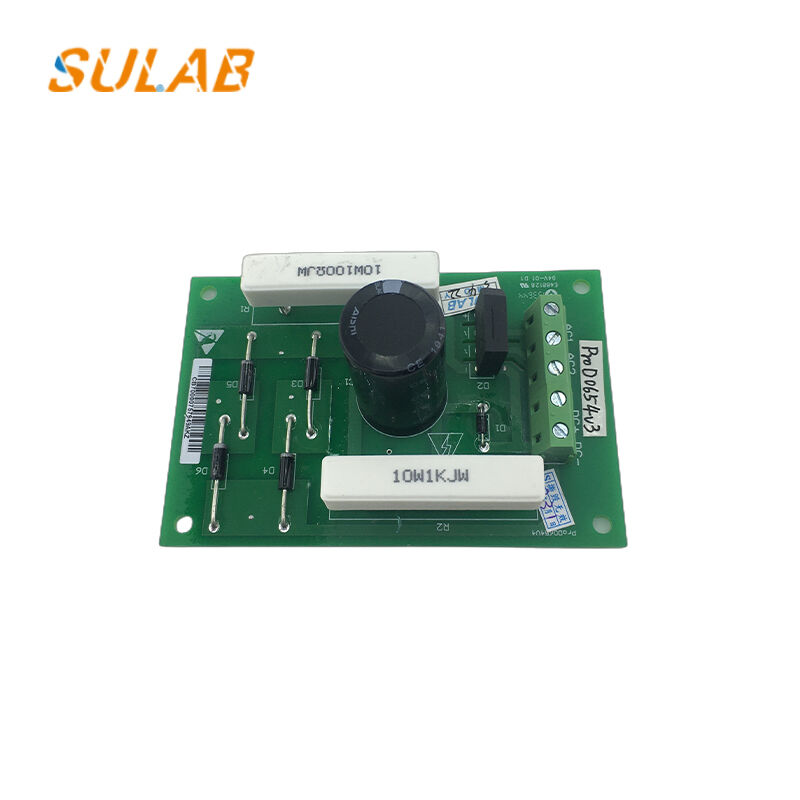

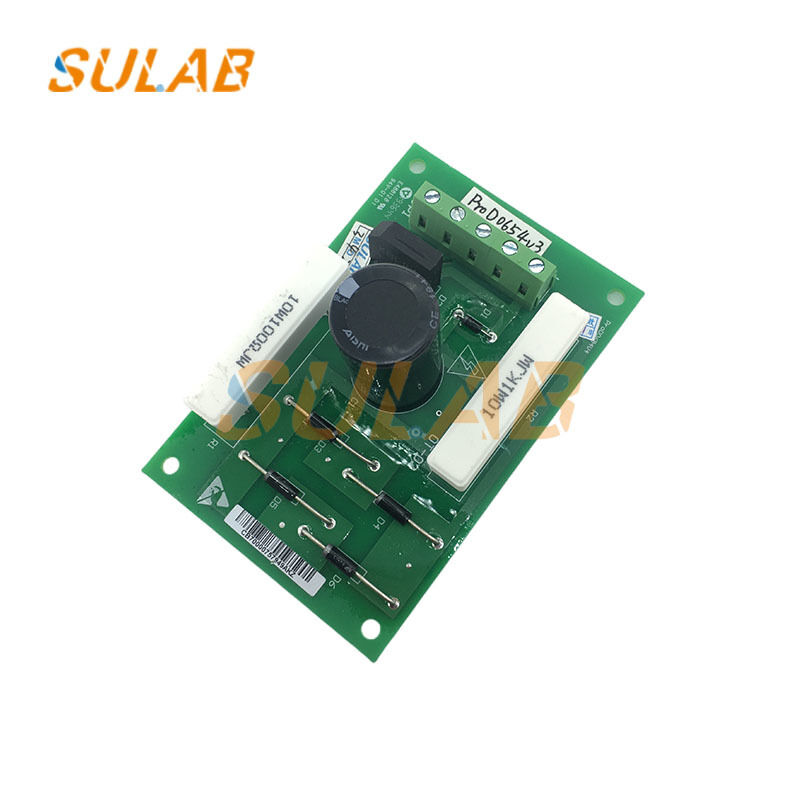

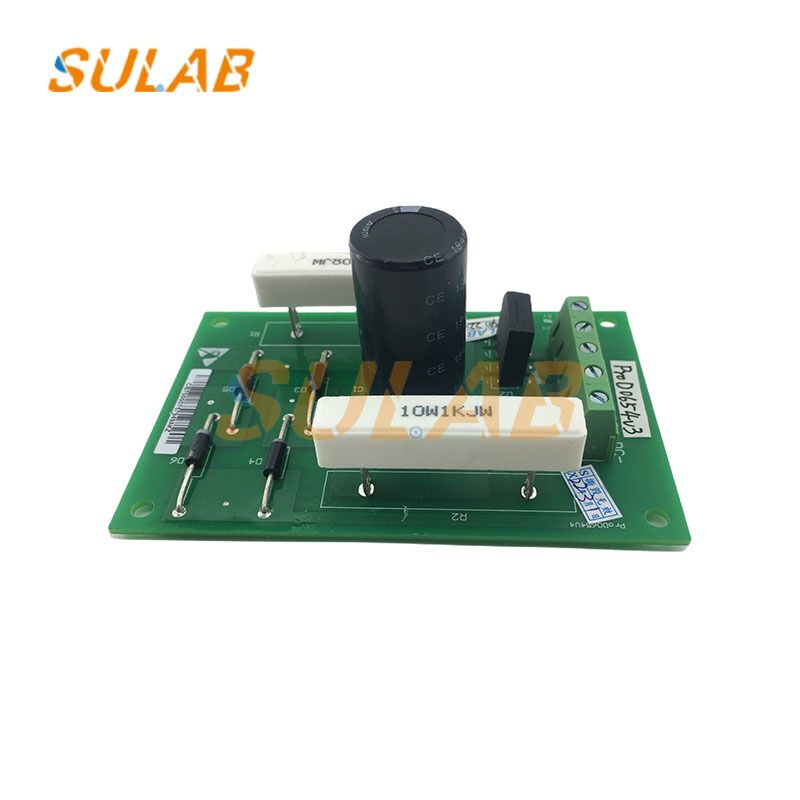

STEP ProD0654V3 Elevator Door Control PCB Board Asynchronous Door Operator Controller DC24V with Vector Control Algorithm

STEP ProD0654V3 Elevator Door Control PCB Board Asynchronous Door Operator Controller DC24V with Vector Control Algorithm

  • Highlight

    DC24V Elevator Door Control PCB Board

    ,

    Asynchronous Door Operator Controller

    ,

    Vector Control Algorithm Lift Car Door Drive Panel

  • Brand
    SULAB
  • Description
    Elevator Parts
  • Model
    ProD0654V3
  • MOQ
    1PC
  • Transportion
    TNT, UPS, DHL, Fedex, Air, Sea
  • Applicable
    Elevator
  • Packages
    Carton, Wooden Case, Pallet Etc
  • Delivery Time
    Normally 2-3 Working Days After Payment
  • Warranty
    One Year
  • Payment Method
    Company Bank, Western Union, Paypal Etc
  • Brand Name
    SULAB
  • Model Number
    ProD0654V3
  • Minimum Order Quantity
    1PC
  • Delivery Time
    Normally 2-3 working days after payment
  • Payment Terms
    L/C,D/A,D/P,T/T,Western Union

STEP ProD0654V3 Elevator Door Control PCB Board Asynchronous Door Operator Controller DC24V with Vector Control Algorithm

STEP ProD0654V3 Elevator Door Control PCB Board Asynchronous Door Operator Controller DC24V Lift Car Door Drive Panel Replacement Spare Parts


ProD0654V3 is an original door operator control board manufactured by STEP. It serves as the core driving unit for STEP asynchronous elevator door machines. Equipped with advanced vector control algorithm and built-in multiple safety detection circuits, this PCB supports smooth speed curve adjustment for door opening and closing. The flame-retardant circuit board comes with comprehensive anti-surge and anti-interference components, ensuring stable operation under complex electromagnetic environments inside elevator hoistways. Standard terminal definitions and mounting dimensions allow direct plug-and-play replacement without complicated parameter modification.


Brand SULAB
Description Elevator  parts
Model ProD0654V3
MOQ 1PC
Transportion TNT, UPS, DHL, Fedex, Air, Sea
Applicable Elevator
Packages Carton, Wooden case, Pallet etc
Delivery Time Normally 2-3 working days after payment
Warranty One year
Payment Method Company Bank, Western union, Paypal etc


Core Functions
Precise Door Motor Motion Control
Receive operation commands from elevator mainboard, adjust output voltage and frequency to control door motor speed, realizing stable acceleration, uniform movement and gentle stop during door opening and closing.
Obstacle Anti-Pinch Response
Detect abnormal load during door closing. When resistance is sensed, the board triggers automatic door reversal to avoid clamping passengers.
Safety Status Signal Feedback
Transmit door fully open / fully closed status signals to elevator main controller. The elevator can only start running after receiving confirmed door lock signals.
Flexible Parameter Debugging
Support adjustment of door opening speed, closing speed, hold time and sensitivity via debug tool to match different elevator cabin and door mechanical conditions.
Fault Recording & Alarm Output
Automatically record operation faults such as motor stall or communication failure. Maintenance staff can read fault codes to quickly troubleshoot door system failures and reduce elevator downtime.
