OT Canny Escalator Chain Travelator Pallet Step Moving Walk Chain
Place of Origin:
China
Brand Name:
OT Canny
Minimum Order Quantity:
1
Packaging Details:
Wooden case
Delivery Time:
2-3 working days
Payment Terms:
Company Bank, Western union, alibaba, Paypal etc
Supply Ability:
10000 pitch per month
Inquiry Now
Get A Quote
Specifications
Highlight Features
OT Canny Escalator Chain
,OTIS Canny Escalator Chain
,Pallet Step Moving Walk Chain
Product Name:
OT Canny Escalator Travelator Pallet Step Moving Walk Chain
Delivery Time:
5-10 Working Days
Supply Ability:
10000 Pitch Per Month
After-Sale Service:
Online Technical Support
Type:
Escalator Parts
Suitable For:
Escalator
Warranty:
One Year
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Applicable:
Elevator
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Brand:
Sulab
Description:
Elevator Parts
Model:
FB-9B
Product Description
Adopt advanced processing and manufacturing technologies such as special structural design, new chain plate punching, etc., with the characteristics of step pitch accuracy, step pitch synchronization accuracy, and chain length synchronization accuracy, meeting the requirements of stable operation, safety and reliability, environmental resistance and long life. .
Description for Factory Directly Sales Canny Escalator Travelator Pallet Step Moving Walk Chain
PROCESS OF TECHNOLOGY DEVELOPMENT OF OUR FACTORY
12. In 2010, Xizi Otis XAA26150AE escalator chain with pitch 135.46 was developed, and DAA26150E series step chain with pitch 135.46 was
developed for Guangzhou Otis.
13. Designed and developed handrail compression chains FY93B and FY93C with a pitch of 93 for Guangzhou Otis in 2014.
Details for Factory Directly Sales Canny Escalator Travelator Pallet Step Moving Walk Chain
| Specifications | ||||||
| Brand | Material Name | Pitch | Inner Plate | Outer Plate | Pin | Roller |
| OTIS | T135.7 | 135.73 | 5*35 | 5*28 | 12.7 | 76.2*22*GAA290CF1 |
| OTIS | T135.4D | 135.46 | 3*35 | 4*26 | 12.7/12.7 | 76.2*22 |
| OTIS | T135.4 | 135.46 | 5*35 | 5*30 | 15/12.7 | 76.2*22 |
| OTIS | T135.4A | 135.46 | 5*35 | 5*30 | 15/15 | 76.2*22 |
| T133A | 133.33 | 5*40 | 5*40 | 14.63 | 70*25*6204 | |
| T133B | 133.33 | 5*35 | 5*30 | 14.63 | 70*25*6204 | |
| T133C | 133.33 | 5*40 | 5*40 | 14.63 | 76*25*6204 | |
| T133XA | 133.33 | 3*40 | 4*29 | 12.67 | 76*25*6204 | |
| T133XD | 133.33 | 5*50 | 5*50 | 20 | 80*25*6206 | |
| Canny | T133D | 133.33 | 5*40 | 5*35 | 14.63 | 70*25*6204 |
| Canny | T133KA | 133.33 | 5*40 | 5*40 | 14.63 | 75*25*6204 |
| Canny | T133KB | 133.33 | 5*35 | 5*30 | 14.63 | 75*25*6204 |

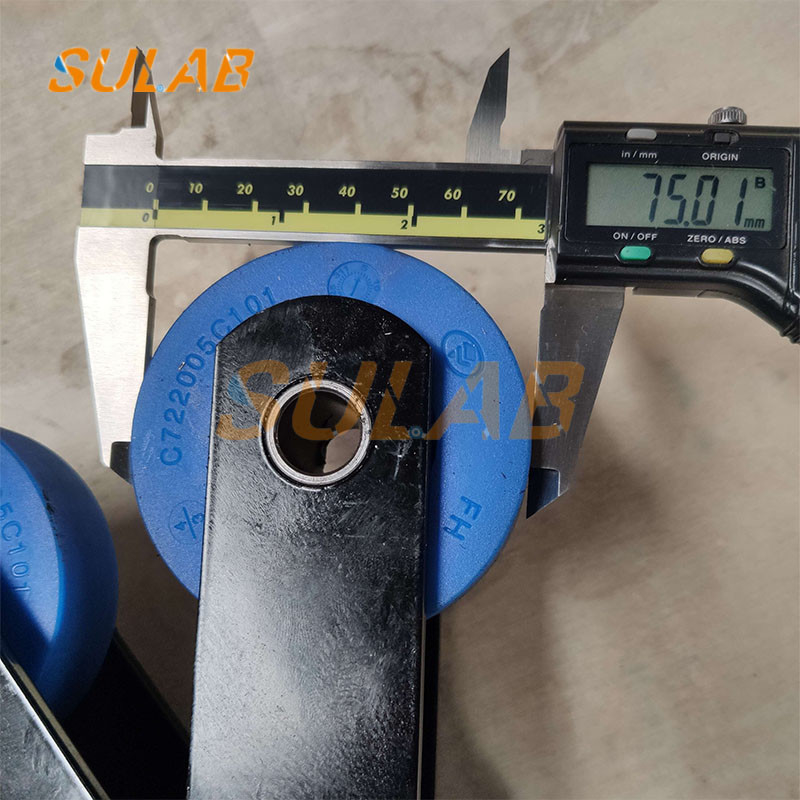

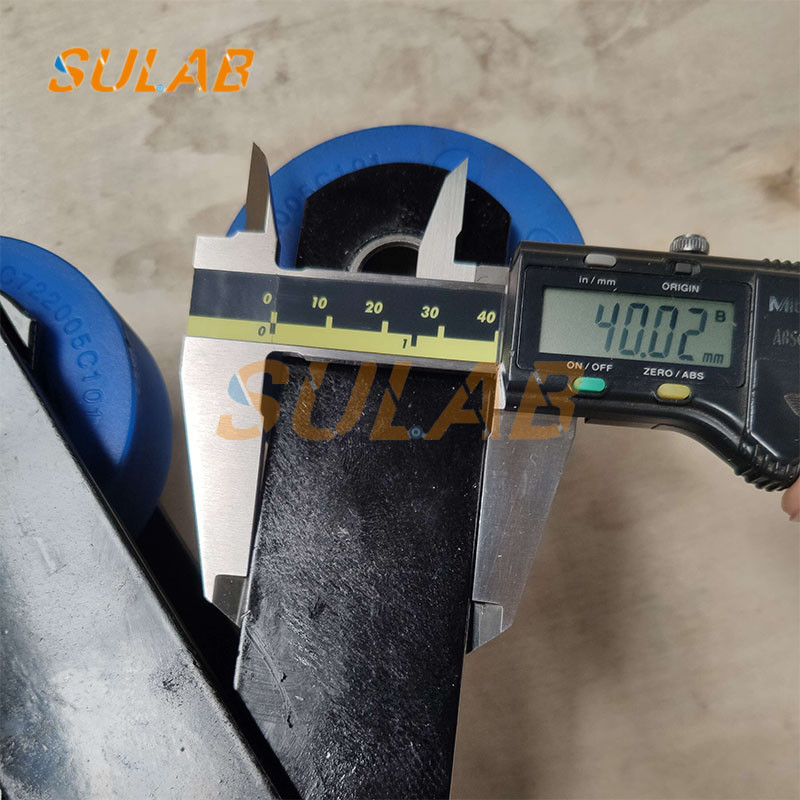

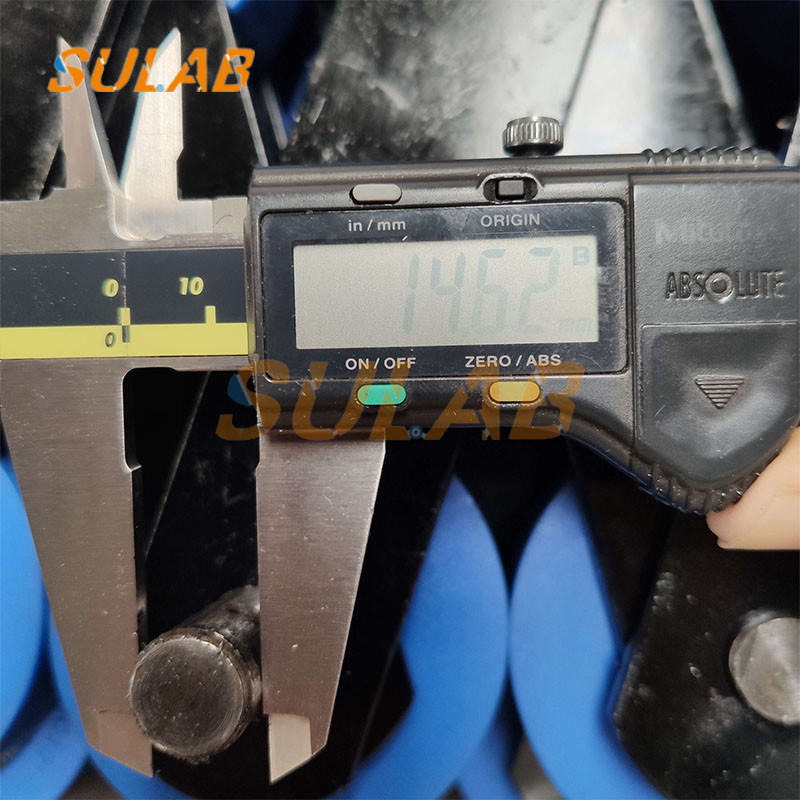

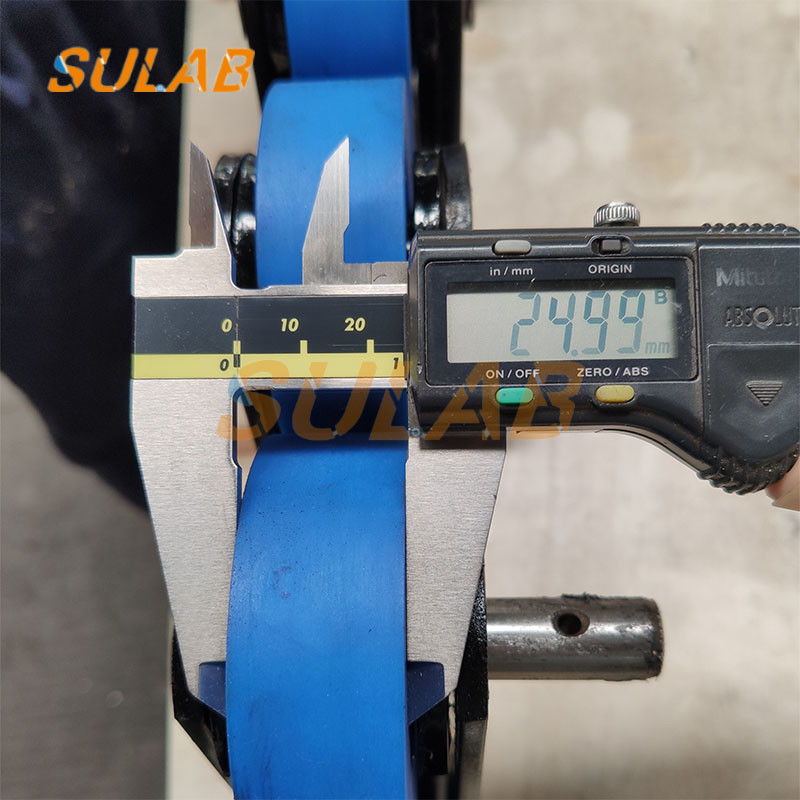

Pictures for Factory Directly Sales OT Canny Escalator Travelator Pallet Step Moving Walk Chain
