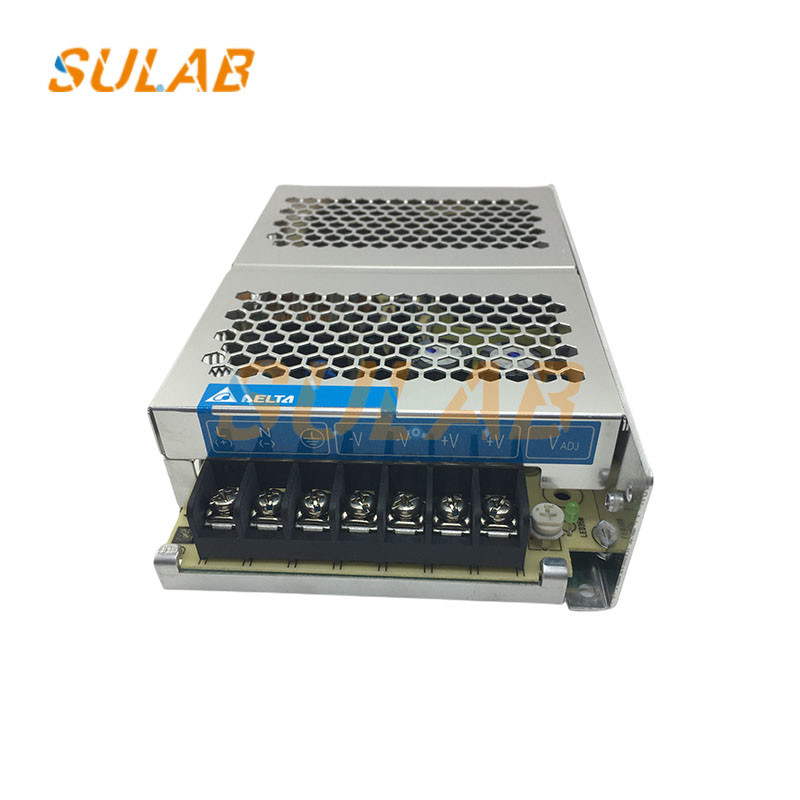

Elevator Delta Switching Power Supply PMC-24V100W1AA AVR Switching Power Supply

Details for Elevator Spare Parts Delta Switching Power Supply PMC-24V100W1AA

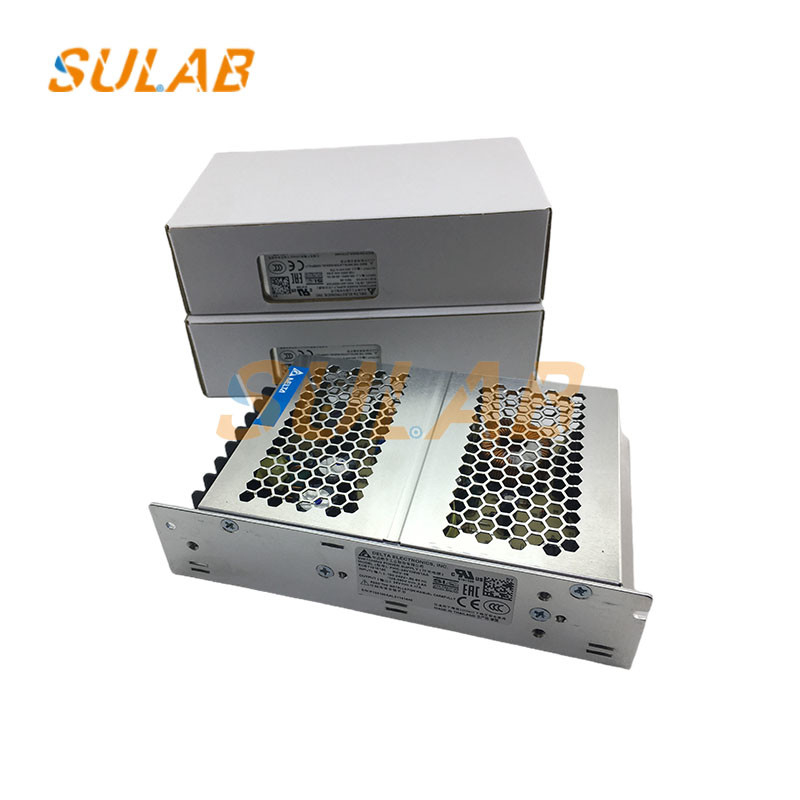

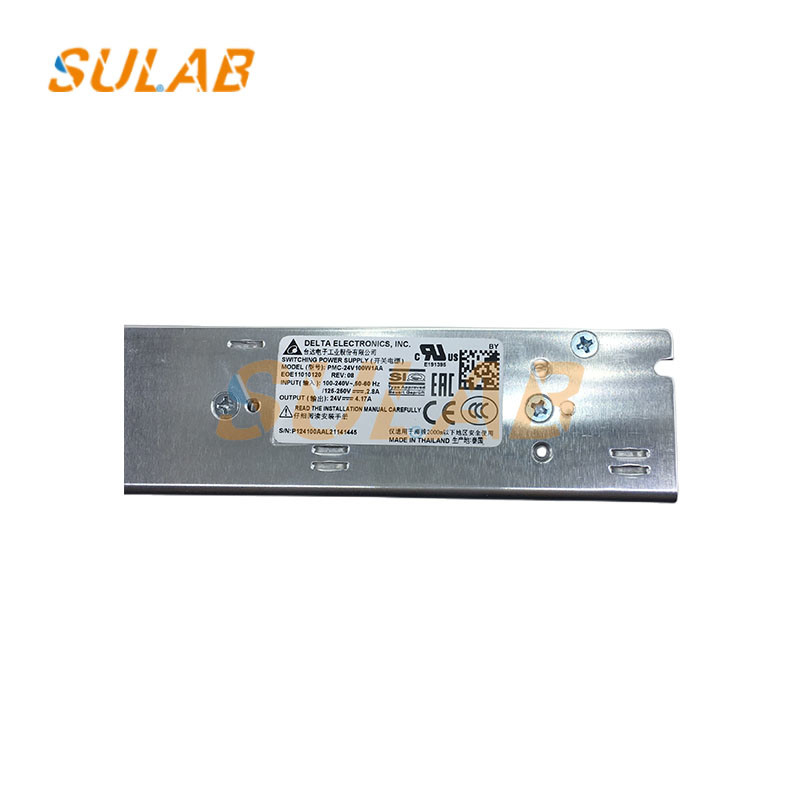

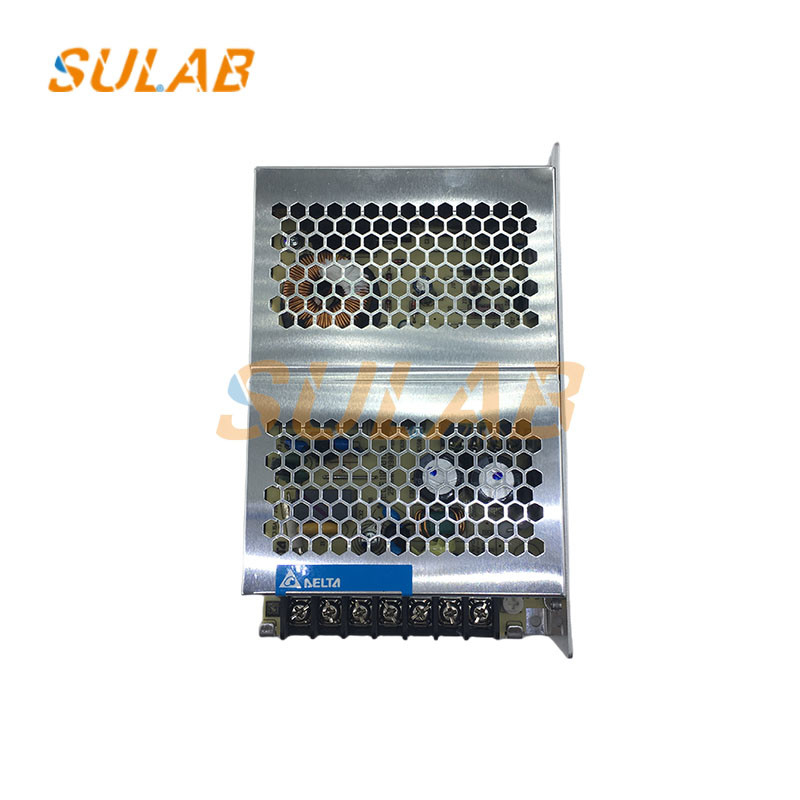

Pictures for Elevator Spare Parts Delta Switching Power Supply PMC-24V100W1AA

AVR switching power supply and elevator power supply system, wherein the AVR switching power supply includes: a double-tube forward excitation circuit, a first rectifier winding, a second rectifier winding and a single-ended multi-channel flyback circuit; the first rectifier winding and the second rectifier winding pass through respectively The double-tube forward excitation circuit is connected to the bus bar; the single-ended multi-channel flyback circuit is connected to the bus bar; the output end of the first rectifier winding is connected to the call box for converting the bus voltage into the first voltage and output to the call box; the second rectifier winding The output terminal of the single-ended multi-channel flyback circuit is connected to the main control board, which is used to convert the bus voltage into a third voltage and output to the main control board. plate. The above-mentioned AVR switching power supply can reduce hardware cost and energy consumption.

Elevator Power Supply Module - FAQ

Q1: What is the function of an elevator power supply module?
An elevator power supply module provides regulated electrical power to designated control circuits or electronic components. Its function and outputs depend on the module design.

Q2: Can elevator power supply modules with the same output voltage be interchangeable?
Not necessarily. Modules may differ in current capacity, output configuration, electrical isolation, protection functions, connector arrangements, and system requirements.

Q3: What can cause an elevator power supply module to fail?
Possible causes include abnormal input voltage, excessive loading, overheating, short circuits in connected equipment, or internal component deterioration.

Q4: What should be checked when an elevator power supply module has no output?
A qualified technician should investigate the input supply, connected loads, fault indications, and associated circuitry. A missing output does not always mean the module itself is defective.

Q5: What specifications are required to identify a replacement power supply module?
Please provide the original part number, input and output voltage ratings, current or power capacity, connector details, mounting dimensions, and clear nameplate photos.
