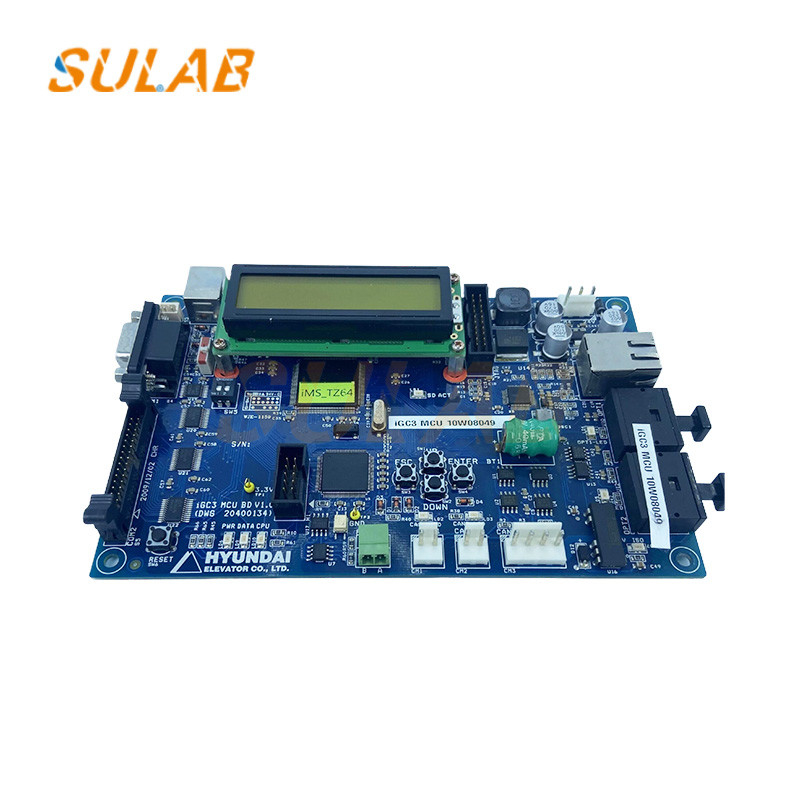

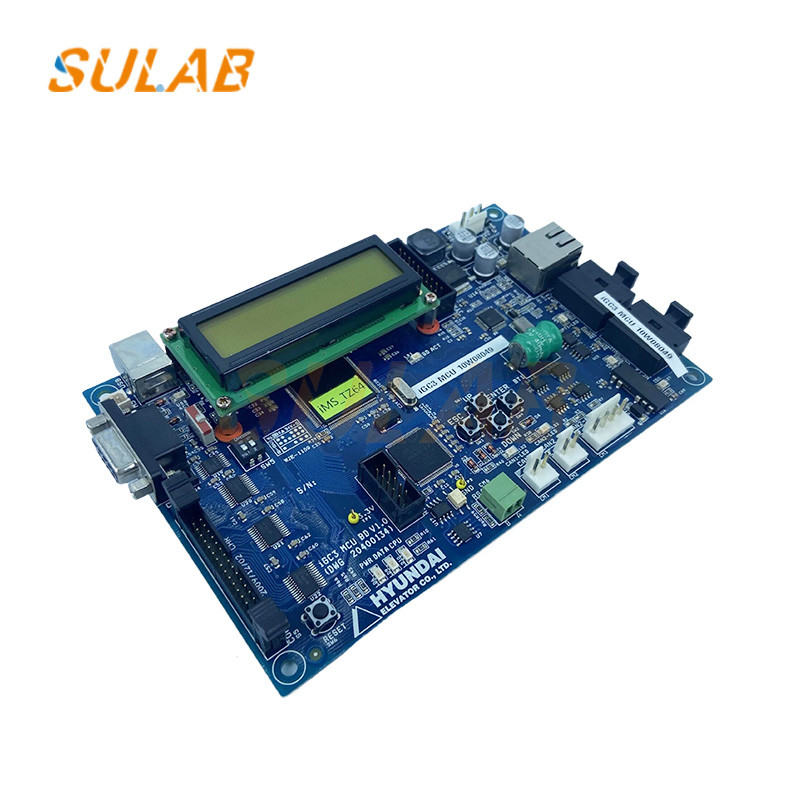

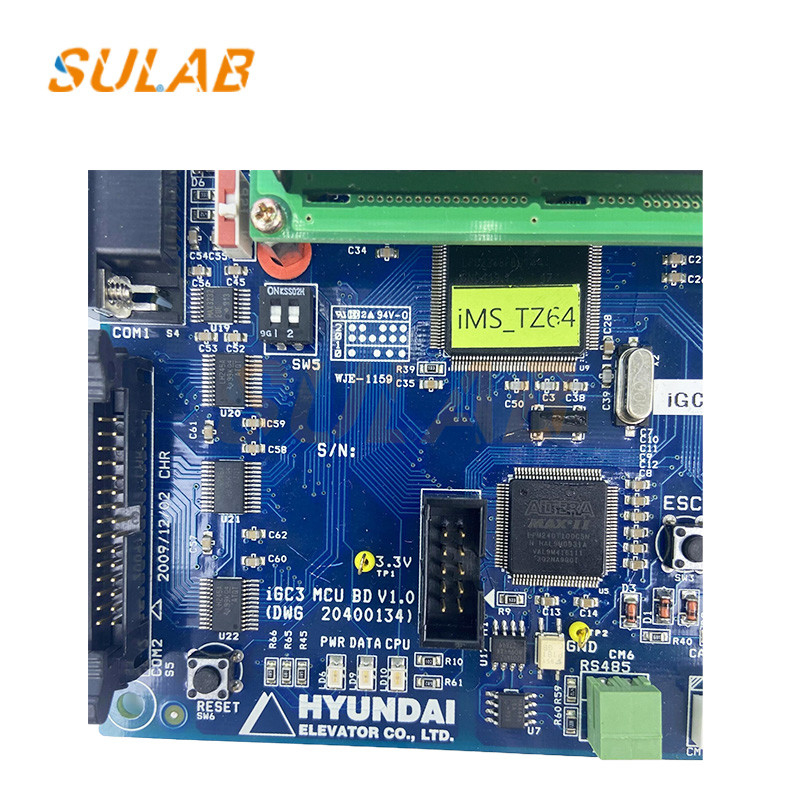

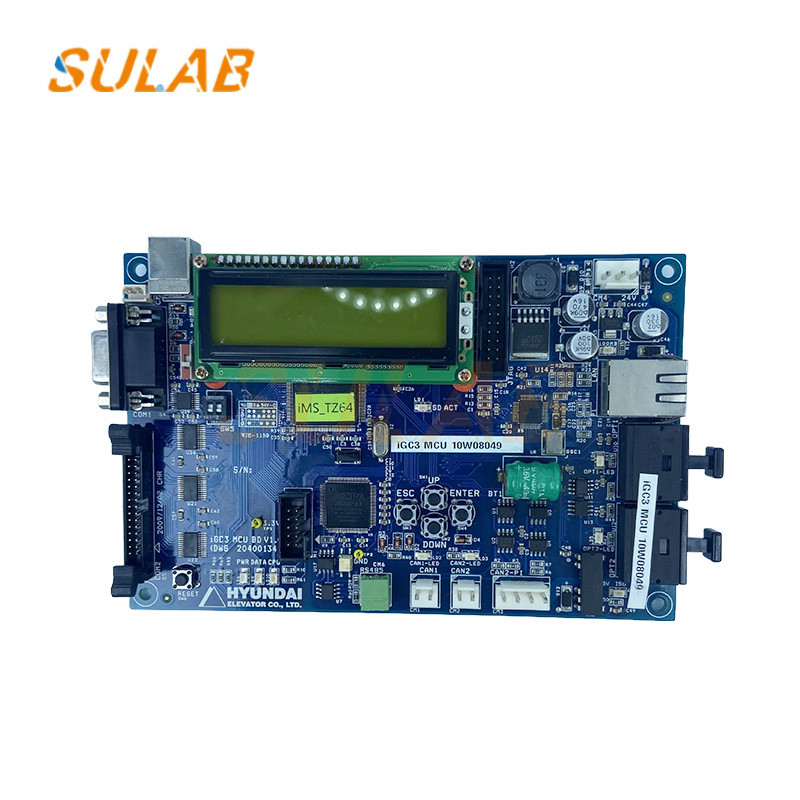

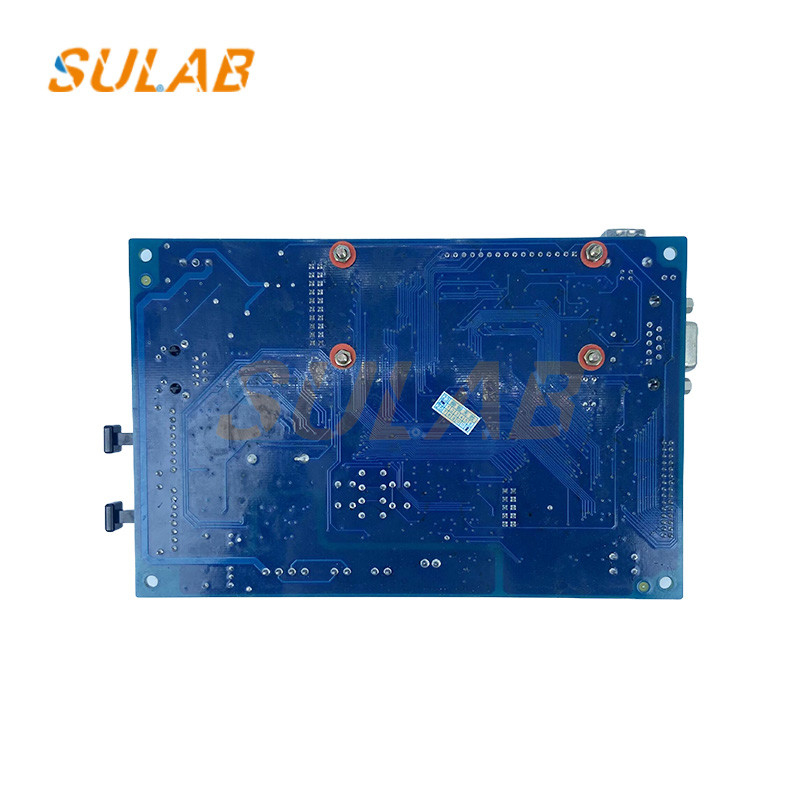

iGC3 MCU BD V1.0 DWG 20400134 Hyundai elevator board elevator PCB board

Hyundai elevator board elevator PCB board iGC3 MCU BD V1.0 DWG 20400134

Main Functions

• Control Functions
  • Operation Control: As the main control board of the elevator, it receives command signals from the operation panel inside the car and the call panels on each floor. Based on information such as the elevator's current position, status, and task priority, it precisely controls the elevator's starting, stopping, acceleration, deceleration, leveling and other operation processes, ensuring the elevator runs safely and stably along the predetermined path and speed.
  • Safety Control: It is connected to various safety devices of the elevator, such as safety gear, speed governor, door lock, buffer, etc., and continuously monitors the status signals of these safety devices. When any abnormal situation or safety hazard is detected, it can quickly trigger the safety braking mechanism to immediately stop the elevator and protect the safety of passengers.
