Meanwell Good Price Power Supply Elevator Spare Parts High Quality S-50-5

Meanwell Good Price Power Supply Elevator Spare Parts High Quality S-50-5

1. Output parameters: The output voltage is 5V, the rated output current is 10A, the output power is 50W. The output current range is 0 - 10A, the voltage tolerance is - 2%, and the ripple and noise are 75mVp - p.
2. Input parameters: The input voltage range is 85 - 132VAC/170 - 264VAC (switch - selectable), the frequency is 47 - 63Hz. The input current is 1.3A/115V and 0.65A/230V. The inrush current is 18A/115V and 36A/230V for cold start. The leakage current is < 0.5mA/240VAC.

1. Protection functions: It has an over - load protection function. The protection range is 105% - 150%, and the type is foldback current limiting. The reset method is automatic recovery.
2. Efficiency and stability: The power efficiency is 71% when the input is 115VAC and 78% when the input is 230VAC. The line stability is - 0.5%, and the load stability is - 1%.
3. Operating environment: The operating temperature is from - 10℃ to 60℃, the operating humidity is 20% - 90%RH, the storage temperature is from - 20℃ to 85℃, and the storage humidity is 10% - 95%RH.

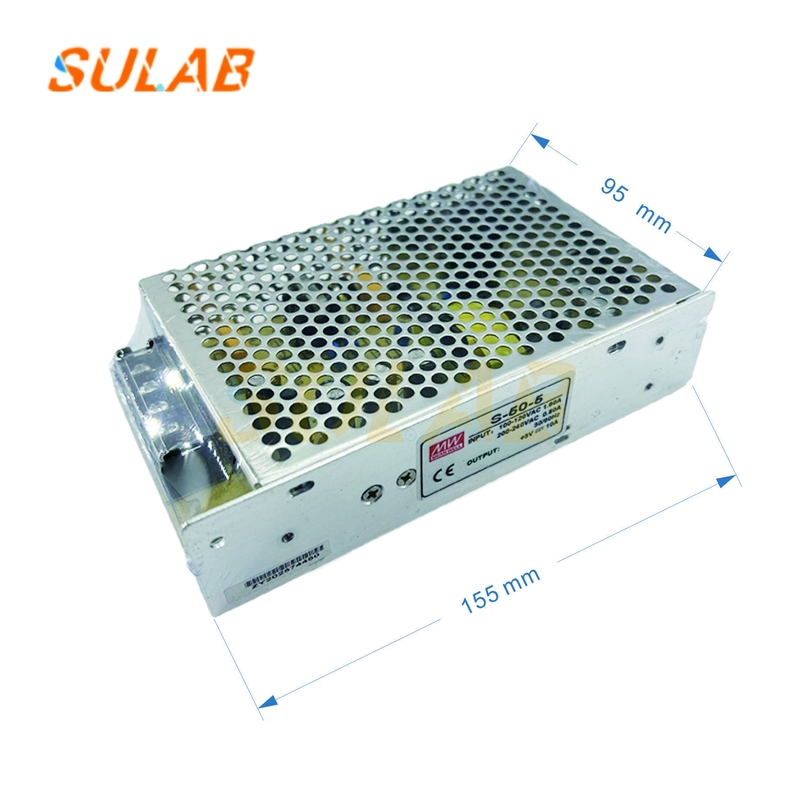

4. Physical characteristics: The external dimensions are 159×98×38mm, and the weight is 0.5kg.
5. Safety certifications: It meets the requirements of UL1012 (not apply for the mark) and IEC950. The EMC standards meet FCC part15J condition class B and IEC.
