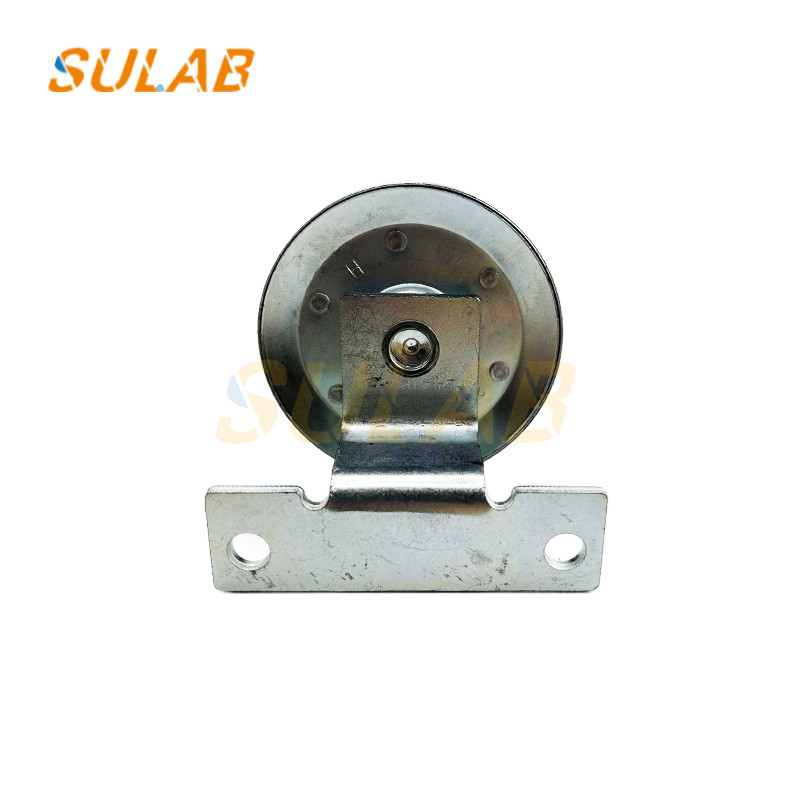

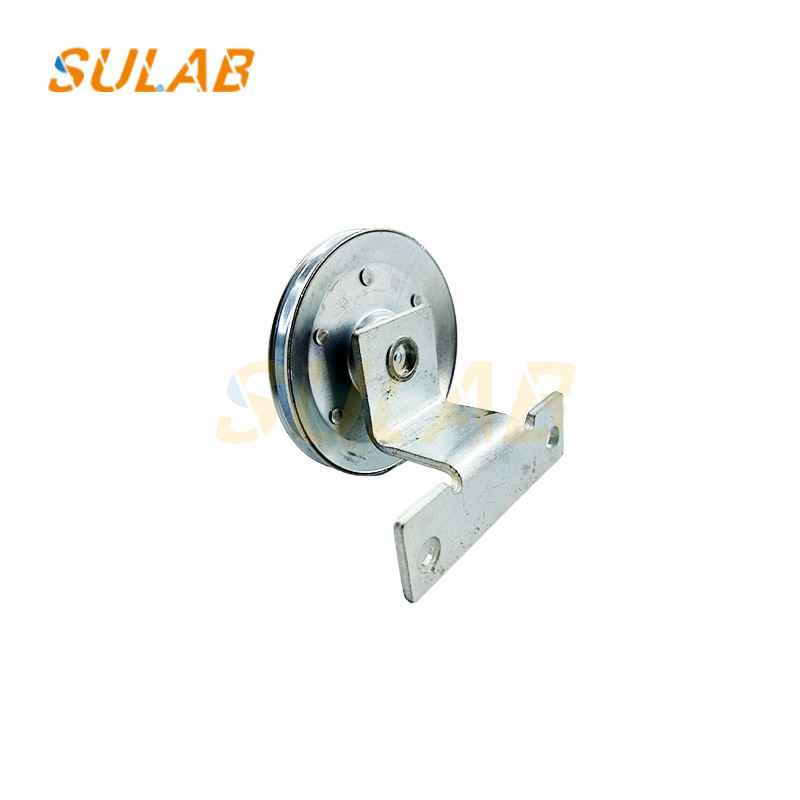

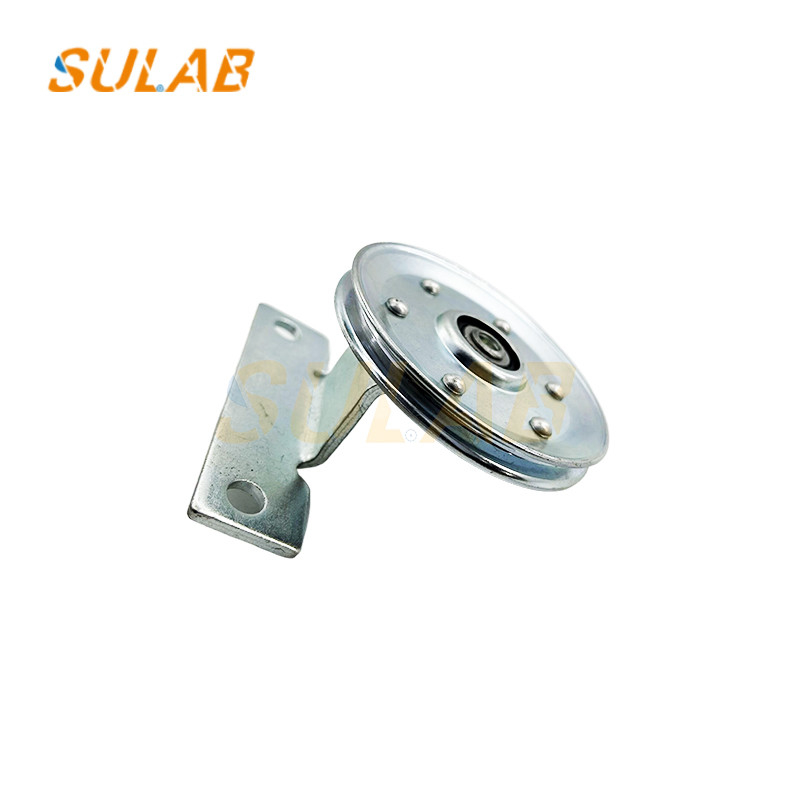

Wire Rope Pulley 60-11-6200 Right Angle Elevator Spare Parts

Application:

This pulley is designed for use in elevator systems, specifically in traction mechanisms where wire ropes change direction at a 90-degree (right-angle) configuration. It ensures smooth operation, reduces friction, and extends the lifespan of elevator ropes.

Key Features:

• Material: High-strength cast iron or steel (heat-treated for durability).

• Groove Design: Precision-machined groove to match wire rope diameter, minimizing wear.

• Bearing Type: Sealed deep-groove ball bearings for smooth rotation and low maintenance.

• Load Capacity: Engineered for high dynamic loads in elevator systems.

• Corrosion Resistance: Optional zinc plating or powder coating for rust prevention.

• Standards Compliance: Meets EN 81-20/50, ASME A17.1, or other relevant elevator safety standards.

Technical Specifications:

• Model Number: 60-11-6200

• Rope Diameter Compatibility: Typically 10mm–12mm (varies by model).

• Pulley Diameter: ~200mm–300mm (exact size depends on design).

• Bore Size: Customizable (standard options available).

• Rotation: Right-angle (90°) deflection for elevator rope guidance.

Production Process:

1. Material Selection: High-grade steel or cast iron.

2. Machining: CNC lathe machining for precise groove dimensions.

3. Heat Treatment: Hardening and tempering for wear resistance.

4. Bearing Assembly: Press-fit high-quality bearings.

5. Surface Treatment: Anti-corrosion coating (optional).

6. Quality Testing: Load testing, rotational balance check, and dimensional inspection.
