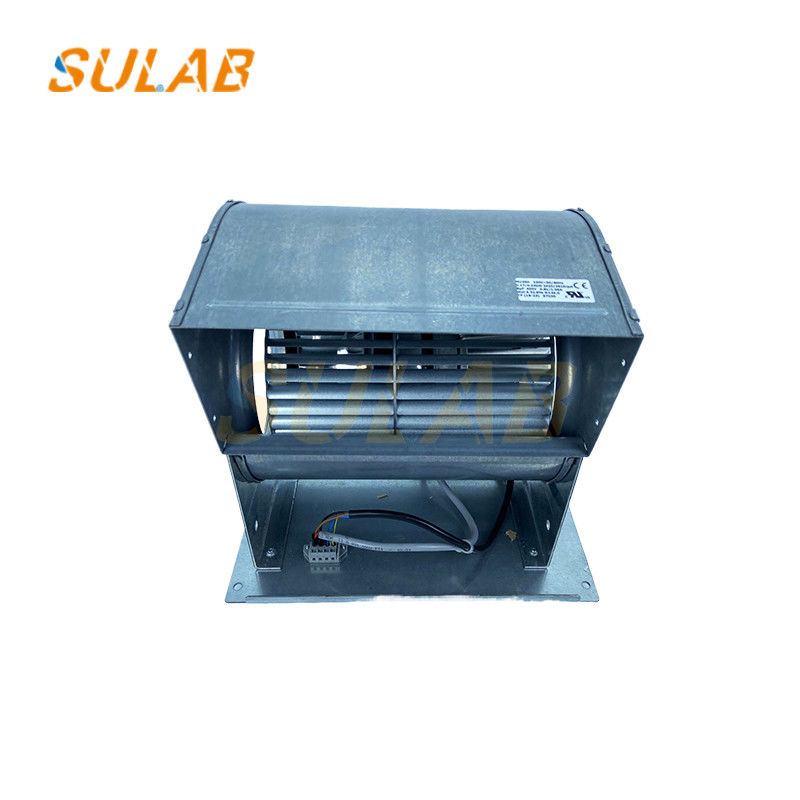

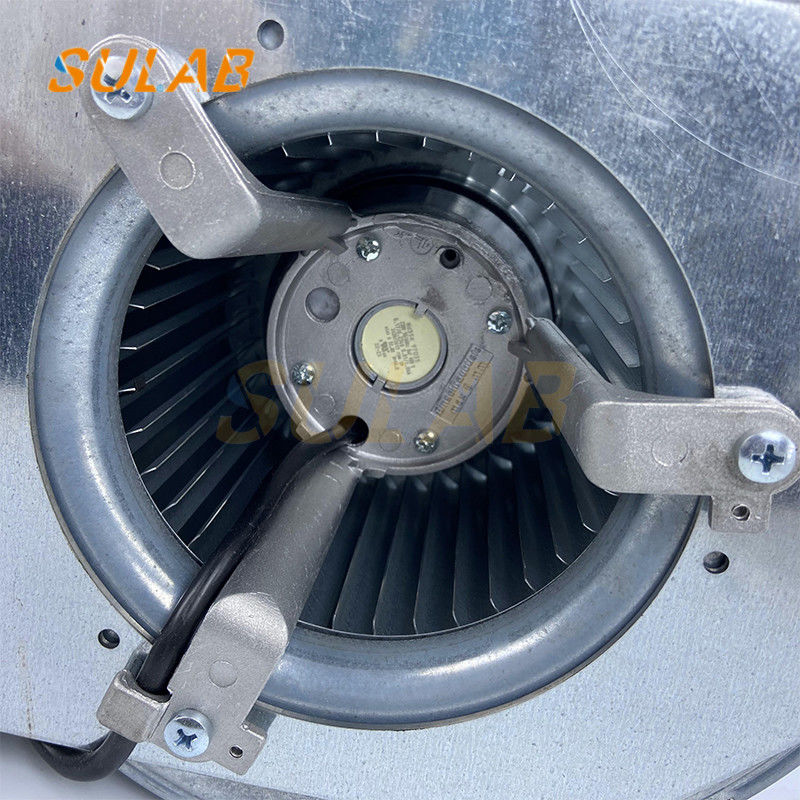

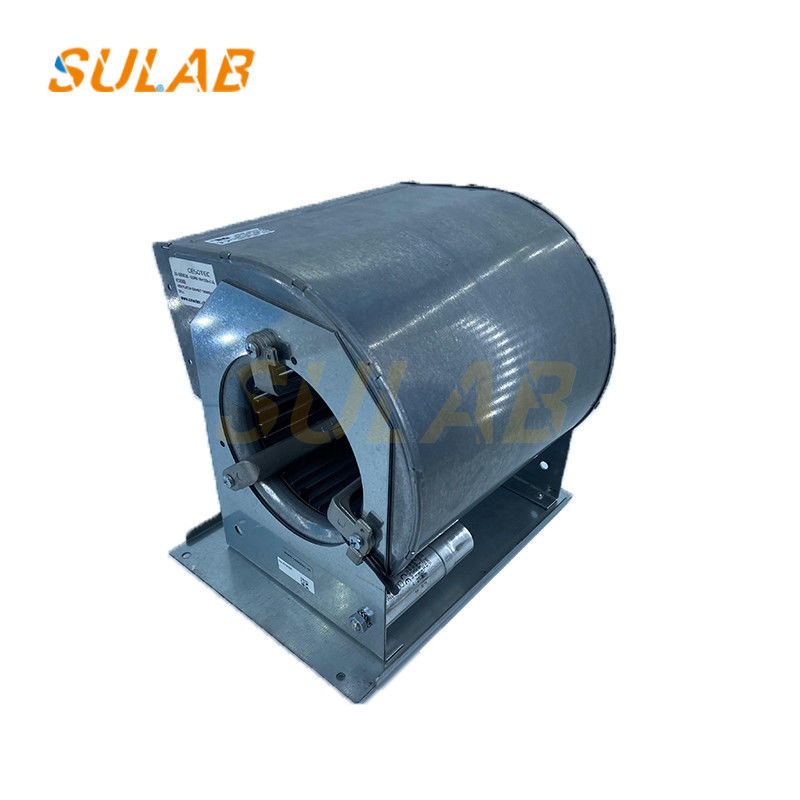

Spot GDRM35-133B-2 German ABB Excitation Dedicated Fan 230V Turbine Centrifugal Metal Blower

Spot GDRM35-133B-2 German ABB Excitation Dedicated Fan 230V Turbine Centrifugal Metal Blower

GDRM35-133B-2 is a centrifugal fan produced by Swiss company CESOVENT (or CESOTEC). It is widely applicable to the ventilation and heat dissipation of frequency converters of brands such as ABB, AB, Siemens and other industrial automation systems. It is also used for various refrigeration and ventilation systems. Its specific parameters are as follows:

1. Product specification: The impeller diameter is 133mm.
2. Motor speed: 2225 revolutions per minute.
3. Airflow direction: Centrifugal.
4. Bearing structure: Maintenance-free double-ball bearings.
5. Airflow rate: 1000 cubic meters per hour.
6. Wind pressure: 0Pa.
7. Input voltage: 230V AC/1 phase.
8. Input power: 240W.
9. Power frequency: 50/60Hz.
10. Voltage range: AC200V - 265V.
11. Capacitor capacity: 8μF/450V.
12. Service life: Expected service life is 35000 hours at 40°C.
13. Insulation class: Class F.
14. Outlet mode: Lead terminal is 300mm.
15. Noise index during power connection: 62dB(A).
16. Temperature range: -25°C - 60°C.
17. Material: Galvanized sheet shell, metal impeller.
18. Protection class: IP44.
19. Net product weight: 4.20Kg.
