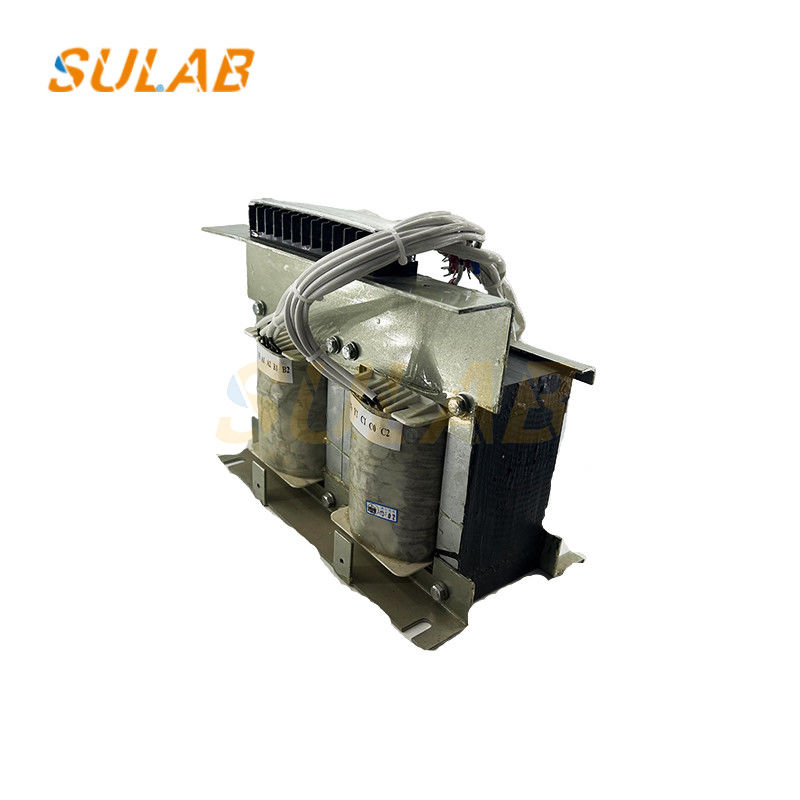

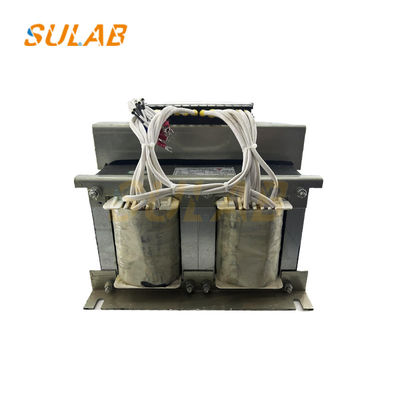

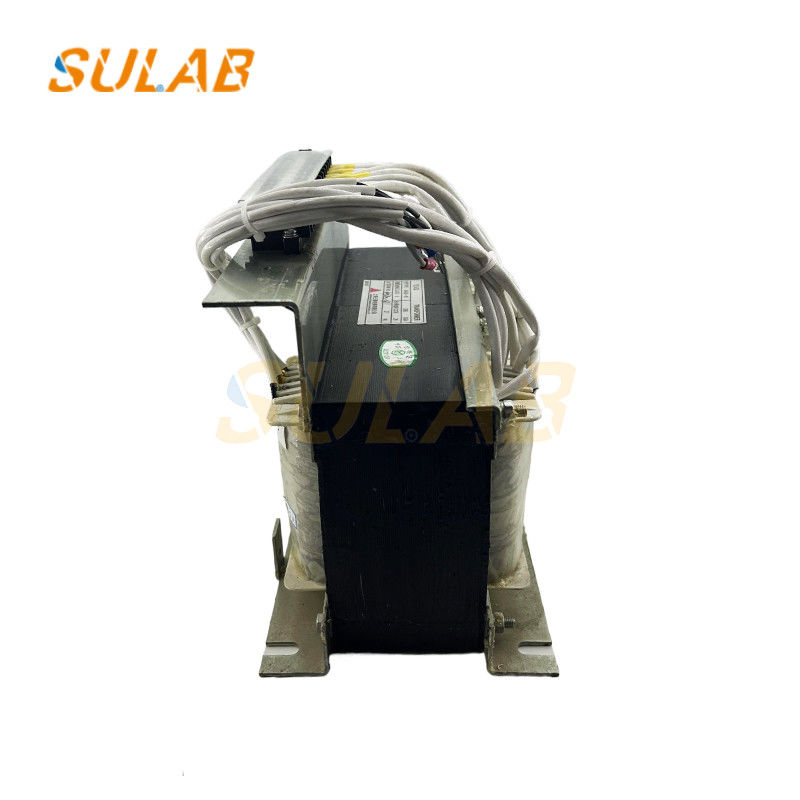

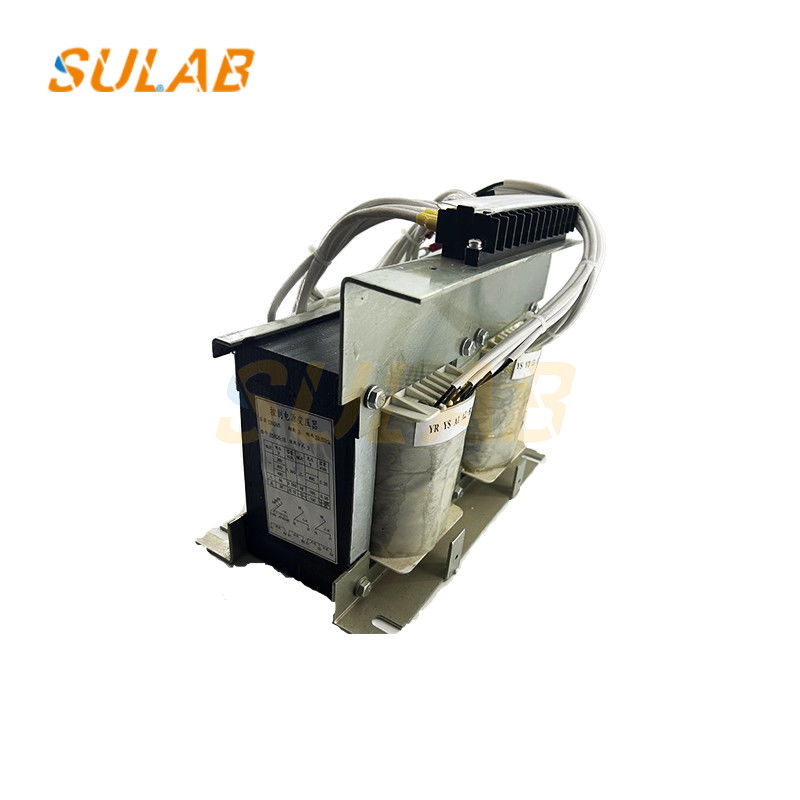

Mitsubishi Elevator Control Cabinet Transformer X54GS-06 X54GS-18 X54GS-85 X54GS-17 Elevator Spare Parts

Mitsubishi Elevator Control Cabinet Transformer X54GS-06 X54GS-18 X54GS-85 X54GS-17 Elevator Spare Parts

 Key Specifications

• Input Voltage: [Specify, e.g., 380VAC, 50/60Hz]

• Output Voltage: [110VAC or 24VDC] – Matches Mitsubishi’s system requirements.

• Power Rating: [ 500VA or 1kVA] – Optimized for elevator loads.

• Insulation Class: Class B or higher (up to 130°C).

• Core Material: High-grade silicon steel (low hysteresis loss).

• Windings: Copper/aluminum, vacuum-impregnated for moisture resistance.

• Protection: Built-in thermal fuse/overload protection.

• Compliance: Meets IEC 61558, EN 81-20/50, and Mitsubishi’s OEM standards.

Core Assembly:

1. • Precision stacking of laminated silicon steel cores to minimize eddy currents.

     Coil Winding:

     • Automated winding machines layer primary/secondary coils with insulating barriers.

       Vacuum Encapsulation:

       • Coils impregnated with epoxy resin or varnish for vibration/dust resistance.

         Terminal Connection:

         • High-torque terminals (screw/clamp type) for secure wiring.

           Testing & QA:

           • Dielectric strength test (e.g., 3kV for 1 minute).

           • Load testing (verifies output under 100% capacity).

           • Thermal imaging to detect hotspots.

             Labeling & Packaging:

             • Branded labels with Mitsubishi-compatible part number (X54GS-18).

             • Shock-resistant packaging with desiccant to prevent moisture damage.
