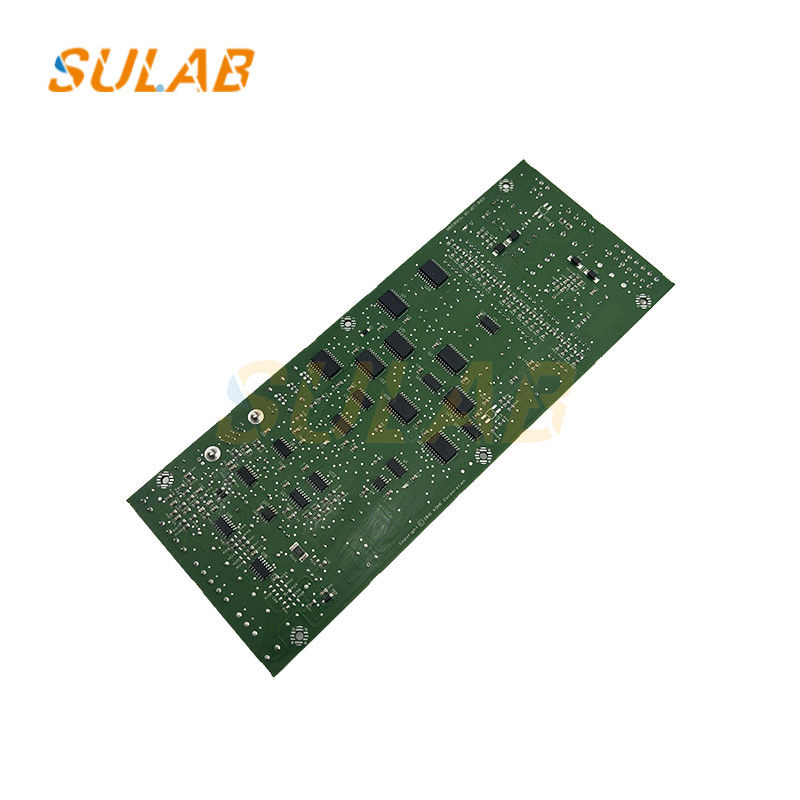

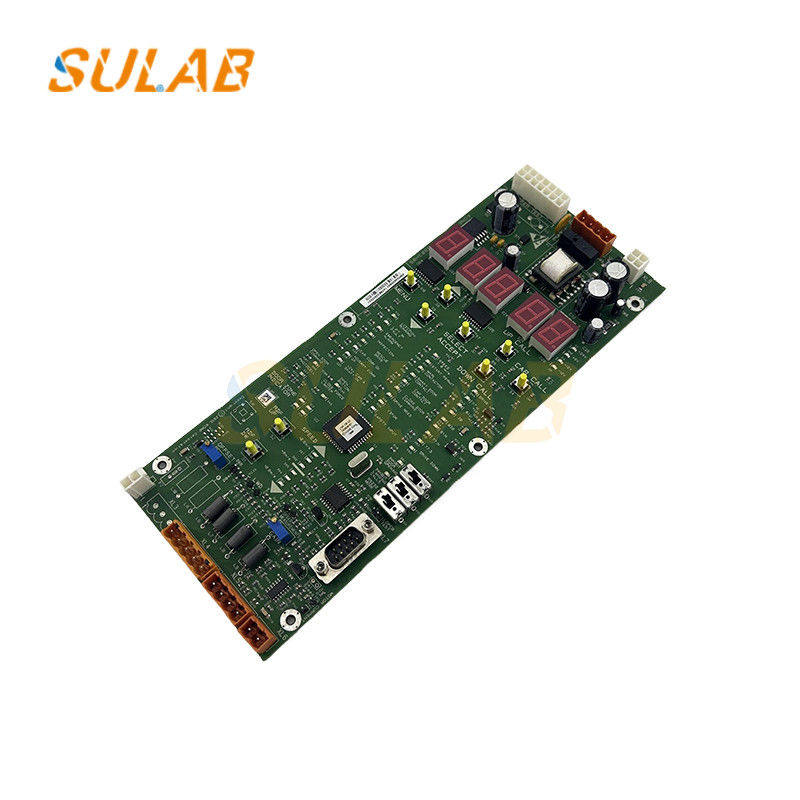

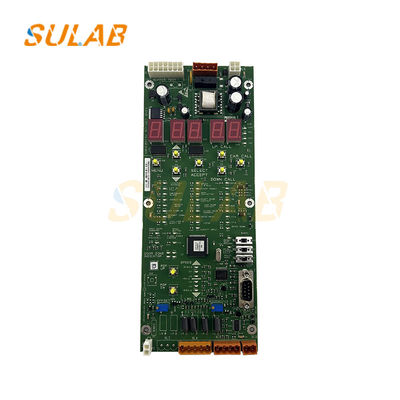

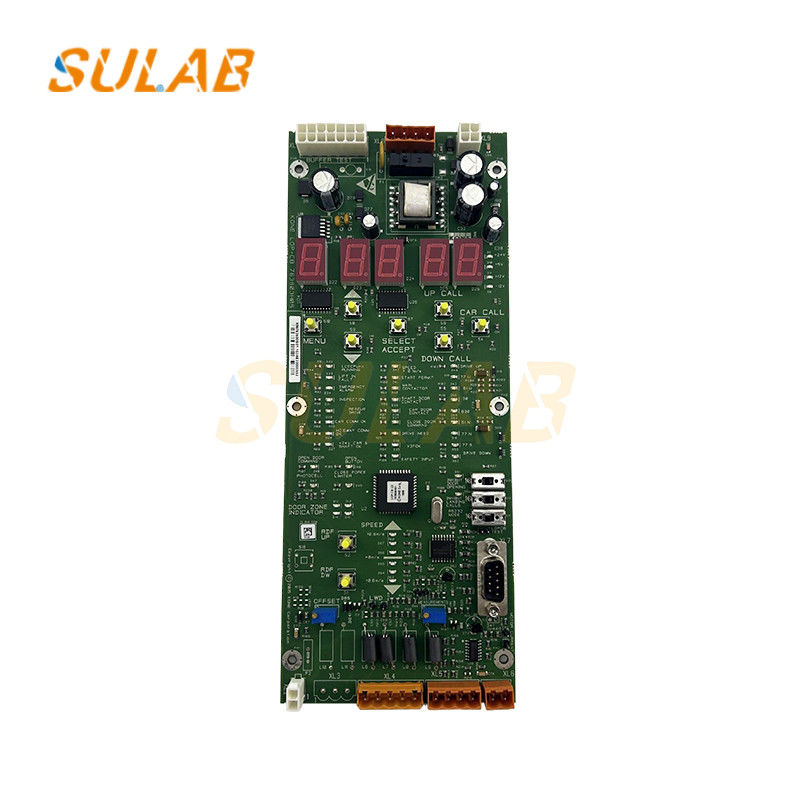

Elevator Accessories Elevator Controller Board Elevator Access Control Board Elevator PCB Board Elevator Control Board KM763600G01

Elevator accessories Elevator controller board Elevator access control board Elevator PCB board Elevator control board KM763600G01

Functions and effects
System parameter setting: As a system parameter setting board, it is responsible for storing and setting various parameters of elevator operation, such as elevator speed, acceleration, deceleration, floor height, leveling accuracy, etc. The accurate setting of these parameters is crucial for the safe and stable operation of the elevator.
Elevator operation control: Coordinate the operation of various parts of the elevator, including motor drive, door machine control, floor display, etc. For example, according to the passenger's call command, control the up and down movement of the elevator car to ensure that the elevator stops accurately at the target floor.
Safety monitoring and protection: Real-time monitoring of the elevator's operating status, such as current, voltage, temperature and other parameters. When abnormal conditions are detected, such as overcurrent, overload, undervoltage, etc., the safety protection mechanism is triggered in time to stop the elevator from running to ensure the safety of passengers.

Common faults and repairs
Fault phenomena: No display, overcurrent, overload, undervoltage, overtemperature and other fault phenomena may occur. For example, the display screen of the elevator controller board may be black or garbled, making it impossible for the operator to obtain the operating status information of the elevator; or the elevator may suddenly stop during operation, prompting an overload fault, even if the actual load does not exceed the rated load.
Repair method: For some simple faults, such as power failure and loose connection wires, they can be repaired by checking the power supply and tightening the connection wires. For more complex faults, such as chip damage and circuit short circuit, professional maintenance personnel are required to use professional tools and equipment for detection and repair, and damaged electronic components or the entire controller board may need to be replaced.
