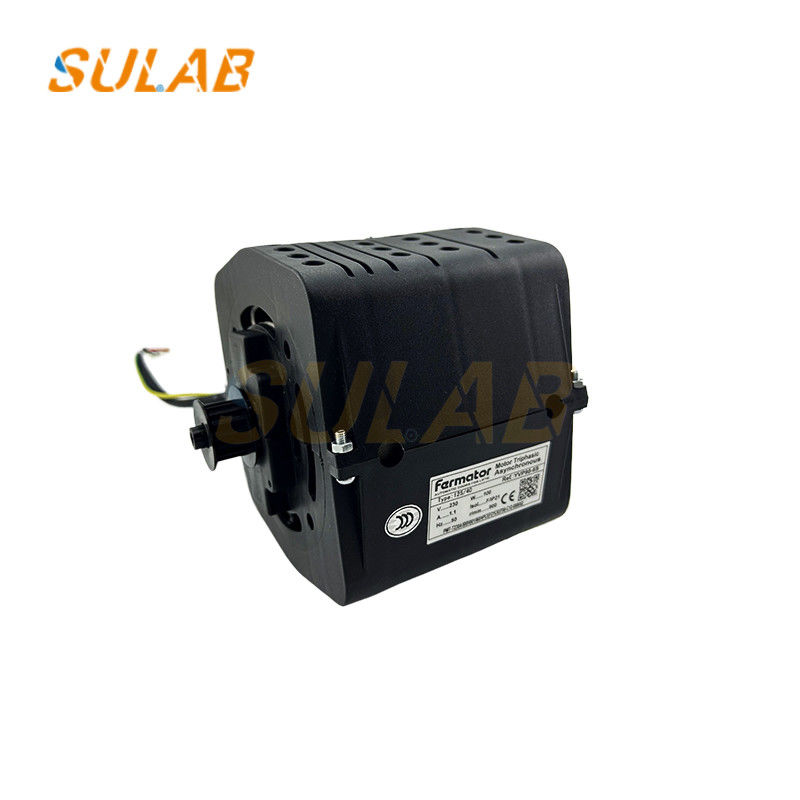

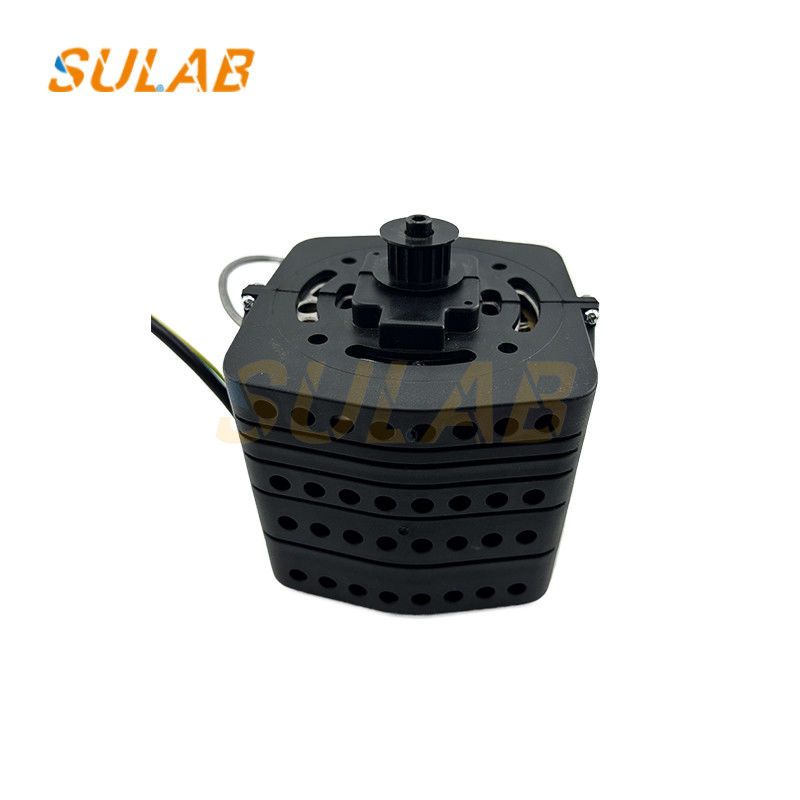

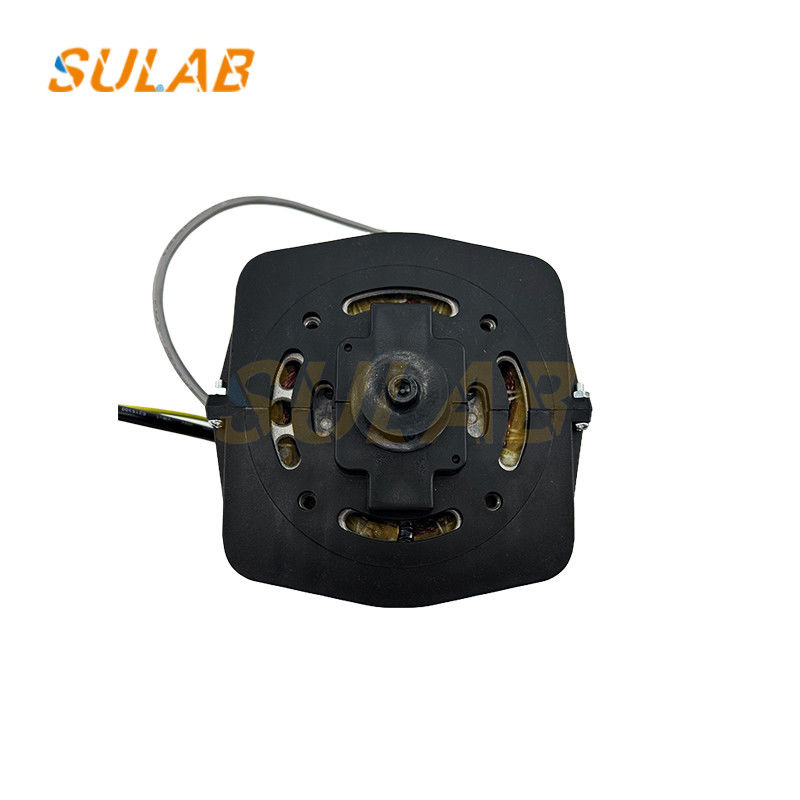

Elevator accessories Elevator controller Elevator door motor three-phase asynchronous motor YVP90-6S

Elevator accessories Elevator controller Elevator door motor three-phase asynchronous motor  YVP90-6S

Performance characteristics:
Good speed regulation performance: Integrating advanced technology, applying CAD design, wide speed regulation range, and can be matched with various foreign SPWM frequency conversion devices. It operates at constant torque speed regulation at 50HZ, runs smoothly and has small torque fluctuations, and has constant power characteristics above 50HZ.
Low noise and small vibration: The motor generates low noise and small vibration during operation, which can provide passengers with a quiet and comfortable riding environment.
Good starting performance: It has high starting torque and small starting current, which can meet the working requirements of frequent start and stop of elevator door machines.
Structural characteristics: The motor structure and installation form are IP20, and an encoder can be installed at the rear end to improve control accuracy.

Preparation before installation
Confirm model matching
Check whether the motor model is YVP90 - 6S (rated power 70W, voltage 220V, 6 poles, speed 930r/min), which is consistent with the design parameters of the elevator door machine system.
Check the compatibility of the motor size (installation hole spacing, shaft diameter) and the door machine bracket.
Check the appearance and accessories
The motor housing should be free of cracks and deformation, and the nameplate parameters should be clear.
The matching encoder, coupling, bolts and other accessories are complete and undamaged.
