Elevator Accessories KONE Counterweight Guide Shoe Auxiliary Rail Guide Shoe New Shoe Lining 80*16 Car Sliding Guide Shoe

Highlight

Elevator Accessories Guide Shoe
,
KONE Counterweight Guide Shoe
,
Car Sliding Guide Shoe
Brand

Kone
Description

Elevator Guide Shoe
Model

None
MOQ

1PC
Transportion

TNT, UPS, DHL, Fedex, Air, Sea
Applicable

Elevator
Packages

Carton, Wooden Case, Pallet Etc
Delivery Time

Normally 2-3 Working Days After Payment
Warranty

One Year
Payment Method

Company Bank, Western Union, Alibaba, Paypal Etc
Brand Name

Kone
Model Number

None
Minimum Order Quantity

1
Delivery Time

2-3 working days
Payment Terms

T/T,Western Union,MoneyGram

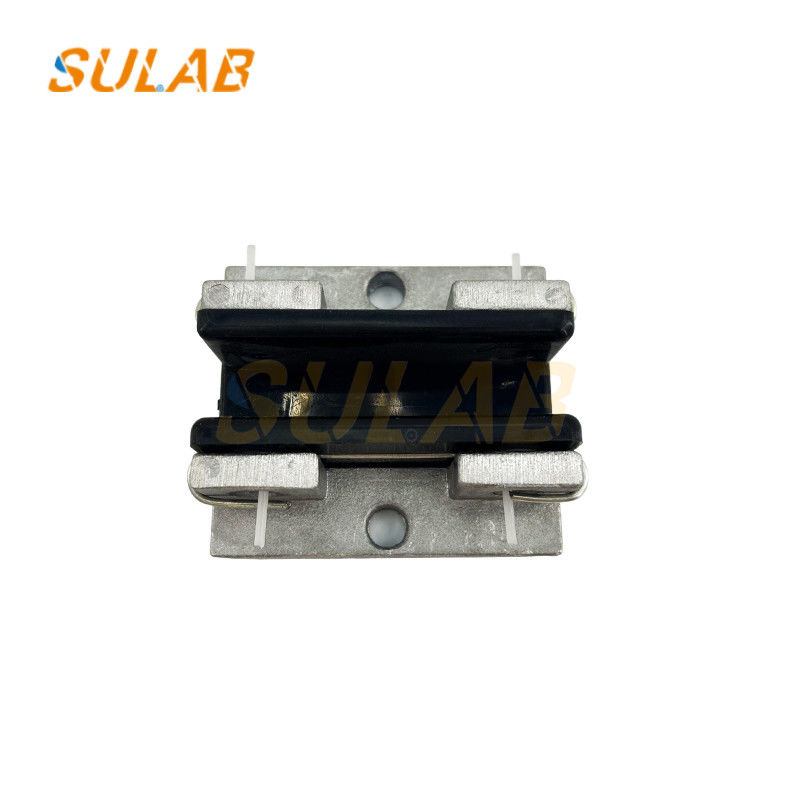

Elevator Accessories KONE Counterweight Guide Shoe Auxiliary Rail Guide Shoe New Shoe Lining 80*16 Car Sliding Guide Shoe

Name: Elevator Accessories KONE Counterweight Guide Shoe Auxiliary Rail Guide Shoe New Shoe Lining 80*16 Car Sliding Guide Shoe
Brand: Xian Sulab Machinery Co., Ltd.
SKU: None
Availability: InStock

button button

Get Price Contact Now

Elevator Accessories KONE Counterweight Guide Shoe Auxiliary Rail Guide Shoe New Shoe Lining 80*16 Car Sliding Guide Shoe

Kone guide shoes are important components of Kone elevators, used for guiding the car or counterweight to ensure stable operation. Here's an introduction from aspects of types, selection, installation & commissioning, maintenance and common problems:

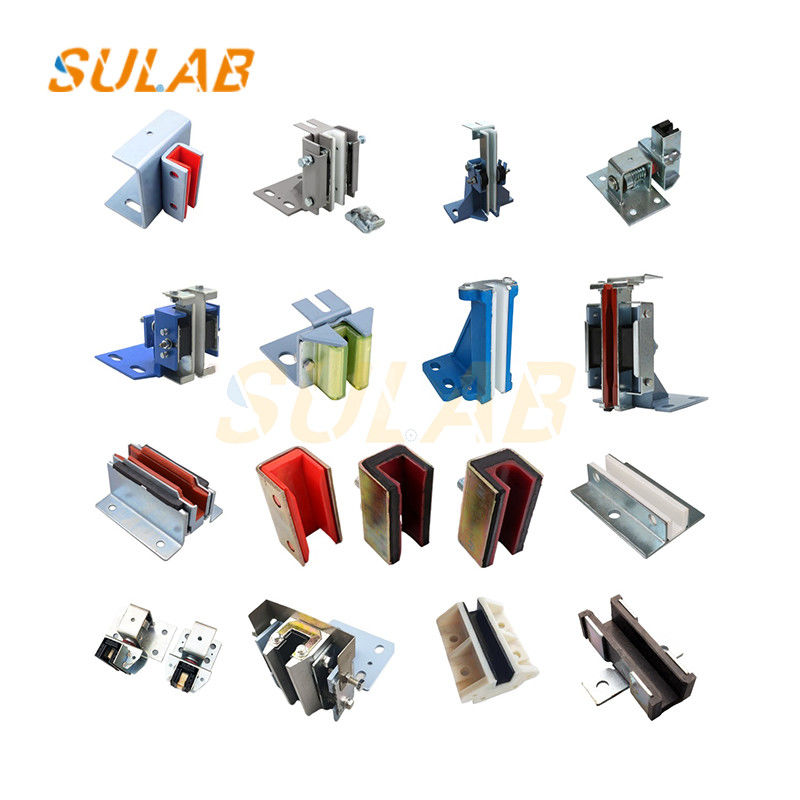

1. Types and Adaptation

There are sliding guide shoes and rolling guide shoes, suitable for different elevator speeds and load capacities. For example, sliding guide shoes (fixed/elastic types) are commonly used in low - speed elevators, while rolling guide shoes are mostly used in high - speed elevators, which can reduce friction and improve comfort and efficiency. Like the Kone car roller guide shoes RG series, they correspond to different specifications of guide rails.

Brand	Kone
Description	Elevator guide shoe
Model	None
MOQ	1PC
Transportion	TNT, UPS, DHL, Fedex, Air, Sea
Applicable	Elevator
Packages	Carton, Wooden case, Pallet etc
Delivery Time	Normally 2-3 working days after payment
Warranty	One year
Payment Method	Company Bank, Western union, alibaba, Paypal etc

2. Selection Points

Select according to the elevator speed, load capacity and guide rail type. Rolling guide shoes are selected for high - speed and high - load elevators; sliding guide shoes are selected for low - speed elevators, and meanwhile, match the guide rail dimensions (such as the inner diameter parameters of the shoe liner).

3. Installation and Commissioning

During installation, ensure the accurate position of the guide shoes and guide rails, for example, the "three - point in a line" of the upper and lower guide shoes and the center of the safety gear jaw; commission the gap between the guide shoes and the guide rails. For sliding guide shoes, adjust the side and top gaps as required; for rolling guide shoes, adjust the gap between the rollers and the guide rails to ensure stable operation.

4. Maintenance

Regularly check for wear (shoe liners, rollers, etc.) and looseness; lubricate sliding guide shoes on time and prevent grease contamination of the rollers for rolling guide shoes; replace shoe liners with excessive wear and damaged rollers in a timely manner, and adjust abnormal gaps.

5. Common Problems

Operation Vibration: It may be due to large gaps of guide shoes or wear of shoe liners. Adjust the gaps and replace the shoe liners.
Abnormal Noise: It may be due to insufficient lubrication or component wear. Supplement lubrication and replace components.
Guide Shoe Falling - off: It may be due to installation, fixing problems or component aging. Professional inspection and repair are required.

For different models of Kone elevators, the specific parameters and maintenance details of guide shoes may vary. In practice, operation should be combined with the elevator configuration and the manufacturer's instructions.
