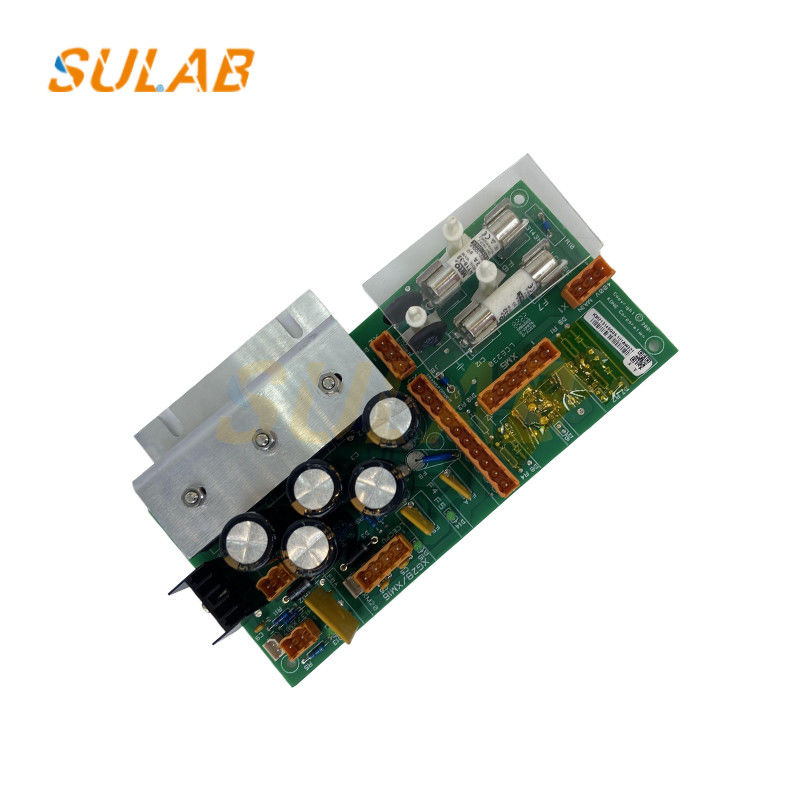

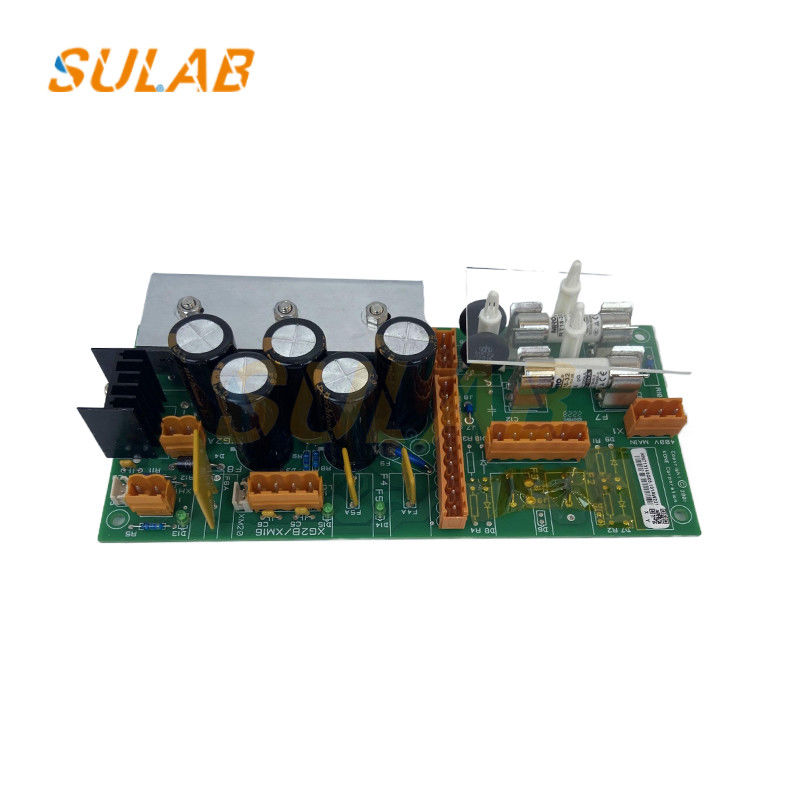

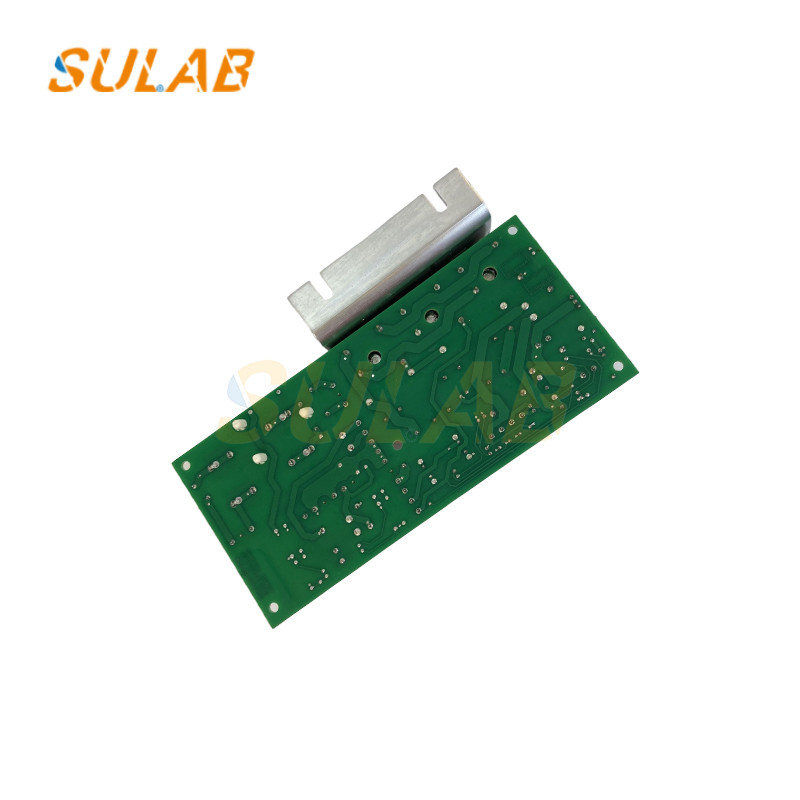

KONE Elevator Accessories Power Board Elevator Control Cabinet Power PCB Board Elevator Spare Parts
Functions
Power conversion and distribution: convert and stabilize the input power to provide stable and appropriate voltage for various components of the elevator, such as the car control system, door machine system, safety circuit, etc., to ensure that these components can work normally.
Signal processing and transmission: not only responsible for power supply, but also for processing and transmitting some power-related signals, such as power status indication signal, fault alarm signal, etc., so that the elevator control system can monitor the working status of the power board in real time.
Protection function: It has overcurrent protection, overvoltage protection, undervoltage protection and short circuit protection. When the power supply is abnormal, it can cut off the power supply in time or take other protective measures to prevent the elevator components from being damaged due to power problems.
| Brand | SULAB |
| Description | Elevator parts |
| Model | KM713140G05 |
| MOQ | 1PC |
| Transportion | TNT, UPS, DHL, Fedex, Air, Sea |
| Applicable | Elevator |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, alibaba, Paypal etc |
Common faults and repairs
Abnormal power output: The voltage output by the power board is unstable, too high or too low, causing abnormal operation of the elevator components. It may be caused by a fault in the voltage stabilization circuit on the power board, capacitor damage, transformer failure, etc. During maintenance, professional tools and instruments, such as a multimeter, oscilloscope, etc., are required to detect the power board, find the faulty components and replace them.
Fault indicator light: There is usually a fault indicator light on the power board. When a fault occurs, the indicator light will light up. The cause of the fault can be preliminarily determined by checking the status of the indicator light and the fault code of the elevator control system. For example, if a certain indicator light is always on or flashing, it may indicate that there is a problem with the corresponding circuit or component, such as overcurrent, overheating, etc., and then targeted repairs can be performed according to the fault prompts.
Communication failure: There is a problem with the communication between the power board and the elevator control system, which may cause the elevator to fail to operate normally or an abnormal alarm may occur. This may be caused by damage to the communication interface, open or short circuit of the communication line, power board software failure, etc. It is necessary to check whether the communication interface and line are normal, and perform software upgrades or reset operations on the power board.
Q1: How do I identify the correct replacement elevator PCB board?
To identify a replacement elevator PCB board, check the original part number, hardware revision, board markings, and elevator controller model. Clear photos of both sides of the PCB can help distinguish different versions.
Q2: Can elevator PCB boards with similar part numbers be interchangeable?
Not necessarily. Elevator PCB boards with similar part numbers may differ in hardware revisions, firmware, connector layouts, or communication protocols. Compatibility must be verified against the existing elevator system.
Q3: Does a replacement elevator PCB board require programming?
Some replacement PCB boards require firmware configuration, parameter settings, or system-specific programming. Others may already contain the required software. The correct procedure depends on the PCB model and its role in the elevator control system.
Q4: Can a faulty elevator PCB board be replaced without changing the complete control system?
In some cases, an individual PCB can be replaced if the replacement is compatible with the existing controller, firmware, wiring, and connected components. A qualified technician should confirm the fault before deciding on replacement.
Q5: What information should I provide when sourcing a replacement elevator PCB board?
Please provide the original PCB part number, hardware revision, elevator model, clear board photos, and required quantity. SULAB can help review these details and check available replacement options.
