Elevator Components JSO-1253P-12G1.5B Rope Clamp and UKZ-01 Trigger Control Power Box with Matching Electromagnet

Name: Elevator Components JSO-1253P-12G1.5B Rope Clamp and UKZ-01 Trigger Control Power Box with Matching Electromagnet
Brand: Xian Sulab Machinery Co., Ltd.
SKU: JSO-1253P-12G1.5B
Availability: InStock

button button

Get Price Contact Now

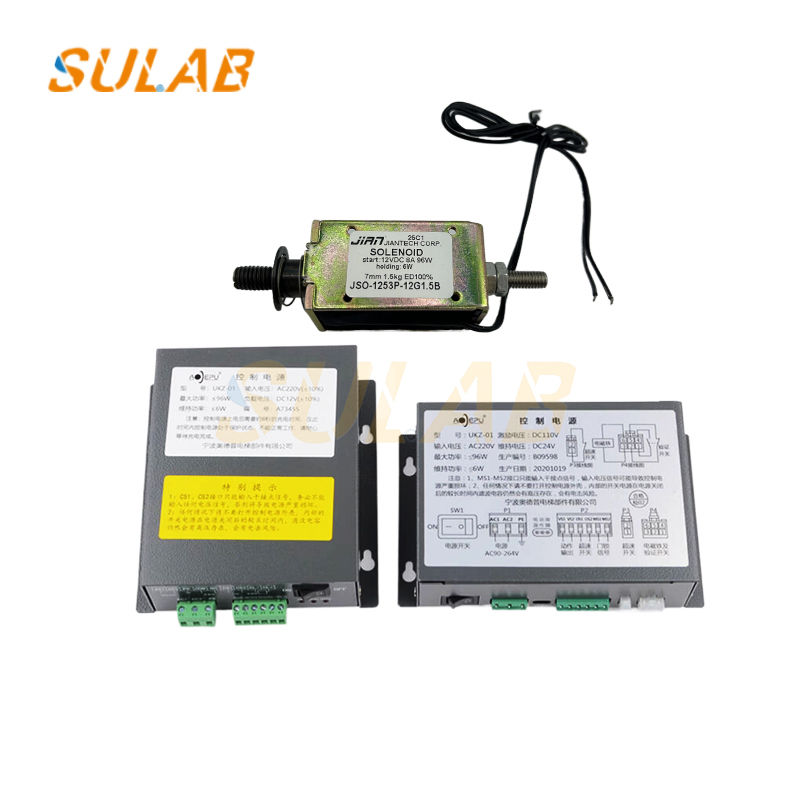

Trigger Control Power Box UKZ-01 Rope Clamp Matching JSO-1253P-12G1.5B Electromagnet

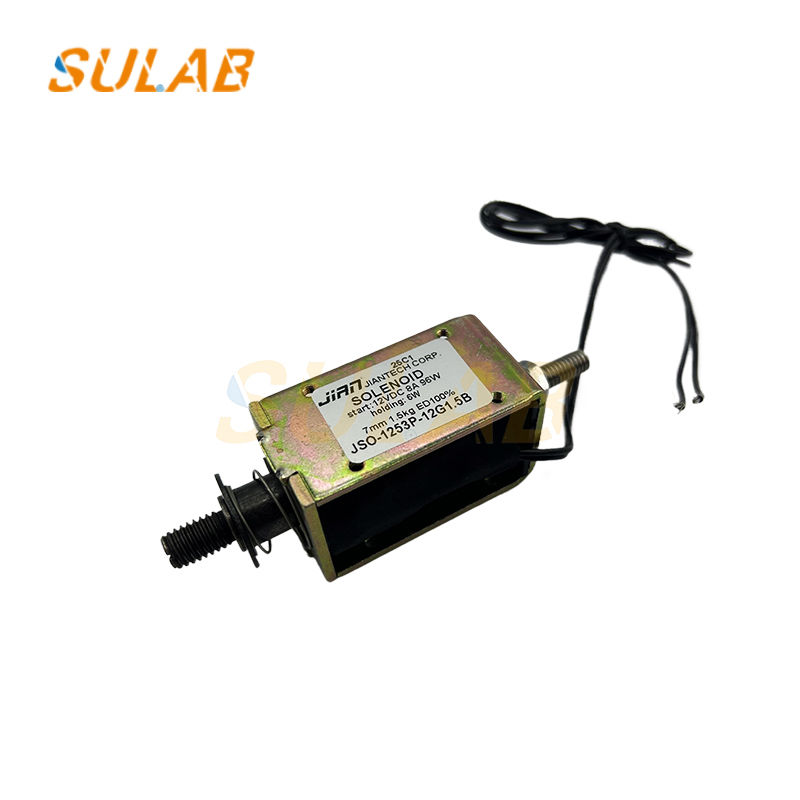

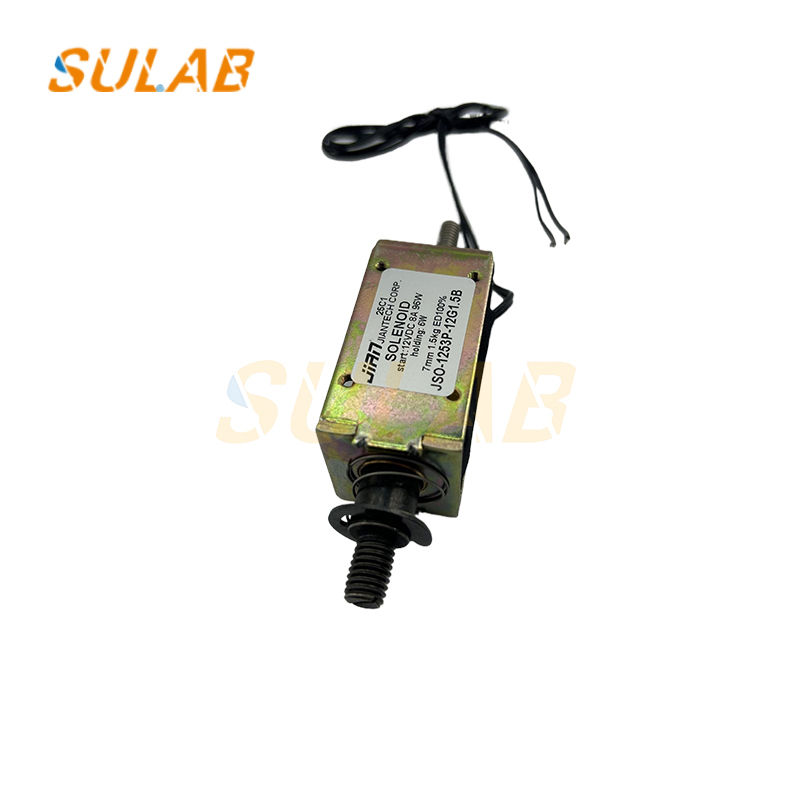

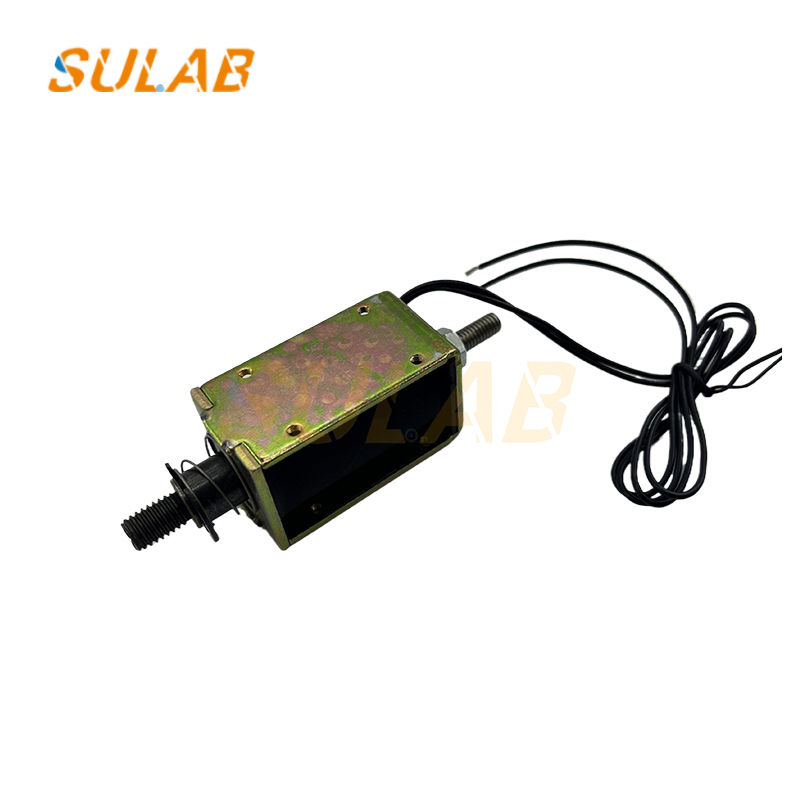

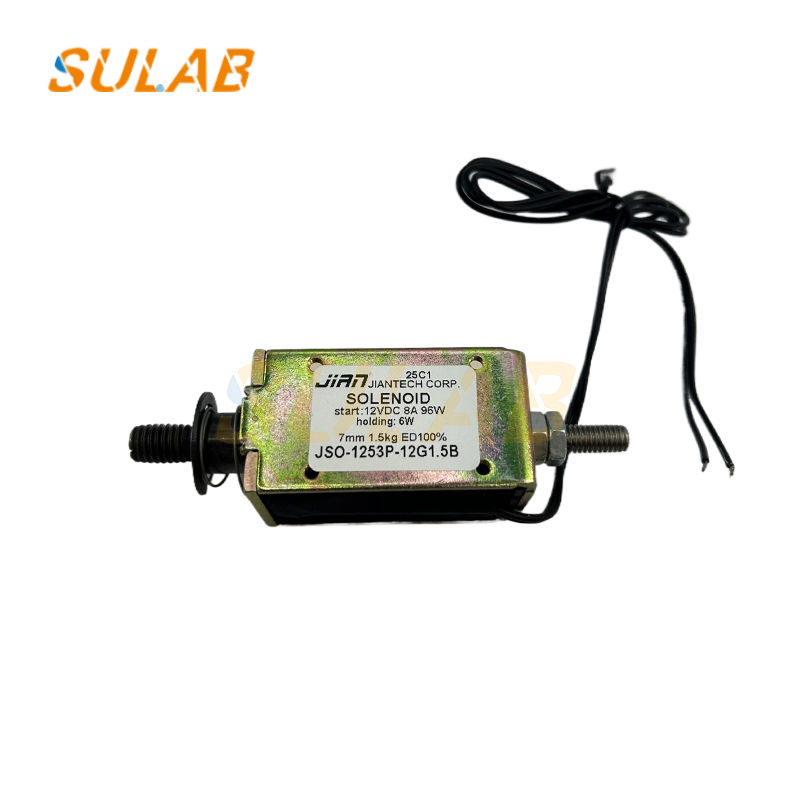

JSO-1253P-12G1.5B is an electromagnet used as an elevator component, specifically designed as a supporting part for the Odep UKZ-01 speed limiter rope gripper control power supply box. The following is a more detailed description:

Functional Role

This electromagnet is primarily applied in elevator systems to coordinate with components such as the OX-250 wire rope brake, achieving functions like Unintended Car Movement Protection (UCMP) and Upward Overspeed Protection (ACOP). When the elevator experiences upward overspeed or unintended car movement, the relevant detection system triggers a signal, causing the electromagnet to actuate. It then clamps the hoisting wire rope through mechanical cables or other mechanisms to restrict the car's movement, ensuring safe elevator operation.

Brand	Sulab
Description	Elevator parts
Model	JSO-1253P-12G1.5B
MOQ	1PC
Transportion	TNT, UPS, DHL, Fedex, Air, Sea
Applicable	Elevator
Packages	Carton, Wooden case, Pallet etc
Delivery Time	Normally 2-3 working days after payment
Warranty	One year
Payment Method	Company Bank, Western union, alibaba, Paypal etc

Working Principle

The electromagnet operates based on the magnetic effect of electric current. When current passes through its coil, a magnetic field is generated, which attracts or pushes related components to actuate, enabling the rope gripper to clamp or release the elevator wire rope for braking or releasing purposes.

Appearance and Installation

As an elevator component, its appearance is designed to meet the installation space requirements within the elevator. It typically features a compact structure for easy installation in relevant locations such as the elevator machine room. Depending on the specific elevator layout, it can be installed in various ways, including vertical installation, inverted installation, or inclined installation.

Technical Parameters

From the model, "12G" may represent certain specification parameters of the electromagnet. Referencing similar models, it might relate to the rated voltage (e.g., the "12G" in the Miki Pulley 125 series clutch/brake corresponds to a rated voltage of DC24V). However, detailed technical parameters of JSO-1253P-12G1.5B, such as rated suction force, working stroke, coil resistance, etc., are not yet elaborated in public information and need to be referred to in the product manual or consulted with the manufacturer.
