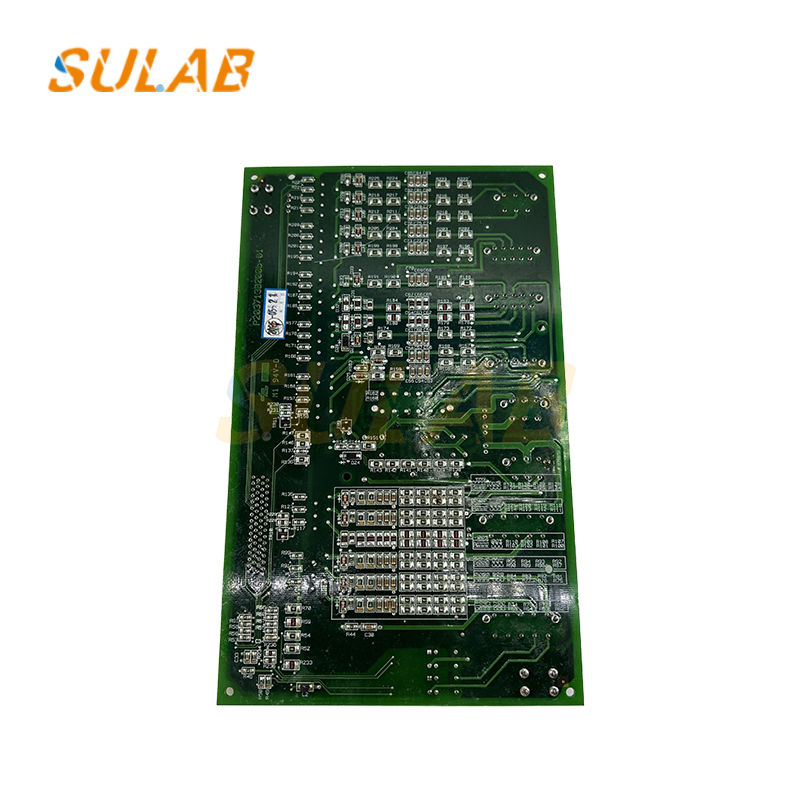

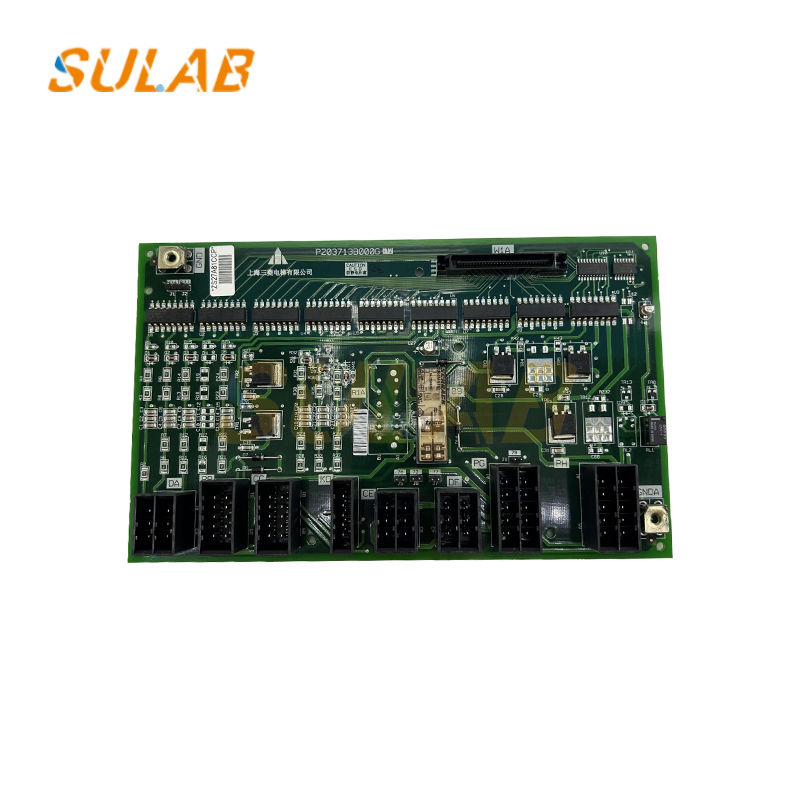

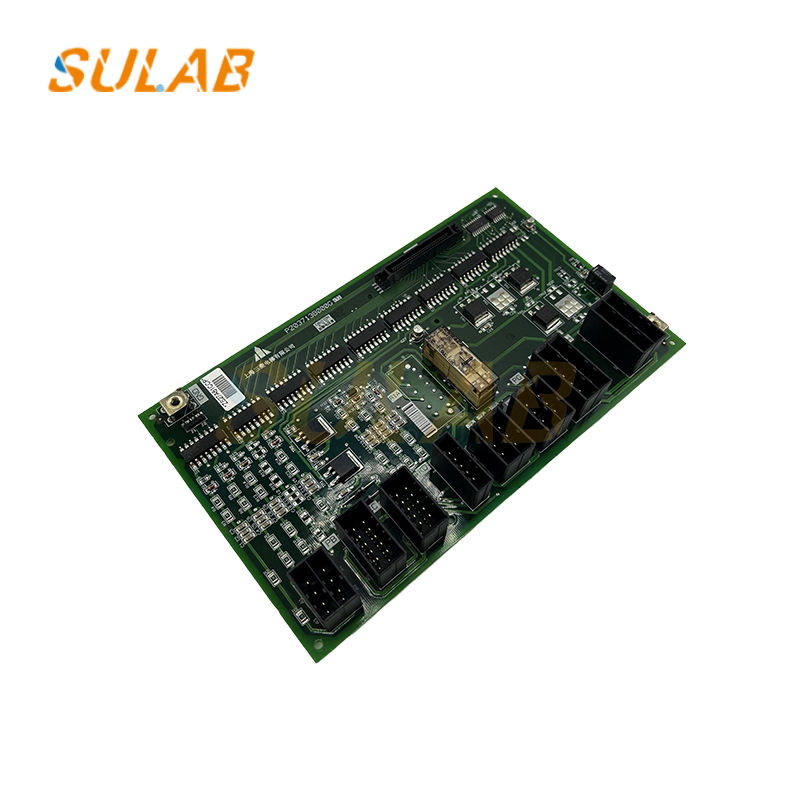

Elevator PCB P203713B000G12 Mitsubishi PCB Board Elevator Parts

 Elevator PCB P203713B000G12 Mitsubishi PCB Board  Elevator Parts

• Technology:

  • Mechanical Roller Type (older models) or Non-Contact Proximity Sensor (modern variants).

  • Adjustable sensitivity for fine-tuning leveling precision.

• Output Signal:

  • Typically a dry contact (NO/NC) or a pulse signal sent to the elevator control unit.

• Mounting: Installed on the elevator car or guide rails, aligned with landing zones.

• Durability: Designed for long-term use in high-vibration environments.

Mechanical Version:

• • A roller arm physically contacts a cam or actuator on the landing, triggering the switch.

• Proximity Version:

  • Uses magnetic/Hall-effect or optical sensors to detect alignment without physical contact.

• Feedback Loop: Sends signals to the elevator controller to adjust motor braking and positioning.
