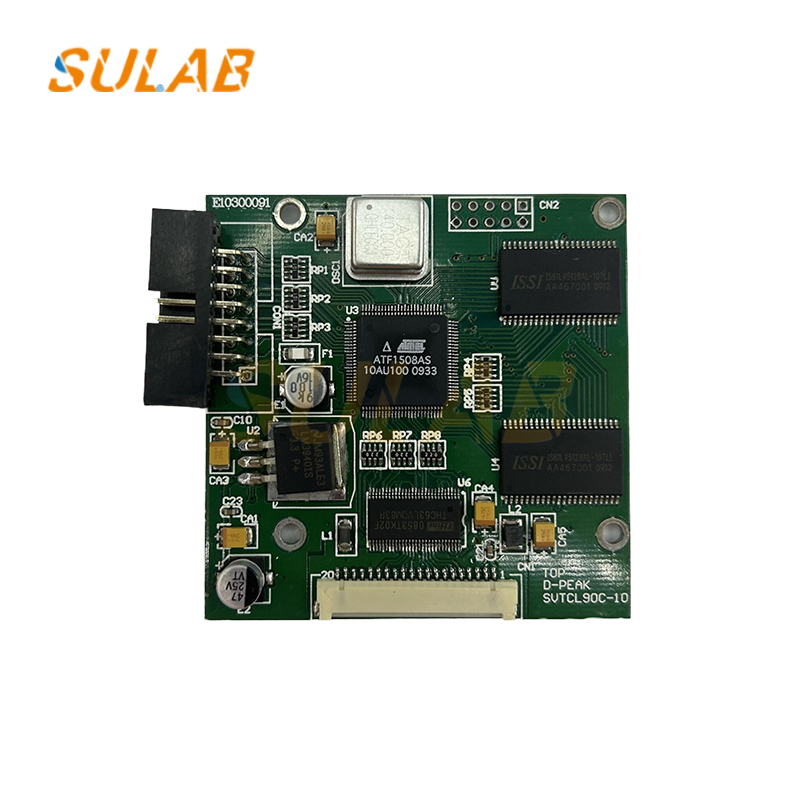

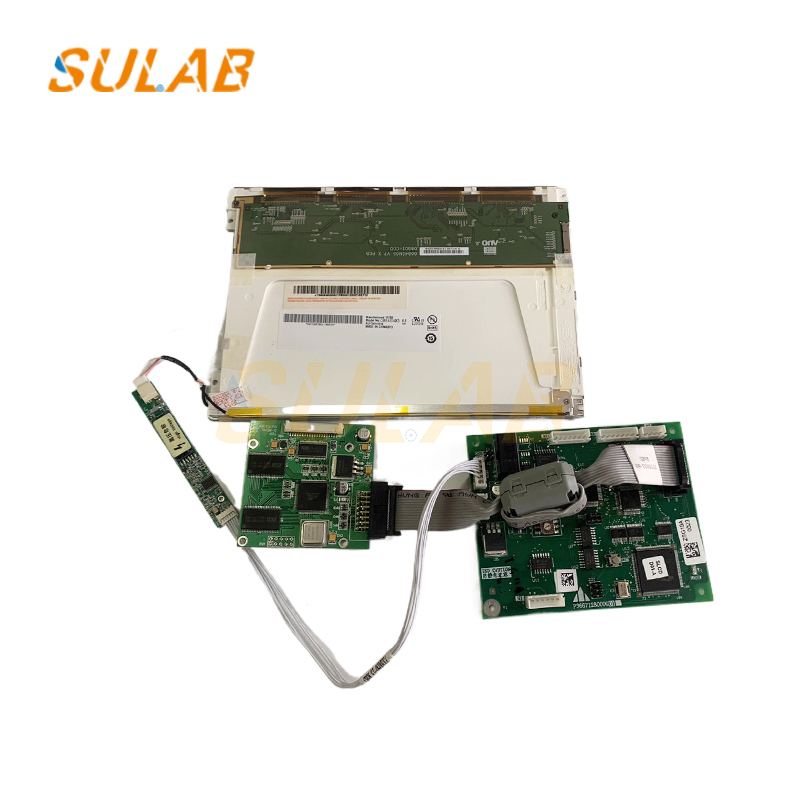

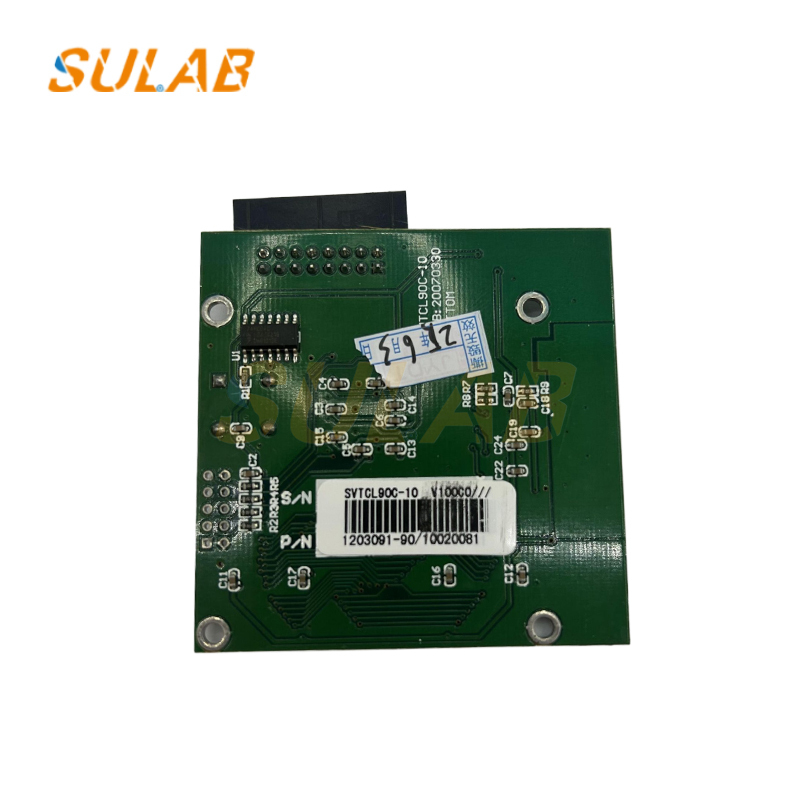

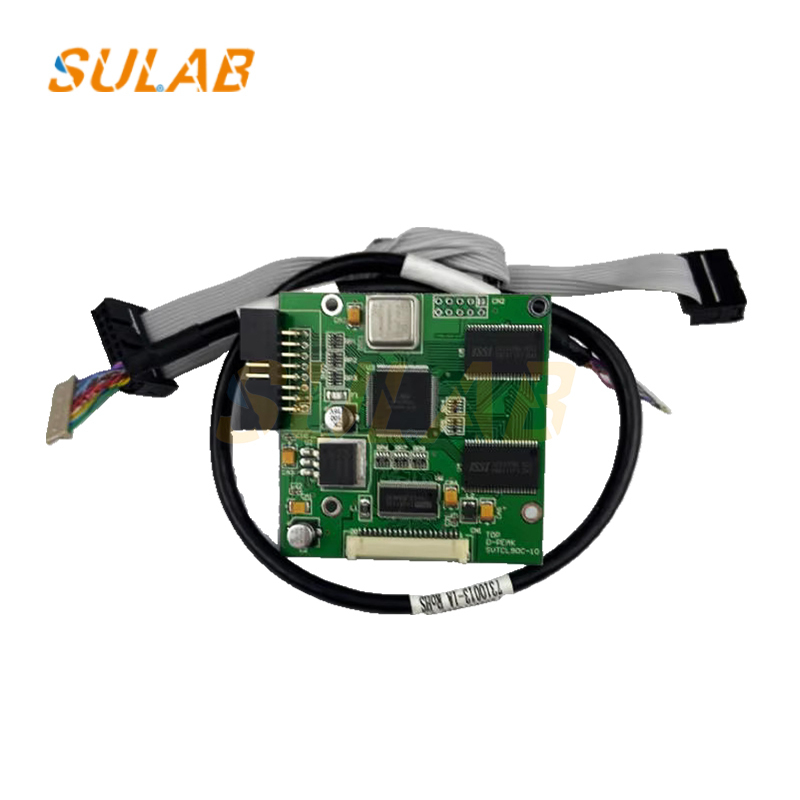

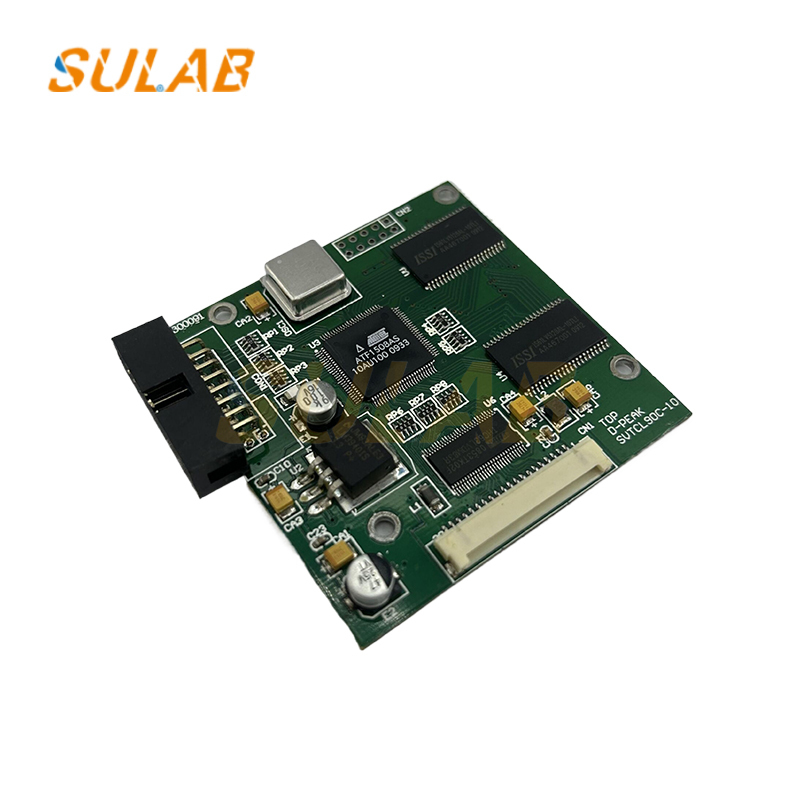

Elevator SVTCL90C-10 Circuit Board Elevator Sparts

Elevator SVTCL90C-10 Circuit Board  Elevator Sparts

The PCB layout must account for signal integrity, thermal management, and manufacturability

Double-sided or multilayer designs are preferred for complex elevator control systems to ensure reliable power distribution and signal routing

Critical components (e.g., MOSFETs, ICs) require proper spacing to avoid interference and ensure heat dissipation

SMT (Surface Mount Technology):

Components are placed on the PCB surface using automated pick-and-place machines

Reflow soldering is used for SMT components, ensuring high precision and reliability

Through-Hole Components (if applicable):

Plug-in parts (e.g., connectors, large capacitors) are inserted and soldered via wave soldering or manual assembly

For mixed SMT/through-hole designs, selective wave soldering with protective fixtures may be required
