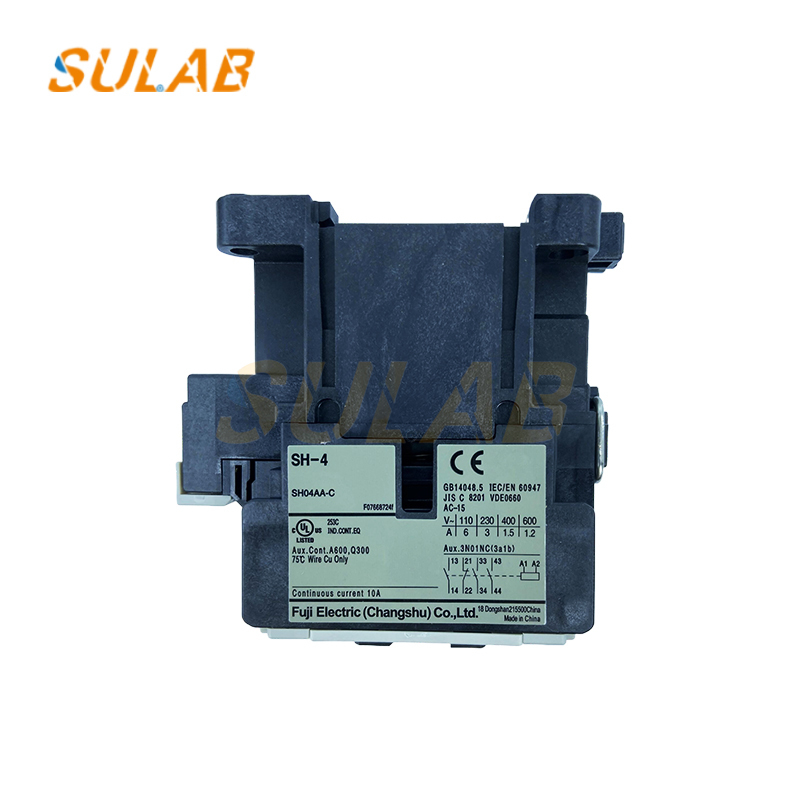

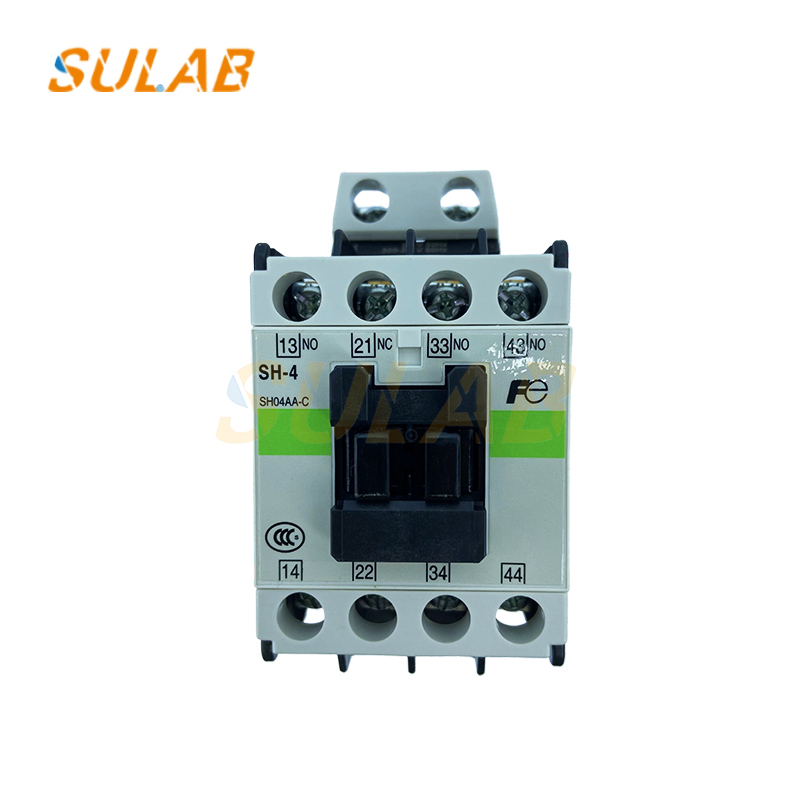

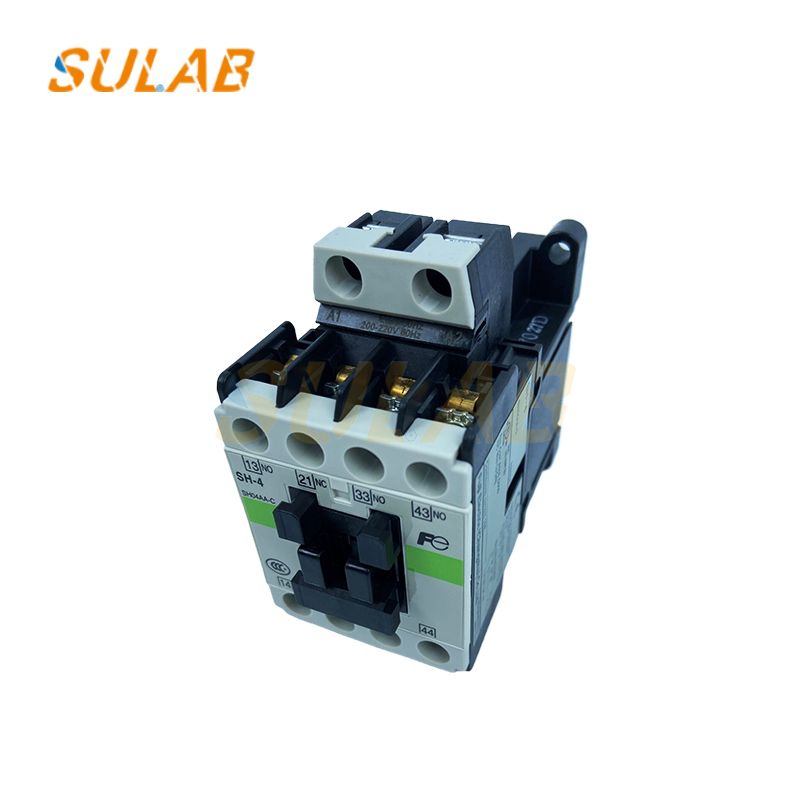

Original Fuji Contact Relay SH-4 SH-4/G DC AC110V DC110V 24V 220V

Original Fuji Contact Relay SH-4 SH-4/G DC AC110V DC110V 24V 220V

• Product Application: It is mainly used in freight elevators and passenger elevators, and can also be widely applied in industries such as electric power, construction, industry, transportation, and data centers.
• Drive Mode and Rated Load: The drive modes include DC and AC, with a rated load of 1000kg.

• Rated Speed and Contact Configuration: It has various specifications for rated speed, such as AC220V 2a2b, DC110V 2a2b, AC220V 4a, DC24V 3a1b, AC110V 2a2b, DC24V 2a2b, etc.
• Appearance and Installation Method: The overall dimension conforms to the DIN96×96 standard. It adopts a self-locking installation structure, which can be installed without screw fixation, making it convenient and quick. It can also be installed with screws or guide rails.
• Functional Features: It adopts a multi-functional combined module structure and can be equipped with auxiliary contact modules. For large currents, DC modules are used to maintain the pull-in state, which can save electric energy. Its main contact system has a unique structure, with less contact wear and high electrical life. The electromagnetic system works reliably with low loss, low noise, and high mechanical strength. In addition, the closed arc-extinguishing chamber has a small arcing distance.
