Modern Elevator PCB Door Machine Board Elevator Board Elevator Accessories 204C2401H13M33 BD

Modern elevator PCB door machine board elevator board elevator accessories 204C2401H13M33 BD

Mainboard: It is the core control device of modern elevators. Its main functions include operation control, such as controlling the elevator's up, down, parking, and door opening and closing operations; safety protection, such as monitoring the elevator's speed, weight, balance and other parameters to ensure the elevator's safe operation and take protective measures in case of failure; fault detection, which can detect the working status of each component of the elevator, find faults and alarm; communication function, which can communicate with buttons, displays, access control systems and other equipment in the elevator shaft to realize the interaction between passengers and elevators.

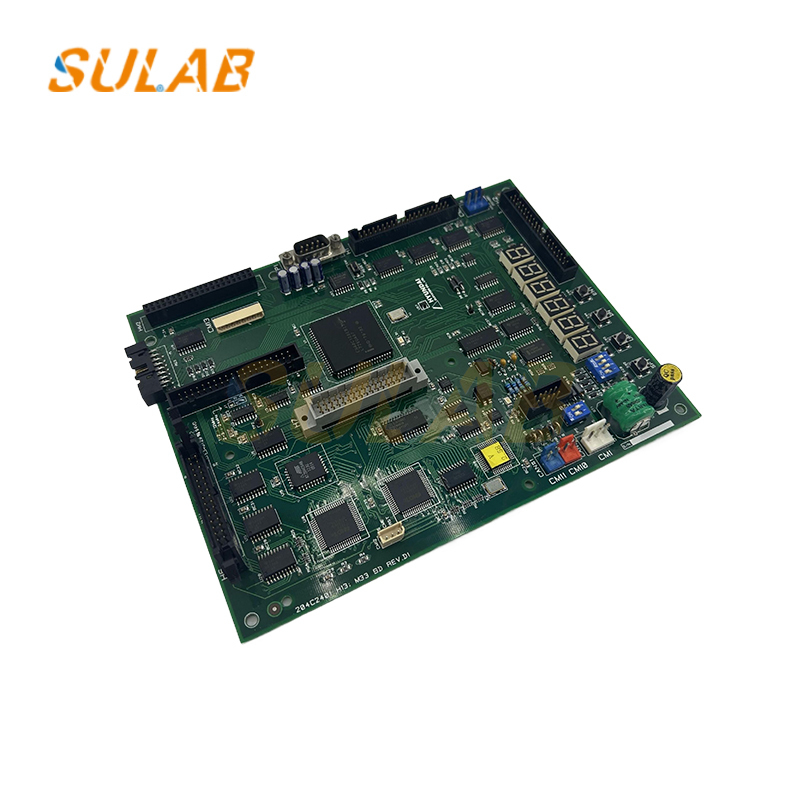

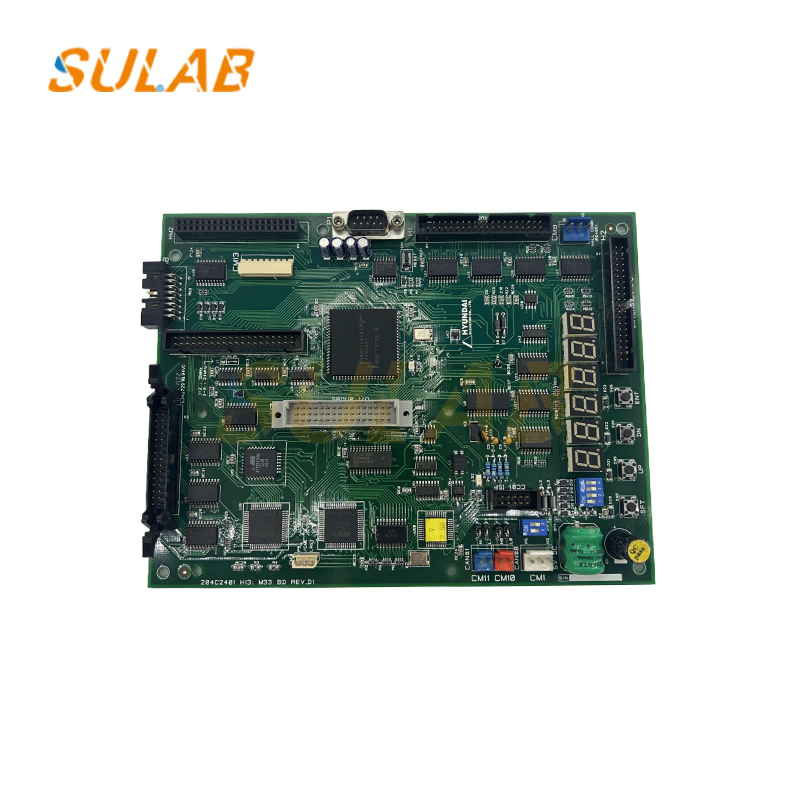

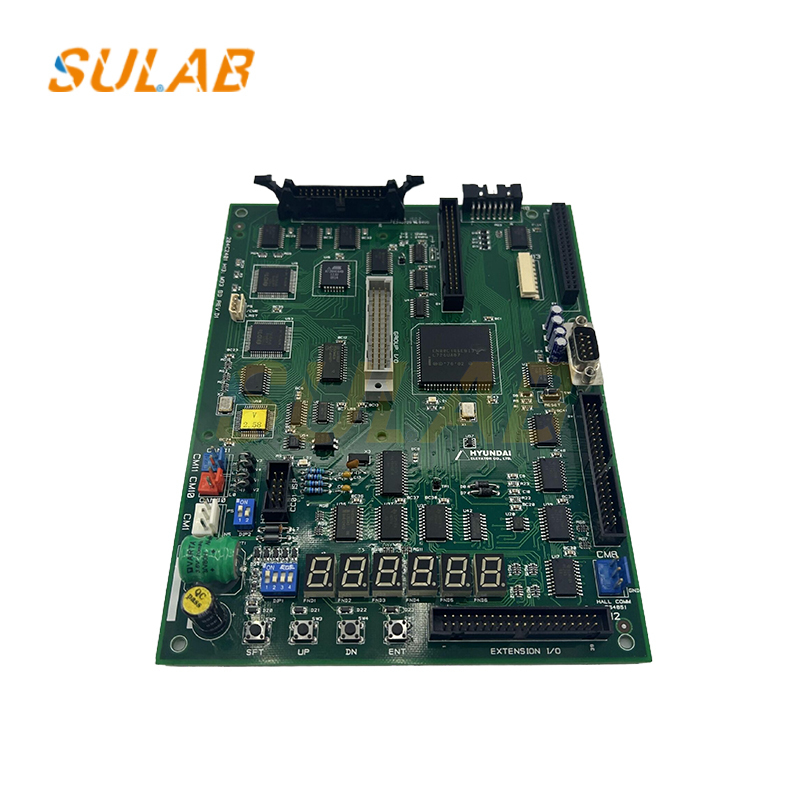

For example, the board with the model number "H13 M33 BD REV.D1" is a mainboard of a modern elevator. In the Shanghai Modern STVF5 elevator, the M33 board has an LED for displaying the status. The I/O signal status can be checked by setting the DIP card.
