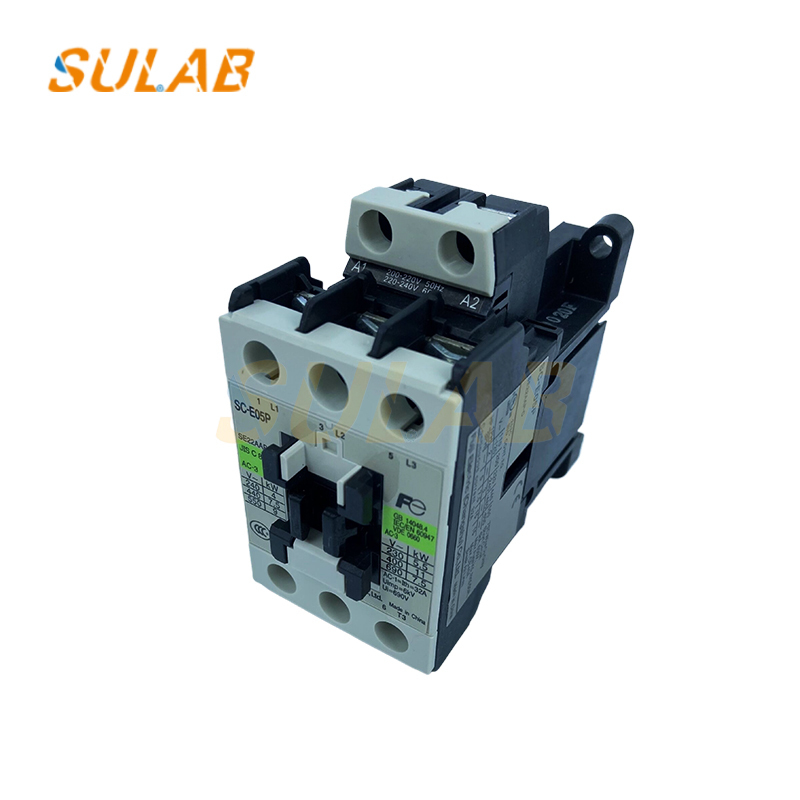

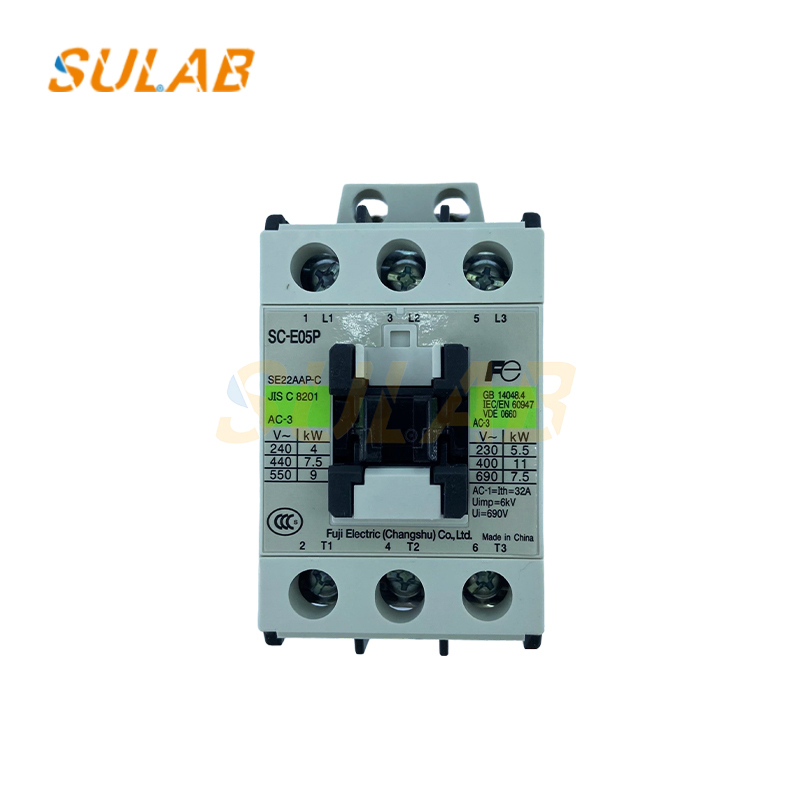

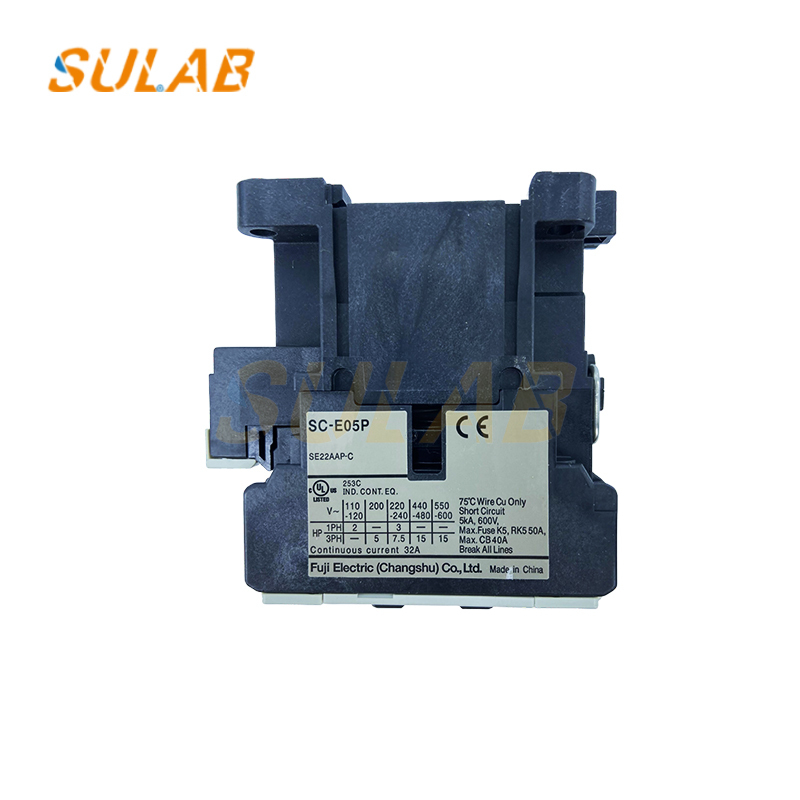

Fuji Elevator Contactor Brand New Genuine Fuji AC Contactor Elevator AC Contactor Model SC-E05P

Fuji elevator contactor brand new genuine Fuji AC contactor elevator AC contactor model SC-E05P

Basic parameters
Rated working current: Under the AC-3 usage category, the rated working current corresponding to different voltages is different, such as 2.2A at 220V, 4A at 380V, and 5.5A at 660V.
Rated control power: Under the AC-3 category, 2.2kW at 220V, 4kW at 380V, and 5.5kW at 660V.
Rated working voltage: The rated insulation voltage is below 1000V, suitable for AC 50Hz or 60Hz circuits.
Electrical life: 1 million times.
Mechanical life: 10 million times.
Wiring capacity: The main circuit can be connected to 1 single-core wire or multi-strand wire of 0.75-4mm², or 2 wires of 1-4mm², and the terminal screw size is M4; the control circuit and auxiliary circuit can be connected to 1 single-core wire or multi-strand wire of 0.75-2.5mm², or 2 wires of 0.75-2.5mm², and the terminal screw size is M3.5.

Structural features: Three arc extinguishing methods are commonly used: double-break electric arc extinguishing, longitudinal arc extinguishing and grid arc extinguishing. The electromagnetic system works reliably, with low loss and noise, and has high mechanical strength. The vertical inclination angle of installation is ±22.5 degrees.

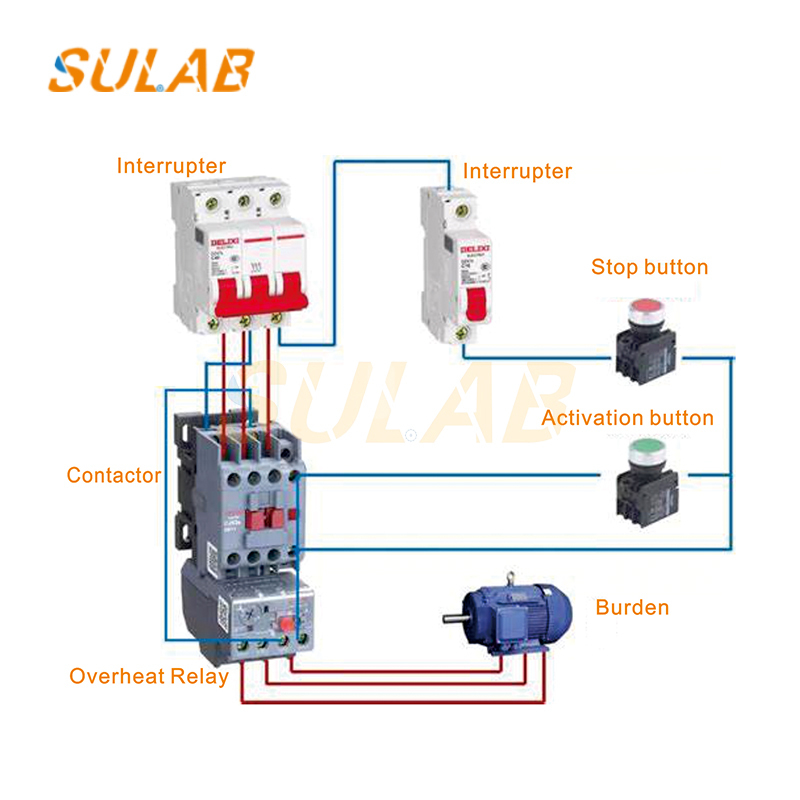

Functional use: It is suitable for power systems with rated insulation voltage below 1000V and rated working current up to 800A, for long-distance connection and disconnection of circuits and frequent starting and control of AC motors, and can be combined with appropriate thermal relays to protect circuits that may be overloaded. It can also be used in low-voltage reactive power compensation electrical equipment with a rated working voltage of 400V and a rated working current of up to 87A under the AC-6B use category to adjust the power factor cosφ value of the power system.
