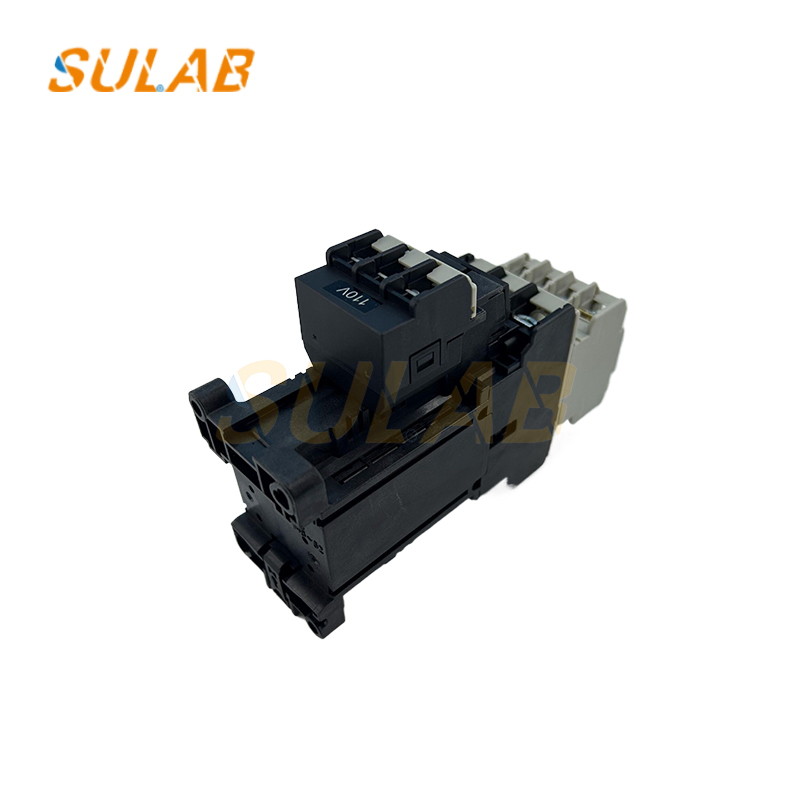

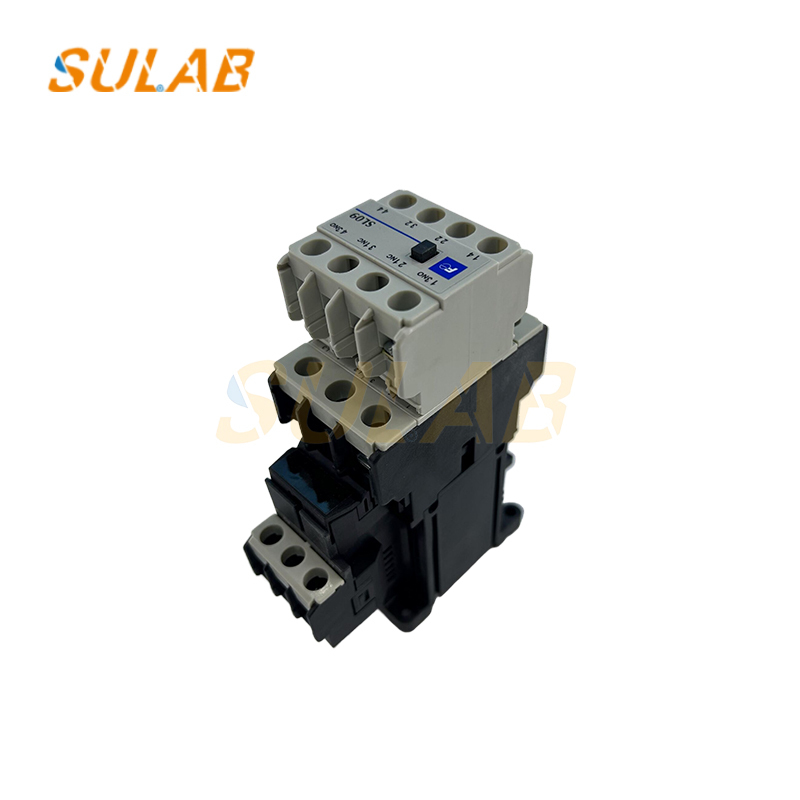

SULAB SL09 Silent Three-Phase Contactor for Elevators

Original Elevator Brake Silent Contactor Hot Selling Three-phase Contactor Price Contactor Original  SL09

Models and Parameters

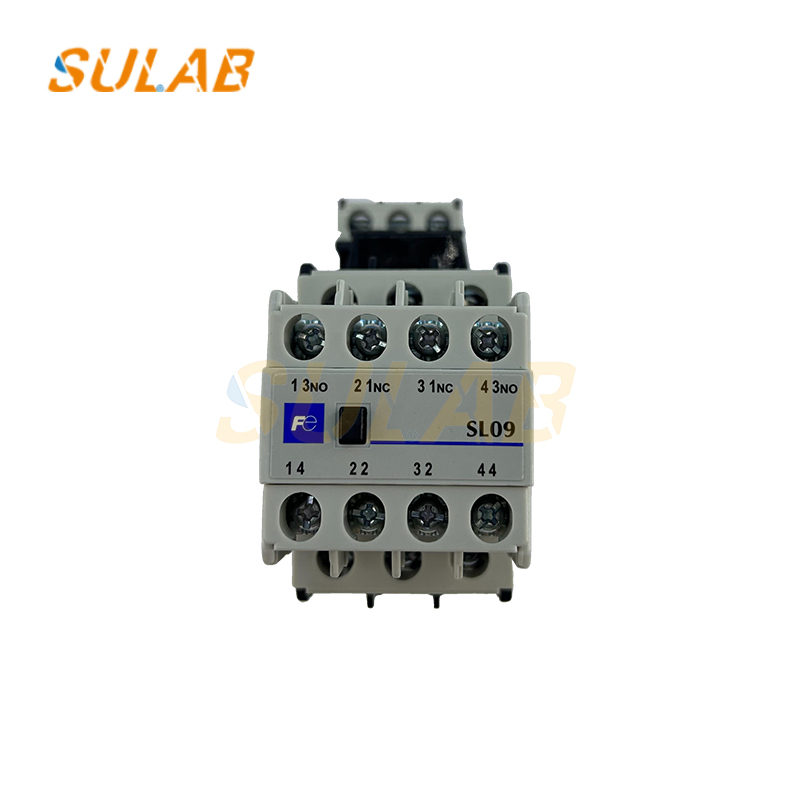

Auxiliary contact configuration: Available in two types: SL09-□11 (1NO+1NC, i.e., 1 normally open auxiliary contact and 1 normally closed auxiliary contact) and SL09-□22 (2NO+2NC, i.e., 2 normally open auxiliary contacts and 2 normally closed auxiliary contacts).
Coil voltage: Available in various specifications, including 24V (E), 48V (F), 100V (I), 110V (H), 200V (2), 220V (M), and 240V (P).
Rated operating current: Under AC-3 utilization category, the rated operating current is 9A, and the agreed free air thermal current is 20A.
Control coil characteristics: When the coil voltage is 110V 50Hz, the electromagnet capacity is 7.5VA; when the coil voltage is 110V DC, the electromagnet capacity is 7W. The operating voltage fluctuation range is 85%-110% of the rated voltage.

Features
Low Noise: Switching noise is significantly reduced, by 10-15dBA compared to existing Fuji Electric products. This makes it suitable for applications requiring minimal noise, such as hospitals, libraries, art galleries, museums, and cinemas.
AC/DC Dual-Use: The control coil can operate with both AC and DC power supplies, facilitating its use in various power systems.
Built-in Surge Absorber: The built-in surge absorber effectively protects the coil from surges, extending the contactor's lifespan.
