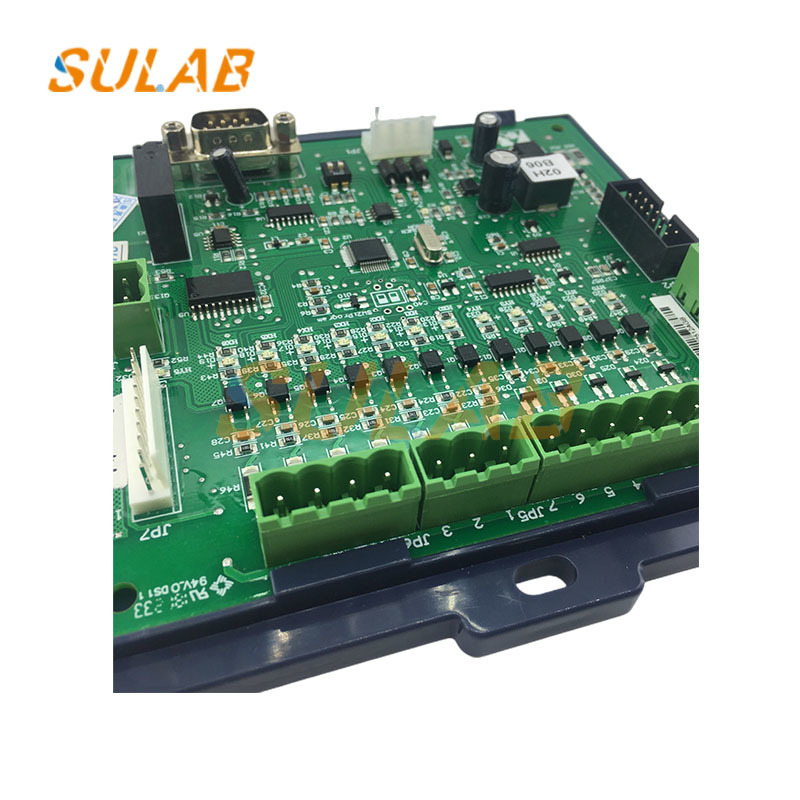

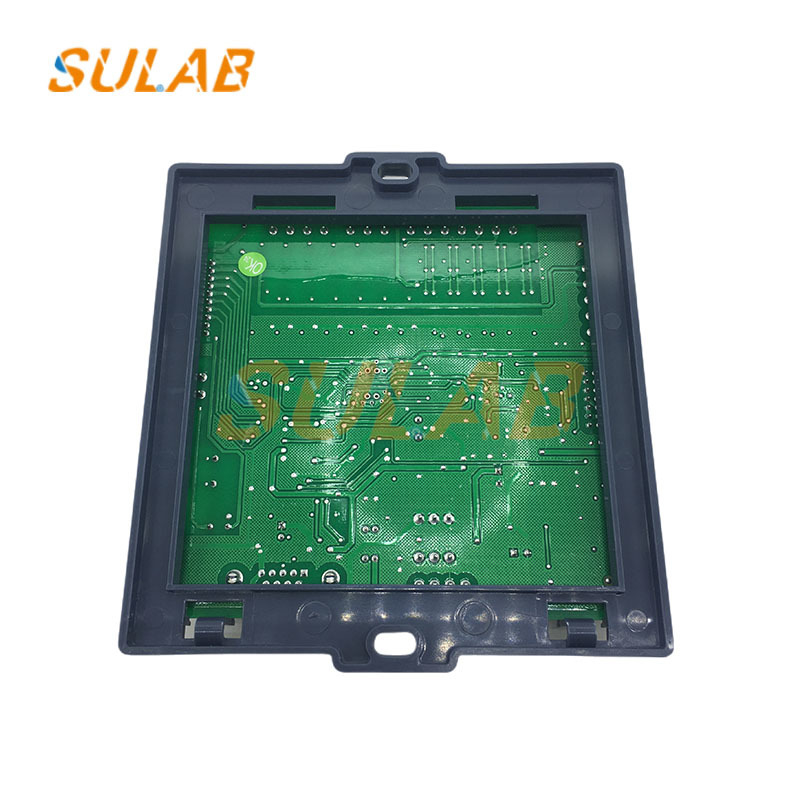

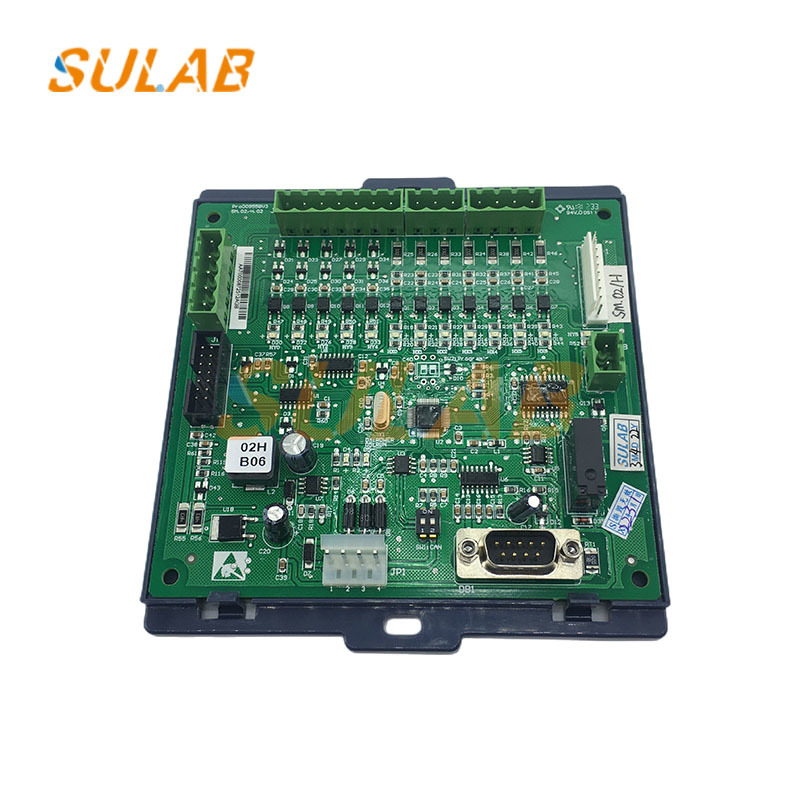

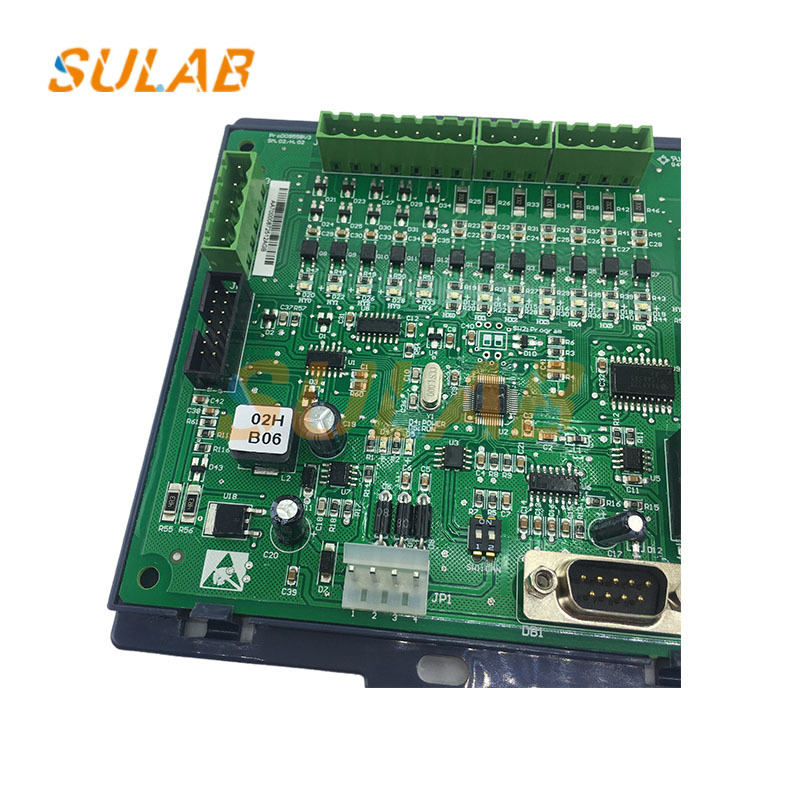

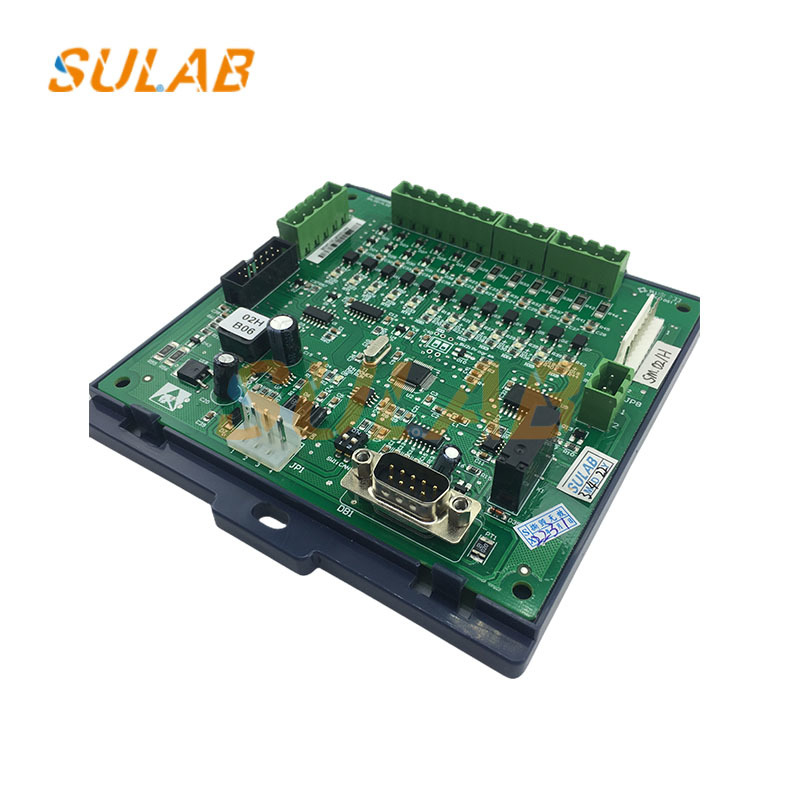

STEP SM.02/H Elevator Car Top Control Board with CANBUS Communication

Brand Name: STEP
Model Number: SM.02 H
Minimum Order Quantity: 1
Delivery Time: 2-3 working days
Payment Terms: T/T,Western Union,
Inquiry Now
Get A Quote
Specifications
Highlight Features

elevator car top control board

,

CANBUS elevator control board

,

STEP SM.02/H control board

Brand:
STEP
Description:
Elevator Board
Model:
SM.02 H
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description
STEP Car Communication Board SM.02/E SM.02/G SM.02/H Car Top Board SM-02-D Original
Product Overview

The SM.02/H is an elevator car top control board that plays a critical role in elevator control systems. This original STEP product features advanced communication technology and robust system design for reliable elevator operation.

Key Features
  • Communication: Utilizes CANBUS serial communication to reduce traveling cable requirements and simplify wiring
  • System Design: Minimal system configuration with competitive pricing, using 28-core traveling cable
  • Voice Support: Compatible with serial and parallel voice announcers
  • Signal Management: Handles input/output for door operations, safety contacts, and load indicators
  • Certifications: CE and CSA certified, meeting international safety standards
  • EMI Protection: Excellent anti-electromagnetic interference and anti-static capabilities
Technical Specifications
Brand STEP
Model SM.02 H
Description Elevator board
Minimum Order Quantity 1PC
Warranty One year
Optional Configuration

For expanded rear door functionality, the SM.09IO/B board must be configured. This enables:

  • Output control for rear door opening, closing, and forced closing
  • Input monitoring for rear door position and safety contact plate status
Ordering & Delivery
Shipping Methods TNT, UPS, DHL, Fedex, Air, Sea
Packaging Options Carton, Wooden case, Pallet etc
Delivery Time Normally 2-3 working days after payment
Payment Methods Company Bank, Western union, alibaba, Paypal etc

Elevator PCB Board - FAQ

Q1: How do I identify the correct replacement elevator PCB board?
To identify a replacement elevator PCB board, check the original part number, hardware revision, board markings, and elevator controller model. Clear photos of both sides of the PCB can help distinguish different versions.

Q2: Can elevator PCB boards with similar part numbers be interchangeable?
Not necessarily. Elevator PCB boards with similar part numbers may differ in hardware revisions, firmware, connector layouts, or communication protocols. Compatibility must be verified against the existing elevator system.

Q3: Does a replacement elevator PCB board require programming?
Some replacement PCB boards require firmware configuration, parameter settings, or system-specific programming. Others may already contain the required software. The correct procedure depends on the PCB model and its role in the elevator control system.

Q4: Can a faulty elevator PCB board be replaced without changing the complete control system?
In some cases, an individual PCB can be replaced if the replacement is compatible with the existing controller, firmware, wiring, and connected components. A qualified technician should confirm the fault before deciding on replacement.

Q5: What information should I provide when sourcing a replacement elevator PCB board?
Please provide the original PCB part number, hardware revision, elevator model, clear board photos, and required quantity. SULAB can help review these details and check available replacement options.
