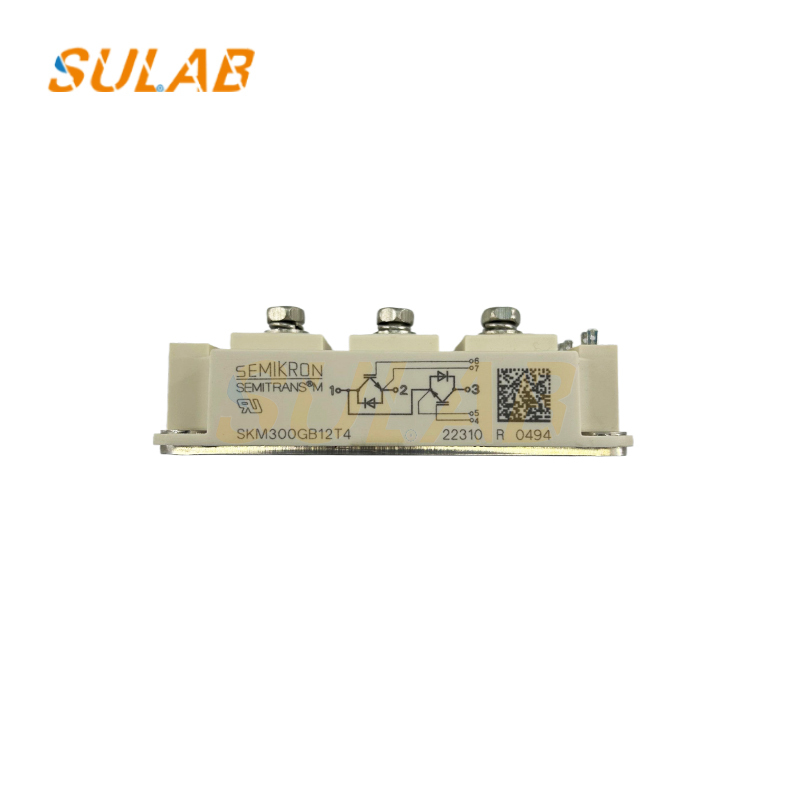

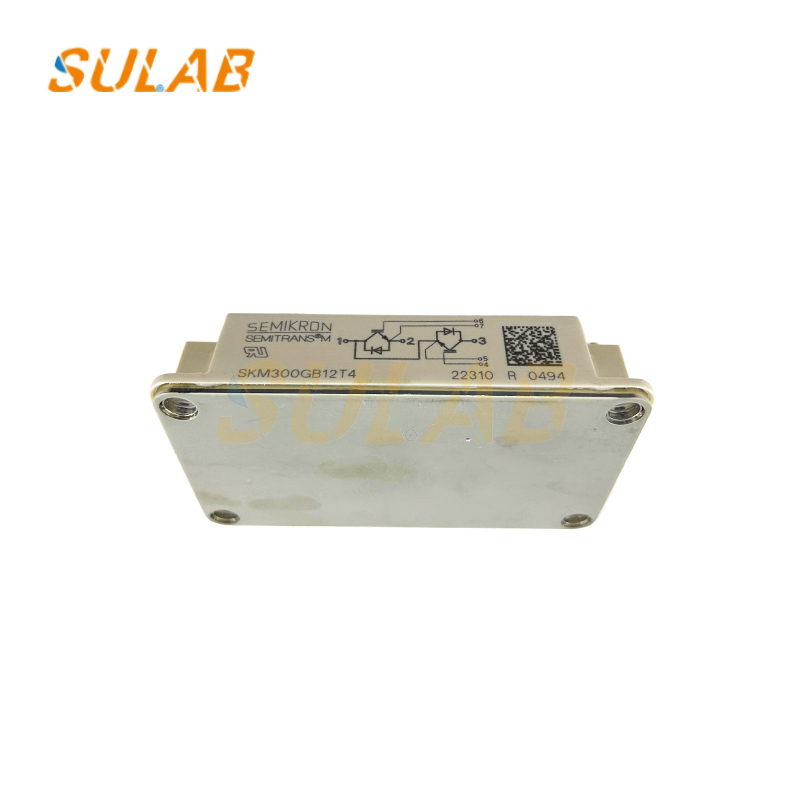

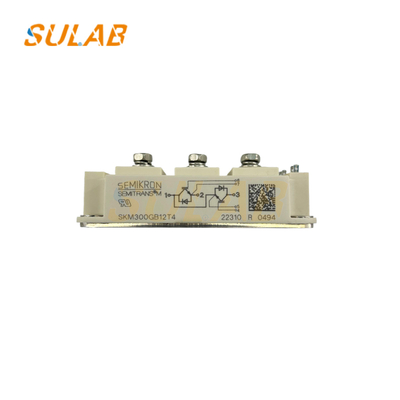

SULAB SKM300GB12T4 IGBT Module for Elevator Drives

Brand New Original IGBT Module SKM Series Suitable For Electronic Components Brand New Power IGBT Module SKM300GB12T4

Basic Parameters: Maximum collector-emitter voltage of 1200V, maximum continuous collector current of 422A, maximum collector-emitter saturation voltage of 1.85V, maximum gate-emitter voltage of ±20V, operating temperature range of -40°C to 150°C, and RoHS compliant.
Technical Features: Utilizing 4th-generation IGBT Fast Trench technology and paired with 4th-generation soft-switching CAL diodes, this device offers high switching speeds, with switching frequencies up to 20kHz. The insulated copper substrate, using direct bonded copper (DBC) technology, improves power cycling capability and heat dissipation, and features a built-in gate resistor for further optimized switching performance.
Package Dimensions: Semitrans 3 package, with dimensions of 106mm × 62mm × 31mm.
Applications: Suitable for AC inverter drives, uninterruptible power supplies (UPS), electronic welding machines, and other equipment, enabling efficient power conversion and control in these applications.

In AC inverter drives, it converts DC power into variable-frequency and variable-voltage AC power to drive AC motors, achieving speed control. It is widely used in industrial automation applications such as inverters and elevator drive systems.
In uninterruptible power supplies (UPSs), it converts battery DC power into AC power when the mains power is interrupted, continuously powering the load and ensuring normal operation. It is commonly used in data centers, hospitals, and other locations with high requirements for power continuity.
In electronic welding machines, it acts as a switching element, enabling precise control of welding current and voltage to meet the requirements of different welding processes, improving welding quality and efficiency. It is suitable for various arc welding and resistance welding equipment.
