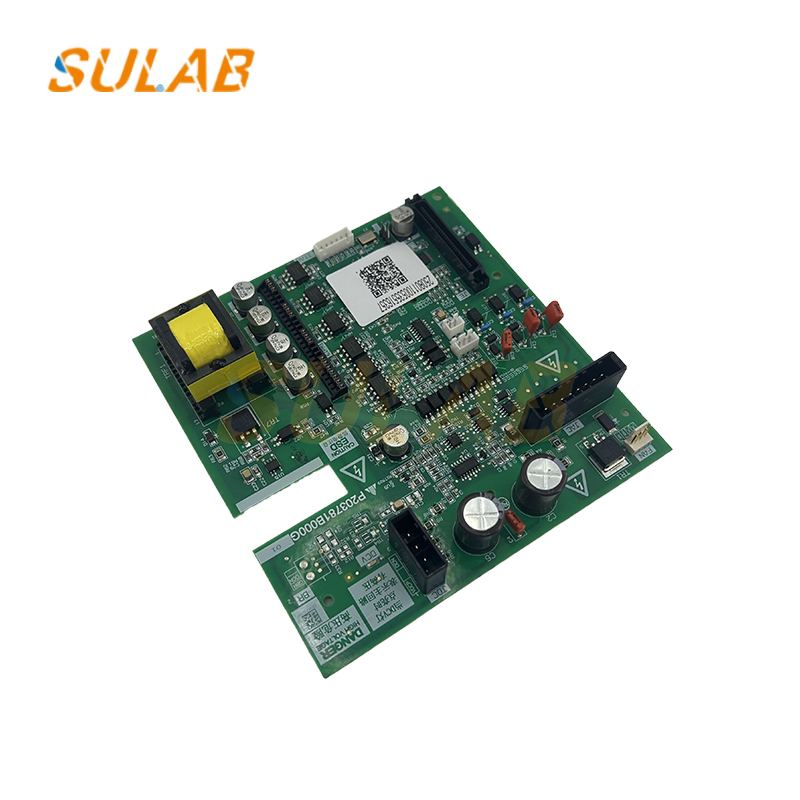

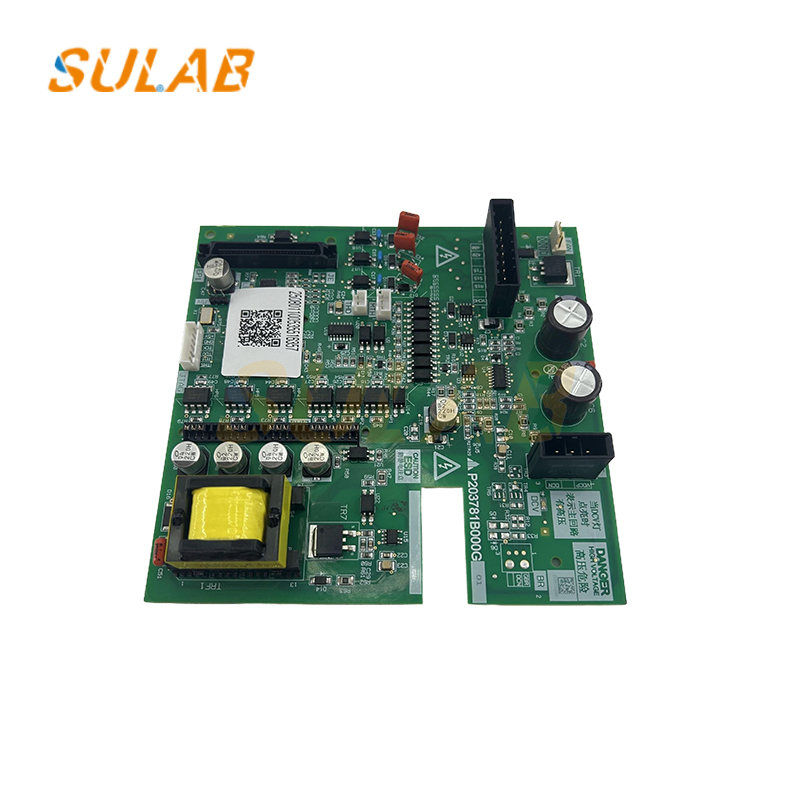

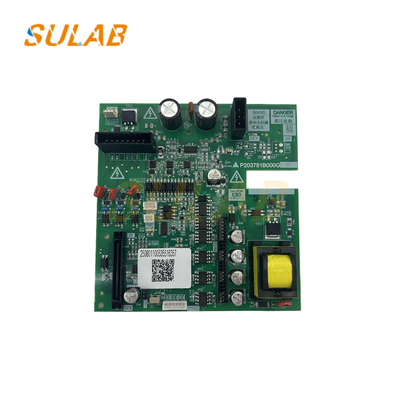

Mitsubishi Elevator PCB Board 7MBP50RE120 for Control Cabinet

Mitsubishi Elevator Parts Elevator PCB Board Elevator Control Cabinet Driver Board New Original Elevator PLC Driver Board P203781B000G01

Signal Conversion and Amplification: The driver board is responsible for converting the weak electrical signals sent by the elevator's main control unit into strong electrical signals capable of driving motors and other high-voltage devices. It also amplifies the signals, enabling the motors to operate precisely according to the main control unit's instructions, enabling the elevator to start, accelerate, decelerate, and stop.

Motor Control: The driver board controls the motor's speed and direction, ensuring the elevator reaches its destination smoothly and accurately. It typically includes multiple driver modules, each responsible for controlling the current output of a single motor phase, thereby achieving precise motor control.

Fault Diagnosis and Protection: The driver board incorporates an advanced fault diagnosis system that monitors the operating status of the driver board and motor in real time, quickly detecting faults such as overcurrent, overvoltage, overheating, and short circuits. It then takes timely protective measures, such as powering off, to prevent further escalation. It also provides fault information to maintenance personnel via indicator lights or communication interfaces, facilitating rapid troubleshooting.

Working in conjunction with other components: The driver board communicates and collaborates with other components in the elevator control system, such as the controller, sensors, and inverter. It receives commands from the controller and, based on sensor feedback such as elevator position and speed, precisely adjusts the motor's operating state, ensuring overall elevator stability and reliability.

Optimizing elevator performance: Different driver board models are suitable for elevators in different speed ranges. The P203781B000G01 driver board may feature higher voltage input support, providing more stable and efficient drive control for medium- and high-speed elevators, optimizing elevator performance and improving ride comfort.
