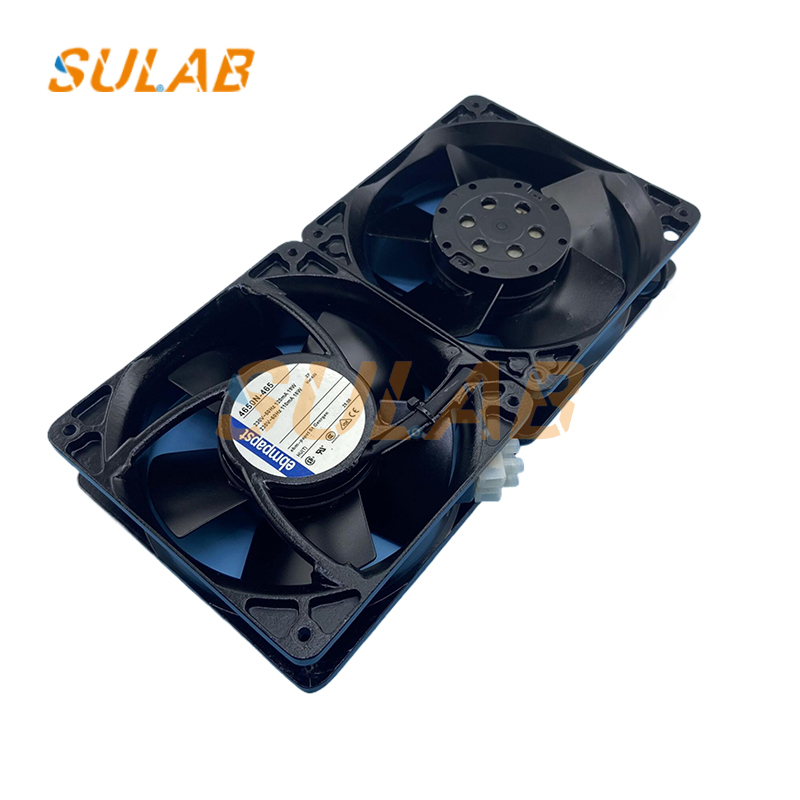

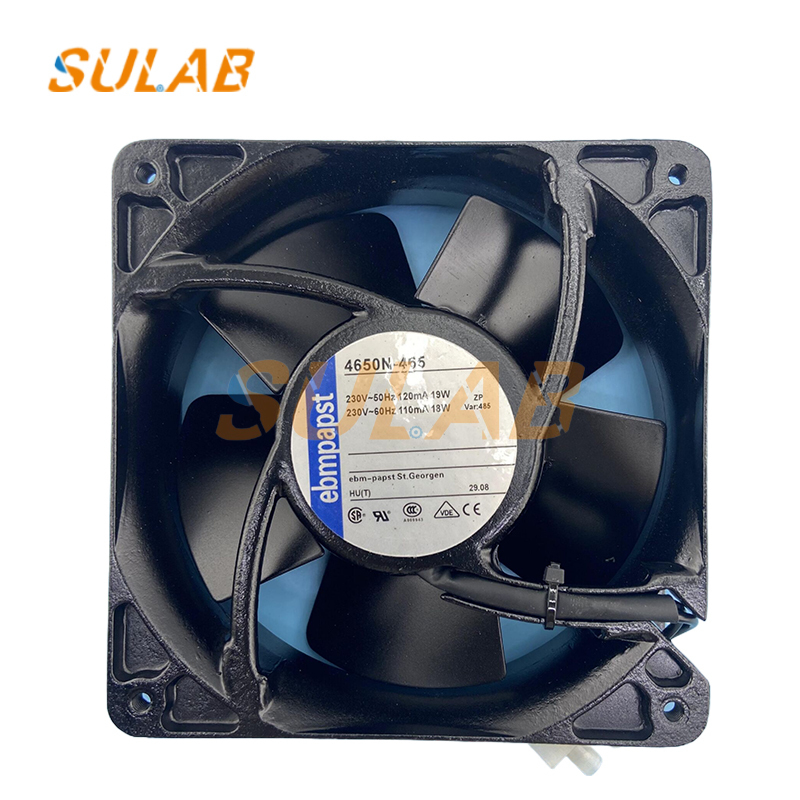

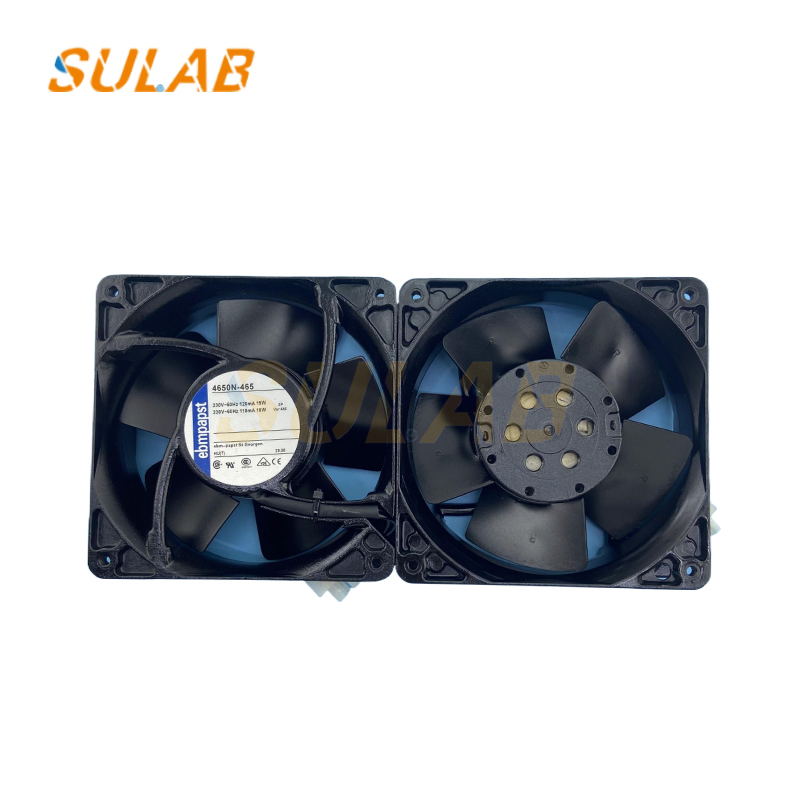

Ebmpapst 4650N-465 AC Axial Fan 230V 160m³/h for Elevator Parts

The Ebmpapst fan model 4650N-465 is an AC axial fan with the characteristics of high efficiency, compactness, and low noise.

• Model: 4650N-465
• Type: Axial fan
• Rated Voltage: 230VAC
• Frequency: 50Hz
• Speed: 2650RPM
• Power: 19W
• Air Flow: 160m³/h
• Noise Level: 46dB(A)
• Dimensions: 119mm×119mm×38mm
• Bearing Type: Sintec sleeve bearing
• Housing Material: Die-cast aluminum alloy

• High Efficiency and Compactness: The fan motor is integrated into the impeller hub, forming a compact fan unit. It adopts an external rotor shaded-pole motor, which is small in size and has an installation depth of only 38mm, making it easy to install in equipment with limited space.
• Low-Noise Operation: The aerodynamically designed blades undergo two-plane dynamic balancing, which effectively reduces noise levels while ensuring air flow, resulting in quiet operation.
• Reliable and Durable: The die-cast aluminum alloy housing is sturdy and durable, with good heat dissipation performance and corrosion resistance. It also has impedance protection to prevent overload and extend the service life of the fan.

It is suitable for various industries such as catering, household appliances, enclosures and cabinets, heating and ventilation, industrial drives, instruments and meters, lighting, medical care, power supplies, printing, telecommunications, etc., and can be used for heat dissipation and ventilation of equipment.
