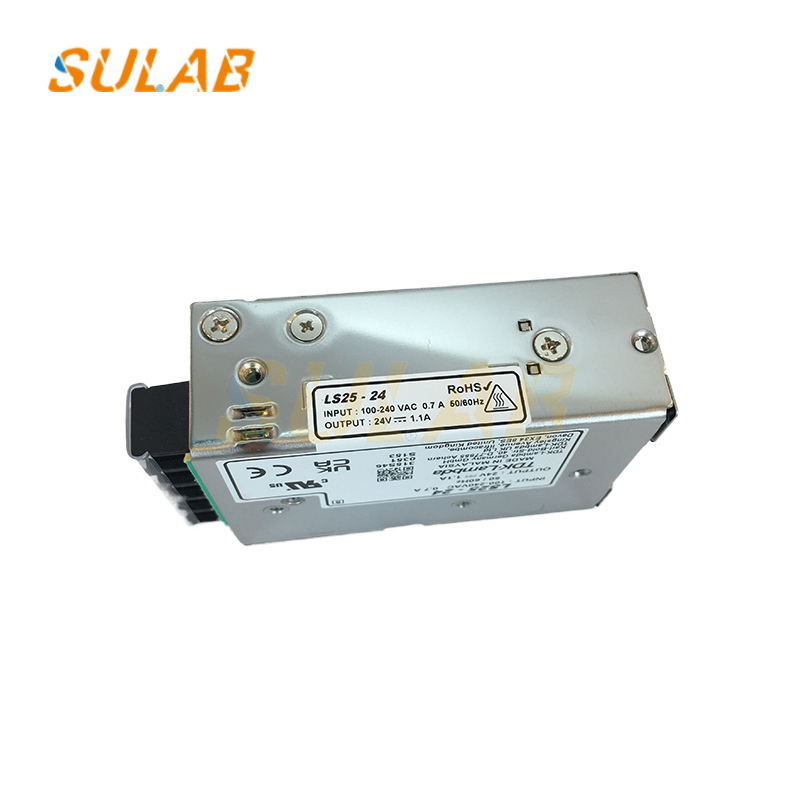

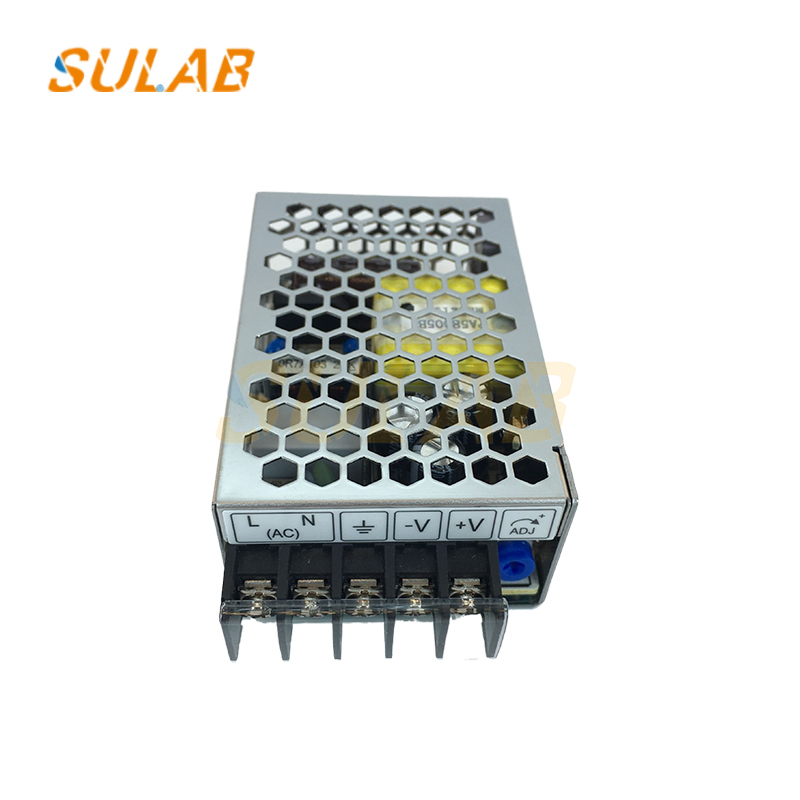

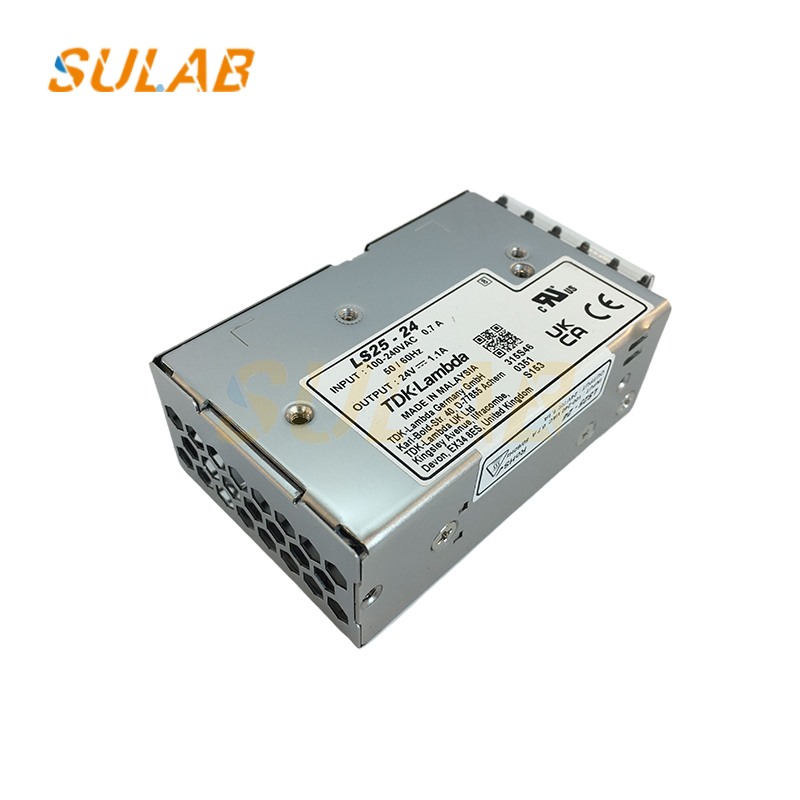

Sulab LS25-24 24V 1.1A Elevator Power Supply
Brand Name:
Sulab
Model Number:
LS25-24
Minimum Order Quantity:
1
Delivery Time:
2-3 working days
Payment Terms:
T/T,Western Union,
Inquiry Now
Get A Quote
Specifications
Highlight Features
24V elevator power supply
,Sulab LS25-24 power supply
,elevator spare parts with warranty
Brand:
Sulab
Description:
Elevator Power Supply
Model:
LS25-24
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description
LS25-24/15/36/48 TDK-Lambda Switching Power Supply Original
Product Overview
The LS25-24 is an AC/DC enclosed power supply manufactured by TDK-Lambda, offering reliable performance in a compact design suitable for various industrial applications.
Basic Information
- Model: LS25-24
- Category: Power Supplies - External/Internal (Non-Board Mount)
- Series: LS
- Manufacturer: TDK-Lambda Americas Inc
- Outputs: 1
- Type: Switching (Enclosed Frame)
Ordering & Shipping Details
| Brand | Sulab |
|---|---|
| Description | Elevator power supply |
| MOQ | 1PC |
| Transportation | TNT, UPS, DHL, Fedex, Air, Sea |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, alibaba, Paypal etc |
Technical Specifications
Electrical Parameters
- Input Voltage: 88V AC to 264V AC
- Output Voltage: 24V DC
- Output Current: 1.1A
- Output Power: 25W
- Efficiency: 84%
Physical Characteristics
- Mounting Type: Chassis Mount
- Dimensions: 78.7mm x 50.8mm x 27.9mm (3.10" L x 2.00" W x 1.10" H)
Features & Benefits
- Operating Temperature Range: -25°C to 70°C (100% load from -25°C to 50°C, derated load up to 70°C)
- Economical and environmentally friendly design with high efficiency
- Strict component evaluation reduces defect rates
- Compact size provides design flexibility
- Ideal for indoor displays, self-service terminals, and vending machines
- Certified to CE, EN, IEC, and UL standards
